Contact for Pricing
Minimum Qty: 2
Multiplier: 1
*Contact for lower quantities*
Overview

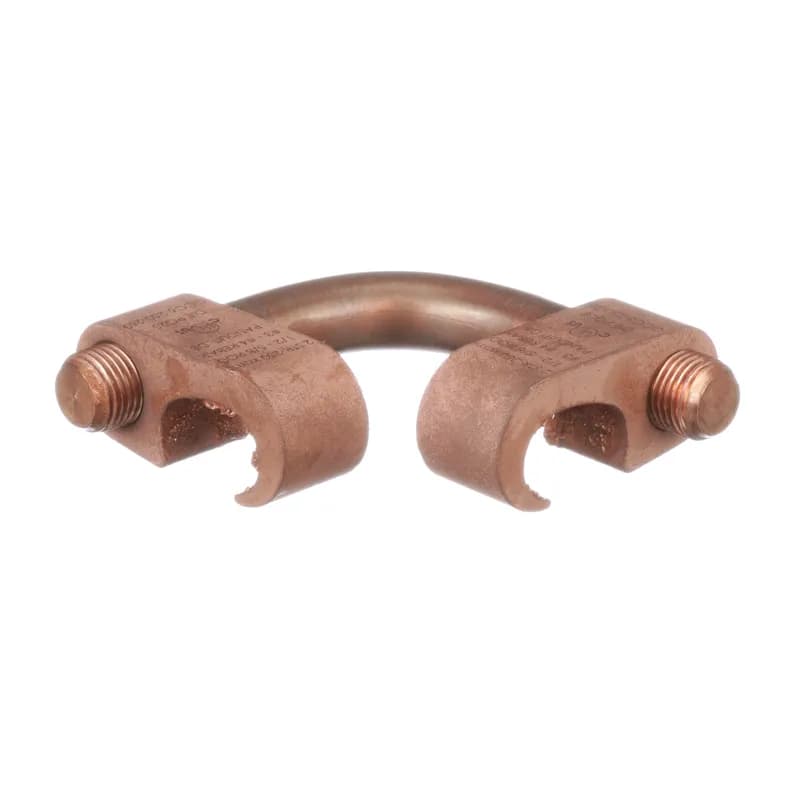

- "6x6" Style Cross Connector
- Main Conductor: 250-500 kcmil (120-240mm²)
- Ground Rod/Rebar: 5/8-3/4" (15.9-19.1mm) or #5-#6 Rebar (#16M-#19M)
- Tap Conductor: 6 Sol - 2 Str (10-35mm²)
- Manufacturer: Panduit, Country of Origin: US
Specifications
Application | Utility/Ground Grid |
Clamp Material | High Conductivity Copper |
Length | 1.4 In. |
Material | High Conductivity Copper |
Standard | cULus Listed to UL 467 for direct burial grounding applications iin earth or concrete. All parts are UL Listed to UL 486A/486B for power applications wire to wire combinations only. |
Type | Grounding Cross Connector |
Package Dimensions (L x W x H) | 4.882 IN x 3.441 IN x 3.441 IN |
Package Weight (Imperial) | 0.693 lbs |
FIG6-500-2/0
The FIG6-500-2/0 Compression Connector Tap provides high-strength and premium electrical properties. It is suitable for use with solid and stranded copper Code conductors. Used for tapping conductor to conductor and conductor to ground rod and rebar applications and with copper clad, solid copper and stainless steel ground rod types. Meets UL486A-486B up to for 35kV for power applications temp rated 90C. Meets cULus Listed to UL 467 for direct burial in earth and concrete.
FIG6-500-2
Grounding "Figure 6" Style Connector, 250 - 500 kcmil (120-240mm2), 5/8 - 3/4 Rod (15.9-19.1mm), or #5 - #6 Rebar (#16M-#19M) Main, 4 Sol - 2 Str (20-35mm2) Tap
GCC6-500-250
Grounding "6x6" Style Cross Connector, 250 - 500 kcmil (120-240mm2), 5/8 - 3/4 Rod (15.9-19.1mm), or #5 - #6 Rebar (#16M-#19M) Main, 2 Str - 250 kcmil (35-120mm2) Tap
GCC6-500-500
Grounding "6x6" Style Cross Connector, 250 - 500 kcmil (120-240mm2), 5/8 - 3/4 Rod (15.9-19.1mm), or #5 - #6 Rebar (#16M-#19M) Main, 250 - 500 kcmil (120-240mm2) Tap
GCC8-5/8-500
The GCC8-5/8-500 Compression Connector Tap provides high-strength and premium electrical properties. It is suitable for use with solid and stranded copper Code conductors. Used for tapping conductor to conductor and conductor to ground rod and rebar applications. Use with copper clad, solid copper and stainless steel ground rod types. UL listed per UL486 for use suitable for direct burial in earth and concrete, use with Panduit or industry standard crimp tools and crimp dies.

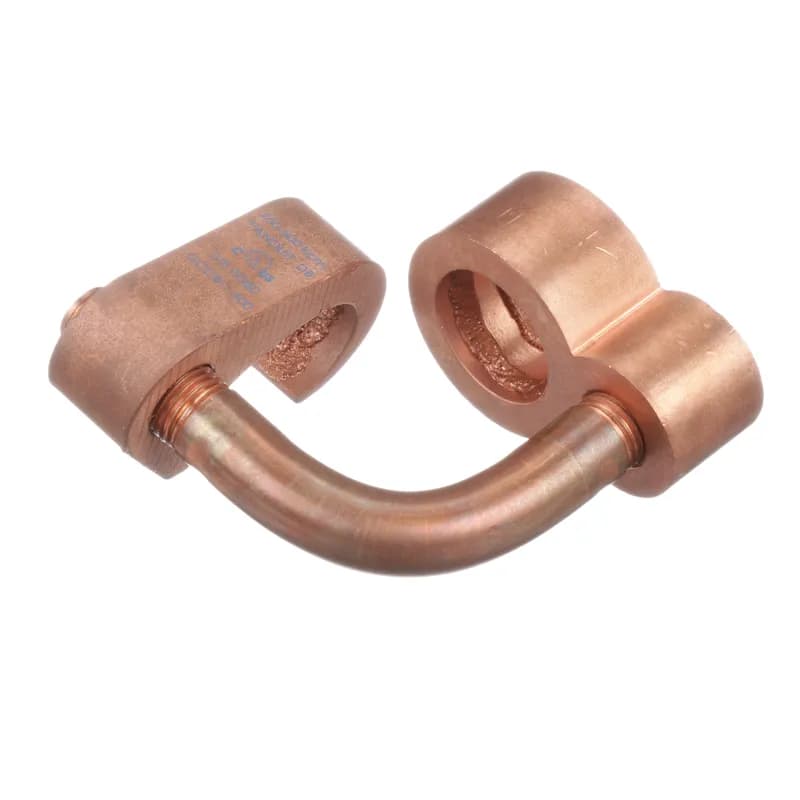

GCC8-1-500
The GCC8-1-500 Compression Connector Tap provides high-strength and premium electrical properties. It is suitable for use with solid and stranded copper Code conductors. Used for tapping conductor to conductor and conductor to ground rod and rebar applications. Use with copper clad, solid copper and stainless steel ground rod types. UL listed per UL486 for use suitable for direct burial in earth and concrete. UL 486A-486B Listed for wire to wire power applications up to 36 Kv and temperature rated 90C with select Panduit or industry standard crimp tools and crimp dies.

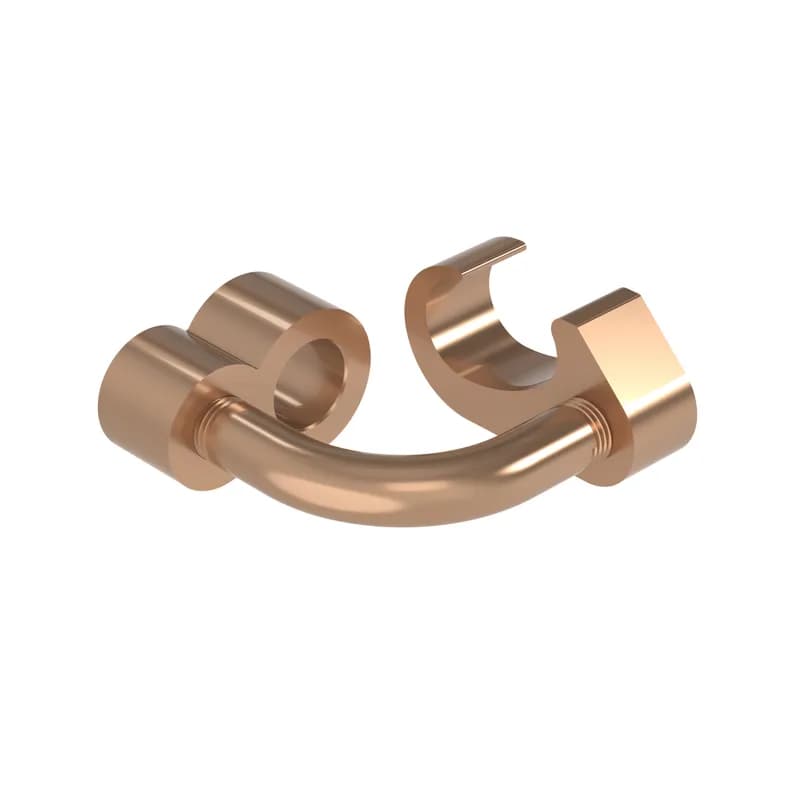

GCC8-3/4-500
The GCC8-3/4-500 Compression Connector Tap provides high-strength and premium electrical properties. It is suitable for use with solid and stranded copper Code conductors. Used for tapping conductor to conductor and conductor to ground rod and rebar applications. Use with copper clad, solid copper and stainless steel ground rod types. UL listed per UL486 for use suitable for direct burial in earth and concrete, use with Panduit or industry standard crimp tools and crimp dies.
GCC8-1/2-500
The GCC8-1/2-500 Compression Connector Tap provides high-strength and premium electrical properties. It is suitable for use with solid and stranded copper Code conductors. Used for tapping conductor to conductor and conductor to ground rod and rebar applications. Use with copper clad, solid copper and stainless steel ground rod types. UL listed per UL486 for use suitable for direct burial in earth and concrete, use with Panduit or industry standard crimp tools and crimp dies.

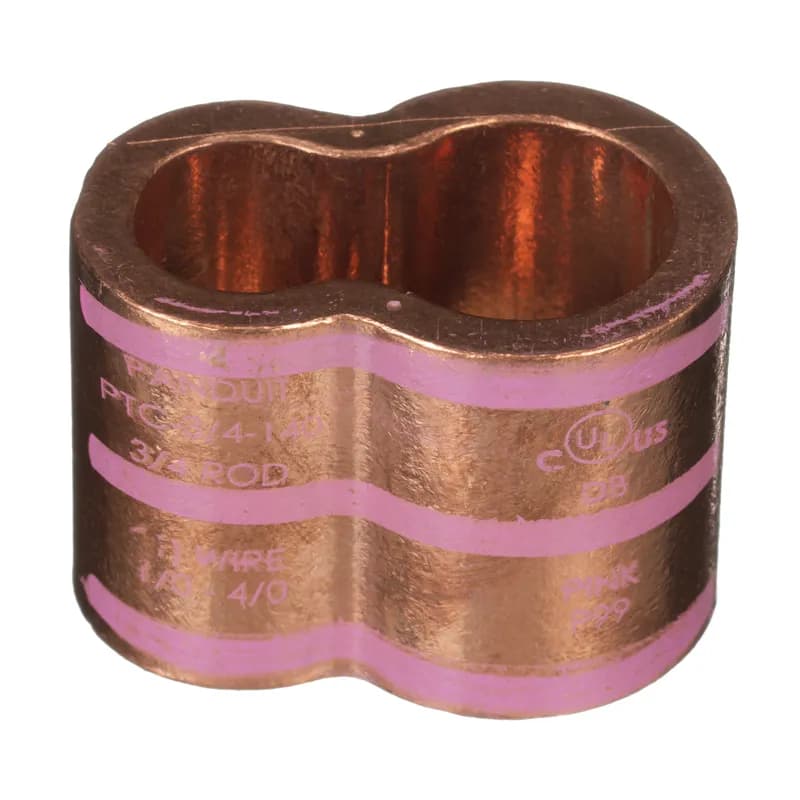

PTC-3/4-140
Grounding Pigtail Style Connector, 3/4" Rod (19.1mm), 1/0 Str - 4/0 Str (50-110mm2) Single Cable
PTC-1/2-26
Grounding Pigtail Style Connector, 1/2" Rod (12.7mm), 6 Str - 3/0 Str (10-85mm2) Single Cable, 6 Str - 2 Str (10-35mm2) Double Cable
PTC-5/8-26
Grounding Pigtail Style Connector, 5/8" Rod (15.9mm), 6 Str - 4/0 Str (10-110mm2) Single Cable, 6 Str - 2 Str (10-35mm2) Double Cable
CTAPR500-500-6
The CTAPR500-500-6 Compression Connector Tap provides high-strength and premium electrical properties. It is suitable for use with solid and stranded copper Code conductors. Used for tapping conductor to conductor and conductor to ground rod applications. UL listed per UL486 for use suitable for direct burial in earth and concrete. UL 486A-486B Listed for wire to wire power applications up to 36 Kv and temperature rated 90C with select Panduit or industry standard crimp tools and crimp dies.Frequently Asked Questions about Panduit
