Contact for Pricing
Overview

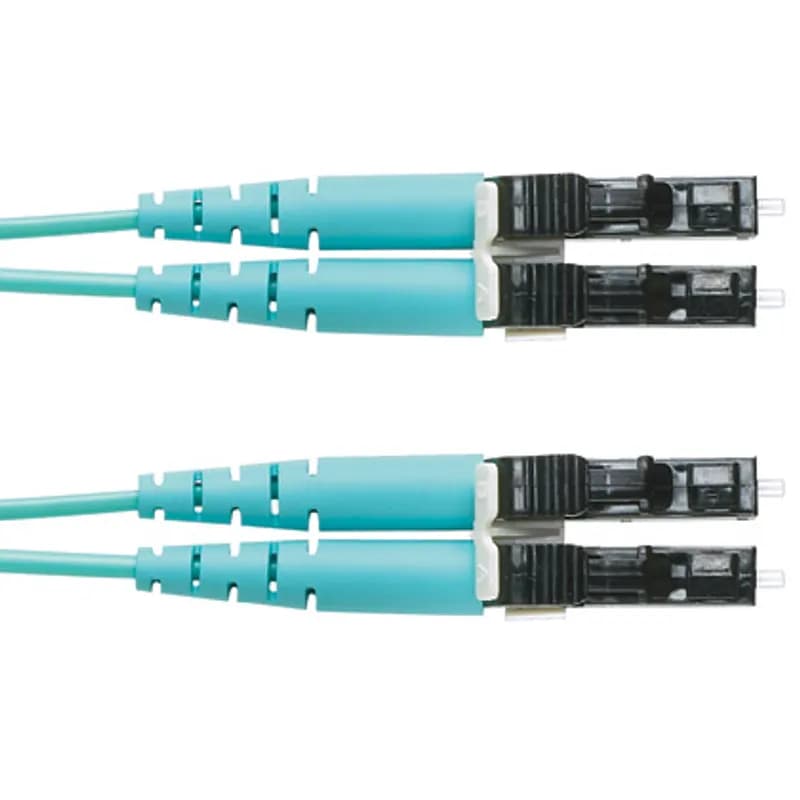

- 2-fiber OM4 multimode cable for high-speed data transmission
- LC duplex connectors on both ends for secure, low-loss connections
- Riser-rated (OFNR) jacket for fire safety in vertical installations
- 16mm jacket provides enhanced durability and protection
- 27-meter length suitable for typical network deployments
- 16mm jacket diameter for protection
Specifications
Application | Provide interconnect and cross-connect of applications in entrance facilities, telecommunications rooms, data centers, at the desk and network applications to interconnect pre-terminated cassettes in main distribution, horizontal distribution, and equipme |
Boot Type | LC Duplex |
Color | Aqua |
Connection Type | LC Duplex to LC Duplex |
Connection Type | LC Duplex |
Fiber Compatibility* | OM4 50/125um |
Flammability Rating* | Riser (OFNR) |
Length | 1062.96 in |
Length | 26999.18 mm |
Material | Fiber Optic (OM4) |
Material | Fiber Optic |
Material | Polymer |
Number of Cores | 2 |
Outside Diameter | NA mm |
Plug Type | LC-Duplex |
Poles | 2 |
Series | FZ2ERLNLNSNM |
Series | FZ2E |
Size | 27 m |
Size | 27 meters |
Size | 16mm jacket |
Standard | Meets or exceeds ISO/IEC 11801, TIA/EIA-568-C.3, TIA-604-3 (FOCIS-3), TIA-604-10 (FOCIS-10) |
Temperature Rating, Maximum | 158 F |
Temperature Rating, Minimum | 158 F |
Type | OM4 |
Wire Size | 1.6 mm |
Package Dimensions (L x W x H) | 9 IN x 11 IN x 1 IN |
Package Weight (Imperial) | 0.43 lbs |
SVNDZ-P167GT
VNDZ Straight Connector with Strain Relief, PG Thread for IP66 Static Conduit - Thread PG 16, Fits to Conduit Size NW/Metric 17/20, Color GraySVNDZ-P137GT
VNDZ Straight Connector with Strain Relief, PG Thread for IP66 Static Conduit - Thread PG 13.5, Fits to Conduit Size NW/Metric 17/20, Color Gray
TY29MX
High Performance Cable Tie, Black Color Nylon 6.6, Weather and Ultraviolet Resistant, Length of 762mm (30 Inches) for Bundle Diameter up to 229mm (9.02 Inches), Width of 6.9mm (0.27 Inch), Tensile Strength Rating of 534 Newtons (120 Pounds), Operating Temperature of -60 Degrees Celsius (-76 F) to 85 Degrees Celsius (185 F)
TYH27M
Cable Tie, Heat Stabilized Polyamide (Nylon 6.6) - Greenish Tint for Temperatures up to 105 Degrees Celsius (221 F) for Indoor Applications, Length of 343mm (13.5 Inches), Width of 6.9mm (0.27 Inch), Thickness of 1.5mm (0.06 Inch), Maximum Bundle Diameter 102mm (4.02 Inches), Tensile Strength Rating of 534 Newtons (120 Pounds)
PDCP2078
DataCom Enclosure Pkg, Bulletin DPVD (PROLINE® Voice and Data Package - PROLINE Voice and Data Package), Size/Dims: 2000x700x800mm, Material: Steel, Finish: Lt Gray
CMSBUSCZBL
The Mini-Com Singlemode Simplex SC Adapter is a small form factor (SFF) adapter with integrated panel retention clips and are TIA/EIA-605 FOCIS-10 compatible. It connects two SC connectors in one module space and features a blue SC simplex fiber adapter along with a black module and has zirconia split sleeves.
Frequently Asked Questions
What fiber types are available for this product?
The product is available in Singlemode (OS2) and Multimode (OM1, OM3, OM4, OM4+ Signature CoreTM, OM5) fiber types.
What types of connectors are available?
The connectors available are simplex or duplex LC and SC types.
What is the operating temperature range?
The operating and installation temperature range is -10°C to 60°C.
How durable are the connectors?
The connectors are rated for 500 cycles of durability.
Are the cables RoHS compliant?
Yes, all patch cord components meet the requirements of Directive 2002/95/EC for RoHS compliance.
What applications are these patch cords suitable for?
These patch cords are suitable for interconnect and cross-connect applications in data centers, telecommunications rooms, and network applications.
What are the jacket ratings for the cables?
The cables have Riser (OFNR) and Low Smoke Zero Halogen (LSZH) jacket ratings.
What is the connector insertion loss for OM4 fiber?
The standard connector insertion loss for OM4 fiber is 0.15 dB max, and for ultra, it is 0.10 dB max.
What is the storage temperature range?
The storage and shipping temperature range is -40°C to 70°C.
What is the cable outside diameter for simplex and duplex?
The outside diameter for duplex cables is 1.6mm and for simplex cables is 3mm.
