Contact for Pricing
Minimum Qty: 2000
Multiplier: 1
*Contact for lower quantities*
Overview
- 48-fiber count for high-density connectivity
- OS2 single-mode fiber for long-haul transmission
- Outside plant (OSP) armored construction
- Single armor and single jacket for robust protection
- 250 micrometer fiber diameter
Specifications
Bend Radius | NA in |
Color | Black |
Fiber Size | OS2 9/125 m |
Fiber Size | OS2 9/125µm |
Fiber Type | OS2 |
Flammability Rating | Non-rated |
Flammability Rating* | Not Rated |
Jacket Material | PE (polyethylene) |
Number of Fibers | 48 |
Standard | RoHS Compliant, Tested in accordance with TIA 455 series, FOTPS for fiber optic cables, ICEA 640, Telcordia GR-20, IEC 60794-3-11, RUS 7 DVR 1755 (PE90 listed) |
Temperature Rating, Maximum | 167 F |
Temperature Rating, Maximum | 75 C |
Temperature Rating, Minimum | 167 F |
Temperature Rating, Minimum | 75 C |
Tensile Strength | 600 lb |
Type | Bulk Fiber Optic Outdoor Cable |
Package Weight (Imperial) | 0.318 lbs |
FSWN912
This 12 fiber outside plant armored (single armor, single jacket) cable is OS2, non-rated and features 250 m fibers.
FSWN91A
The 144 fiber outside plant armored (single armor, single jacket) cable is OS2, non-rated and features 250 m fibers.

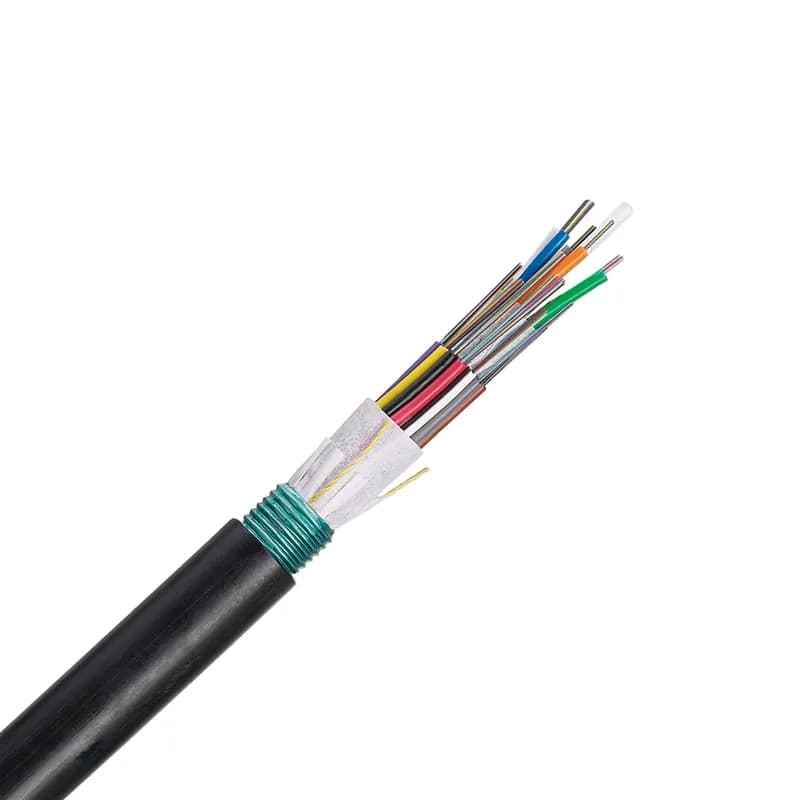

FSWN906
The 6 fiber outside plant armored (single armor, single jacket) cable is OS2, non-rated and features 250 m fibers.
FSWN972
The 72 fiber outside plant armored (single armor, single jacket) cable is OS2, non-rated and features 250 m fibers.
FSWN924
This 24 fiber outside plant armored (single armor, single jacket) cable is OS2, non-rated and features 250 m fibers.
FSWN996
The 96 fiber outside plant armored (single armor, single jacket) cable is OS2, non-rated and features 250 m fibers.
Frequently Asked Questions
What is the maximum fiber count for the cable?
The cable can contain up to 144 fibers.
What is the cable's tensile strength during installation?
The tensile strength during installation is 600 lbf (2700 N).
Is the cable UV resistant?
Yes, the cable has a UV resistant outer jacket.
What types of fibers are available?
The cable offers options for singlemode (OS2) and multimode fibers (OM1, OM3, OM4).
What is the maximum attenuation for OM3 multimode fiber?
The maximum attenuation for OM3 multimode fiber is 3.5dB/km at 850nm.
Can the cable be used for direct burial?
Yes, the armored version is suitable for direct burial.
What standards does the cable comply with?
The cable complies with Telcordia GR-20-CORE, IEC 60794-3-11, and other industry standards.
What is the purpose of the dry water-blocking elements?
The dry water-blocking elements prevent water from entering the cable and damaging the fibers.
What are the temperature ranges for operation?
The operating temperature range is -40°F to +158°F (-40°C to +70°C).
What is the installation temperature range?
The installation temperature range is -22°F to +140°F (-30°C to +60°C).
How to Install Buried Fiber Optic Cable
This guide provides step-by-step instructions for the installation of fiber optic cables in direct buried applications, ensuring proper techniques are followed for optimal performance.
Estimated time: 2h
Tools needed:
Tractor with plow, Trenching machine, Hand tools for digging
Supplies needed:
Fiber optic cable, Warning tape, Backfill material
- Conduct a pre-survey
Perform a thorough pre-survey of the installation route to identify any conflicts or obstructions. Mark the locations of underground utilities and ensure the route is clear for installation.
- Prepare the installation site
Stake the right-of-way (ROW) and mark all underground structures. Notify other utilities about the planned installation at least 72 hours in advance.
- Install the fiber optic cable
Use a plow or trenching machine to bury the fiber optic cable at the specified depth, ensuring to maintain the minimum bend radius. Place warning tape 12 inches above the cable for future identification.
- Backfill the trench
Carefully backfill the trench with clean material, ensuring no rocks or debris are left that could damage the cable. Compact the backfill to prevent settling.
- Test the installation
After installation, use an Optical Time Domain Reflectometer (OTDR) to check for any increases in attenuation or breaks in the cable.
- Seal cable ends
Reinstall protective caps on any cable ends left for future splicing and seal them with tape before burial.
