Contact for Pricing
Minimum Qty: 12
Multiplier: 12
*Contact for lower quantities*
Overview
- Terminates singlemode 9/125µm OS2 fiber in ~2 minutes on common splice machines
- Meets ISO/IEC 11801, ANSI/TIA-568.3-D, and IA/EIA-604 standards
- RoHS-compliant components per Directive 2002/95/EC
- Blue front housing and rear boot for standard SC-UPC compatibility
- Includes splice protection sleeve for enhanced durability
Specifications
Boot Color* | Blue |
Color | Blue |
Connection | Fusion Splice |
Fiber Type | OS2 |
Insertion Loss | 0.3 dB |
Material | Ceramic/Plastic |
Size | 9/125µm |
Temperature Rating, Maximum | 167 F |
Temperature Rating, Maximum | 75 C |
Temperature Rating, Minimum | 167 F |
Temperature Rating, Minimum | 75 C |
Package Dimensions (L x W x H) | 12.5 IN x 9 IN x 10.1 IN |
Package Dimensions (L x W x H) | 31.75 cm x 22.86 cm x 25.654 cm |
Package Weight (Imperial) | 19.9200 L |
Package Weight (Metric) | 9.0357 kg |
FSC2DSCBU

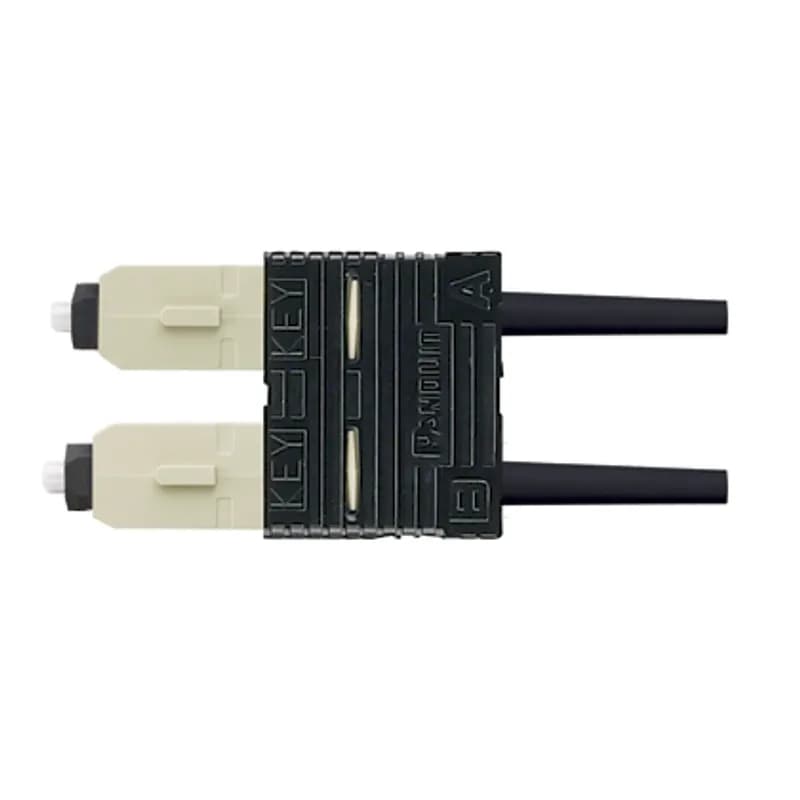

The OptiCam SC Fiber Optic Connector is a singlemode 9/125?m OS1/OS2 duplex fiber connector, intended for 900-micron tight-buffered fiber installation. Field termination can be done in about two minutes using the OptiCam 2 Termination Tool. The pre-polished fiber endface eliminates time-consuming field polishing, reducing installation costs. The SC connector has a natural-colored body with a blue-colored backbone, outer housing, and 900?m boot.
FST2SCBU
The OptiCam ST Fiber Optic Connector is a singlemode 9/125?m OS1/OS2 fiber connector, intended for 900-micron tight-buffered fiber installation. Field termination can be done in about two minutes using the OptiCam 2 Termination Tool. The pre-polished fiber endface eliminates time-consuming field polishing, reducing installation costs. The ST connector has a natural-colored body and backbone, and blue-colored 900?m boot.
FSC2SCBU-C
The OptiCam SC Fiber Optic Connector is a singlemode 9/125?m OS1/OS2 duplex fiber connector, intended for 900-micron tight-buffered fiber installation. Field termination can be done in about two minutes using the OptiCam 2 Termination Tool. The pre-polished fiber endface eliminates time-consuming field polishing, reducing installation costs. The SC connector has a natural-colored body with a blue-colored backbone, outer housing, and 900?m boot. Sold as a pack of 100.
FSOCSCA
The OmniSplice SC-APC Fiber Optic Connector is a singlemode 9/125?m OS2 simplex fiber connector. Termination can be done in about two minutes on several common splice machine brands. The connector consists of a ferrule assembly with a bare fiber stub, a green front housing, a rear housing with integral green boot, and a splice protection sleeve.
FLCDMCXHAQ
Pre-Polished Keyed LC Duplex OptiCam OM3/OM4 Connector (Keyed H, Aqua) with 900um Aqua boot
FSC2SCBU
The OptiCam SC Fiber Optic Connector is a singlemode 9/125?m OS1/OS2 fiber connector, intended for 900-micron tight-buffered fiber installation. Field termination can be done in about two minutes using the OptiCam 2 Termination Tool. The pre-polished fiber endface eliminates time-consuming field polishing, reducing installation costs. The SC connector has a natural-colored body with a blue-colored backbone, outer housing, and 900?m boot.
FSOCLCX
The OmniSplice LC-PC Fiber Optic Connector is a multimode 50/125?m OM3/OM4 simplex fiber connector. Termination can be done in about two minutes on several common splice machine brands. The connector consists of a ferrule assembly with a bare fiber stub, a black front housing, a rear housing with integral aqua boot, and a splice protection sleeve.
FSOCLC9
The OmniSplice LC-UPC Fiber Optic Connector is a singlemode 9/125?m OS2 simplex fiber connector. Termination can be done in about two minutes on several common splice machine brands. The connector consists of a ferrule assembly with a bare fiber stub, a blue front housing, a rear housing with integral blue boot, and a splice protection sleeve.
FHS9N-12-LAR

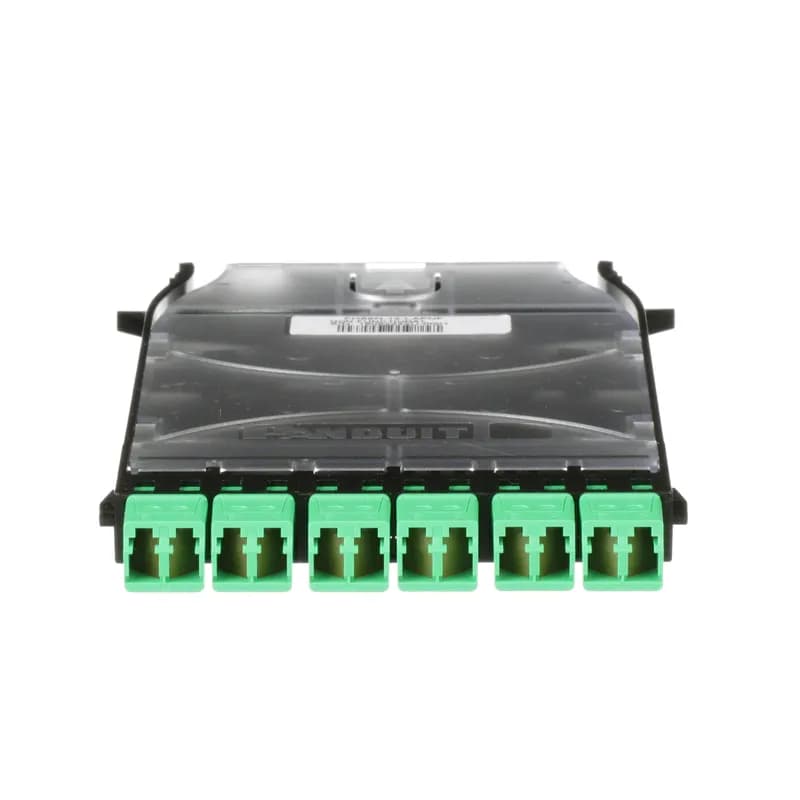

HD FLEX LC SPLICE CASSETTE PRELOADED WITH 12 OS2 LC RIBBON (250UM) AND STANDARD IL; 6-PORT DUPLEX LC/APC ADAPTERS WITH ZIRCONIA SLEEVES
FSC2MC5BL
The OptiCam SC Fiber Optic Connector is a multimode 50/125?m OM2 fiber connector, intended for 900-micron tight-buffered fiber installation. Field termination can be done in about two minutes using the OptiCam 2 Termination Tool. The pre-polished fiber endface eliminates time-consuming field polishing, reducing installation costs. The SC connector has a natural-colored body with a black-colored backbone, outer housing, and 900?m boot.Frequently Asked Questions
What standards do OmniSplice connectors meet?
OmniSplice LC and SC connectors are ANSI/TIA-604 FOCIS-10 (LC) and FOCIS-3 (SC) compliant. They exceed Telcordia GR-326-CORE and ANSI/TIA-568-E.3 performance requirements.
What is the operating temperature range for OmniSplice connectors?
OmniSplice connectors have a functional temperature range from -40°C to 75°C.
What fusion splice brands are compatible with the OmniSplice holder?
The OmniSplice holder is compatible with common fusion splice brands such as AFL (Fujikura), Fiber Fox, Sumitomo, and UCL Swift.
What types of fiber are compatible with OmniSplice connectors?
OmniSplice connectors are compatible with 9/125μm Singlemode (OS1/OS2) and 50/125μm Multimode (OM2, OM3, OM4) fibers.
What fiber sizes and types can OmniSplice connectors accommodate?
They can accommodate 900μm tight-buffered, 250μm loose-tube, and 250μm with 900μm build-up tubing fiber sizes and types.
What is the typical insertion loss for Singlemode OmniSplice connectors?
Singlemode OmniSplice connectors have an average insertion loss of 0.15dB and a maximum of 0.30dB.
What is the typical insertion loss for Multimode OmniSplice connectors?
Multimode OmniSplice connectors have an average insertion loss of 0.10dB and a maximum of 0.25dB.
What is the return loss for Singlemode UPC OmniSplice connectors?
Singlemode UPC OmniSplice connectors have a return loss greater than 55dB.
What is the return loss for Singlemode APC OmniSplice connectors?
Singlemode APC OmniSplice connectors have a return loss greater than 65dB.
What is the return loss for Multimode UPC OmniSplice connectors?
Multimode UPC OmniSplice connectors have a return loss greater than 30dB.
How to Install the OmniSplice Fusion Splice Connector
This guide provides step-by-step instructions for installing the OmniSplice Fusion Splice Connector, ensuring proper handling and assembly for optimal performance.
Estimated time: 45m
Tools needed:
Screwdriver, Wire strippers, Multimeter
Supplies needed:
Mounting screws, Terminal connectors
- Open the connector package
Gently push the tray bottom tab down while lifting the tray lid tab up. Open the blister pack carefully and remove the connector assembly by the handling stick, avoiding contact with the fiber stub end.
- Prepare the fiber
Mark and strip approximately 35mm of buffer and acrylate from the fiber. Clean the bare fiber with lint-free wipes and fiber cleaning solution, following safety precautions.
- Cleave the fiber
Cleave the bare fiber to 10mm. Ensure all acrylate coating has been removed for a successful cleave.
- Insert the fiber into the holder
Place the cleaved fiber into the left-side fiber holder according to the specific splice machine instructions.
- Set up the OmniHolder
Place the OmniHolder on the right side of the splice stage, ensuring it is properly aligned.
- Insert the connector assembly
Place the connector assembly into the OmniHolder with the fiber stub protruding to the left and the handling stick to the right. Ensure the metal portion is flush against the holder.
- Close the wind cover
Close the wind cover of the splice stage. Depending on the machine settings, the splice process may begin automatically or require pressing a start button.
- Complete the splice
After the splice is completed, the machine will provide an estimated insertion loss value. Do not touch the fiber or connector assembly until the tension test is complete.
- Prepare for heating
Gently slide the splice protection sleeve up to the rear of the fiber holder and open the fiber holder.
- Lift the ferrule assembly
Press down on the holder lever to lift the ferrule assembly out of the OmniHolder for ease of handling.
- Align the splice protection sleeve
Grasp the field fiber with your left hand and raise the left side slightly, ensuring the splice protection sleeve slides flush against the metal part of the connector subassembly.
- Heat the splice point
Place the splice point in the heater of the splice machine, keeping the splice protection sleeve centered in the heating area. Close the heater cover.
- Start the heating process
Depending on the machine settings, the heating process may start immediately or require pressing a start button.
- Remove the assembly
Carefully remove the assembly from the heating area once the heating/cooling cycle is complete. Allow a 30-second cool time before assembling the connector.
- Assemble the connector
Slide the rear assembly up, align the side tabs, and snap the front housing together with the rear housing. Ensure the small key feature on APC-style connectors faces up.
- Finalize the installation
Cut off the handling stick to remove it from the dust cap if desired.
