FS2RPU1U1NNM001

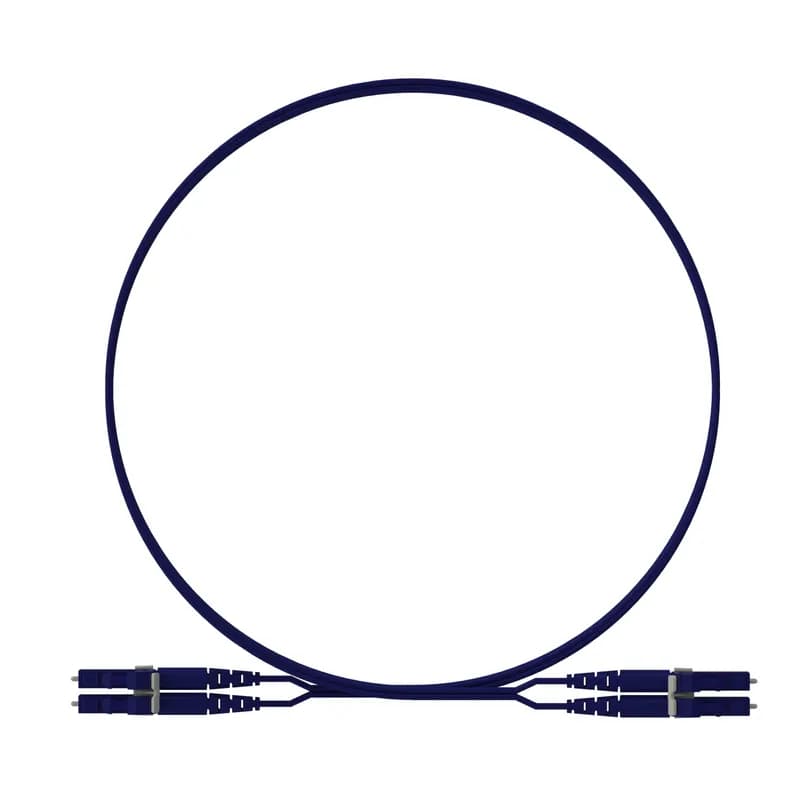

These patch cords allow easy polarity change in the field, reduce cable volume by 50% with a 2.0mm 2-fiber round cable, and are available in plenum or LSZH jacket materials.

OM5 fiber includes additional bandwidth characterization at 953nm to support extended distances when using Short Wavelength Division Multiplexing (SWDM).

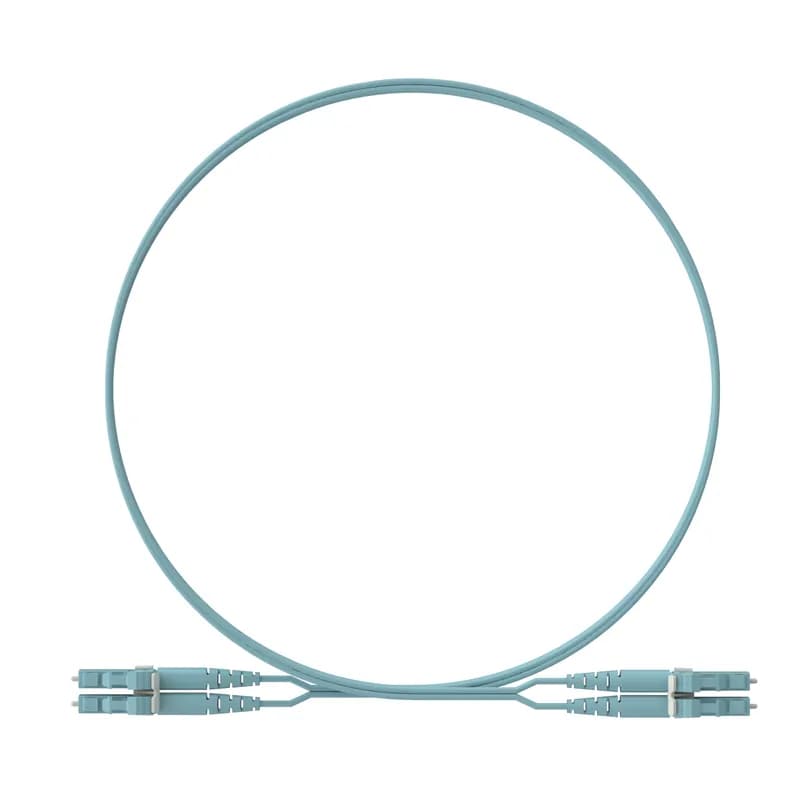

OM4+ Signature Core provides on average 20 percent longer reach than the OM4 defined standard for all applications using Ethernet, Fibre Channel, and Cisco BiDi technologies.

Yes, all patch cord components meet the requirements of Directive 2011/65/EU for Restriction of Hazardous Substances (RoHS) Compliance.

Return loss is 55dB min for singlemode fiber, 65dB min for singlemode fiber/APC, and 26dB min for multimode fiber.

Optimized insertion loss is 0.15dB max for OM4/OM4+/OM5 and 0.25dB max for OS2. Ultra insertion loss is 0.10dB max for OM4/OM4+/OM5.

Polarity is changed to pair-flipped (A-A) when the dots on the connector housing have different colors.

When the dots on the connector housing are matching colors, the connector indicates a straight-through (A-B) polarity.

Hold the housing, push the boot forward, rotate both connectors 180°, then rotate the connector body 180° and push the outer housing forward until it clicks.

The operating and installation temperature range for these patch cords is -10°C to 60°C.
