Panduit

FS2EPKHLNNHM003

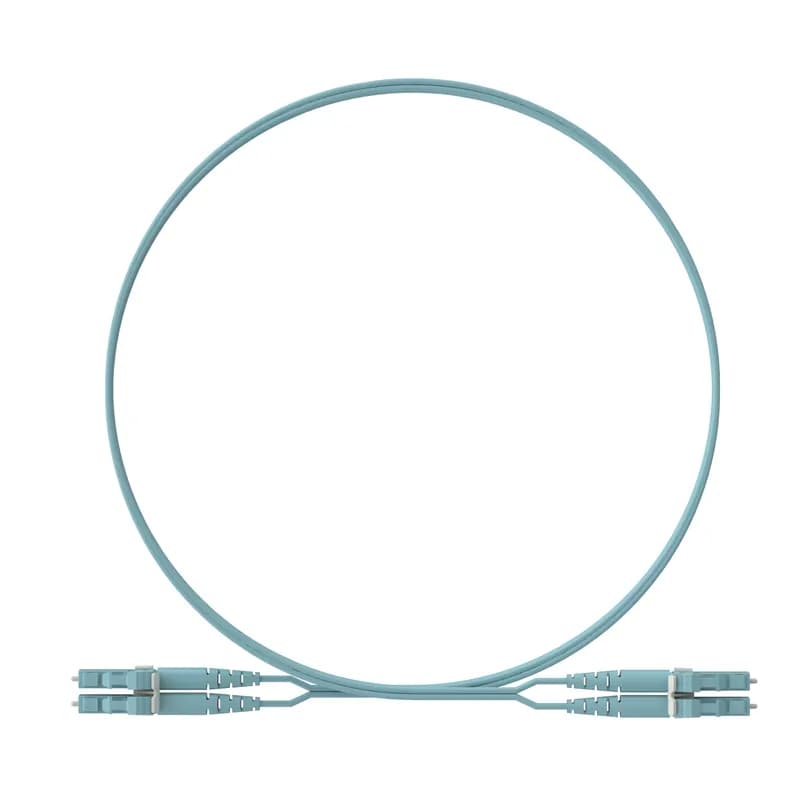

Name: Panduit OM4+ LC Duplex Keyed H Aqua 3m Plenum Fiber Patch Cord
Brand: Panduit
SKU: FS2EPKHLNNHM003
Availability: InStock

UPC: 613056864504

Documents & Media

Specification Sheet

Contact for Pricing

Minimum Qty: 10

Multiplier: 1

*Contact for lower quantities*

Overview

This Panduit FS2EPKHLNNHM003 duplex fiber patch cord offers enhanced security and performance for your network infrastructure. Featuring OM4+ Signature Core technology with a 1.6mm zipcord jacket, this cable ensures reliable data transmission. The plenum (OFNP) rating makes it suitable for use in air-handling spaces, meeting stringent safety standards. Equipped with LC Duplex connectors, it provides a secure and efficient connection. A key feature is the Keyed H - Aqua LC Duplex connector on one end, designed to mate exclusively with matching keyed components. This system adds a critical layer of physical security, preventing accidental or unauthorized connections. The standard LC Duplex connection on the other end ensures broad compatibility. The ultra-low insertion loss characteristic of this cord minimizes signal degradation, crucial for high-speed data applications. With a length of 3 meters and an aqua jacket color, this patch cord is ideal for structured cabling systems requiring both performance and security. Manufactured by Panduit in the USA, SKU FS2EPKHLNNHM003.

OM4+ Signature Core for high-speed data transmission
Keyed H - Aqua LC Duplex connector for enhanced physical security
Plenum (OFNP) rated cable for air-handling spaces
Ultra low insertion loss for minimal signal degradation
3-meter length with aqua zipcord jacket

Specifications

Boot Type	LC Duplex
Color	Aqua
Flammability Rating*	Plenum (OFNP)
Number of Cores	2
Plug Type	Keyed LC-Duplex
Plug Type	LC-Duplex Keyed
Standard	RoHS Compliant
Temperature Rating, Maximum	140 F
Temperature Rating, Minimum	140 F
Type	OM4+
Package Dimensions (L x W x H)	5 IN x 9.5 IN x 1.5 IN
Package Weight (Imperial)	0.08 lbs

AP9641

UPS NTWK MGMT CARD POWERCHUTE NTWK SHUTDOWN ENVT MONITORING

PCMDS19003BK1

2U Hinged Finger Panel

SVNDZ-P167GT

VNDZ Straight Connector with Strain Relief, PG Thread for IP66 Static Conduit - Thread PG 16, Fits to Conduit Size NW/Metric 17/20, Color Gray

SVNDZ-P137GT

VNDZ Straight Connector with Strain Relief, PG Thread for IP66 Static Conduit - Thread PG 13.5, Fits to Conduit Size NW/Metric 17/20, Color Gray

SVH-36-020

VH System Support Clip - Fits to Conduit Size NW/Metric 36/40, Color Gray

ACB21

Conduit Clip with Integral Lid, Nominal Conduit Size 21mm, Polyamide (Nylon) 66, Black

TY29MX

High Performance Cable Tie, Black Color Nylon 6.6, Weather and Ultraviolet Resistant, Length of 762mm (30 Inches) for Bundle Diameter up to 229mm (9.02 Inches), Width of 6.9mm (0.27 Inch), Tensile Strength Rating of 534 Newtons (120 Pounds), Operating Temperature of -60 Degrees Celsius (-76 F) to 85 Degrees Celsius (185 F)

TYH27M

Cable Tie, Heat Stabilized Polyamide (Nylon 6.6) - Greenish Tint for Temperatures up to 105 Degrees Celsius (221 F) for Indoor Applications, Length of 343mm (13.5 Inches), Width of 6.9mm (0.27 Inch), Thickness of 1.5mm (0.06 Inch), Maximum Bundle Diameter 102mm (4.02 Inches), Tensile Strength Rating of 534 Newtons (120 Pounds)

PDCP2078

DataCom Enclosure Pkg, Bulletin DPVD (PROLINE® Voice and Data Package - PROLINE Voice and Data Package), Size/Dims: 2000x700x800mm, Material: Steel, Finish: Lt Gray

75102CW

ON OFF SPST Nickel Pull Chain with Cord

FHC3ZA-08-10U2

OM4 HD Flex Cassette, 6-Port, 4-to-1 Conversion Cassette, Ultra IL, Universal-2

CMSBUSCZBL

The Mini-Com Singlemode Simplex SC Adapter is a small form factor (SFF) adapter with integrated panel retention clips and are TIA/EIA-605 FOCIS-10 compatible. It connects two SC connectors in one module space and features a blue SC simplex fiber adapter along with a black module and has zirconia split sleeves.

DDW-120

Ethernet SHDSL Extender

Fiber cable ODC SC Duplex 670mm

Fiber cable ODC to SC duplex - 670mm

PS-60

Power supply for DIN-rail

ARH 1656

DIN Rail ? DIN 35

REFK1904231BK1

24U 21.34W 31.5D CABINET BLK

ST4803PDGM

Surge-Trap® Surge Protective Device is a no-fuse surge suppressor. The Surge-Trap is a UL 1449 Third Edition compliant modular style surge protective device that is DIN-rail mountable featuring a fail-safe self-protected design, visual indicator and a small foot print. A remote indicator option provides status to critical control circuit. The Surge-Trap provides advanced overvoltage protection utilizing Mersen's patented TPMOV® technology without additional protection devices. 480 Volts 3P Delta system type without N-G mode, with microswitch .

3085

Super-Safeway® Multiple Outlet Box, Extended Depth, 2-Sided, F2 (1/2") Cord Grip Body, with Flip Lids for (2) Duplex Not Included

ECK19H

Cable Manager, fits 19-inch open rack, Black, Steel

PPFS19010BK

6U PERF PANEL

STP6X12MIG

This TX6A 10Gig Cat 6A STP Patch Cord is a 12-Meter, Int'l Grey cord constructed of 26 AWG, shielded, twisted pair, stranded, CM/LSZH cable and with high-performance modular plugs. Its tangle-free latch prevents snags and ensures a fast release, streamlining moves, adds, and changes. The slender strain relief boot provides easy access in high-density applications. Enabled with RapidID, the product has pre-installed barcodes for simple port mapping using RapidID software.

CESUM3-C15

Membrane plate cable entry system offers a good strain relief while maintaining IP/NEMA ingress sealing rating. The CESUM3-C15 is a Rectangular Un-Terminated Cable Entry System, 4.1" (103 mm) Long, with 8 Openings 0.12" (3.0 mm) to 0.31" (8 mm), 3 Openings 0.20" (5.1 mm) to 0.35" (9.0 mm), 4 Openings 0.3" (7.5 mm) to 0.47" (12.0 mm). Color is Black. Standard Package Quantity is 1 PC.

FZ2RPU1U1ONM6.5

OM4 duplex fiber patch cord with a 2.0mm cable jacket. Plenum rated, features LC Uniboot pull-boot connectors, and has Optimized insertion loss, 6.5 meters in length

FS2RPU1U1NNM001

OM4+ Signature Core duplex fiber patch cord with a 2.0mm cable jacket. Plenum (OFNP) rated, features LC Uniboot pull-boot connectors, and has Ultra Low insertion loss, 001 meters in length

FS2EPKHKHNHM003

The duplex fiber patch cord is OM4+ Signature Core with 1.6mm cable zipcord jacket. It is Plenum (OFNP), features LC Duplex connectors, has ultra low insertion loss and is 3 meters in length. This cord is Keyed H - Aqua on both LC Duplex connection ends as part of a keyed cabling systems that provides an additional layer of physical security, mating only with matching keyed components. The cable jacket color is aqua.

F92EPKHLHSHM003

The duplex fiber patch cord is OS1/OS2 with 1.6mm cable zipcord jacket. It is Plenum (OFNP), features LC Duplex connectors, has standard insertion loss and is 3 meters in length. This cord is Keyed H - Aqua LC Duplex on one end, non-keyed H - Aqua LC Duplex connection on the other end as part of a keyed cabling systems that provides an additional layer of physical security, mating only with matching keyed components. The cable jacket color is aqua.

FS2RPU1U1NNM003

OM4+ Signature Core duplex fiber patch cord with a 2.0mm cable jacket. Plenum (OFNP) rated, features LC Uniboot pull-boot connectors, and has Ultra Low insertion loss, 003 meters in length

FZ2RPU1U1ONM001

OM4 duplex fiber patch cord with a 2.0mm cable jacket. Plenum rated, features LC Uniboot pull-boot connectors, and has Optimized insertion loss, 001 meters in length

FS2EPKHLNNHM006

The duplex fiber patch cord is OM4+ Signature Core with 1.6mm cable zipcord jacket. It is Plenum (OFNP), features LC Duplex connectors, has ultra low insertion loss and is 6 meters in length. This cord is Keyed H - Aqua LC Duplex on one end, standard LC Duplex connection on the other end as part of a keyed cabling systems that provides an additional layer of physical security, mating only with matching keyed components. The cable jacket color is aqua.

FS2EPKHKHNHM001

The duplex fiber patch cord is OM4+ Signature Core with 1.6mm cable zipcord jacket. It is Plenum (OFNP), features LC Duplex connectors, has ultra low insertion loss and is 1 meter in length. This cord is Keyed H - Aqua on both LC Duplex connection ends as part of a keyed cabling systems that provides an additional layer of physical security, mating only with matching keyed components. The cable jacket color is aqua.

FZ2RPU1U1NNM012

OM4 duplex fiber patch cord with a 2.0mm cable jacket. Plenum rated, features LC Uniboot pull-boot connectors, and has Ultra low insertion loss, 012 meters in length

FS2RPU1U1NNM020

OM4+ Signature Core duplex fiber patch cord with a 2.0mm cable jacket. Plenum (OFNP) rated, features LC Uniboot pull-boot connectors, and has Ultra Low insertion loss, 020 meters in length

FS2RPU1U1NNM002

OM4+ Signature Core duplex fiber patch cord with a 2.0mm cable jacket. Plenum (OFNP) rated, features LC Uniboot pull-boot connectors, and has Ultra Low insertion loss, 002 meters in length

FS2RPU1U1NNM007

OM4+ Signature Core duplex fiber patch cord with a 2.0mm cable jacket. Plenum (OFNP) rated, features LC Uniboot pull-boot connectors, and has Ultra Low insertion loss, 007 meters in length

Frequently Asked Questions

What fiber types are supported by these patch cords?

The patch cords support Singlemode OS2 and Multimode OM4+ fiber types.

What connector types are available for these patch cords?

Available connector types include Keyed LC Duplex, Non-Keyed LC Duplex, and Non-Keyed SC Duplex.

What is the maximum insertion loss for OS2 fiber?

For OS2 fiber, the maximum connector insertion loss is 0.35dB.

What is the minimum return loss for OM4+ fiber?

For OM4+ fiber, the minimum connector return loss is 26dB.

What is the cable outside diameter of the patch cords?

The cable outside diameter for the duplex patch cords is 1.6mm.

What is the minimum bend radius for these patch cords?

The minimum bend radius for these fiber optic patch cords is 1.6mm.

What is the operating temperature range for Plenum patch cords?

Plenum rated patch cords have an operating and installation temperature range of 0°C to 60°C.

What is the storage temperature range for the patch cords?

The storage and shipping temperature range for the patch cords is -40°C to 70°C.

What flame rating do these patch cords have?

These patch cords are available with an Optical Fiber Nonconductive Plenum (OFNP) rated jacket.

What standards do these patch cords meet?

They meet or exceed ISO/IEC 11801, TIA/EIA-568-C.3, TIA-568.3-D, TIA-604-3 (FOCIS-3), and TIA-604-10 (FOCIS-10).
