Panduit

FS2EPKALNNAM015

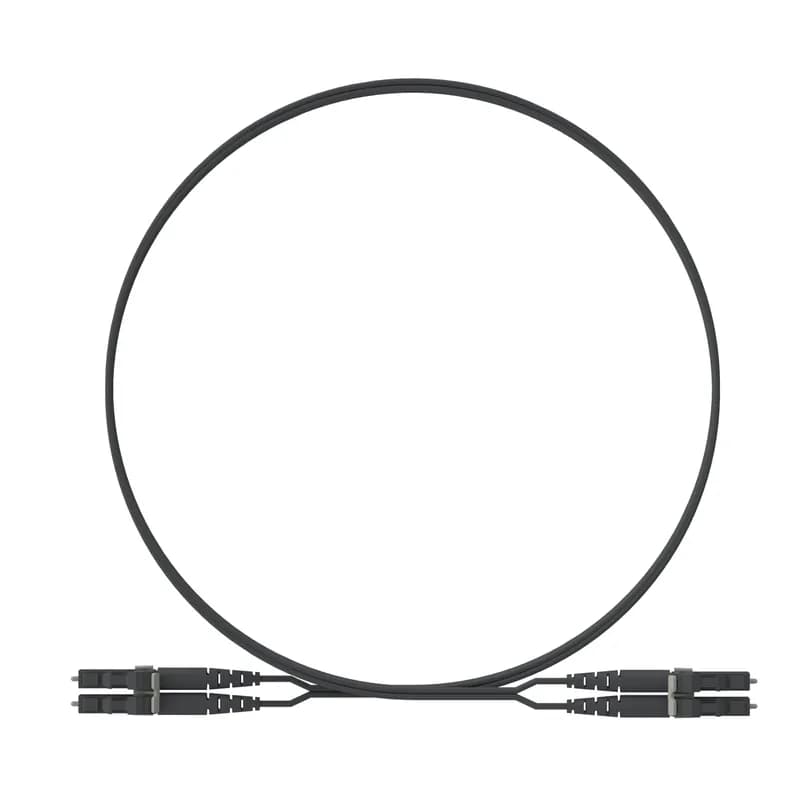

Name: Panduit OM4+ LC Duplex Keyed A Fiber Patch Cord, 15m, Black
Brand: Panduit
SKU: FS2EPKALNNAM015
Availability: InStock

UPC: 613056864009

Documents & Media

Specification Sheet

Contact for Pricing

Overview

Enhance your network's physical security and performance with the Panduit FS2EPKALNNAM015 Duplex Fiber Patch Cord. This 15-meter cord features OM4+ Signature Core technology, delivering superior data transmission capabilities for high-speed networking applications. The 1.6mm zipcord jacket is constructed from Plenum-rated (OFNP) material, ensuring compliance with stringent fire safety standards for installation in air-handling spaces. This patch cord is equipped with LC Duplex connectors, offering a secure and reliable connection. A key feature of this specific model is its keyed cabling system. One end utilizes a Keyed A - Black LC Duplex connector, designed to mate exclusively with its corresponding keyed component. This provides an additional layer of physical security, preventing accidental or unauthorized connections and ensuring that only authorized components can be linked within your infrastructure. The other end features a standard LC Duplex connection for broad compatibility. The ultra-low insertion loss characteristic of this Panduit patch cord minimizes signal degradation, crucial for maintaining optimal network performance over its 15-meter length. The cable jacket is finished in a professional black color, aiding in cable management and identification. Ideal for data centers, enterprise networks, and telecommunications environments where both performance and security are paramount, the FS2EPKALNNAM015 offers a robust and dependable fiber optic connectivity solution. Its construction adheres to high standards, making it suitable for demanding network deployments. **Key Specifications:** * **SKU:** FS2EPKALNNAM015 * **Manufacturer:** Panduit * **Fiber Type:** OM4+ Signature Core * **Cable Jacket:** 1.6mm zipcord, Plenum (OFNP) rated * **Connector Type:** LC Duplex (Keyed A - Black on one end, Standard on the other) * **Length:** 15 meters * **Color:** Black * **Insertion Loss:** Ultra Low * **Country of Origin:** US

OM4+ Signature Core for high-speed data transmission
Keyed A - Black LC Duplex connector for enhanced physical security
Plenum (OFNP) rated 1.6mm zipcord jacket for safety compliance
Ultra low insertion loss for optimal network performance
15-meter length with black cable jacket

Specifications

Boot Type	LC Duplex
Color	Black
Flammability Rating*	Plenum (OFNP)
Number of Cores	2
Plug Type	Keyed LC-Duplex
Plug Type	LC-Duplex Keyed
Standard	RoHS Compliant
Temperature Rating, Maximum	140 F
Temperature Rating, Minimum	140 F
Type	OM4+
Package Dimensions (L x W x H)	9 IN x 11 IN x 1.5 IN
Package Weight (Imperial)	0.307 lbs
