Overview
- Creates a 90° vertical drop from horizontal cable runs.
- Designed for Panduit 12x4 FiberRunner cable management systems.
- Ensures organized and protected fiber optic cable routing.
- Maintains cable integrity and prevents signal degradation.
- Facilitates efficient installation and maintenance.
Specifications
Application | Data Centers and Telco Central Offices |
Height | 8.38 in |
Height | 212.852 mm |
Length | 14.63 in |
Length | 371.602 mm |
Material | Polycarbonate/ABS |
Standard | RoHS Compliant, UL Listed to 2024A Optical Fiber Cable Routing Assemblies Compliant with the applicable tests in Telcordia GR-63-CORE Network Equipment Building Systems Level 3 |
Type | Tee Fitting |
Width | 18 in |
Width | 457.2 mm |
Package Dimensions (L x W x H) | 19.6 IN x 16 IN x 10.7 IN |
Package Weight (Imperial) | 4.8 lbs |
FRDDS6X4LBL

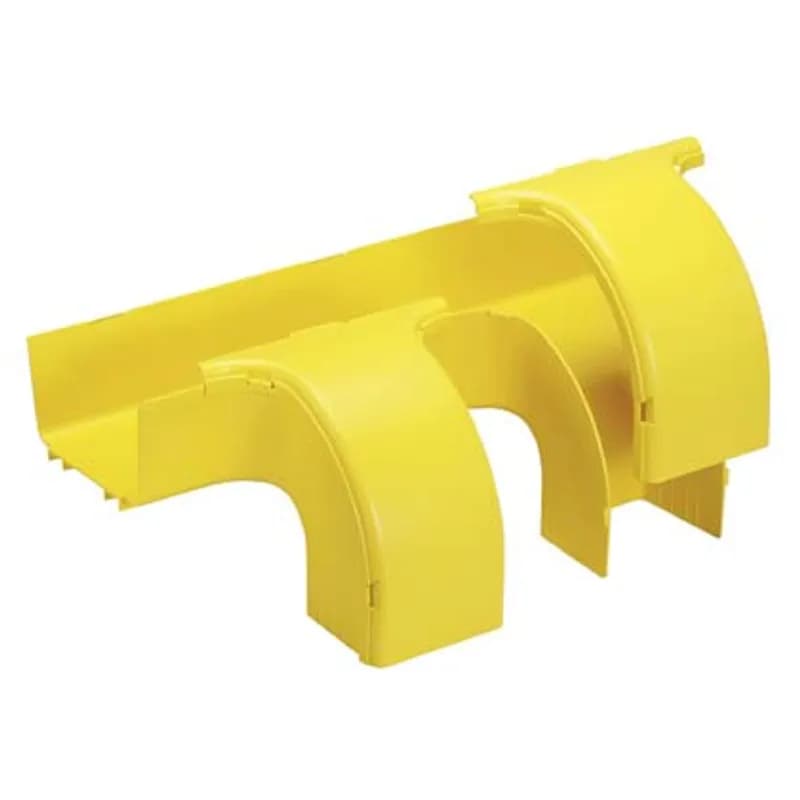

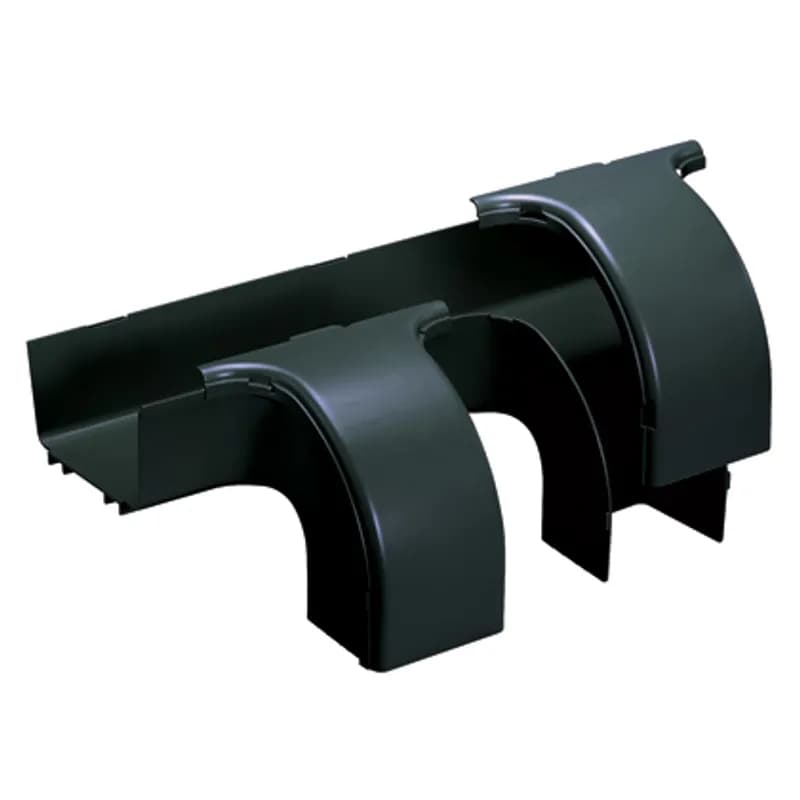

The FiberRunner 6x4 Dual Downspout attaches to a 6x4 channel and/or fitting to create two 90 4x4 downward transitions from a horizontal run. The fitting maintains a 2 inch bend radius control throughout the transition to the vertical downspouts. It includes two snap-on throat covers for the dual downspouts.
FRDDS6X4LYL
The FiberRunner 6x4 Dual Downspout attaches to a 6x4 channel and/or fitting to create two 90 4x4 downward transitions from a horizontal run. The fitting maintains a 2 inch bend radius control throughout the transition to the vertical downspouts. It includes two snap-on throat covers for the dual downspouts.
FRH4512X4LYL
The FiberRunner 12x4 Horizontal Fitting attaches to a 12x4 channel and/or fittings to create a 45 horizontal turn from a straight horizontal run.
FRH4512X4LBL
The FiberRunner 12x4 Horizontal Fitting attaches to a 12x4 channel and/or fittings to create a 45 horizontal turn from a straight horizontal run.
FRIV4512X4LYL
The FiberRunner 12x4 Inside Vertical creates a 45 upward angle from a straight horizontal run. It is used with outside vertical 45 angle fitting FROV4512X4LYL to change the level of a straight horizontal run.
FRSPJC412LBL
The FiberRunner Spill-Over Junction Cover is used to fully enclose a 12x4 channel when used with the spill-over junction FRSPJ4X4LBL.
FRSPJC412LYL
The FiberRunner Spill-Over Junction is used to fully enclose a 12x4 channel when used with the spill-over junction FRSPJ4X4LYL.
FRFWC12X4W6LBL
The FiberRunner 12x4 4-Way Cross Fitting attaches to 12x4 channel and/or fittings to create a horizontal 4-way cross intersection with two 6x4 exits.
FRFWC12X4W6LYL
The FiberRunner 12x4 4-Way Cross Fitting attaches to 12x4 channel and/or fittings to create a horizontal 4-way cross intersection with two 6x4 exits.
FRVT6X4LBL
The FiberRunner 6x4 Vertical Tee creates a 90 vertical drop from a horizontal run. The vertical tee includes a hinged door.
FRVT6X4LYL
The FiberRunner 6x4 Vertical Tee creates a 90 vertical drop from a horizontal run. The vertical tee includes a hinged door.Frequently Asked Questions
How are channel and fittings assembled?
Channel and fittings are assembled using pre-assembled QuikLock Couplers, requiring no tools.
What is the purpose of the FiberRunner 12x4 system?
It is designed to segregate, route, and protect fiber optic and high performance copper cabling.
What other Panduit systems is it compatible with?
It is part of the Panduit complete fiber distribution system, including FiberRunner 24x4, 6x4, 4x4, 2x2, and Wyr-Grid Overhead Cable Tray System.
What types of support structures can it attach to?
QuikLock Brackets allow attachment to ladder rack, threaded rod, auxiliary framing, strut, equipment racks, cabinets, and raised floor pedestals.
Where is the FiberRunner 12x4 system typically used?
It is suited for data centers, Telco Central Offices, and can be deployed over racks or in approved underfloor applications.
How does the system facilitate maintenance?
Hinged channel covers and split fitting covers provide fast and easy access for future cabling moves, adds, and changes.
How fast is installation with QuikLock Couplers?
QuikLock Couplers and Brackets allow for secure connections in less than five seconds, requiring no tools or bolts.
What approvals does the system have?
The system is UL Listed to 2024 Optical Fiber Cable Routing Assemblies.
What is the flammability rating?
The system has a flammability rating of 94V-0.
What materials are used for the system?
The channel is made of Rigid PVC, and the fittings are made of PC/ABS.
