Panduit

FRESPKT6

Name: Panduit FRESPKT6 Expansion Splice Kit for 6x4 FiberRunner channels.
Brand: Panduit
SKU: FRESPKT6
Availability: InStock

UPC: 613056858923

Documents & Media

Technical Drawing Full Engineering Drawing Installation Instructions

Contact for Pricing

Overview

The Panduit FRESPKT6 FiberRunner Expansion Splice Kit is a precision-engineered coupler solution for joining two sections of 6"x4" FiberRunner Routing System channel. This kit includes one 6x4 Lower Trough Inner Coupler, one 6x4 Lower Trough Outer Coupler, two 1/4-20 hex nuts, and one #8-32 screw, enabling secure and stable channel connections without additional hardware purchases. The couplers are designed for installation anywhere along the FiberRunner system, with the exception of locations where Lower Trough Support Brackets (FDFLMBKT6, sold separately) are mounted. This ensures flexibility in system design while maintaining structural integrity. The 6"x4" channel size is ideal for high-density fiber optic cable management in data centers, telecommunications facilities, and industrial environments where organized routing and protection of cables are critical. The kit’s components are manufactured in the US, ensuring consistent quality and compliance with industry standards. By using the FRESPKT6, installers can efficiently expand or modify FiberRunner channel runs while minimizing downtime and labor costs. The kit’s design aligns with Panduit’s FiberRunner series, providing a seamless integration with existing components for a cohesive cable management infrastructure.

Joins two 6"x4" FiberRunner channel sections securely
Includes inner/outer couplers, 1/4-20 hex nuts, and #8-32 screw
Compatible with FiberRunner Routing System (channels sold separately)
Installable anywhere except where Lower Trough Support Brackets are mounted
Manufactured in the US for consistent quality

Specifications

Color	Black
Depth	6.5 in
Depth	165.1 mm
Material	Steel
Standard	RoHS Compliant
Type	Optical Distribution Frame
Width	2.5 in
Width	63.5 mm
Package Dimensions (L x W x H)	10.375 IN x 6.75 IN x 5 IN
Package Weight (Imperial)	1.4 lbs

S289JLN

2 x 3 Inches Duct Spacer, High Impact Polystyrene Snap-Loc Intermediate Spacer For Use With Nonmetallic Ducts

S288JLN

2 x 3 Inches Duct Spacer, High Impact Polystyrene Snap-Loc Base Spacer For Use With Nonmetallic Ducts

PS-60

Power supply for DIN-rail

C3SC10106GY

N3 SCREW COVER - 10X10X6 - GRA

ACS380-040S-07A2-4

ACS380 AC Drive, 3-380-480V In, 3HP, 6A, Type OPEN, 1.5 overload, Integrated, HxWxD 6.69x2.76x7.52 in, Module

0626030563

BK63H 1P B2A 10kA 120/240VAC UL1077

1338006700

MC-50a AC120V 50/60Hz SCREW 1a1b (Metasol) EXP (MC50A-30-11-K7-S-E)

1270040900

GMD-16M DC240V 3W 1b EXP (GMD16M-30-01-UD-3W-S-E)

1SNK705010R0000

Combine high performance with compact dimensions: - 1000 V AC / DC IEC 600 V UL, - Opt for the best marking visibility thanks to the up-front, flat marker zone, which lets you mark up to eight digits or increase the font size.

CR104PXN1B

Pushbuttons. 104P heavy duty Oiltight Pushbutton. Nameplate. XN1B PR.No. CR100699

CR324E610F

General Electric Control Products. Nema Power Devices. Ol Relay 610F8364

XT2NU3090BFF000XXX

C.BREAKER TMAX XT2N 125 UL/CSA FIXED THREE-POLE WITH FRONT TERMINALS AND THERMOMAGNETIC RELEASE TMA R 90 I3=450...900 A

3194213000K04

DS9 RECEPTACLE POLY BLUE SIZE 5 IP 66/67/69 3P+G 150 A 480 VAC 60 Hz

C2G0150MQMJ

HPS Open Style Control Transformer, 150VA 240x480V-120x240V 50/60Hz

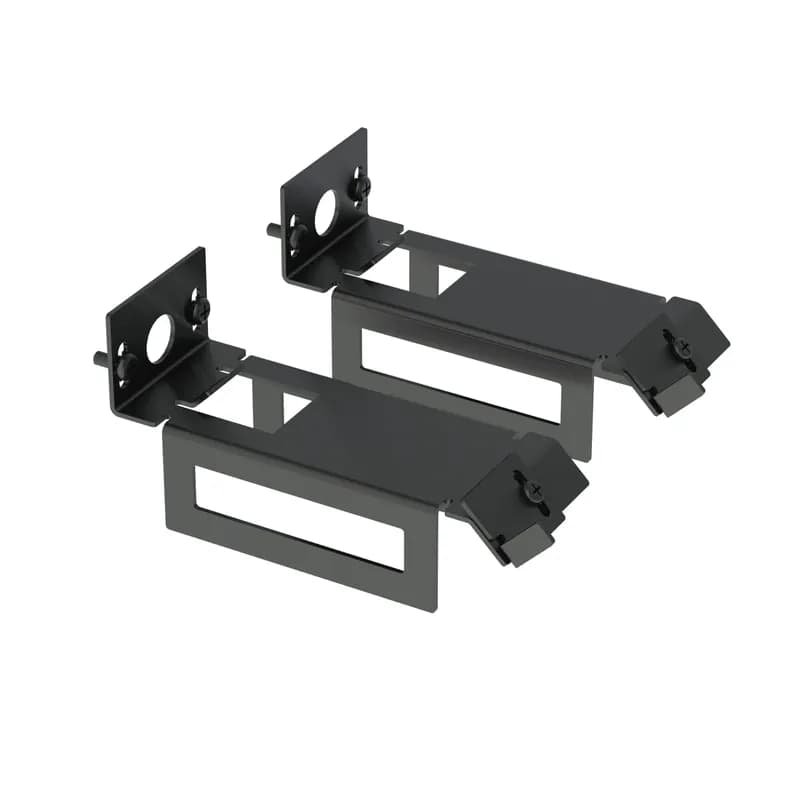

FDFLMBKT6

Support additional fibers at the bottom of FlexCore ODF with the FDFLMBKT6 FlexCore ODF FiberRunner Lower Trough Support Bracket Kit 6"x4". These brackets can be installed in multiple positions in the lower trough and offer additional support. Install 6"x4" FiberRunner (part number FR6X4*, sold separately) on top of the support bracket for additional fiber management. This kit contains two Lower Trough Support Brackets, four lock washers and four panhead screws.

HC2BL6

Hinged duct cover, 2 W x 6' length, PVC, black.

G2X2BL6-A

The G2X2BL6-A Panduct Lead-Free PVC Wide Slot Adhesive Wiring Duct feature a wide slot/finger design that provides greater sidewall rigidity and is suitable with a range of wire bundle sizes. UL 94 flame class of V-0 with a UL recognized continuous-use temperature up to 122 F (50 C). Adhesive and mounting holes provided. 2.0" x 2.0" (50.8 mm x 50.8 mm) and 6' (1.8 m) long. Cover sold separately. Color Black.

D2X3BL6

The D2X3BL6 Panduct Lead-Free PVC Round Hole Wiring Duct is designed with multiple rows of holes to retain and support wire at variable heights and positions. UL 94 flame class of V-0 with a UL recognized continuous-use temperature up to 122 F (50 C). Mounting holes provided. Lead-free PVC. 2" x 3" (50.8 mm x 76.2 mm) and 6' (1.83 m) long. Cover sold separately. Color Black.

C2.5BL6

The C2.5BL6 PVC Flush Wiring Duct Cover features a non-slip, liner to prevent cover slide. Designed with the user in mind, the cover is easy to install and remove. The general-purpose lead-free PVC material is suitable for use in indoor applications. UL 94 flame class of V-0 with a UL recognized continuous-use temperature up to 122 F (50 C). 0.35" x 2.5" (8.9 mm x 69.9 mm) and 6' (1.83 m) long. Color Black.

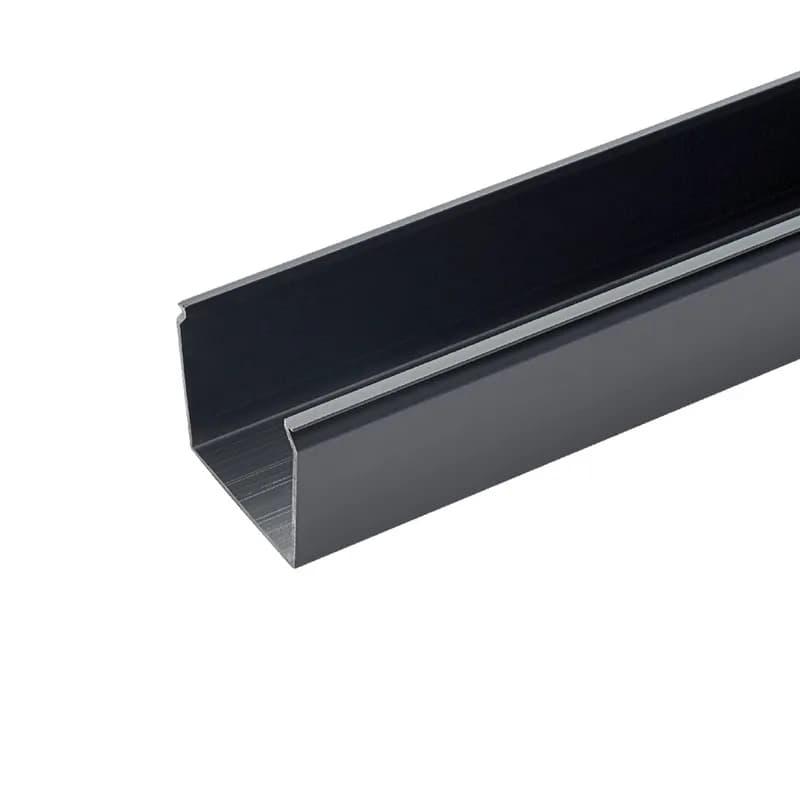

FS2X2BL6

The FS2X2BL6 Panduct Lead-Free PVC Solid Wall Wiring Duct design fully encloses cables providing maximum protection and aesthetics. UL 94 flame class of V-0 with a UL recognized continuous-use temperature up to 122 F (50 C). Lead-free PVC. 2" x 2" (50.8 mm x 50.8 mm) and 6' (1.83 m) long. Cover sold separately. Color Black.

G2X2BL6

The G2X2BL6 Panduct Lead-Free PVC Wide Slot Wiring Duct feature a wide slot/finger design that provides greater sidewall rigidity and is suitable with a range of wire bundle sizes. UL 94 flame class of V-0 with a UL recognized continuous-use temperature up to 122 F (50 C). Mounting holes provided. 2.0" x 2.0" (50.4 mm x 50.8 mm) and 6' (1.8 m) long. Cover sold separately. Color Black.

FS2X2BL6NM

The FS2X2BL6NM Panduct Lead-Free PVC Solid Wall Wiring Duct design fully encloses cables providing maximum protection and aesthetics. UL 94 flame class of V-0 with a UL recognized continuous-use temperature up to 122 F (50 C). No mounting holes provided. Lead-free PVC. 2" x 2" (50.8 mm x 50.8 mm) and 6' (1.83 m) long. Cover sold separately. Color Black.

G2X3BL6

The G2X3BL6 Panduct Lead-Free PVC Wide Slot Wiring Duct feature a wide slot/finger design that provides greater sidewall rigidity and is suitable with a range of wire bundle sizes. UL 94 flame class of V-0 with a UL recognized continuous-use temperature up to 122 F (50 C). Mounting holes provided. 2.0" x 3.0" (50.8 mm x 76.2 mm) and 6' (1.8 m) long. Cover sold separately. Color Black.

G2X4BL6

The G2X4BL6 Panduct Lead-Free PVC Wide Slot Wiring Duct feature a wide slot/finger design that provides greater sidewall rigidity and is suitable with a range of wire bundle sizes. UL 94 flame class of V-0 with a UL recognized continuous-use temperature up to 122 F (50 C). Mounting holes provided. 2.0" x 4.0" (50.8 mm x 101.6 mm) and 6' (1.8 m) long. Cover sold separately. Color Black.

G2X1BL6

The G2X1BL6 Panduct Lead-Free PVC Wide Slot Wiring Duct feature a wide slot/finger design that provides greater sidewall rigidity and is suitable with a range of wire bundle sizes. UL 94 flame class of V-0 with a UL recognized continuous-use temperature up to 122 F (50 C). Mounting holes provided. 2.0 x 1.0" (50.8 mm x 25.4 mm) and 6' (1.8 m) long. Cover sold separately. Color Black.

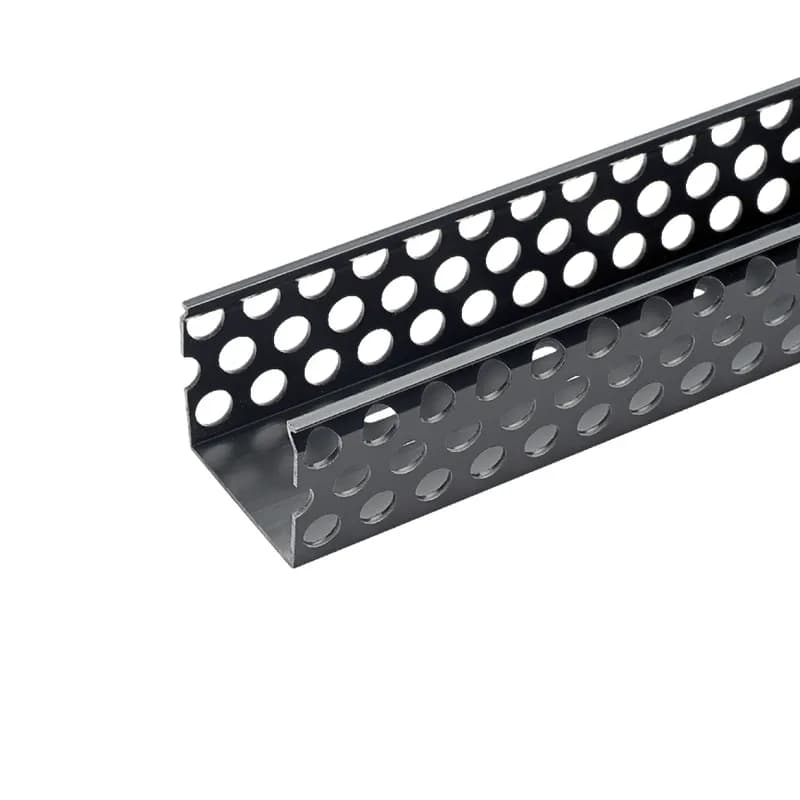

D2X4BL6

The D2X4BL6 Panduct Lead-Free PVC Round Hole Wiring Duct is designed with multiple rows of holes to retain and support wire at variable heights and positions. UL 94 flame class of V-0 with a UL recognized continuous-use temperature up to 122 F (50 C). Mounting holes provided. Lead-free PVC. 2" x 4" (50.8 mm x 101.6 mm) and 6' (1.83 m) long. Cover sold separately. Color Black.

How to Install the FRESPKT6 Lower Trough System

This guide provides step-by-step instructions for installing the FRESPKT6 Lower Trough System, including mounting support brackets and connecting FIBERRUNNER™ channels.

Estimated time: 30m

Tools needed:

7/16” Socket Wrench, #2 Phillips screwdriver, 3/32” Hex Wrench

Supplies needed:

#12-24 x 1/2 Pan Head screws (4), #12 Tooth Lockwashers (4), Lower Trough Support Brackets (2), 1/4-20 Serrated Flange Hex Nuts (2), #8-32 Flat Head Cap Screw (1), Lower Trough Inner Coupler (1), Lower Trough Outer Coupler (1)

Install Support Brackets
Attach 2 Lower Trough Support Brackets to each FlexCore™ Frame using #12-24 x 1/2 Pan Head screws and #12 Tooth Lockwashers. Ensure they are securely fastened.
Mount FIBERRUNNER™
Place the 6x4 FIBERRUNNER™ on top of the installed Support Brackets, ensuring the bracket clip engages the FIBERRUNNER™ tab. Adjust the front clip on the Support Brackets to secure the FIBERRUNNER™.
Install Couplers
Join two sections of the 6x4 FIBERRUNNER™ channel using the Lower Trough Inner and Outer Couplers. Ensure couplers are installed away from the locations of the Support Brackets.
