Overview
- Pre-loaded with 12 aqua duplex SC adapters with zirconia sleeves for optimal signal integrity
- Black powder-coated steel construction for corrosion resistance and durability
- Compact dimensions: 1.73"H x 17.5"W x 12.1"D (44mm x 445mm x 308mm)
- Designed for FTTX, data center, and telecom applications
- Supports high-density fiber terminations with bend radius protection
Specifications
Application | Fiber Optic Cable Management |
Color | Black |
Depth | 12.13 In. |
Material | Steel |
Size | 1.73 inches H x 17.5 inches W x 12.1 inches D (44mm x 445mm x 308mm) |
Standard | RoHS Directive is not applicable |
Type | Fiber Optic Drawer |
Width | 17.5 In. |
Package Dimensions (L x W x H) | 24.25 IN x 18.5 IN x 4.25 IN |
Package Weight (Imperial) | 8 lbs |
FD1W6AQDSCZ
The fiber drawer is pre-loaded with 6 aqua duplex SC adapters with zirconia sleeves. It is black powdered coated steel and measures 1.73 inches H x 17.5 inches W x 12.1 inches D (44mm x 445mm x 308mm)
FD1W24AQDLCZ
The fiber drawer is pre-loaded with 24 aqua duplex LC adapters with zirconia sleeves. It is black powdered coated steel and measures 1.73 inches H x 17.5 inches W x 12.1 inches D (44mm x 445mm x 308mm)
FD1W12AQDLCZ
The fiber drawer is pre-loaded with 12 aqua duplex LC adapters with zirconia sleeves. It is black powdered coated steel and measures 1.73 inches H x 17.5 inches W x 12.1 inches D (44mm x 445mm x 308mm)
FRME2

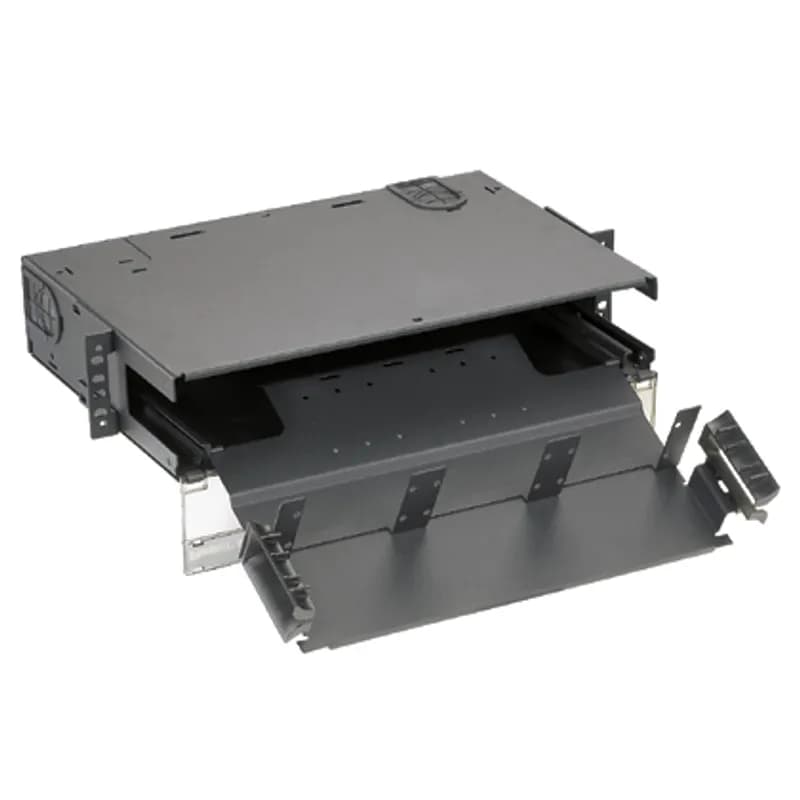

The Panduit Opticom 2 RU Rack Mount Fiber Enclosure has integral fiber management and can hold up to 6 FAPs for a maximum of 144 fibers. It ensures network reliability by housing, organizing, managing and protecting fiber optic cable, terminations, splices, connectors and patch cords. It is black powder coated steel.
FRME4

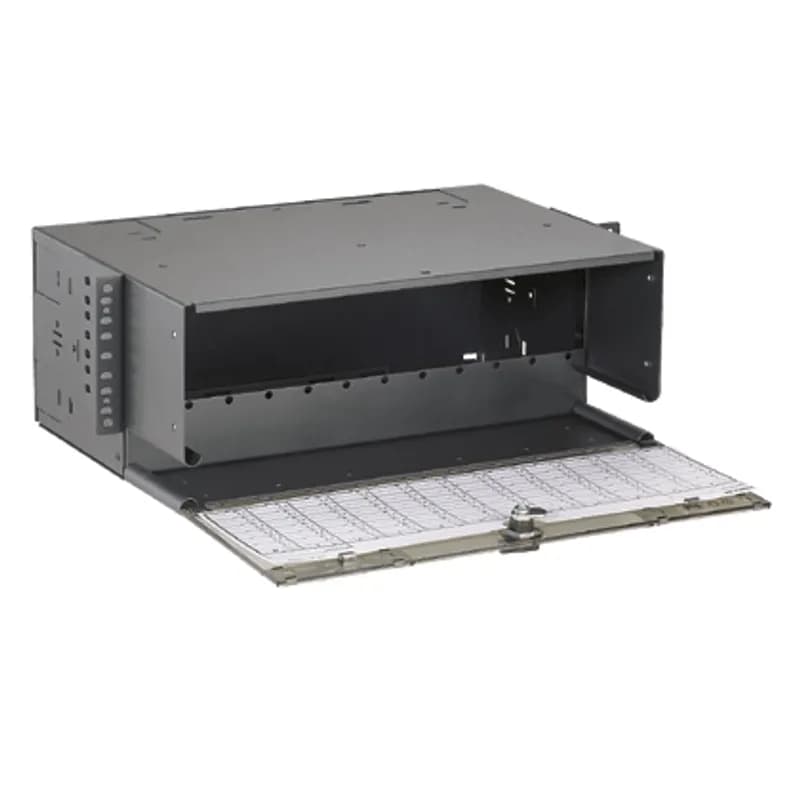

The Panduit Opticom 4 RU Rack Mount Fiber Enclosure has integral fiber management and features 12 FAP/cassette slots. It can accommodate 12 FAPs for a maximum of 288 fibers. It ensures network reliability by housing, organizing, managing and protecting fiber optic cable, terminations, splices, connectors and patch cords. It is black powder coated steel.
FRME3
The Panduit Opticom 3 RU Rack Mount Fiber Enclosure has integral fiber management and can hold up to 9 FAPs for a maximum of 216 fibers. It ensures network reliability by housing, organizing, managing and protecting fiber optic cable, terminations, splices, connectors and patch cords. It is black powder coated steel.
FRME1

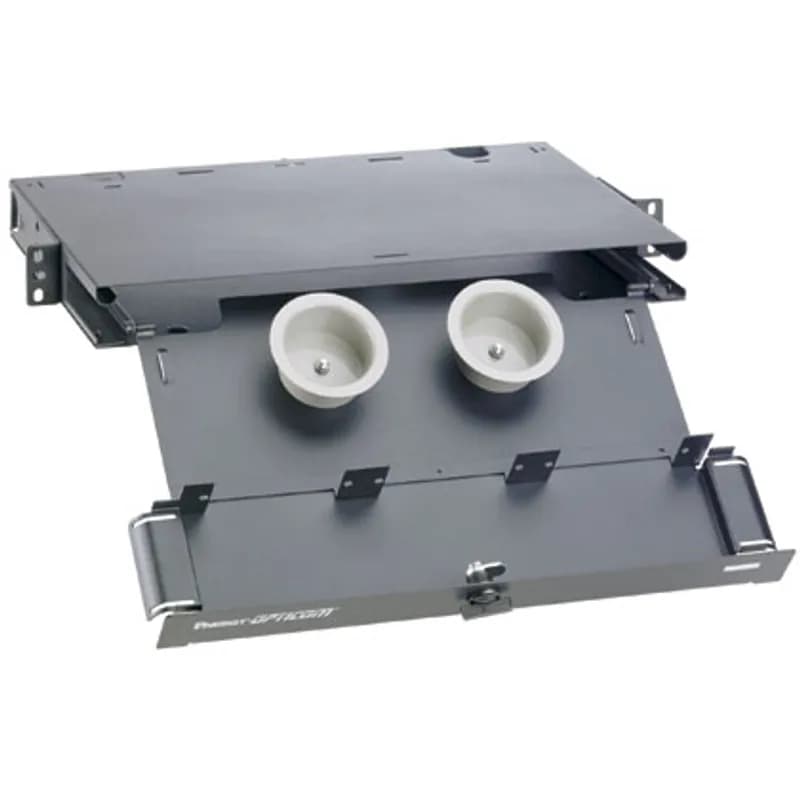

The Panduit Opticom 1 RU Rack Mount Fiber Enclosure has integral fiber management and can hold up to 3 FAPs for a maximum of 72 fibers. It ensures network reliability by housing, organizing, managing and protecting fiber optic cable, terminations, splices, connectors and patch cords. It is black powder coated steel.
FD1W12BUDLCZ
The fiber drawer is pre-loaded with 12 blue singlemode duplex LC adapters with zirconia sleeves. It is black powdered coated steel and measures 1.73 inches H x 17.5 inches W x 12.1 inches D (44mm x 445mm x 308mm)
NKFD1W24BUDLCZ
The NetKey Fiber Drawer comes preloaded with 24 LC Duplex adapters for OS1/OS2 singlemode fiber for fast and easy cabling and installation.
NKFD1W12BUDSCZ
The NetKey Fiber Drawer comes preloaded with 12 SC Duplex adapters for OS1/OS2 singlemode fiber. It features zirconia split sleeves.
NKFD1W12BUDLCZ
The NetKey Fiber Drawer comes preloaded with 12 LC Duplex adapters for OS1/OS2 singlemode fiber. It features zirconia split sleeves.
FMTJW24

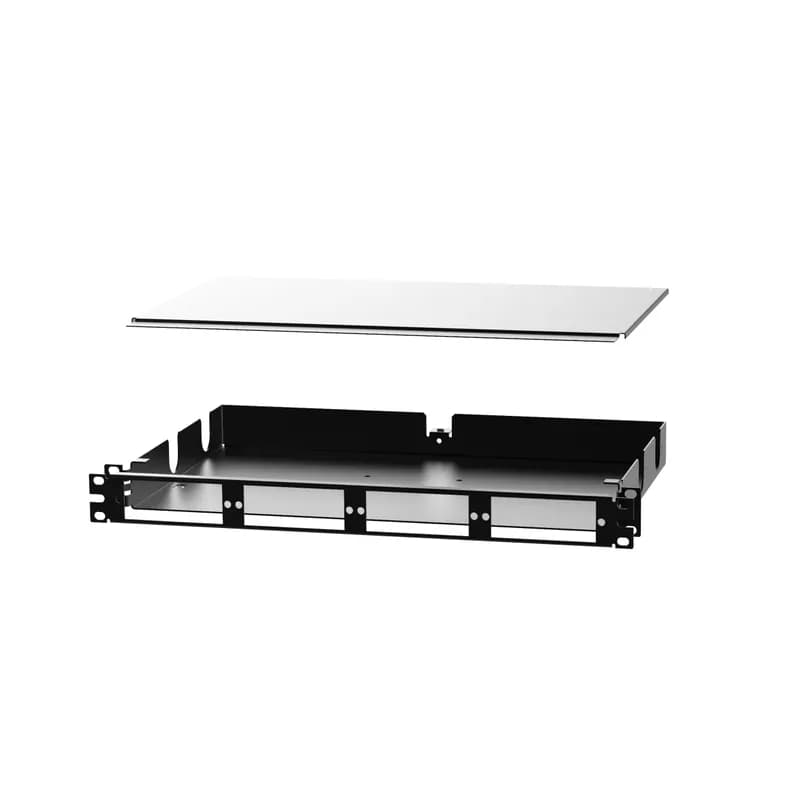

This Opticom fiber tray accepts 4 FAP or FMP Panels and includes CFAPPBL1, a flat fiber patch panel. This product is available in Japan only and fits in a 1 RU footprint.Frequently Asked Questions
What is the size of the fiber drawer?
The dimensions are 1.73 in H x 17.50 in W x 12.13 in D.
Is installation hardware included?
Yes, it includes mounting hardware and a fiber routing accessory kit.
What types of fiber adapters are included?
The FD1W24AQDSCZ includes duplex SC or LC adapters for multimode fiber.
What mounting options are available?
It features integral brackets for mounting in 19 in wide EIA-310/IEC 60297 racks.
Can it support field termination?
Yes, it supports field termination via pot-and-polish or OptiCam connectors.
How does the slide-out drawer function?
The drawer slides forward 300mm for easy access to all fiber terminations.
What cable entry methods are supported?
It supports trunk cable entry via PG11 glands, blown fiber glands, and knockouts.
What is the maximum fiber capacity?
The enclosure can manage up to 48 fibers depending on configuration and adapter type.
What materials are used in the construction?
The enclosure has a two-piece, all-metal body for improved protection.
Are there labeling areas on the enclosure?
Yes, it has silk-screened areas for individual and overall enclosure labeling.
