Overview

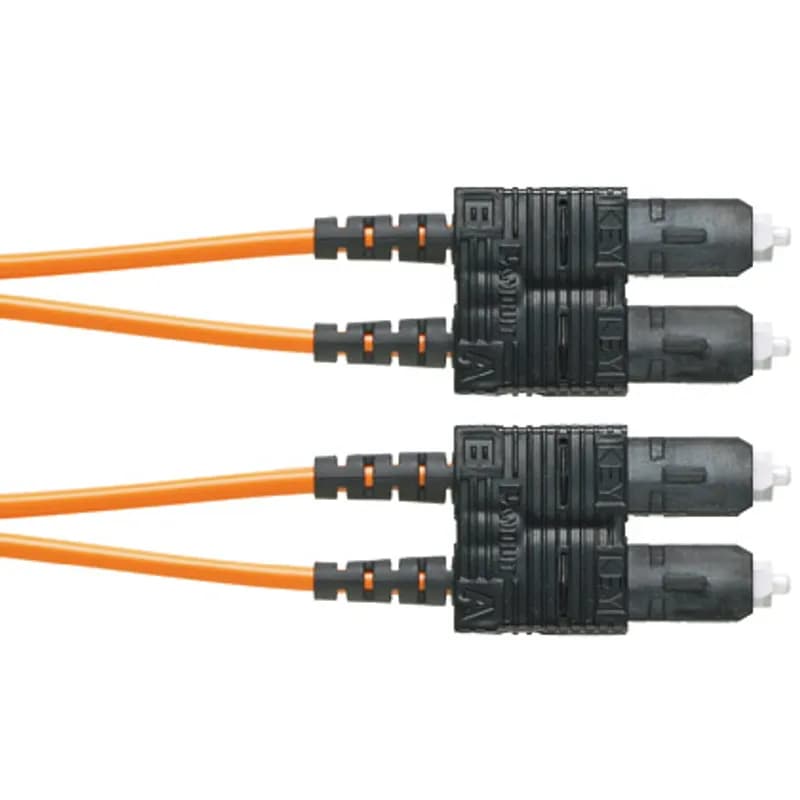

- 2-fiber OS2 SC APC duplex to SC APC duplex patch cord
- 3mm jacket diameter for flexibility and protection
- Low Smoke Zero Halogen (LSZH) rated for enhanced safety
- Standard Insertion Loss (Std IL) performance
- 17 meters cable length
Specifications
Application | Provide interconnect and cross-connect of applications in entrance facilities, telecommunications rooms, data centers, at the desk and network applications to interconnect pre-terminated cassettes in main distribution, horizontal distribution, and equipmen |
Boot Type | SC Duplex APC |
Color | Yellow |
Fiber Compatibility* | OS2 9/125um |
Flammability Rating* | LSZH |
Length | 669.24 in |
Length | 16998.7 mm |
Number of Cores | 2 |
Outside Diameter | 0.1181 in |
Outside Diameter | 3 mm |
Plug Type | SC Duplex APC |
Standard | RoHS Compliant, Meets or exceeds ISO/IEC 11801, TIA/EIA-568-C.3, TIA-604-3 (FOCIS-3), TIA-604-10 (FOCIS-10) |
Temperature Rating, Maximum | 158 F |
Temperature Rating, Minimum | 158 F |
Type | OS2 |
Package Dimensions (L x W x H) | 9 IN x 11 IN x 1 IN |
Package Weight (Imperial) | 0.72 lbs |
TY29MX
High Performance Cable Tie, Black Color Nylon 6.6, Weather and Ultraviolet Resistant, Length of 762mm (30 Inches) for Bundle Diameter up to 229mm (9.02 Inches), Width of 6.9mm (0.27 Inch), Tensile Strength Rating of 534 Newtons (120 Pounds), Operating Temperature of -60 Degrees Celsius (-76 F) to 85 Degrees Celsius (185 F)
TYH27M
Cable Tie, Heat Stabilized Polyamide (Nylon 6.6) - Greenish Tint for Temperatures up to 105 Degrees Celsius (221 F) for Indoor Applications, Length of 343mm (13.5 Inches), Width of 6.9mm (0.27 Inch), Thickness of 1.5mm (0.06 Inch), Maximum Bundle Diameter 102mm (4.02 Inches), Tensile Strength Rating of 534 Newtons (120 Pounds)
SVNDZ-P167GT
VNDZ Straight Connector with Strain Relief, PG Thread for IP66 Static Conduit - Thread PG 16, Fits to Conduit Size NW/Metric 17/20, Color GraySVNDZ-P137GT
VNDZ Straight Connector with Strain Relief, PG Thread for IP66 Static Conduit - Thread PG 13.5, Fits to Conduit Size NW/Metric 17/20, Color Gray
PDCP2078
DataCom Enclosure Pkg, Bulletin DPVD (PROLINE® Voice and Data Package - PROLINE Voice and Data Package), Size/Dims: 2000x700x800mm, Material: Steel, Finish: Lt Gray
CMSBUSCZBL
The Mini-Com Singlemode Simplex SC Adapter is a small form factor (SFF) adapter with integrated panel retention clips and are TIA/EIA-605 FOCIS-10 compatible. It connects two SC connectors in one module space and features a blue SC simplex fiber adapter along with a black module and has zirconia split sleeves.
Frequently Asked Questions
What is the operating temperature range for installation?
The operating and installation temperature range is -20°C to 70°C for both Riser and LSZH cables.
What types of fiber are available for this product?
The product offers Singlemode fiber types OS2 (G.652.D) and LWP Bend-Insensitive (G.657.A2/B2).
What is the maximum connector insertion loss?
The maximum connector insertion loss is 0.30dB for LC/APC and 0.50dB for SC/APC.
What is the storage temperature range?
The storage and shipping temperature range is -40°C to 70°C.
What are the jacket ratings for the cable?
The cable jacket ratings include Riser (OFNR) and Low Smoke Zero Halogen (LSZH).
How durable are the connectors?
The connectors are rated for 500 cycles of durability.
What standards does this product meet?
The product meets or exceeds ISO/IEC 11801, TIA/EIA-568-C.3, and other relevant standards.
What types of connectors are available?
The connectors available are Simplex or Duplex LC/APC and SC/APC for both ends.
What is the minimum bend radius for the cable?
The minimum bend radius is 16mm for 1.6mm cables and 29mm for 3mm cables.
What is the cable outside diameter?
The cable outside diameter is 1.6mm for duplex and simplex, and 3mm for duplex and simplex.
