Overview
- Tin-plated brass construction for corrosion resistance and reliable conductivity
- 0.250 x 0.032" (6.3 x 0.8 mm) tab size supports 22-18 AWG wires (0.5-1.0 mm²)
- Fully insulated red nylon housing for electrical protection and color-coded identification
- Funnel entry barrel for easy wire insertion and insulation grip sleeve to prevent pull-out
- Compact 0.94" L x 0.36" W (23.9 x 9.1 mm) design for tight-space installations
Specifications
Color | Red |
Connection | Funnel Entry |
Connection Type | Funnel Entry Barrel with Insulation Grip Sleeve |
Finish | Tinned |
Insulation | Nylon |
Material | Brass |
Material | Brass, Nylon |
Material | Brass, Tin-plated, Nylon |
Mounting | 9/32 In. |
Series | DNF18-250FI |
Series | DNF |
Series | DNF18 |
Size | 0.94" (23.9 mm) x 0.36" (9.1 mm) |
Size | 0.250 x 0.032" (6.3 x 0.8 mm) tab, 0.94" (23.9 mm) long, 0.36" (9.1 mm) wide |
Size | 0.94" (23.9 mm) L x 0.36" (9.1 mm) W, Tab size: 0.250 x 0.032" (6.3 x 0.8 mm) |
Standard | CSA Certified LR31212, C22.2 No.153;UL 310 Listed, UL Listed 20H3 E78522 |
Temperature Rating | 221 Degrees Fahrenheit (105 Degrees Celsius) |
Type | Disconnect |
Voltage Rating | 600 V |
Wire Size | 18 AWG |
Package Dimensions (L x W x H) | 9.3 IN x 2.2 IN x 3.65 IN |
Package Weight (Imperial) | 1 lbs |
DV18-205B-3K

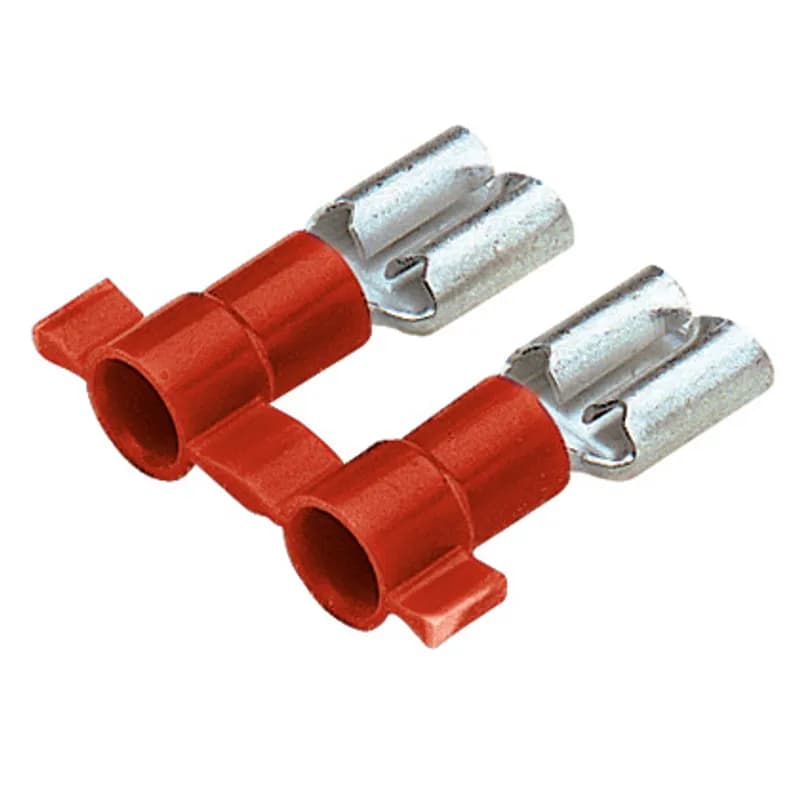

The vibration resistant female disconnect is made of brass and is tin-plated. It is barrel insulated in red vinyl housing. It has a tab size of 0.187/0.205 x 0.032" (4.8/5.2 x 0.8 mm) and supports a wire range of 22-18 AWG (0.5-1.0 mm ). It is 0.77" (19.6 mm) long and 0.25" (6.4 mm) wide. The disconnect has a funnel entry barrel configuration and a butted seam barrel. It comes in reels of 3000.
DV18-206B-3K
The vibration resistant female disconnect is made of brass and is tin-plated. It is barrel insulated in red vinyl housing. It has a tab size of 0.187/0.205 x 0.02" (4.8/5.2 x 0.5 mm) and supports a wire range of 22-18 AWG (0.5-1.0 mm ). It is 0.77" (19.6 mm) long and 0.25" (6.4 mm) wide. The disconnect has a funnel entry barrel configuration and a butted seam barrel. It comes in reels of 3000.
DPFR18250FIB-KD

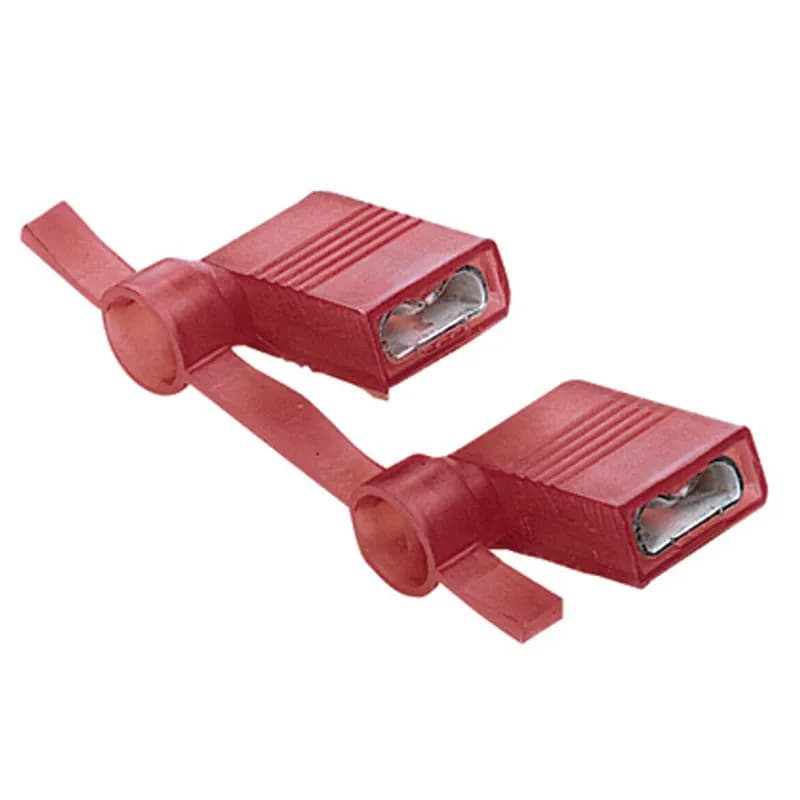

The vibration resistant right angle female disconnect is made of brass and is tin-plated. It is fully insulated in red premium nylon housing. It has a tab size of 0.250 x 0.032" (6.3 x 0.8 mm) and supports a wire range of 22-18 AWG (0.5-1.0 mm ). It is 0.57" (14.5 mm) long and 0.37" (9.4 mm) wide. The disconnect has a standard barrel configuration and a butted seam barrel. It comes in reels of 1500.
DNF18-187FIB-3K

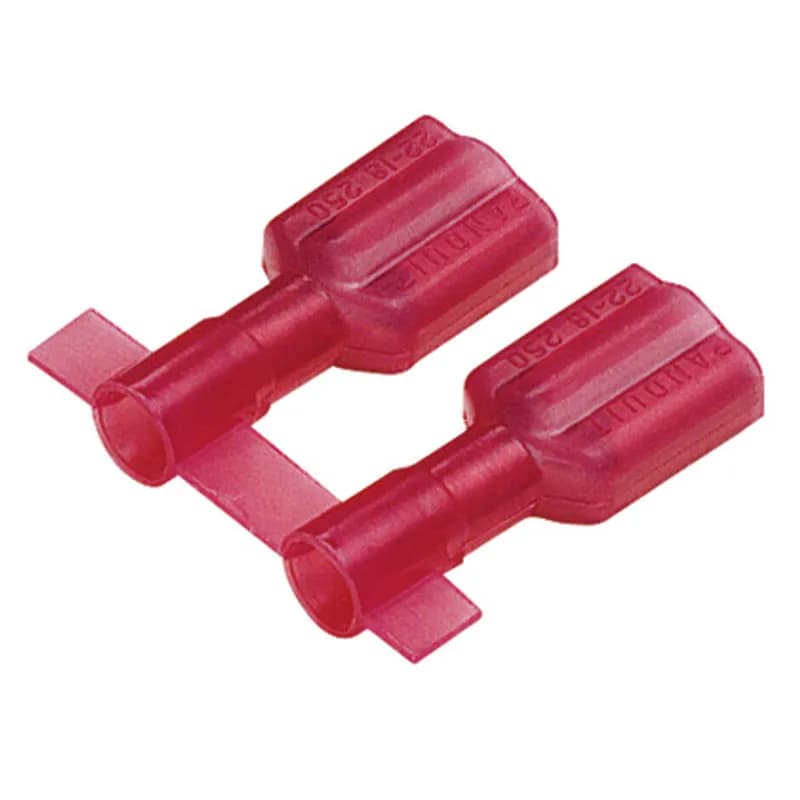

The vibration resistant female disconnect is made of brass and is tin-plated. It is fully insulated in a red, nylon housing. It has a tab size of 0.187 x 0.032" (4.8 x 0.8 mm) and supports a wire range of 22-18 AWG (0.5-1.0 mm ). It is 0.78" (19.8 mm) long and 0.29" (7.4 mm) wide. The disconnect has a funnel entry barrel configuration and a butted seam barrel. It comes in reels of 3000 pieces.
DPF18-205FIB-M

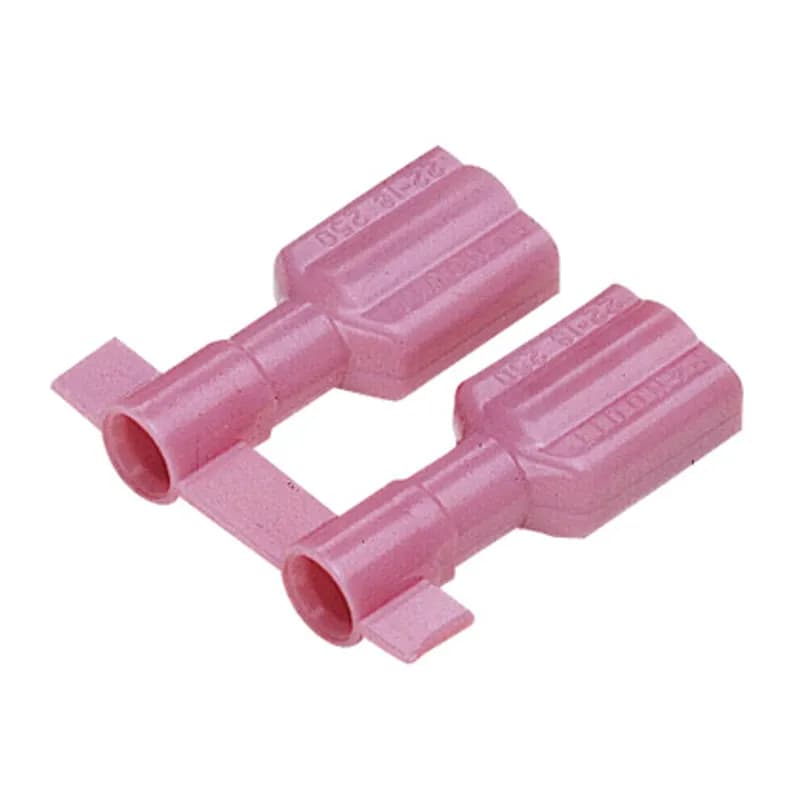

The vibration resistant DiscoGrip female disconnect is made of brass and is tin-plated. It is fully insulated in red premium nylon housing. It has a tab size of 0.205/0.187 x 0.032" (5.2/4.8 x 0.8 mm) and supports a wire range of 22-18 AWG (0.5-1.0 mm ). It is 0.78" (19.8 mm) long and 0.31" (7.9 mm) wide. The disconnect has a funnel entry barrel configuration and a butted seam barrel. It comes in boxes of 1000.
DPF18-205FIB-3K

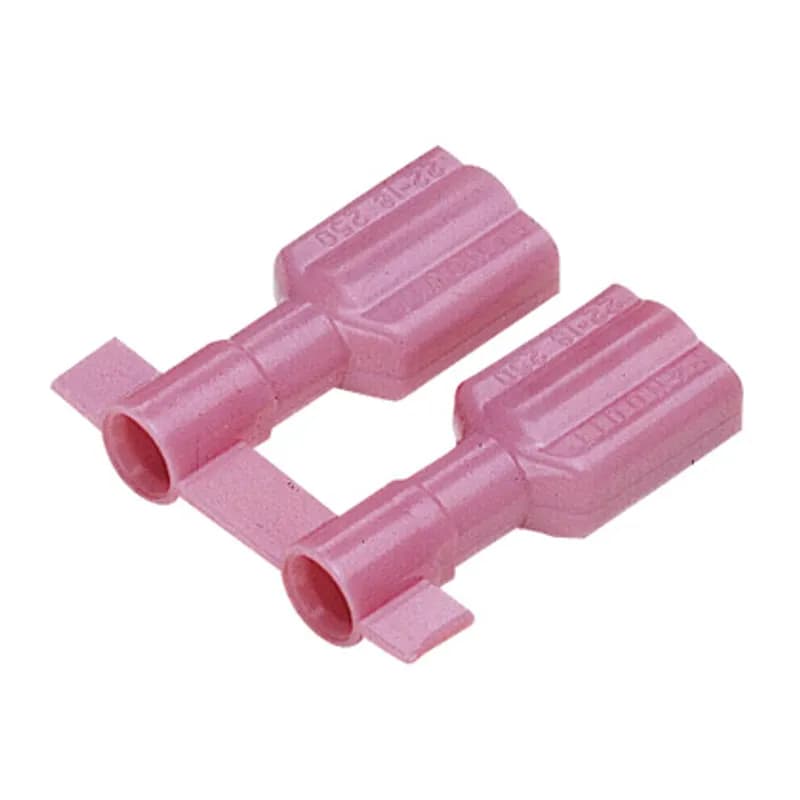

The vibration resistant female disconnect is made of brass and is tin-plated. It is fully insulated in red premium nylon housing. It has a tab size of 0.187/0.205 x 0.032" (4.8/5.2 x 0.8 mm) and supports a wire range of 22-18 AWG (0.5-1.0 mm ). It is 0.78" (19.8 mm) long and 0.31" (7.9 mm) wide. The disconnect has a funnel entry barrel configuration and a butted seam barrel. It comes in reels of 3000.
DPF18-111FIB-3K
The vibration resistant female disconnect is made of brass and is tin-plated. It is fully insulated in red premium nylon housing. It has a tab size of 0.110 x 0.020" (2.8 x 0.5 mm) and supports a wire range of 22-18 AWG (0.5-1.0 mm ). It is 0.71" (18 mm) long and 0.19" (4.8 mm) wide. The disconnect has a funnel entry barrel configuration and a butted seam barrel. It comes in reels of 3000.
DNFR18-205B-M
The vibration resistant, right angle style female disconnect is made of brass and is tin-plated. It is insulated in red nylon. It has a tab size of 0.205/0.187 x 0.032 (5.2/4.8 x 0.8 mm) and supports a wire range of 22-18 AWG (0.5-1.0 mm ). It is 0.78" (19.8 mm) long, 0.36" (9.1 mm) wide, and has a depth of 0.62" (15.7 mm). The disconnect has a funnel entry configuration and a butted seam barrel. It comes in boxes of 1000.Frequently Asked Questions about Panduit
