Contact for Pricing
Overview

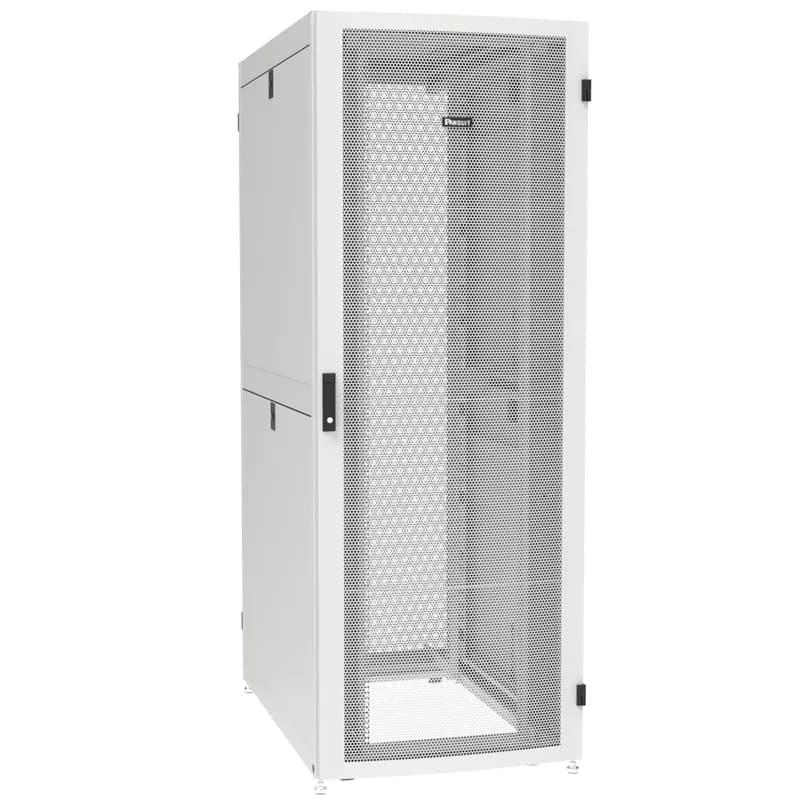

- 48 Rack Unit (RU) capacity for extensive equipment housing
- 800mm W x 1200mm D dimensions with 91.0" H (2311 mm) height
- Single-hinge perforated front door and split perforated rear doors for ventilation and access
- Infinitely adjustable 19-inch tapped rack angles for flexible equipment mounting
- Includes horizontally split side panels, two full-length PDU brackets, and casters
Specifications
Color | White |
Depth | 50.6 In. |
Finish | Powder-coated |
Material | Steel |
Series | Net-Verse D-Type Cabinet |
Size | 48 RU, 800mm W x 1200mm D, 91.0" H x 31.5" W x 47.2" D (2311 mm x 800 mm x 1200 mm) |
Standard | EIA-310E, RoHS Compliant, UL Listed 2416 |
Type | D-Type Cabinet |
Width | 31.5 In. |
Package Dimensions (L x W x H) | 89.16 IN x 47.24 IN x 42.2 IN |
Package Weight (Imperial) | 440 lbs |
ST4803PDGM
Surge-Trap® Surge Protective Device is a no-fuse surge suppressor. The Surge-Trap is a UL 1449 Third Edition compliant modular style surge protective device that is DIN-rail mountable featuring a fail-safe self-protected design, visual indicator and a small foot print. A remote indicator option provides status to critical control circuit. The Surge-Trap provides advanced overvoltage protection utilizing Mersen's patented TPMOV® technology without additional protection devices. 480 Volts 3P Delta system type without N-G mode, with microswitch .
3085
Super-Safeway® Multiple Outlet Box, Extended Depth, 2-Sided, F2 (1/2") Cord Grip Body, with Flip Lids for (2) Duplex Not Included
STP6X12MIG
This TX6A 10Gig Cat 6A STP Patch Cord is a 12-Meter, Int'l Grey cord constructed of 26 AWG, shielded, twisted pair, stranded, CM/LSZH cable and with high-performance modular plugs. Its tangle-free latch prevents snags and ensures a fast release, streamlining moves, adds, and changes. The slender strain relief boot provides easy access in high-density applications. Enabled with RapidID, the product has pre-installed barcodes for simple port mapping using RapidID software.
F62ERLNSNSNM002
OM1 2 fiber, 16mm jacket, patchcord, Riser (OFNR) rated, LC duplex to SC duplex, Std IL
CESUM3-C15
Membrane plate cable entry system offers a good strain relief while maintaining IP/NEMA ingress sealing rating. The CESUM3-C15 is a Rectangular Un-Terminated Cable Entry System, 4.1" (103 mm) Long, with 8 Openings 0.12" (3.0 mm) to 0.31" (8 mm), 3 Openings 0.20" (5.1 mm) to 0.35" (9.0 mm), 4 Openings 0.3" (7.5 mm) to 0.47" (12.0 mm). Color is Black. Standard Package Quantity is 1 PC.
Frequently Asked Questions
What are the dimensions of the DN8212B cabinet?
The DN8212B cabinet is 800mm (31.5 inches) wide, 1000mm (39.4 inches) deep, and 2045mm (80.5 inches) high, including casters.
What are the load ratings for the Net-Verse cabinet?
The cabinet has a static load rating of 1,500kg (3,300 lbs.) and a rolling load rating of 500kg (1,100 lbs.).
What compliance standards do Net-Verse cabinets meet?
Net-Verse cabinets comply with EIA-310-E, TIA/EIA-942, and UL2416 standards.
What is the material and finish of the cabinet?
The cabinet is constructed from steel with a durable black powder coat finish.
What are the air flow specifications for the doors?
The curved perforated front single hinge doors provide a 69% air flow rate.
How are Net-Verse cabinets shipped?
The cabinet ships fully assembled, with one cabinet per pallet.
Are cable management fingers available for 800mm wide cabinets?
Yes, modular cable management fingers are optional accessories for 800mm wide cabinets, providing bend radius control.
What type of equipment rails are included?
The cabinet includes fully adjustable cage nut equipment rails with RU markings for correct IT equipment location.
Can multiple Net-Verse cabinets be ganged together?
Yes, the cabinet comes equipped with the necessary brackets and hardware to gang adjoining Net-Verse™ Cabinets.
Is the cabinet electrically bonded?
Yes, the entire cabinet is fully electrically bonded, including equipment rails, doors, and side panels.
How to Install the DNE8222B Cabinet
This guide provides step-by-step instructions for the installation and initial setup of the DNE8222B cabinet, ensuring proper mounting, leveling, and grounding.
Estimated time: 1h
Tools needed:
13mm Socket, 19mm Wrench, T25 Torx driver, 8mm Hex Drive, 122mm Level
Supplies needed:
Mounting screws, Shipping Hold Down Brackets, Anchors for floor mounting
- Remove Packaging Material
Remove all stretch wrap, protective cardboard, and plastic from the cabinet. Use at least 2 persons to lift and remove the cabinet from the pallet.
- Level the Cabinet
Ensure the leveling legs are fully retracted. Slide the cabinet into its final position and lower the leveling legs until the cabinet is supported by them. Adjust the legs to ensure the cabinet is level both front-to-back and side-to-side using a level.
- Secure the Cabinet to the Floor
Secure the Shipping Hold Down Brackets at the front and rear of the cabinet. Use appropriate anchors to mount the cabinet to the floor, ensuring it can support the weight of equipment.
- Ground the Cabinet
Attach a grounding lug or grounding bar to the Common Bonding Network (CBN) using any bonus hole along the frame. Ensure all components are properly grounded to prevent electrical shock.
- Install Equipment Rails
Remove screws from the equipment rails to adjust their spacing as needed. Reinstall the screws to secure the rails in the desired position.
