Panduit CUEOR12CPB1 - The Net-Contain End of Row Cap is part of the Universal Aisle Containment system for cold aisle or hot aisle contaiment in a floor-mounted structure compatible with most cabinet brands and sizes. The End of Row Cap is for 4-foot (1200mm) aisle widths. It is black.
Panduit

CUEOR12CPB1

UPC: 074983602117

Documents & Media
Technical DrawingFull Engineering DrawingInstallation Instructions

Contact for Pricing

Overview

Enhance your data center's thermal management with the Panduit Net-Contain End of Row Cap (SKU: CUEOR12CPB1). This essential component is designed for 4-foot (1200mm) aisle widths and integrates seamlessly into Panduit's Universal Aisle Containment system. Engineered for floor-mounted structures, it effectively seals the end of cold or hot aisles, preventing air recirculation and optimizing cooling efficiency. The black finish provides a clean, professional aesthetic within your server room. Compatibility is a key feature, as this End of Row Cap is designed to work with most cabinet brands and sizes, offering flexibility for existing infrastructure. By containing airflow, it ensures that cool air reaches the equipment inlets and hot air is directed away, leading to improved equipment performance and reduced energy consumption. This product is crucial for maintaining optimal operating temperatures in demanding IT environments. The Panduit Net-Contain system, including this End of Row Cap, offers a practical and effective solution for data center airflow management.
  • Part of the Universal Aisle Containment system
  • Suitable for cold aisle or hot aisle containment
  • Floor-mounted structure
  • Compatible with most cabinet brands and sizes
  • Designed for 4-foot (1200mm) aisle widths
  • Color: Black

Specifications

Color
Black
Environmental Conditions
NA
Material
Steel/Polycarbonate
Standard
RoHS Compliant
Type
End of Row Cap
Width
58.74 In.
Package Dimensions (L x W x H)
102 IN x 30 IN x 6 IN
Package Weight (Imperial)
83.6 lbs
The Net-Contain End of Row Cap is used with cabinet supported containment systems to manage temperatures in the data center. The end of row cap is 1200mm wide, is compatible with 48RU cold aisle containment systems, and is black.

C2CEOR04CP8B1

The Net-Contain End of Row Cap is used with cabinet supported containment systems to manage temperatures in the data center. The end of row cap is 1200mm wide, is compatible with 48RU cold aisle containment systems, and is black.

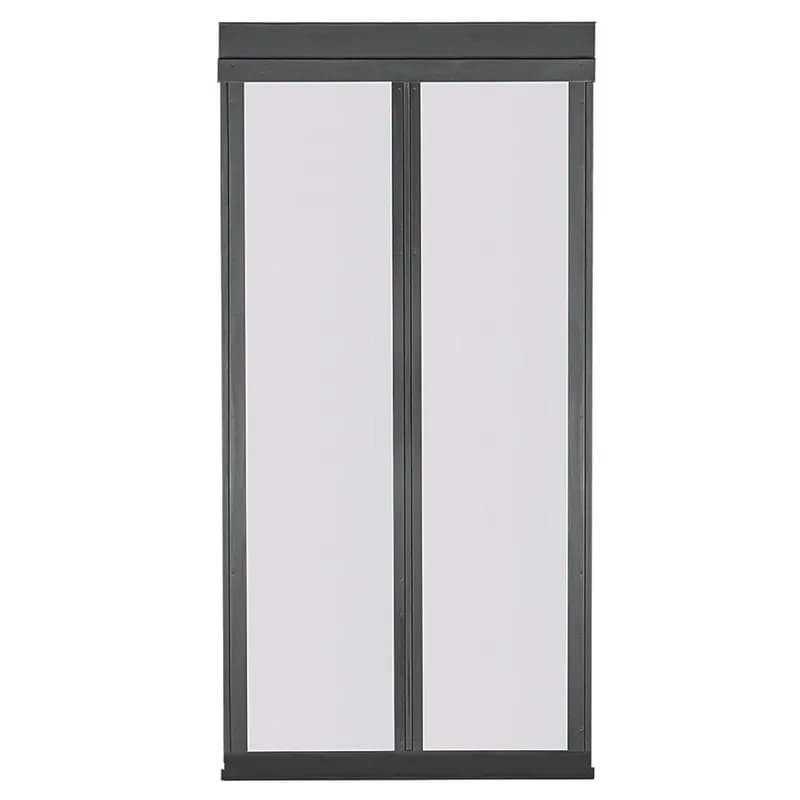

1200mm Aisle width End of Row Cap - compatible with 42RU CAC system, BL

C2CEOR04CP2B1

1200mm Aisle width End of Row Cap - compatible with 42RU CAC system, BL

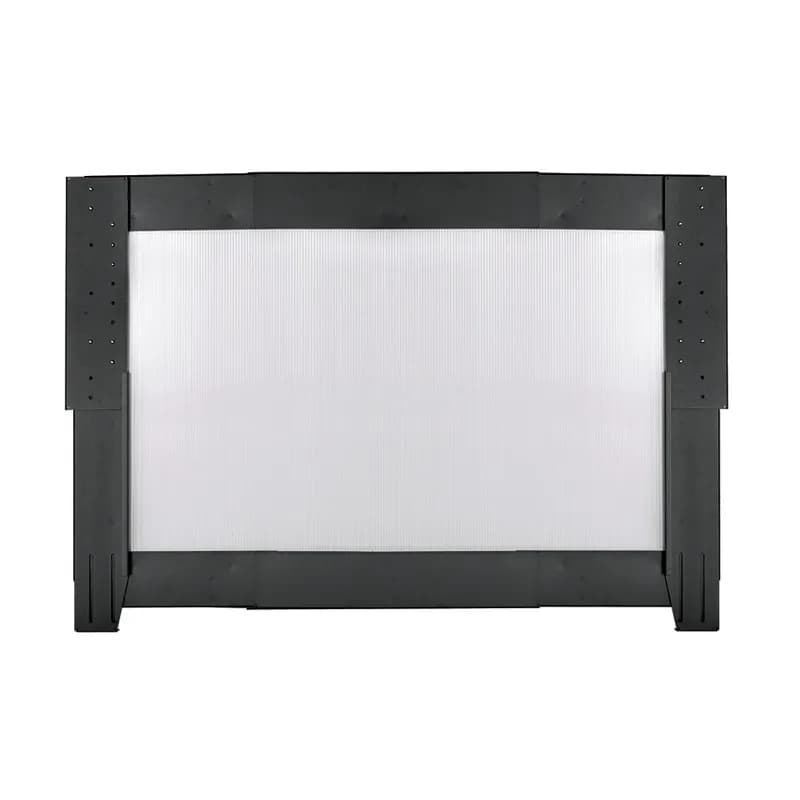

The Net-Contain End of Row Vertical Wall is part of the Universal Single Row Containment system. It is adjustable from 16 inches to 26 inches and is used with a 1200mm wide aisle. It is black.

CUSRVWER1626B1

The Net-Contain End of Row Vertical Wall is part of the Universal Single Row Containment system. It is adjustable from 16 inches to 26 inches and is used with a 1200mm wide aisle. It is black.
The Net-Contain End of Row Vertical Wall is part of the Universal Single Row Containment system. It is adjustable from 38 inches to 66 inches and is used with a 1200mm wide aisle. It is black.

CUSRVWER3866B1

The Net-Contain End of Row Vertical Wall is part of the Universal Single Row Containment system. It is adjustable from 38 inches to 66 inches and is used with a 1200mm wide aisle. It is black.
The Net-Contain End of Row Vertical Wall is part of the Universal Single Row Containment system. It is adjustable from 26 inches to 38 inches and is used with a 1200mm wide aisle. It is black.

CUSRVWER2638B1

The Net-Contain End of Row Vertical Wall is part of the Universal Single Row Containment system. It is adjustable from 26 inches to 38 inches and is used with a 1200mm wide aisle. It is black.
NET-VERSE SIDE PANEL, 42RU X 1000MM DEPTH, BLACK

D21SPB

NET-VERSE SIDE PANEL, 42RU X 1000MM DEPTH, BLACK

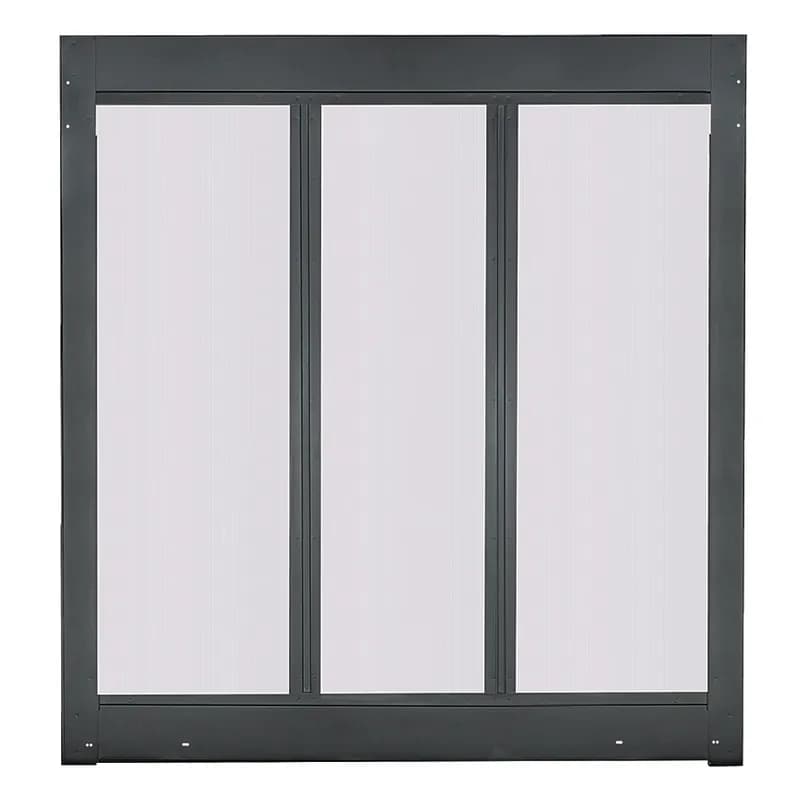

The Net-Contain End of Row Cap is part of the Universal Aisle Containment system for cold aisle or hot aisle contaiment in a floor-mounted structure compatible with most cabinet brands and sizes. The End of Row Cap is for 6-foot (1800mm) aisle widths. It is black.

CUEOR18CPB1

The Net-Contain End of Row Cap is part of the Universal Aisle Containment system for cold aisle or hot aisle contaiment in a floor-mounted structure compatible with most cabinet brands and sizes. The End of Row Cap is for 6-foot (1800mm) aisle widths. It is black.
The Net-Contain Rigid Roof Panel is part of the Universal Single Row Containment system. It is 800mm wide and is black.

CUSRRFS08B1

The Net-Contain Rigid Roof Panel is part of the Universal Single Row Containment system. It is 800mm wide and is black.

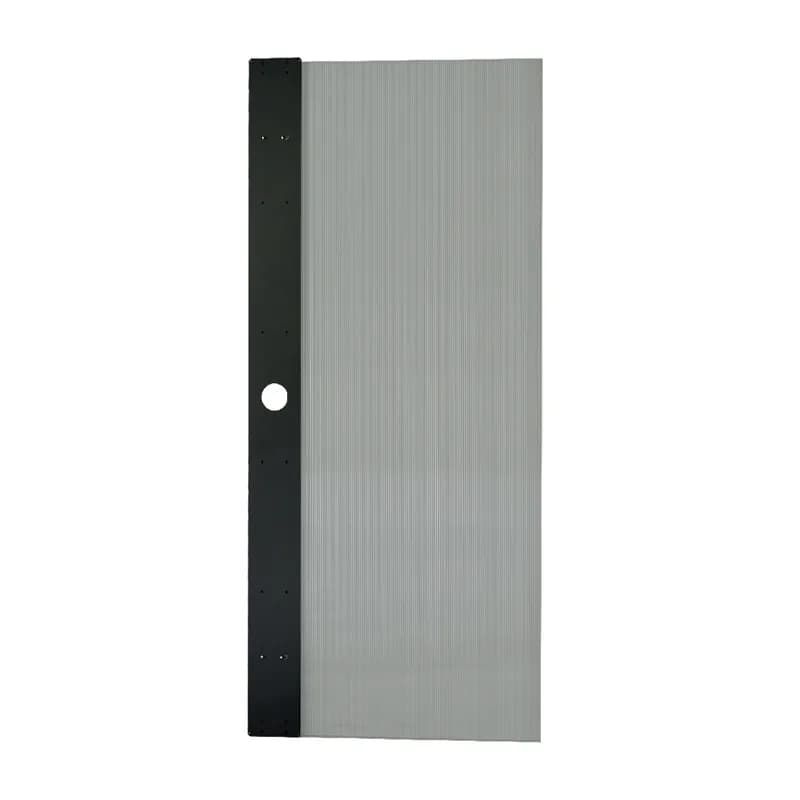

The Net-Contain Rigid Roof Panel is part of the Universal Single Row Containment system. It is 700mm wide and is black.

CUSRRFS07B1

The Net-Contain Rigid Roof Panel is part of the Universal Single Row Containment system. It is 700mm wide and is black.
The Net-Contain Rigid Roof Panel is part of the Universal Single Row Containment system. It is 600mm wide and is black.

CUSRRFS06B1

The Net-Contain Rigid Roof Panel is part of the Universal Single Row Containment system. It is 600mm wide and is black.

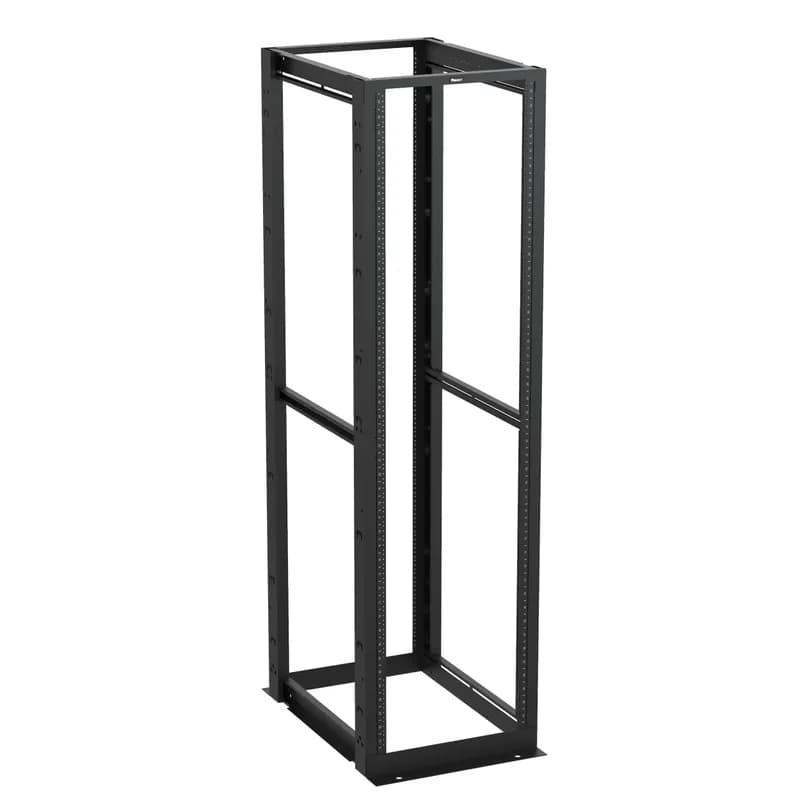

The 4-Post rack combines the stability of a cabinet with the accessibility of an open rack to deliver maximum flexibility. The 45 RU rack is 23 inches wide overall (with 19 inch standard EIA mount) and 36 inches deep, with adjustable mounting rails that have #12-24 EIA universal mounting hole spacing, and printed numbering. A range of cable managers and accessories work with the rack. The rack is UL listed for 2,500 pounds and is made of welded steel. The rack is black.

R4P36

The 4-Post rack combines the stability of a cabinet with the accessibility of an open rack to deliver maximum flexibility. The 45 RU rack is 23 inches wide overall (with 19 inch standard EIA mount) and 36 inches deep, with adjustable mounting rails that have #12-24 EIA universal mounting hole spacing, and printed numbering. A range of cable managers and accessories work with the rack. The rack is UL listed for 2,500 pounds and is made of welded steel. The rack is black.

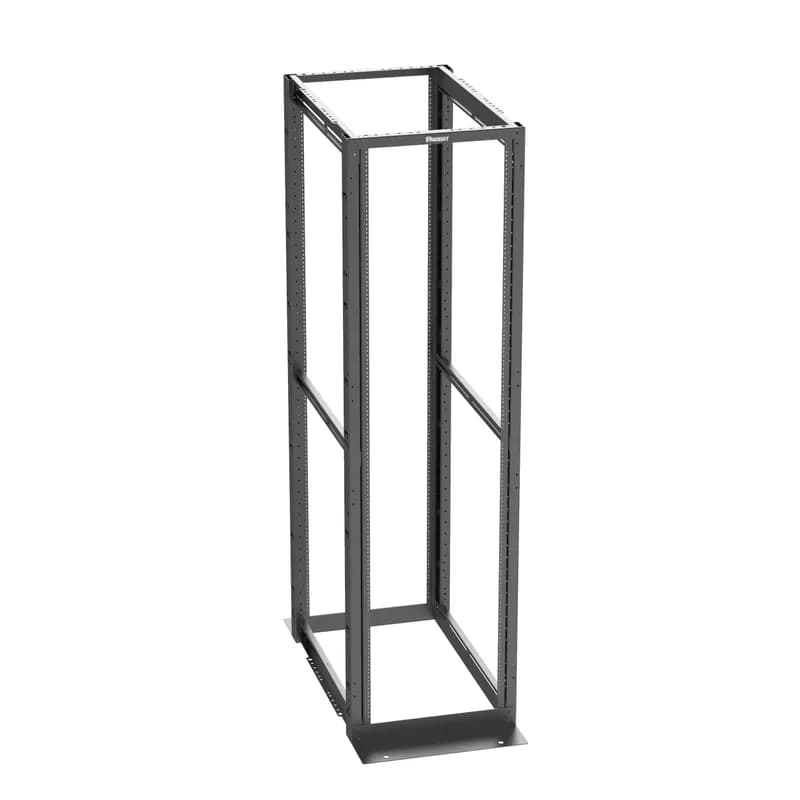

The 4-Post rack combines the stability of a cabinet with the accessibility of an open rack to deliver maximum flexibility. The 45 RU rack is 23 inches wide overall (with 19 inch standard EIA mount) and 30 inches deep, with adjustable mounting rails that have #12-24 EIA universal mounting hole spacing, and printed numbering. A range of cable managers and accessories work with the rack. The rack is UL listed for 2,500 pounds and is made of welded steel. The rack is black.

R4P

The 4-Post rack combines the stability of a cabinet with the accessibility of an open rack to deliver maximum flexibility. The 45 RU rack is 23 inches wide overall (with 19 inch standard EIA mount) and 30 inches deep, with adjustable mounting rails that have #12-24 EIA universal mounting hole spacing, and printed numbering. A range of cable managers and accessories work with the rack. The rack is UL listed for 2,500 pounds and is made of welded steel. The rack is black.

How to Install the CUEOR18CPW1 End Cap

This guide provides step-by-step instructions for installing the CUEOR18CPW1 End Cap, including mounting and securing the necessary components.

Estimated time: 45m

Tools needed:

Screwdriver, Wrench

Supplies needed:

M5 Hex Nuts, M6 Hex Nuts, Vertical Panel Clamps, Horizontal Panel Clamps

  1. Attach Vertical Braces

    Secure the left-hand (LH) and right-hand (RH) vertical braces to the frame using six (6) M6 hex nuts for each brace.

  2. Install Horizontal Brace Assemblies

    Attach the top and bottom horizontal brace assemblies using four (4) M5 hex nuts for each horizontal brace.

  3. Insert End of Row Panels

    Insert the end of row panels, ensuring the wider panels are on the outside. Secure them with six (6) vertical panel clamps and six (6) horizontal panel clamps, using five (5) M6 hex nuts per vertical panel clamp and two (2) M6 hex nuts per horizontal panel clamp.
