Contact for Pricing
Overview

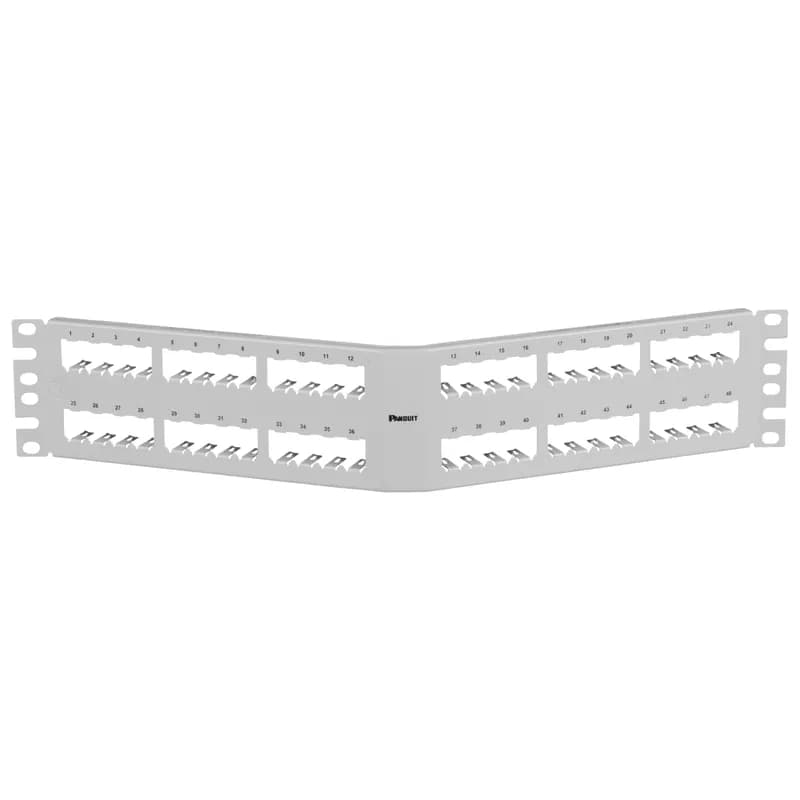

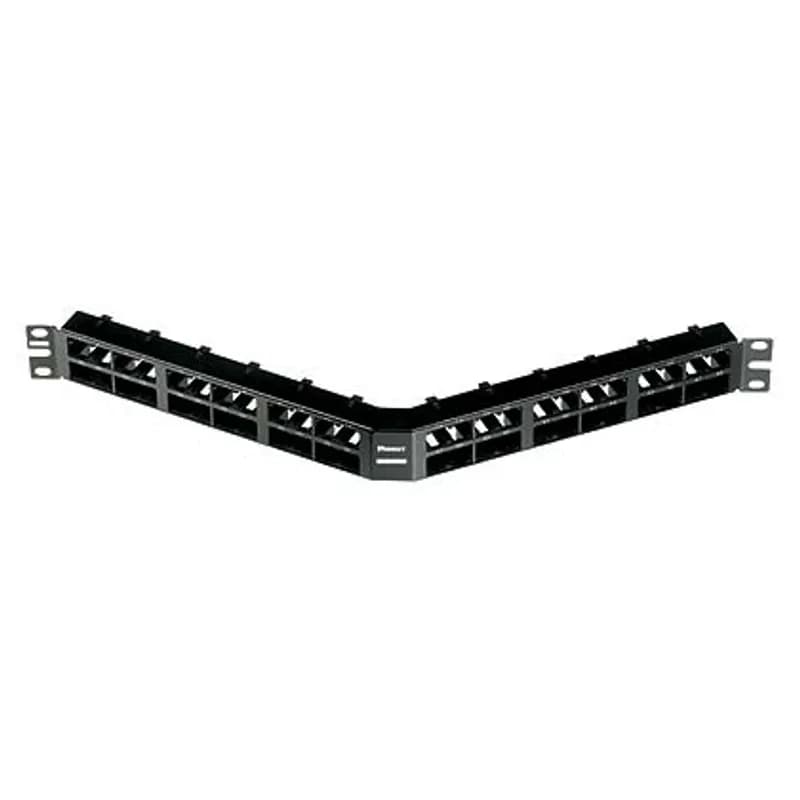

- Accommodates up to 48 Mini-Com Shielded Jack Modules
- 1 RU height for space optimization
- Angled design for improved cable management
- Mounts to 19-inch and 23-inch racks and cabinets
- Stainless steel stamping with molded faceplates and metal bonding strip
Specifications
Color | White |
Color* | White |
Depth | 4.69 In. |
Material | Stainless Steel |
Material | Stainless Steel, Molded Faceplate |
Mounting Type | 19 inch and 23 inch racks and cabinets |
Number Of Ports | 48 |
Patch Panel Style* | Angled |
Series | Mini-Com High Density Shielded Modular Patch Panel |
Simplex/Duplex | Shielded |
Size | 1 RU |
Standard | RoHS Compliant |
Type | Flush Mounted Patch Panel |
Width | 19 In. |
Package Dimensions (L x W x H) | 20 IN x 6 IN x 3 IN |
Package Weight (Imperial) | 1.3 lbs |
ST4803PDGM
Surge-Trap® Surge Protective Device is a no-fuse surge suppressor. The Surge-Trap is a UL 1449 Third Edition compliant modular style surge protective device that is DIN-rail mountable featuring a fail-safe self-protected design, visual indicator and a small foot print. A remote indicator option provides status to critical control circuit. The Surge-Trap provides advanced overvoltage protection utilizing Mersen's patented TPMOV® technology without additional protection devices. 480 Volts 3P Delta system type without N-G mode, with microswitch .
3085
Super-Safeway® Multiple Outlet Box, Extended Depth, 2-Sided, F2 (1/2") Cord Grip Body, with Flip Lids for (2) Duplex Not Included
STP6X12MIG
This TX6A 10Gig Cat 6A STP Patch Cord is a 12-Meter, Int'l Grey cord constructed of 26 AWG, shielded, twisted pair, stranded, CM/LSZH cable and with high-performance modular plugs. Its tangle-free latch prevents snags and ensures a fast release, streamlining moves, adds, and changes. The slender strain relief boot provides easy access in high-density applications. Enabled with RapidID, the product has pre-installed barcodes for simple port mapping using RapidID software.
F62ERLNSNSNM002
OM1 2 fiber, 16mm jacket, patchcord, Riser (OFNR) rated, LC duplex to SC duplex, Std IL
CESUM3-C15
Membrane plate cable entry system offers a good strain relief while maintaining IP/NEMA ingress sealing rating. The CESUM3-C15 is a Rectangular Un-Terminated Cable Entry System, 4.1" (103 mm) Long, with 8 Openings 0.12" (3.0 mm) to 0.31" (8 mm), 3 Openings 0.20" (5.1 mm) to 0.35" (9.0 mm), 4 Openings 0.3" (7.5 mm) to 0.47" (12.0 mm). Color is Black. Standard Package Quantity is 1 PC.
Frequently Asked Questions
What is the port capacity and rack unit size of the CPA48HDWH?
The CPA48HDWH is a 48-port high-density patch panel that occupies a single rack space (1 RU).
What type of jack modules are compatible with this patch panel?
The CPA48HDWH accepts all Panduit Mini-Com shielded jack modules for shielded installations, including Category 6A, 6, and 5e.
What are the dimensions of the CPA48HDWH patch panel?
The CPA48HDWH patch panel measures 19.0 inches wide, 1.72 inches high (1 RU), and has a maximum depth of 4.69 inches.
What is the benefit of the angled design of the CPA48HDWH?
The angled design allows cables to flow to each side of the rack, minimizing the need for horizontal cable managers and increasing rack density.
Are the ports on the patch panel numbered for identification?
Yes, the shielded 48-port high-density patch panels are easily identified with pre-numbered ports.
What clearance is needed for inward mounting strain relief bars?
Strain relief bars with an inward mounting feature require 19.75 inches of clearance between the rails or cabinet.
What are the mounting requirements for the CPA48HDWH patch panel?
The patch panel mounts to standard 19-inch racks or cabinets. It is UL 508A, UL Type 4/12 or 4X, IP66 Rated, and CE compliant.
Is a strain relief bar recommended for this patch panel?
Yes, a strain relief bar is recommended to properly support and route the rear cables, especially in high-density network applications.
How does the patch panel ensure proper grounding?
Patented thread-forming bonding screws bond the shielded panel to the rack, providing a properly grounded system with shielded jack modules.
What material is the CPA48HDWH patch panel made from?
The patch panel is made of a stainless steel panel with molded rear snap-in faceplates. The CPA48HDWH model is white.
How to Install the CPA48HDBL Patch Panel
This guide provides step-by-step instructions for installing the CPA48HDBL high-density patch panel, including mounting, wiring, and grounding.
Estimated time: 30m
Tools needed:
Screwdriver
Supplies needed:
#12-24 mounting screws, Trilobular grounding screws
- Mount the patch panel
Secure the CPA48HDBL patch panel to the rack using the included #12-24 mounting screws. Ensure the panel is level and firmly attached.
- Ground the patch panel
Install 1 to 2 trilobular grounding screws in the designated slots on either side of the panel to properly ground it to the rack.
- Verify installation
Check that the patch panel is securely mounted and grounded. Ensure that all screws are tightened and the panel is stable.
