Contact for Pricing
Minimum Qty: 10
Multiplier: 1
*Contact for lower quantities*
Overview
- Accommodates two Mini-Com Modules
- Mounts to standard 45mm x 45mm openings
- Includes frame and half-size sloped insert
- Improves cable bend radius management
- Arctic white finish with adhesive label
Specifications
Application | NA |
Color | Arctic White |
Depth | 1.19 In. |
Material | ABS |
Model | Mini-Com |
Slot Capacity | NA |
Standard | RoHS Compliant |
Type | Adapter |
Width | 1.77 In. |
Package Dimensions (L x W x H) | 6.9 IN x 4.9 IN x 0.4 IN |
Package Weight (Imperial) | 0.02 lbs |
CFPFLS2SAW

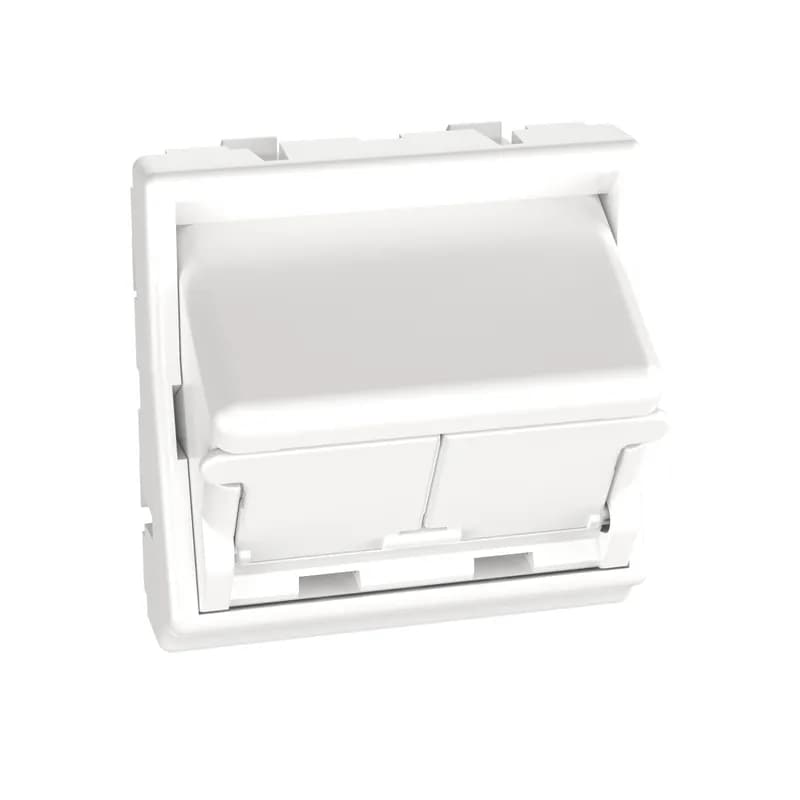

The Mini-Com 45mm x 45mm Faceplate Adapter accepts two Mini-Com Modules. Adapter mounts to standard 45mm x 45mm openings, has a sloped design to improve bend radius, and is shuttered to protect modules from dust and debris. The adapter includes a label pocket for easy identification and is arctic white.
CFPFS1SAW
The Mini-Com 45mm x 45mm Faceplate Adapter accepts one Mini-Com Module. The adapter mounts to standard 45mm x 45mm openings. It includes a frame and a half-size sloped, shuttered insert to improve bend radius and protect modules from dust and debris. The adapter can be identified with an adhesive label and is arctic white.
CFPFS2SAW
The Mini-Com 45mm x 45mm Faceplate Adapter accepts two Mini-Com Modules. The adapter mounts to standard 45mm x 45mm openings. It includes a frame and a half-size sloped, shuttered insert to improve bend radius and protect modules from dust and debris. The adapter can be identified with an adhesive label and is arctic white.
NKHS2SWH-X
Two module space, 1/2-size sloped shuttered modular insert. Accepts two NetKey Modules, White.
CHES2AWY
The Mini-Com 50mm x 50mm Faceplate Adapter accepts two Mini-Com Modules. Adapter mounts to standard 50mm x 50mm openings or FCFPAW, has a sloped design to improve bend radius. The adapter includes a label pocket for easy identification and is arctic white.
CHD15HDSCIWY

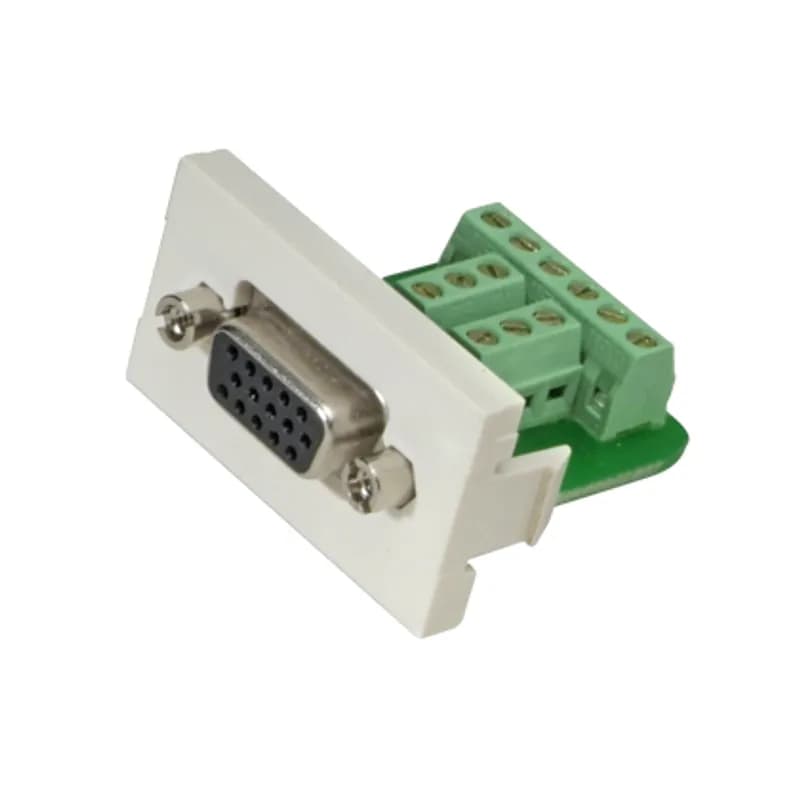

1/3 insert with one 15-pin DB connector mounted to a printed circuit board, terminates on site, SVGA capable, off white.
CFG1IW
Mini Com rectangular adapter, mounts behind standard GFCI faceplates, accepts one Mini-Com Module, Off White.
CMHDMIIW
This Mini-Com HDMI Coupler is HDMI 2.0. It is a Type A female to female coupler, two position module. It is off white.
CMHDMIAW
This Mini-Com HDMI Coupler is HDMI 2.0. It is a Type A female to female coupler, two position module. It is arctic white.
CMHDMIWH
This Mini-Com HDMI Coupler is HDMI 2.0. It is a Type A female to female coupler, two position module. It is white.
Frequently Asked Questions
What modules are compatible with CFPFLS2SAW?
CFPFLS2SAW accepts all Mini-Com™ Modules for copper, fibre, and audio/video applications.
What are the available configurations for CFPFLS2SAW?
The CFPFLS2SAW is available as a 2-port sloped, shuttered adapter with label and icon slots.
What are the dimensions of CFPFLS2SAW?
The dimensions of the CFPFLS2SAW are 1.77 in x 1.77 in x 0.89 in.
Is CFPFLS2SAW suitable for audio/video connectors?
No, shuttered adapters like CFPFLS2SAW are not suitable for audio/video or fibre connector modules that protrude.
What is the purpose of the shuttered feature?
The shuttered feature prevents dust and debris from touching contacts when patch cords are not connected.
What is the design feature for bend radius control?
The CFPFLS2SAW has a sloped design that allows for proper bend radius control.
Can CFPFLS2SAW be mounted sideways?
Yes, mounting tabs allow the CFPFLS2SAW to be securely mounted sideways when required.
Are labels included with CFPFLS2SAW?
Select adapters, including CFPFLS2SAW, include a label pocket and icon slots for labelling.
What is the packaging for CFPFLS2SAW?
The CFPFLS2SAW is packaged as an adapter kit that includes the designated insert and may include labels.
What color options are available for CFPFLS2SAW?
CFPFLS2SAW is available in Arctic White and Black, with other colors available upon request.
