Panduit CD-720-4 - Crimp Die for CT-720, 300 kcmil copper connector.
Panduit

CD-720-4

UPC: 074983914289

Documents & Media
Installation Instructions

Contact for Pricing

Overview

The Panduit CD-720-4 Crimp Die is a precision-engineered steel die insert designed for the Panduit CT-720 crimping tool, specifically engineered to crimp 300 kcmil copper conductors to Panduit’s 300 kcmil copper connectors. This die ensures mechanically secure and electrically reliable terminations, meeting the stringent requirements of heavy-duty power applications where code-compliant connections are essential. Manufactured in the USA, the CD-720-4 is built to withstand the demands of industrial and commercial electrical installations, delivering consistent performance in high-stress environments. The die’s standardized design aligns seamlessly with Panduit’s crimp system, enabling uniform crimp profiles and facilitating easy visual inspection of completed joints. Constructed from high-quality steel, the CD-720-4 offers exceptional durability and long service life, ensuring reliable operation even in the most challenging conditions. Compatible exclusively with 300 kcmil copper connectors, this die provides a dependable solution for terminating large-gauge copper conductors in power distribution, renewable energy systems, and other critical infrastructure applications.
  • Precision steel die for 300 kcmil copper connectors
  • Designed for Panduit CT-720 crimping tool
  • Ensures mechanically secure and electrically reliable terminations
  • Manufactured in the USA for durability and reliability
  • Supports code-compliant connections for heavy-duty power applications

Specifications

Material
Copper
Series
CT-720
Size
300 kcmil
Type
CD-720 Crimp Dies
Package Dimensions (L x W x H)
6 IN x 5 IN x 0.4 IN
Package Weight (Imperial)
0.24 lbs
The CP-991-KIT025 is a component kit for the CP-991 Tool that extends the capability to install 24 22 AWG (0.25 mm 0.34mm2) single-wire ferrules with 0.24 (6mm) - 0.31 (8mm) pin lengths.

CP-991-KIT025

The CP-991-KIT025 is a component kit for the CP-991 Tool that extends the capability to install 24 22 AWG (0.25 mm 0.34mm2) single-wire ferrules with 0.24 (6mm) - 0.31 (8mm) pin lengths.

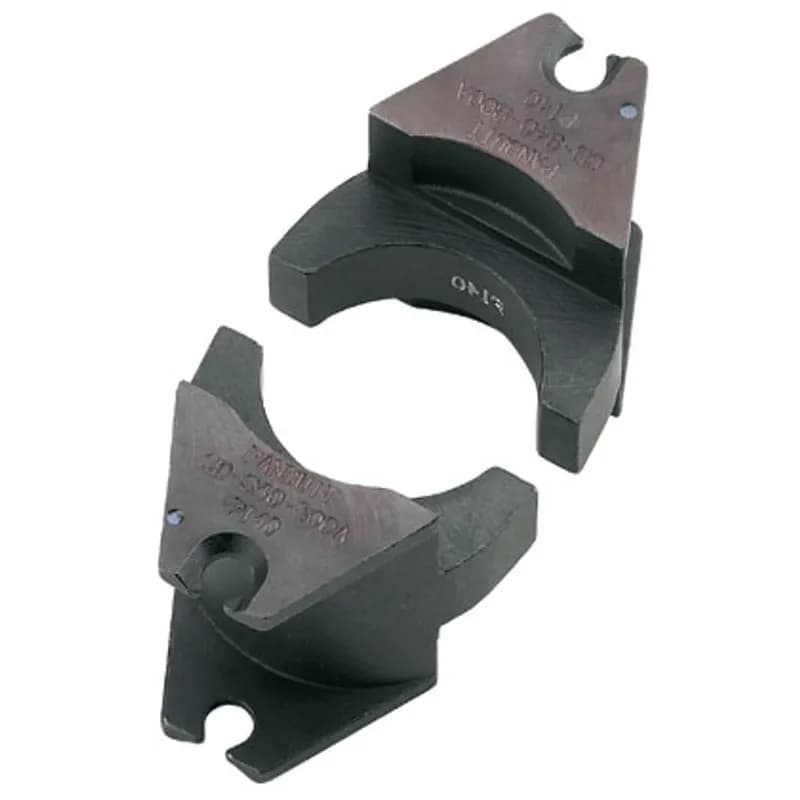

Crimp Die for CT-940CH, 1250 kcmil Copper

CD-940-1250

Crimp Die for CT-940CH, 1250 kcmil Copper
The CD-920-750 provides circumferential crimp results in terminations with premium electrical and mechanical performance with Panduit copper compression lugs and splices. Crimping dies and connectors are color-coded for easy matching while the part number is permanently marked on the crimping die for easy identification. Crimp die designed for use with Panduit CT-920, CT-920CH, CT-930, CT-930CH, and CT-2920 tools.

CD-920-750

The CD-920-750 provides circumferential crimp results in terminations with premium electrical and mechanical performance with Panduit copper compression lugs and splices. Crimping dies and connectors are color-coded for easy matching while the part number is permanently marked on the crimping die for easy identification. Crimp die designed for use with Panduit CT-920, CT-920CH, CT-930, CT-930CH, and CT-2920 tools.

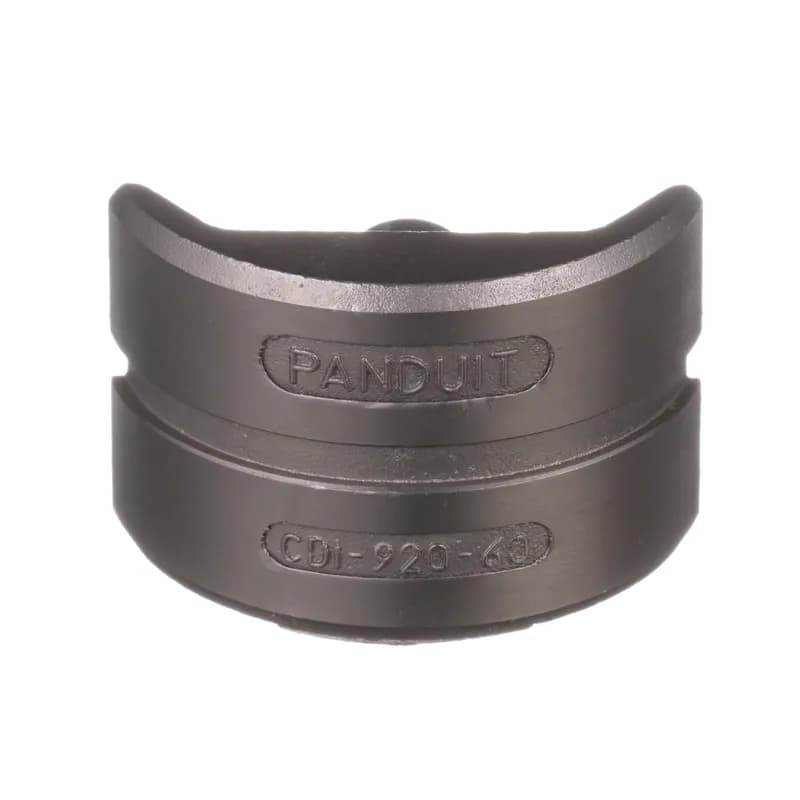

Indenter crimping die used with Panduit CD-920-750NEST and CD-920-300MXNST dies and specified tools for terminating Panduit metric copper compression lugs and splices used with 240 mm2 5f/6f through 300 mm2 Class 5f flexible strand metric conductor.

CDI-920-60

Indenter crimping die used with Panduit CD-920-750NEST and CD-920-300MXNST dies and specified tools for terminating Panduit metric copper compression lugs and splices used with 240 mm2 5f/6f through 300 mm2 Class 5f flexible strand metric conductor.
Used with CT-2600 to install Panduit P6 and P6-RHT6 series large wire, high temperature, non-insulated ring terminals.

CD-2600-P6

Used with CT-2600 to install Panduit P6 and P6-RHT6 series large wire, high temperature, non-insulated ring terminals.
KC22 Series Hex Crimp Die, 1/0 AWG

KC22-1/0

KC22 Series Hex Crimp Die, 1/0 AWG

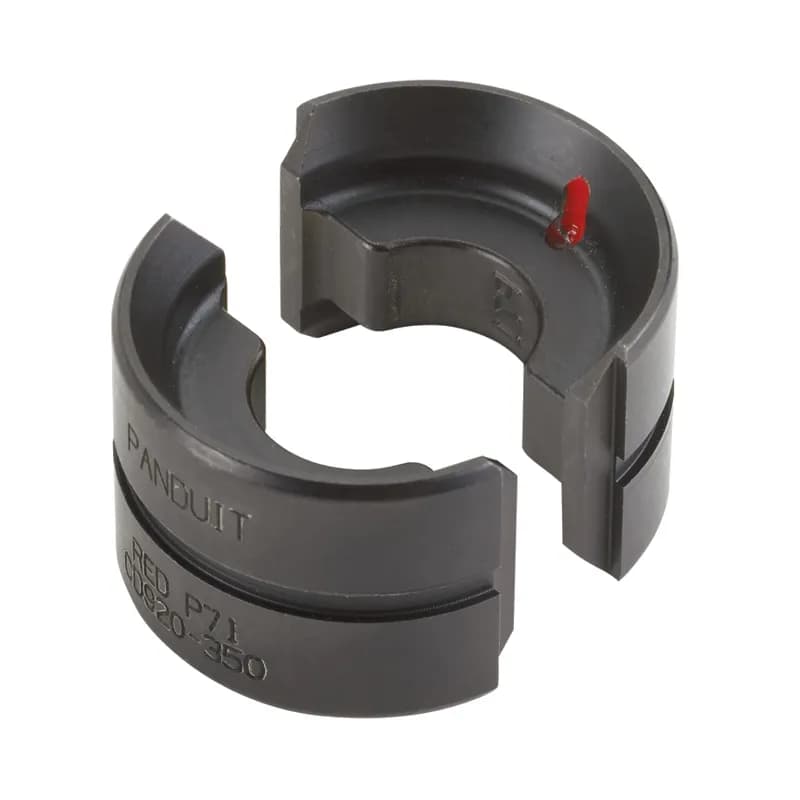

The CD-920-3/0 Crimp Die provides circumferential crimp results in terminations with premium electrical and mechanical performance with Panduit copper compression lugs and splices. Crimping dies and connectors are color-coded for easy matching while the part number is permanently marked on the crimping die for easy identification. Crimp die designed for use with Panduit CT-920, CT-920CH, CT-930, CT-930CH, and CT-2920 tools.

CD-920-3/0

The CD-920-3/0 Crimp Die provides circumferential crimp results in terminations with premium electrical and mechanical performance with Panduit copper compression lugs and splices. Crimping dies and connectors are color-coded for easy matching while the part number is permanently marked on the crimping die for easy identification. Crimp die designed for use with Panduit CT-920, CT-920CH, CT-930, CT-930CH, and CT-2920 tools.
