Contact for Pricing
Overview
- 8 dies optimized for specific connector sizes in the CD-2001 series
- Color-coded for easy connector matching and reduced setup time
- Embossed die index numbers on barrels for post-crimp inspection
- Permanently marked part numbers for traceability and identification
- Compatible with CT-3001/ST and CT-3001/CCP series crimping tools
Specifications
Application | Crimp dies for Copper Panduit Power Connectors and Splices.;CT-3001/ST and CT-3001/CCP Crimping Tool To Crimp #8 AWG Copper Code and Flex Conductor,10mm° Class 2r and 10mm²/16mm² 5f/6f Metric Copper Conductor |
Application | Crimp dies for Copper Panduit Power Connectors and Splices.;CT-3001/ST and CT-3001/CCP Crimping Tool To Crimp #8 AWG Copper Code and Flex Conductor,10mm Class 2r and 10mm /16mm 5f/6f Metric Copper Conductor |
Color | Color-coded |
Connection Type | Crimp Dies |
Connection Type | Crimp Die |
Connection Type | Crimp |
Material | Steel |
Material | Metal |
Series | CT-3001/ST and CT-3001/CCP |
Series | CT-3001/ST & CCP |
Series | CD-2001 |
Series | CT-3001 |
Series | CT-3001/ST and CT-3001/CCP series |
Series | CD-2001-8-SET |
Size | 8;NA AWG;kcmil |
Size | Eight dies optimized for specific connector sizes |
Type | Crimp Die |
Package Dimensions (L x W x H) | 4.15 IN x 3.6 IN x 0.9 IN |
Package Weight (Imperial) | 0.028 lbs |
CD-920-400
The CD-920-400 Crimp Die provides circumferential crimp results in terminations with premium electrical and mechanical performance with Panduit copper compression lugs and splices. Crimping dies and connectors are color-coded for easy matching while the part number is permanently marked on the crimping die for easy identification. Crimp die designed for use with Panduit CT-920, CT-920CH, CT-930, CT-930CH, and CT-2920 tools.
CD-2001-400-SET
The CD-2001-400-SET Crimp Dies provide circumferential crimp results in terminations with premium electrical and mechanical performance. Color-coded to provide easy matching on connectors while an embossed die index number on the connector barrels provide post crimp inspection. The part number is permanently marked on the crimping die for easy identification and used with the CT-3001/ST and CT-3001/CCP series tools.
CD-2001-F91

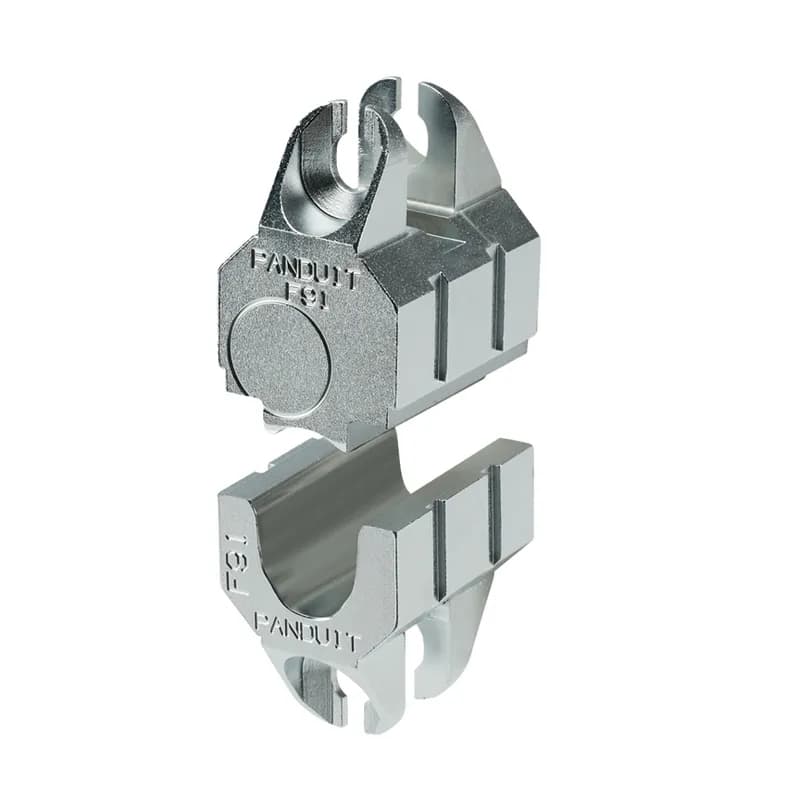

Die insert used with CT-2001 or CT-3001 (sold separately) to crimp Panduit 4/0 - 250 kcmil (120mm2) ferrules and ferrules with sleeves (F91 and FSD91 series).
CD-930G-500

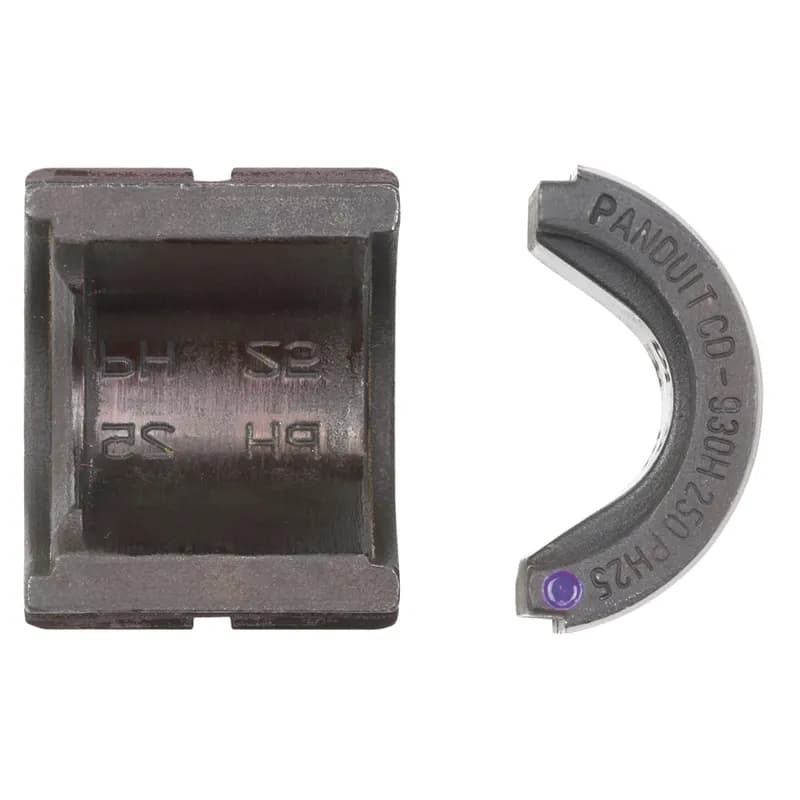

Crimp die for CT-930. Crimps GCE500-1/0, GCE500-250, E Style Grounding Connectors and GCC6X6500-1/0, GCC6X6500-250, Grounding Cross Connectors.
