Contact for Pricing
Overview
- Designed for 6-foot (1800mm) aisle containment systems
- Compatible with 42 or 45 RU tall cabinets
- Black steel construction for durability
- Supports cabinet-supported cold/hot aisle containment
- Enhances data center thermal management and energy efficiency
Specifications
Color | Black |
Depth | 3.44 In. |
Material | Steel |
Series | C2SDT8W06DAB1 |
Size | 6-foot (1800mm) aisle |
Size | 6 ft (1800 mm) |
Standard | RoHS Compliant |
Type | Blanking Panel |
Width | 84.82 in |
Width | 2154.428 mm |
Package Dimensions (L x W x H) | 103 IN x 44 IN x 18 IN |
Package Weight (Imperial) | 77.4 lbs |
ST4803PDGM
Surge-Trap® Surge Protective Device is a no-fuse surge suppressor. The Surge-Trap is a UL 1449 Third Edition compliant modular style surge protective device that is DIN-rail mountable featuring a fail-safe self-protected design, visual indicator and a small foot print. A remote indicator option provides status to critical control circuit. The Surge-Trap provides advanced overvoltage protection utilizing Mersen's patented TPMOV® technology without additional protection devices. 480 Volts 3P Delta system type without N-G mode, with microswitch .
3085
Super-Safeway® Multiple Outlet Box, Extended Depth, 2-Sided, F2 (1/2") Cord Grip Body, with Flip Lids for (2) Duplex Not Included
PDCP2078
DataCom Enclosure Pkg, Bulletin DPVD (PROLINE® Voice and Data Package - PROLINE Voice and Data Package), Size/Dims: 2000x700x800mm, Material: Steel, Finish: Lt Gray
STP6X12MIG
This TX6A 10Gig Cat 6A STP Patch Cord is a 12-Meter, Int'l Grey cord constructed of 26 AWG, shielded, twisted pair, stranded, CM/LSZH cable and with high-performance modular plugs. Its tangle-free latch prevents snags and ensures a fast release, streamlining moves, adds, and changes. The slender strain relief boot provides easy access in high-density applications. Enabled with RapidID, the product has pre-installed barcodes for simple port mapping using RapidID software.
F62ERLNSNSNM002
OM1 2 fiber, 16mm jacket, patchcord, Riser (OFNR) rated, LC duplex to SC duplex, Std IL
CESUM3-C15
Membrane plate cable entry system offers a good strain relief while maintaining IP/NEMA ingress sealing rating. The CESUM3-C15 is a Rectangular Un-Terminated Cable Entry System, 4.1" (103 mm) Long, with 8 Openings 0.12" (3.0 mm) to 0.31" (8 mm), 3 Openings 0.20" (5.1 mm) to 0.35" (9.0 mm), 4 Openings 0.3" (7.5 mm) to 0.47" (12.0 mm). Color is Black. Standard Package Quantity is 1 PC.
Frequently Asked Questions
What is the purpose of the Net-Contain system?
The Net-Contain system creates a structure with end of row doors and vertical panels to segregate cold and hot air streams, exhausting hot air between cabinet rows.
What Panduit products are compatible with Net-Contain?
The Net-Contain system is compatible with Net-Access™ N-Type and S-Type Cabinets, FiberRunner®, and Wyr-Grid® Overhead Cable Routing Systems.
What aisle widths do EOR vertical walls support?
Adjustable EOR vertical wall panels support 912-960mm, 1000mm, and 1208-1266mm aisle widths.
What aisle widths do the sliding doors support?
The sliding doors can be installed in 3-foot and 4-foot aisles and mount to 600mm, 700mm, and 800mm Net-Access™ N-Type and S-Type Cabinets.
How much energy cost can the Net-Contain system save?
The system can reduce cooling energy costs by up to 25-30% by increasing the thermal efficiency of cooling units.
What are the dimensions of the End of Row sliding doors?
The Net-Contain dual sliding doors (CUD1SD*, CUD2SD*) are 2134 mm H x 1422 mm W.
What are the height options for adjustable vertical walls?
Adjustable vertical walls are available in 16-26 inches H, 26-38 inches H, and 38-66 inches H for various cabinet widths.
Can the Net-Contain system be installed in existing data centers?
Yes, the modular Net-Contain system can be added in Greenfield (Day 1) or Brownfield (Day 2) data centers, provided there are no overhead barriers.
What heat load can the Net-Contain system handle?
The Net-Contain system can address heat loads up to 20kW per cabinet, enabling dense server applications and eliminating hot spots.
How does the Net-Contain system manage airflow?
The system leverages existing data center cooling and equipment fans to move the flow of exhaust air and cooling air. It prevents mixing of cold and hot air streams.

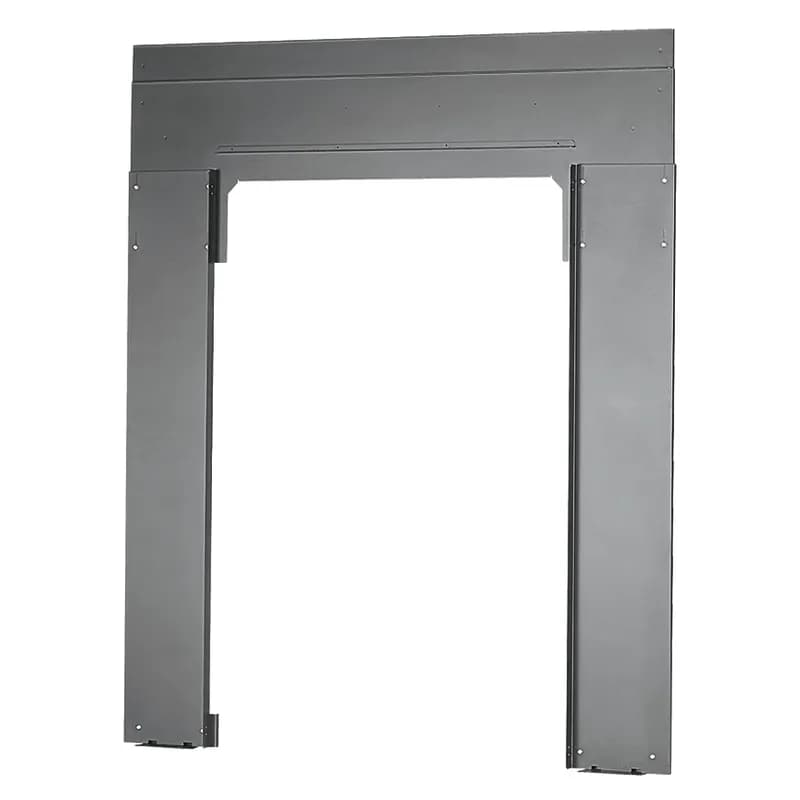

How to Install the C2SDT8W06DAB1 Door Adapter
This guide provides step-by-step instructions for installing the C2SDT8W06DAB1 Door Adapter, including mounting, wiring, and initial configuration.
Estimated time: 1h
Tools needed:
Screwdriver, Drill, Level
Supplies needed:
Self-drilling screws, Cage nuts, Foam seals, M6 hex bolts, M6 nuts
- Prepare the installation area
Remove any floor tiles necessary to access the area where the Door Adapter will be installed. Ensure the area is clean and free of debris.
- Attach the feet to the floor
Position the Door Adapter feet in the desired locations and drill up to twelve 8mm (5/16”) clearance holes through the floor tiles. Secure each foot with a minimum of two self-drilling screws.
- Install the aisle beam
Center the aisle beam between the wall beams and secure it using four M6x12mm hex head bolts and four M6 nuts. Ensure the beam is level.
- Attach cabinet brackets
Using the previously installed cage nuts, attach the cabinet brackets to the Door Adapter using M5 x 0.8 x 10 hex head screws. Ensure they are securely fastened.
- Install the dual door
Align the dual door with the Door Adapter frame and secure it using eight 1/4-14 self-drilling screws. Ensure the door operates smoothly.
- Seal the installation
Attach foam seals to the edges of the Door Adapter to prevent air leaks. Ensure the seals are properly compressed against the adjacent surfaces.
