NSi Industries 800T-4-BULK - Step Panel Lug (4)800-300 (24 EA)
NSI Industries

800T-4-BULK

Documents & Media
Technical Bulletin

Contact for Pricing

Overview

The NSI Industries 800T-4-BULK is a 4-port step panel lug designed for high-current applications. Made from 6061T-6 aluminum alloy and electro-tin plated for low contact resistance, it accommodates 800-300 MCM copper or aluminum conductors. Rated for 600V (2000V max per UL486B) with a 90°C temperature rating. Features stacked wire holes to minimize connector width. UL486A/B and UL Listed E155027 certified. Ideal for panelboard and industrial wiring where space and secure multi-conductor connections are critical. SKU: 800T-4-BULK.
  • 4-port step panel lug for 800-300 MCM copper/aluminum conductors
  • Made from 6061T-6 aluminum alloy with electro-tin plating for low contact resistance
  • UL486A/B and UL Listed E155027 certified, 600V rated (2000V max per UL486B)
  • 90°C temperature rating with stacked wire holes to minimize connector width
  • Ideal for panelboard and industrial wiring applications requiring secure multi-conductor connections

Specifications

Connection Type
Screw Terminal
Material
6061T-6 Aluminum Alloy
Mounting Type
Panel Mount
Poles
4
Series
800T
Size
4-port step panel lug for 800-300 MCM conductors
Voltage Rating
600 V
Warranty
1 Year

Similar Products

800T-4

Application: Wire Termination

Decorative Color: Aluminum

Special Features: (4) 800-300 MCM - Dual Rated - 2 Pack

800T-2

800T-3

Application: Wire Termination

Decorative Color: Aluminum

Special Features: (3) 800-300 MCM - Dual Rated - 2 Pack

800T-BULK

Size: 800-300 MCM

Connection Type: Set-Screw

800T

8001-N

Action: SPDT

Base: Screw

Size: L=5.000 - H=9.125 - W=4.500 IN

You May Also Be Interested In

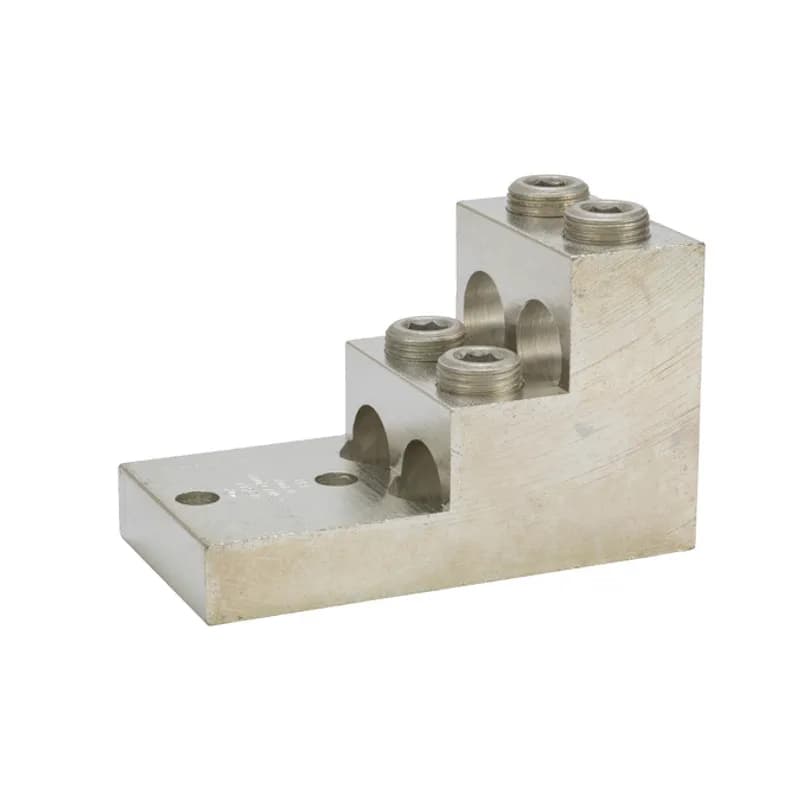

Step Panel Lug (4) 600-2 (24 EA)

600T-4-BULK

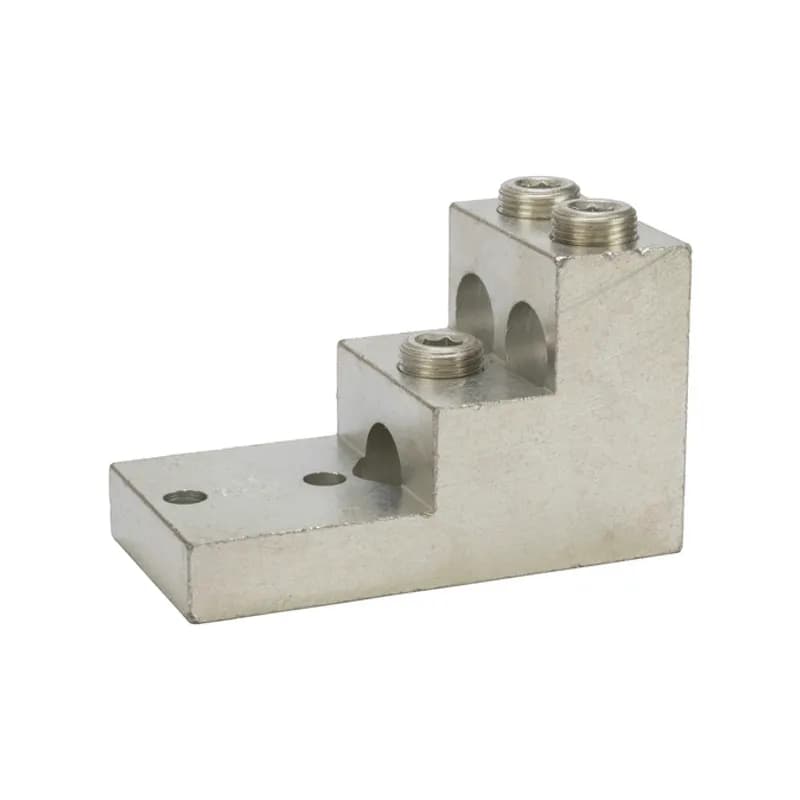

Step Panel Lug (3) 600-2 (24 EA)

600T-3-BULK

Nema Panel Lug (4) 600-2 (24 EA)

4-600L4-BULK

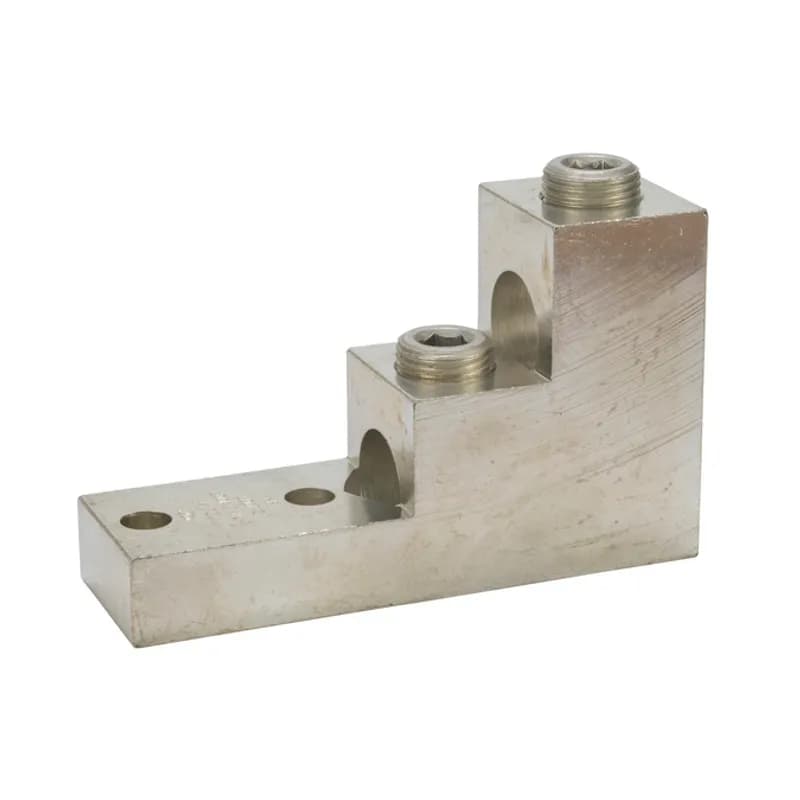

Step Panel Lug 600-2
