NSi Industries 8001-N - 24 Hour Cycle Timer 20A 120V SPDT Out
NSI Industries

8001-N

UPC: 786261700254

Contact for Pricing

Overview

The NSI Industries 8001-N is a 24-hour cycle timer designed for precise electrical load control. This unit features a Single Pole Double Throw (SPDT) output and operates on a 120V supply. It is housed in a Noryl® indoor/outdoor NEMA 3R enclosure, offering protection against environmental elements. The timer is suitable for applications requiring one or multiple daily ON/OFF operations, such as duty cycling, ventilating fans, and pumping. Its specifications include a 20A resistive and 3/4 HP motor contact rating at 120V. The minimum ON and OFF setting is 15 minutes, with 96 captive tabs on the dial for scheduling flexibility. The enclosed motor protects gears for extended life, and the unit is UL917 listed. Operating temperature range is -40°F to 165°F (-40°C to +74°C). This timer is ideal for irrigation, process control, and laboratory experiments where accurate, repeatable scheduling is essential. The NEMA 3R enclosure ensures suitability for both indoor and outdoor installations, providing reliable operation in diverse conditions.
  • 24-hour cycle timer with 96 captive tabs for scheduling flexibility
  • 20A resistive and 3/4 HP motor contact rating at 120V
  • Single Pole Double Throw (SPDT) output
  • Noryl® indoor/outdoor NEMA 3R enclosure for environmental protection
  • UL917 listed with enclosed motor for extended gear life

Specifications

Action
SPDT
Base
Screw
Contact Rating
120 VAC
Current Rating
20 A
Frequency Rating
60 Hz
Initiation
Contact
Material
Plastic
Mounting
Screw Mount
Number Of Pins
96
Operating Temperature
-40 to 165 F
Phase
Single Phase
Poles
SPDT
Series
24 Hour Cycle Timer
Size
L=5.000 - H=9.125 - W=4.500 IN
Timing Range
24 Hour
Voltage Rating
120 V
Package Dimensions (L x W x H)
4.5 IN x 5 IN x 9.125 IN
Package Dimensions (L x W x H)
11.43 cm x 12.7 cm x 23.1775 cm
Package Weight (Imperial)
2.274 L
Package Weight (Metric)
1.031 kg

Similar Products

8001

8001U

Contact Rating: 480-120 Trans

Size: L=4.687 - H=7.937 - W=2.937 IN

800T-2

Warranty: 1 Year

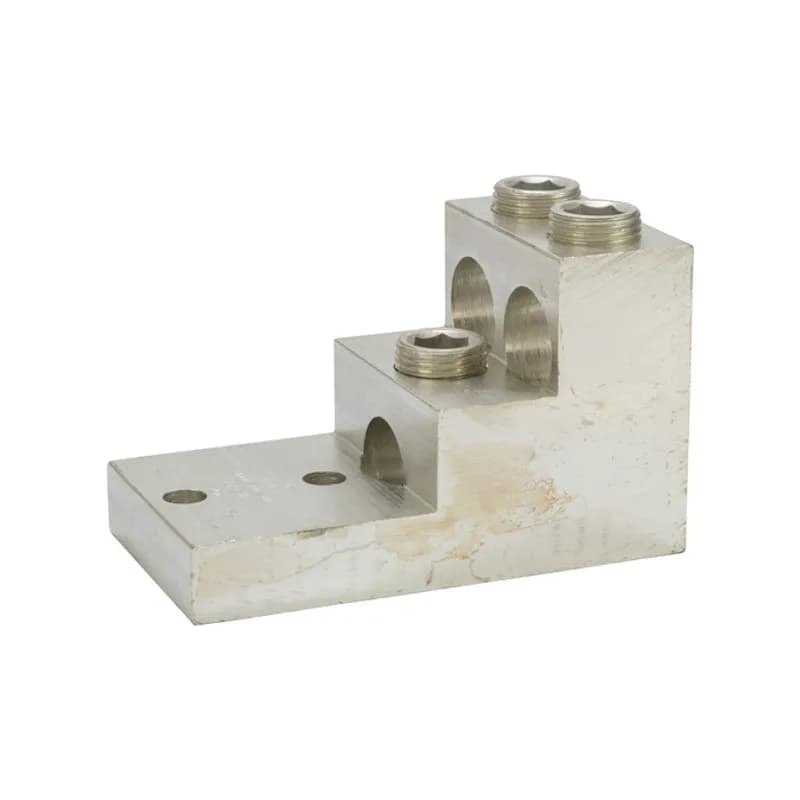

800T-3

Application: Wire Termination

Decorative Color: Aluminum

Special Features: (3) 800-300 MCM - Dual Rated - 2 Pack

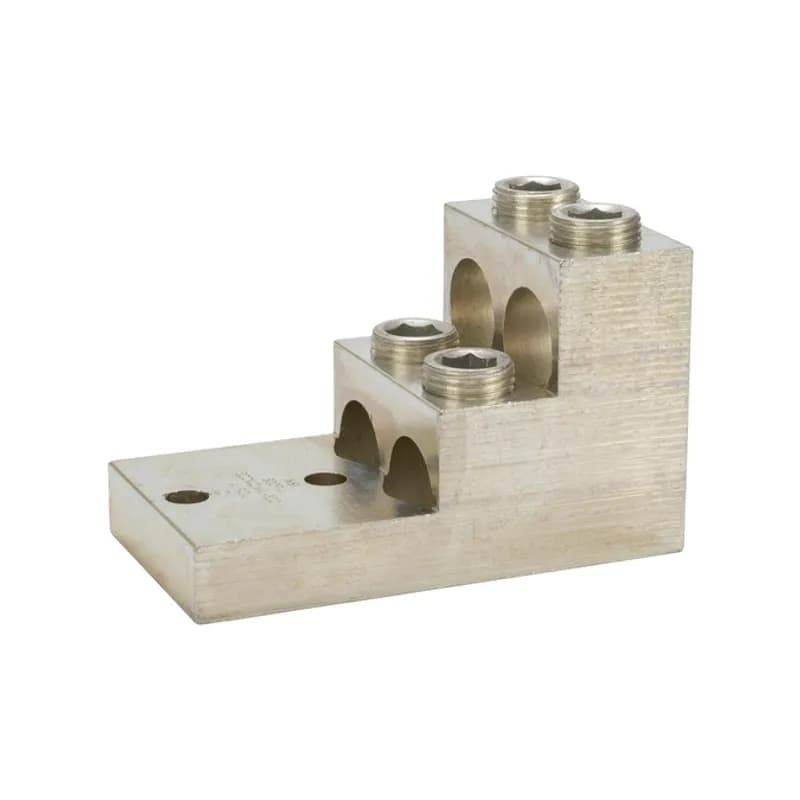

800T-4

Application: Wire Termination

Decorative Color: Aluminum

Special Features: (4) 800-300 MCM - Dual Rated - 2 Pack

800T-4-BULK

Warranty: 1 Year

Voltage Rating: 600 V

Material: 6061T-6 Aluminum Alloy

You May Also Be Interested In

6 Minute Cycle Timer 20A 120V SPDT Indoor Metal Enclosure

8601

Tmer 24 Hour Cycle 20A 120V SPDT

8001

24 Hour Time Switch 120-277V SPST Outdoo

1109A-O

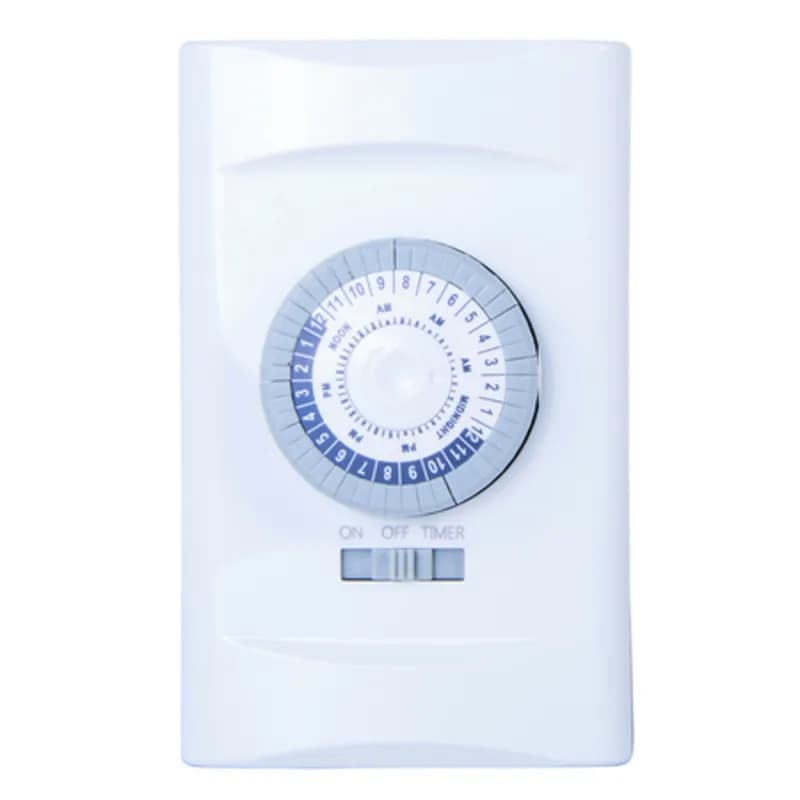

Mechanical Time Switch White
