NSi Industries 800T-2 - 2 Port Stacked Lug 800 - 300 MCM Stacked Lugs are large size set screw connectors with wire holes stacked on top of each other to minimize the width of the connector. Made of 6061T-6 aluminum alloy. Tin plated for low contact resistance. Suitable for use with both copper and aluminum conductors. Rated 600 volts (2000V max. per UL486B). UL486A/B Listed. Temperature rating 90 degrees C. Mounting hole spacing is NEMA standard of 1.75".
NSI Industries

800T-2

UPC: 662381001856

Documents & Media
Technical Bulletin

Contact for Pricing

Overview

The NSI Industries 800T-2 2-Port Stacked Lug is a high-capacity set-screw connector engineered for heavy-duty electrical applications requiring compact conductor termination. Designed with stacked wire holes, this connector minimizes width while maximizing conductor capacity, making it ideal for space-constrained installations. Constructed from 6061T-6 aluminum alloy, the 800T-2 delivers superior mechanical strength and corrosion resistance, ensuring long-term reliability in industrial environments. Key specifications include a dual conductor range of 800-300 MCM, supporting both copper and aluminum conductors for versatile compatibility. The electro-tin plating ensures low contact resistance, critical for maintaining electrical efficiency and reducing heat buildup. With a UL486A/B listing and cULus certification (E155027), the 800T-2 meets stringent safety standards for 600V systems (2000V max per UL486B) and operates reliably at 90°C. The NEMA-standard 1.75" mounting hole spacing simplifies installation in panelboards, transformers, and switchgear. Applications span industrial power distribution, renewable energy systems, motor control centers, and commercial electrical infrastructure where high-current conductors demand secure, space-efficient termination. The set-screw design allows for tool-free reusability, reducing maintenance costs and downtime. Each unit includes a 3/8" hex wrench for precise torque application (550 in./lbs max), ensuring consistent performance across installations. With a compact footprint of 4.91" (L) x 3.00" (W) x 0.38" (H), the 800T-2 optimizes panel layout efficiency without compromising on current-carrying capacity. Backed by NSI Industries' reputation for durable electrical components, the 800T-2 is a trusted solution for engineers and contractors prioritizing performance, safety, and installation flexibility.
  • 2-port stacked lug design minimizes width for space-constrained installations
  • Supports 800-300 MCM copper and aluminum conductors
  • 6061T-6 aluminum alloy with electro-tin plating for low contact resistance
  • UL486A/B listed (E155027), 600V rated (2000V max per UL486B), 90°C temperature rating
  • NEMA-standard 1.75" mounting hole spacing for compatibility with panelboards and switchgear

Specifications

Warranty
1 Year
Package Dimensions (L x W x H)
4.91 IN x 1.5 IN x 3 IN
Package Dimensions (L x W x H)
12.4714 cm x 3.81 cm x 7.62 cm
Package Weight (Imperial)
1.800 L
Package Weight (Metric)
0.816 kg

Similar Products

800T-3

Application: Wire Termination

Decorative Color: Aluminum

Special Features: (3) 800-300 MCM - Dual Rated - 2 Pack

800T-4

Application: Wire Termination

Decorative Color: Aluminum

Special Features: (4) 800-300 MCM - Dual Rated - 2 Pack

800T-4-BULK

Voltage Rating: 600 V

Material: 6061T-6 Aluminum Alloy

Size: 4-port step panel lug for 800-300 MCM conductors

800T-BULK

Voltage Rating: 600 V

Material: 6061T-6 Aluminum Alloy

Size: 800-300 MCM

800T

8001-N

Action: SPDT

Base: Screw

Size: L=5.000 - H=9.125 - W=4.500 IN

You May Also Be Interested In

2 Port Stacked Lug 300 MCM - 6 AWG Stacked Lugs are large size set screw connectors with wire holes stacked on top of each other to minimize the width of the connector. Made of 6061T-6 aluminum alloy. Tin plated for low contact resistance. Suitable for use with both copper and aluminum conductors. Rated 600 volts (2000V max. per UL486B). UL486A/B Listed. Temperature rating 90 degrees C. Mounting hole spacing is NEMA standard of 1.75".

300T-2

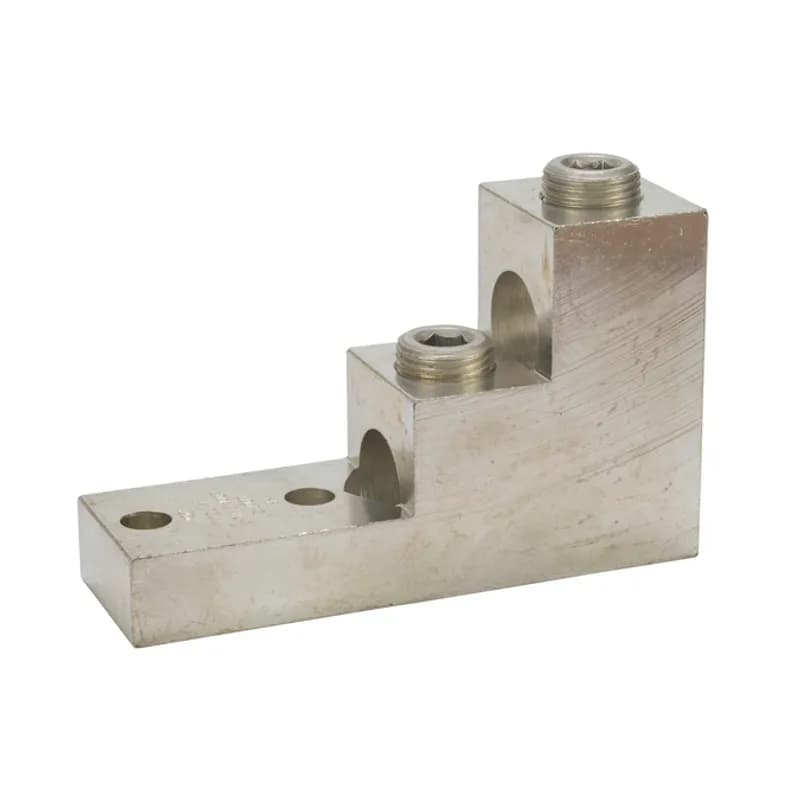

2 Port Stacked Lug 600 MCM - 2 AWG Stacked Lugs are large size set screw connectors with wire holes stacked on top of each other to minimize the width of the connector. Made of 6061T-6 aluminum alloy. Tin plated for low contact resistance. Suitable for use with both copper and aluminum conductors. Rated 600 volts (2000V max. per UL486B). UL486A/B Listed. Temperature rating 90 degrees C. Mounting hole spacing is NEMA standard of 1.75".
