Overview
- Push-to-connect design eliminates threading and tools for 75% faster installations
- Insulated throat prevents conductor insulation damage and meets code requirements
- Raintight IP66 rating protects against moisture and environmental ingress
- Removable design allows flexibility during installation or maintenance
- UL File No. E-23018 and CSA File No. 2884 certified for outdoor/wet-location use
Specifications

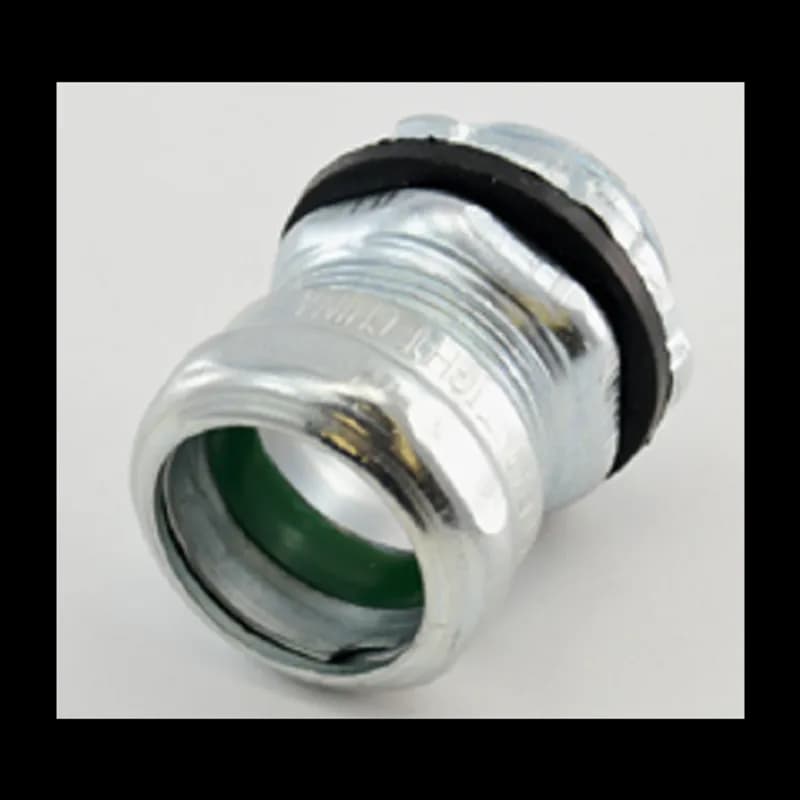

Application | Bridgeport Fittings Mighty-Seal® 3/4 inch EMT Connectors are used to connect a 3/4 inch EMT raceway to a box, device, or enclosure. The 251-MSRTI 3/4 inch Mighty-Seal™ connector is UL listed for use in Wet Locations. The 251-MSRTI is constructed with an insulated throat. |
Connector Type | PUSH-EMT® |
Finish | Ball burnish |
Insulation | Insulated Throat |
Material Quality | Zinc Die Cast |
Size | 3/4 IN |
Special Features | Connectors assembled with knockout gasket, no separate pieces to buy and stock |
Standard | cULus |
Temperature Rating, Maximum | 221.00000 F |
Temperature Rating, Maximum | 105 °C |
Temperature Rating, Maximum | 221 F |
Temperature Rating, Maximum | 105 C |
Temperature Rating, Minimum | 221.00000 F |
Temperature Rating, Minimum | 221 F |
Temperature Rating, Minimum | 105 C |
Trade Size | 3/4 in. |
Type | Connector |
Package Weight (Imperial) | 0.168 L |
Package Weight (Metric) | 0.076 kg |
Similar Products
250-MSRT
Application: Used to join EMT to box or enclosure. Concrete tight/raintight
Trade Size: 1/2 in.
Size: 1/2 IN
251-MB
Special Features: Concrete tight
Material Quality: Zinc Alloy body and locknut with steel internal components
Insulation: False
251-MBI
Special Features: Concrete tight
Material Quality: Zinc Alloy body and locknut with steel internal components
Material: Steel/Malleable Iron
Frequently Asked Questions
Is the connector suitable for wet locations?
Yes, the 251-MSRTI connector is UL listed for use in Wet Locations.
What is the trade size of the connector?
The trade size of the connector is 3/4 inch.
How is the connector installed?
Installation involves inserting a deburred EMT end and slightly rotating until it reaches the end stop.
What are the installation time benefits?
The 251-MSRTI installs in less than half the time of a conventional fitting.
What material is the connector made of?
The connector is constructed from zinc die cast.
How do you remove the connector?
To remove, loosen the nut and take out the component parts from the conduit.
What is the UL file number for the connector?
The UL file number is UL514B & CSA 22.2.
