Contact for Pricing
Minimum Qty: 25
Multiplier: 25
*Contact for lower quantities*
Overview
- Tool-free push-in installation saves up to 75% time vs. traditional methods
- Compatible with smooth or corrugated aluminum-sheathed and steel MC cable
- Unique saddle design ensures secure cable retention and high-quality bonding
- Removable bushing design reduces inventory needs across multiple cable sizes
- U.L. Listed as a grounding means under NEC 350-5 for dry locations
Specifications

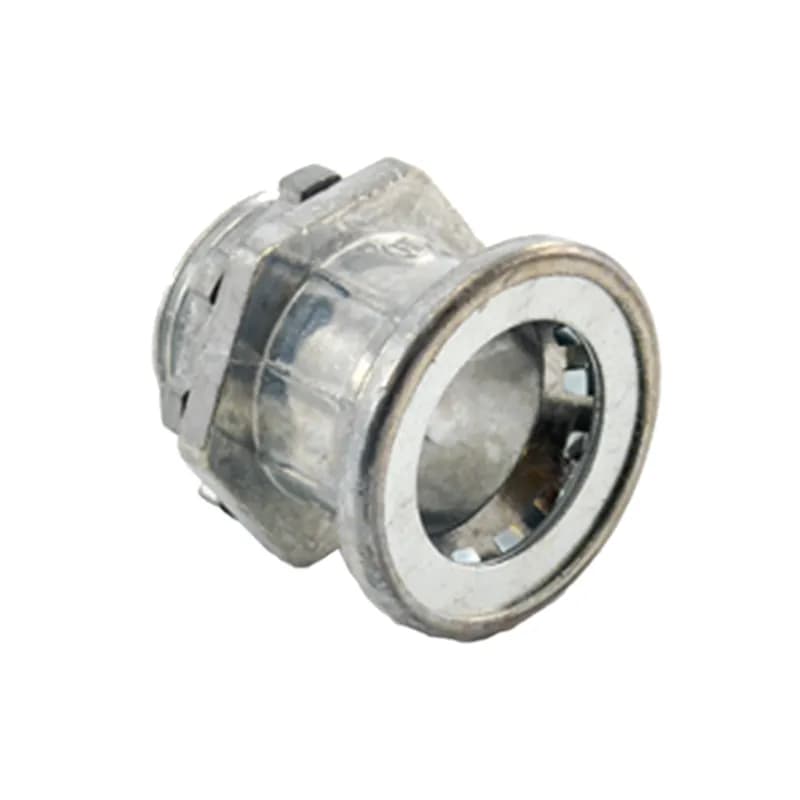

Application | The 251-MBI is used to connect a properly deburred length of EMT raceway to a box device, panelboard, or similar electrical enclosure. Simply push the fitting onto raceway with a slight twist. Remove the fitting by unthreading it from conduit end. No tools are required. Concrete Tight. Patented |
Connection Type | Push-in |
Connector Type | PUSH-EMT® |
Finish | Ball burnish |
Insulation | Insulated Throat |
Material | Steel/Malleable Iron |
Material Quality | Zinc Alloy body and locknut with steel internal components |
Series | Mighty-Bite |
Size | 3/4 IN |
Size | 3/8", 1/2", 3/4" and larger |
Special Features | Concrete tight |
Standard | cULus |
Temperature Rating, Maximum | 221.00000 F |
Temperature Rating, Maximum | 105 °C |
Temperature Rating, Maximum | 221 F |
Temperature Rating, Maximum | 105 C |
Temperature Rating, Minimum | 221 F |
Temperature Rating, Minimum | 105 C |
Temperature Rating, Minimum | 221.00000 F |
Trade Size | 3/4 in. |
Type | Connector |
Package Weight (Imperial) | 0.140 L |
Package Weight (Metric) | 0.064 kg |
Similar Products
251-RTI2
Special Features: Raintight
Temperature Rating, Maximum: 194.00000 F
Temperature Rating, Minimum: 194.00000 F
Frequently Asked Questions
Is the 251-MBI connector concrete tight?
Yes, the 251-MBI connector is designed to be concrete tight.
How is the 251-MBI connector installed?
The connector is installed by pushing it onto the raceway with a slight twist; no tools are required.
What is the purpose of the 251-MBI connector?
The 251-MBI is used to connect a properly deburred length of EMT raceway to a box device, panelboard, or similar electrical enclosure.
What is the trade size of the 251-MBI connector?
The trade size of the 251-MBI connector is 3/4 inch.
How do you remove the 251-MBI connector?
To remove the connector, simply unthread it from the conduit end.
What materials are used in the 251-MBI connector?
The connector features a zinc alloy body and locknut with steel internal components.
What certifications does the 251-MBI connector have?
The connector is certified under CSA, UL, and meets NEMA standards.
Where is the 251-MBI connector manufactured?
The 251-MBI connector is manufactured in the USA.
