NSI Industries ZTL4801020J - Zero Cross Fail On TurnLock, On 1.3-1.7, Off/On Ratio 1.5:1, 347-480V, 1000W Tung, 1800VA Ballast, 3A Elec Ballast (LED)1020 Joules
NSI Industries

ZTL4801020J

Contact for Pricing

Overview

The NSI Industries ZTL4801020J Zero Cross Fail On TurnLock Photocontrol is a high-performance, microprocessor-controlled device engineered for LED, CFL, induction, HPS, MH, and HID lighting systems requiring precise dusk-to-dawn control. Designed for 347-480V AC systems at 50/60Hz, this TurnLock-compatible unit delivers instant response with a 1.5:1 OFF/ON ratio and a 1.5 foot-candle turn-on threshold (±0.2 fc), ensuring accurate operation in roadway, parking, flood, and security lighting applications. Key features include 1020 Joule surge protection via MOV, exceeding ANSI and NEMA requirements, and a UL-listed industrial relay with positive snap-action switching for 15,000+ operations. The sealed IR-filtered silicon sensor provides human-eye response accuracy and resists drift, while the UV-stabilized polycarbonate housing and conformal-coated electronics ensure durability in extreme weather (-40°F to +140°F). Certified to UL773, CSA, and ANSI C136.10 standards, the ZTL4801020J supports tungsten (1000W), ballast (1800VA), and LED drivers (8A or 2220W @ 277VAC). Its fail-on mode ensures continuous operation during power anomalies, while the delayed OFF response prevents false triggering from transient light sources. Backed by a 15-year warranty, this NSI Industries SKU ZTL4801020J is ideal for municipal, commercial, and industrial lighting controls where reliability and longevity are critical.
  • Microprocessor-controlled Zero-Cross switching for LED luminaires
  • 1020 Joule MOV surge protection (exceeds ANSI/NEMA standards)
  • 15-year warranty with 15,000+ operation relay life
  • 1.5 fc turn-on threshold (±0.2 fc) with 1.5:1 OFF/ON ratio
  • UV-stabilized polycarbonate housing with conformal-coated electronics

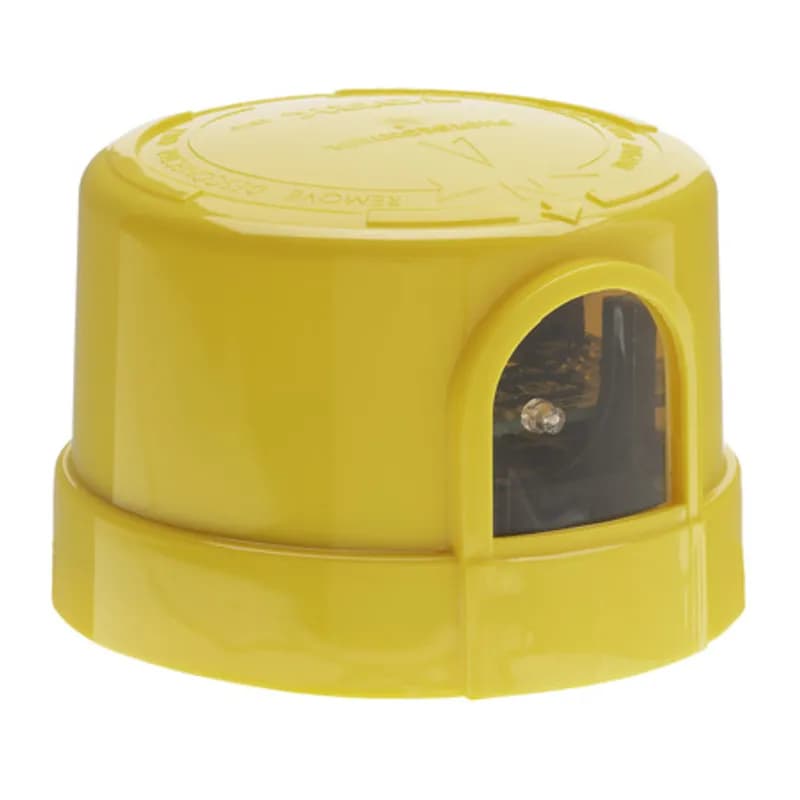

Zero Cross Fail On TurnLock, On 1.3-1.7, Off/On Ratio 1.5:1, 347-480V, 1000W Tung, 1800VA Ballast, 3A Elec Ballast (LED)

ZTL480

Zero Cross Fail On TurnLock, On 1.3-1.7, Off/On Ratio 1.5:1, 347-480V, 1000W Tung, 1800VA Ballast, 3A Elec Ballast (LED)

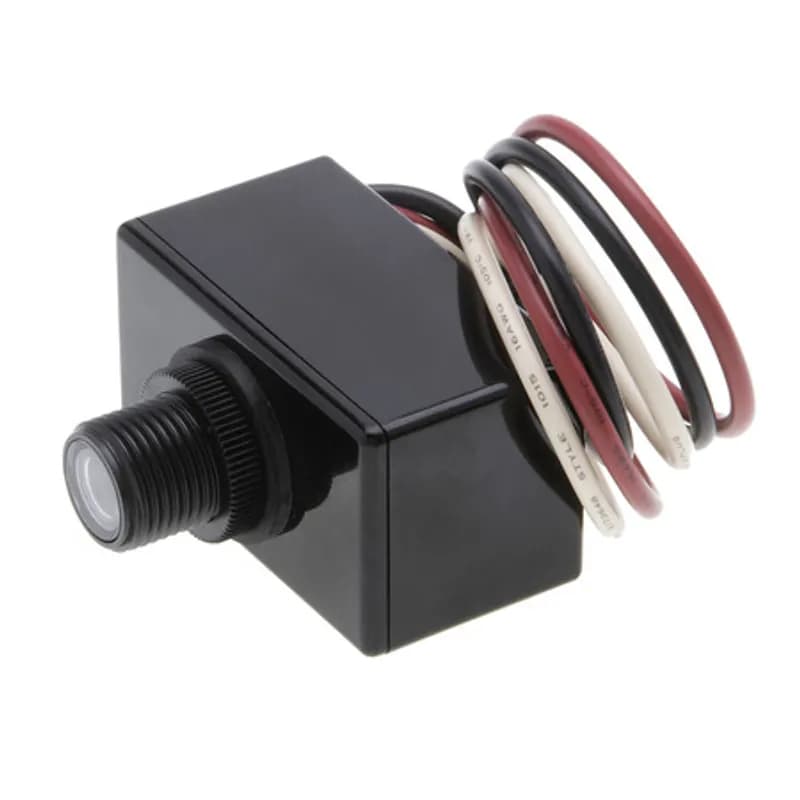

Zero Cross Button Type, On 1.3-1.7, Off/On Ratio 1.5:1, 347-480V, 1000W Tungsten, 1800VA Ballast, 3A Elec Ballast LED

ZB480

Zero Cross Button Type, On 1.3-1.7, Off/On Ratio 1.5:1, 347-480V, 1000W Tungsten, 1800VA Ballast, 3A Elec Ballast LED

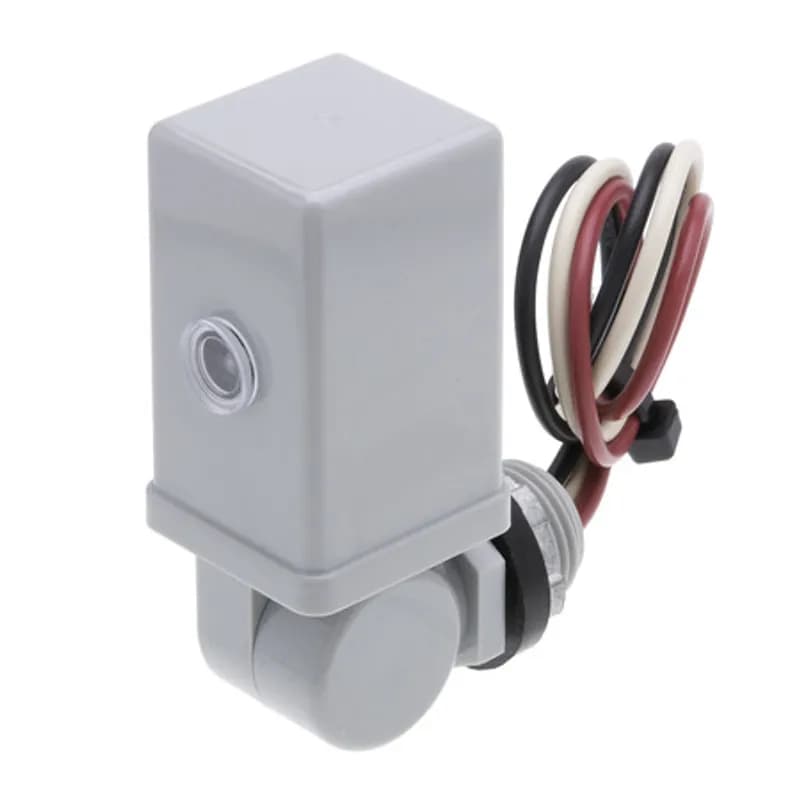

Zero Cross Stem & Swivel Type, On 1.3-1.7, Off/On Ratio 1.5:1, 347-480V, 1000W Tungsten, 1800VA Ballast, 3A Elec Ballast LED

ZSS480

Zero Cross Stem & Swivel Type, On 1.3-1.7, Off/On Ratio 1.5:1, 347-480V, 1000W Tungsten, 1800VA Ballast, 3A Elec Ballast LED
TurnLock Open Cap 480V Max

5500-OC

TurnLock Open Cap 480V Max
Dual Rated Turn Prevent Lug 600 MCM - 2 AWG with 1/2 Inch bolt size: Dual Rated Turn Prevent Lug made of 6061T-6 aluminum alloy. Electro-tin plated for low contact resistance. For use with both copper and aluminum conductors. Rated 600V (2000V max. per UL486B). UL 486A/B Listed. Temperature Rating 90 degrees C.

600TP

Dual Rated Turn Prevent Lug 600 MCM - 2 AWG with 1/2 Inch bolt size: Dual Rated Turn Prevent Lug made of 6061T-6 aluminum alloy. Electro-tin plated for low contact resistance. For use with both copper and aluminum conductors. Rated 600V (2000V max. per UL486B). UL 486A/B Listed. Temperature Rating 90 degrees C.
Dual Rated Lug 600-2 (100 EA)

600T-BULK

Dual Rated Lug 600-2 (100 EA)

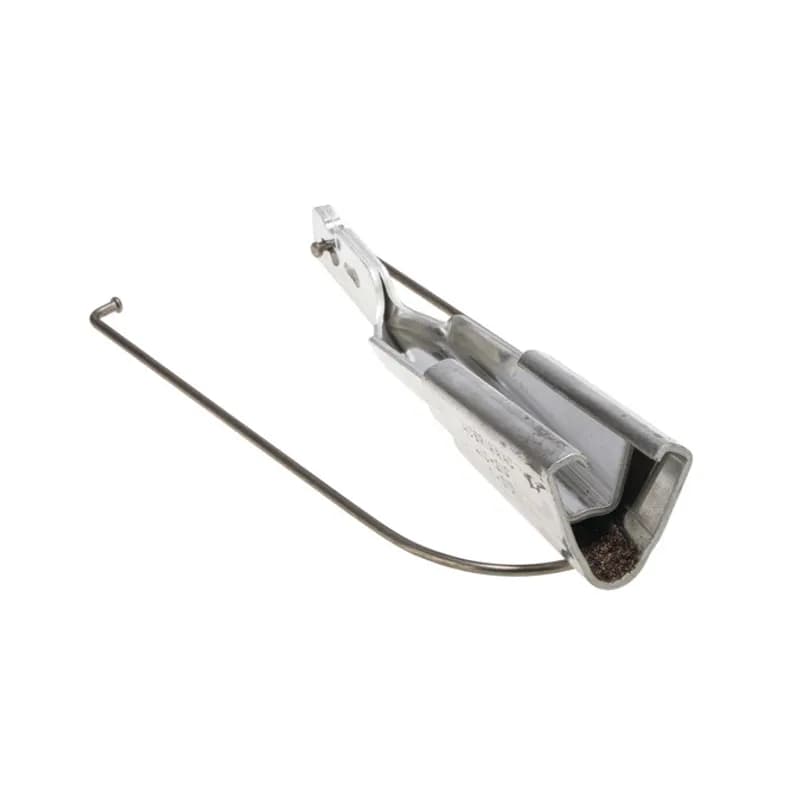

Aluminum Service Wedge Clamp for 4/0 - 2/0 ACSR - 1 Count Aluminum Service Wedge Clamps are used for dead-ending self supporting drop wire. Saves conductor- drop wire may be cut to exact length. Can be attached to bare neutral in any point in the span. Adjustment in drop wire sag are easily made. Grips ACSR, AAAC or aluminum conductor. Temperature rating 90 degrees C. Rated for 600V (2000V max. per UL486B). UL486A/B Listed Wire Connector.

W40-1

Aluminum Service Wedge Clamp for 4/0 - 2/0 ACSR - 1 Count Aluminum Service Wedge Clamps are used for dead-ending self supporting drop wire. Saves conductor- drop wire may be cut to exact length. Can be attached to bare neutral in any point in the span. Adjustment in drop wire sag are easily made. Grips ACSR, AAAC or aluminum conductor. Temperature rating 90 degrees C. Rated for 600V (2000V max. per UL486B). UL486A/B Listed Wire Connector.
8 Port 10 Mounting Hole Heavy Duty Dual Rated Transformer Lug 350 MCM - 6 AWG Heavy Duty Dual Rated Transformer Lugs are versatile and reusable set screw connectors made from high strength 6061-T6 aluminum alloy for superior electrical and mechanical performance. Two set screws per wire hole ensure an exceptional connection. Electro-tin plated for low contact resistance. For use with copper or aluminum conductors. Mounting hole spacing is NEMA 1-3/4". Meets or exceeds ANSI C119.4 Class A. Rated 600V. Temperature rating 90 degrees C.

8-350LL10

8 Port 10 Mounting Hole Heavy Duty Dual Rated Transformer Lug 350 MCM - 6 AWG Heavy Duty Dual Rated Transformer Lugs are versatile and reusable set screw connectors made from high strength 6061-T6 aluminum alloy for superior electrical and mechanical performance. Two set screws per wire hole ensure an exceptional connection. Electro-tin plated for low contact resistance. For use with copper or aluminum conductors. Mounting hole spacing is NEMA 1-3/4". Meets or exceeds ANSI C119.4 Class A. Rated 600V. Temperature rating 90 degrees C.
The TORK ZS124 stem mount instant response LED photocontrol light sensor provides a simple way to control residential or commercial exterior lights and appliances based on the ambient light level. Features include the coated circuit board and weather-resistant casing, long-life zero-cross technology and the time delay that prevents stray lights or shadows from triggering the control. Designed for applications including landscape lighting, perimeter and security lighting, pole lanterns or signage.

ZS124

The TORK ZS124 stem mount instant response LED photocontrol light sensor provides a simple way to control residential or commercial exterior lights and appliances based on the ambient light level. Features include the coated circuit board and weather-resistant casing, long-life zero-cross technology and the time delay that prevents stray lights or shadows from triggering the control. Designed for applications including landscape lighting, perimeter and security lighting, pole lanterns or signage.
The TORK ZSSP124 stem and swivel pencil mount instant response LED photocontrol light sensor provides a simple way to control residential or commercial exterior lights and appliances based on the ambient light level. Features include the coated circuit board and weather-resistant casing, long-life zero-cross technology and the time delay that prevents stray lights or shadows from triggering the control. Designed for applications including landscape lighting, perimeter and security lighting, pole lanterns or signage.

ZSSP124

The TORK ZSSP124 stem and swivel pencil mount instant response LED photocontrol light sensor provides a simple way to control residential or commercial exterior lights and appliances based on the ambient light level. Features include the coated circuit board and weather-resistant casing, long-life zero-cross technology and the time delay that prevents stray lights or shadows from triggering the control. Designed for applications including landscape lighting, perimeter and security lighting, pole lanterns or signage.
Zero Cross Fail On TurnLock, On 1.3-1.7, Off/On Ratio 1.5:1, 105-305V, 1000W Tung, 1800VA Ballast, 8A Elec Ballast (LED), Black Lid, 510J MOV

ZTL124BK

Zero Cross Fail On TurnLock, On 1.3-1.7, Off/On Ratio 1.5:1, 105-305V, 1000W Tung, 1800VA Ballast, 8A Elec Ballast (LED), Black Lid, 510J MOV
TurnLock LED Electronic 105-305V IR

5237-UL

TurnLock LED Electronic 105-305V IR
