NSI Industries TU40 - 24 Hour Timer 40A 120-277V DPDT Outdoor
NSI Industries

TU40

UPC: 786261240002

Contact for Pricing

Overview

The NSI Industries TU40 24-Hour Time Switch (SKU: TU40) is a versatile, industrial-grade timing control device designed for precise 24-hour scheduling of electrical loads. Rated for 40A at 120-277V AC, this DPDT (Double Pole, Double Throw) switch supports multi-voltage operation with automatic input voltage detection (120/208-240/277V, 60Hz). The robust polycarbonate enclosure is rated NEMA 3R for indoor/outdoor use, ensuring reliable performance in harsh environments with operating temperatures from -31°F to 116°F (-35°C to +47°C). Key features include a real-time clock face with day/night markings for easy tripper setting, 96 captive trippers for granular scheduling (minimum ON time of 15 minutes), and a bypass switch for permanent ON/OFF or timer operation. The DPDT configuration allows flexible wiring as SPST, SPDT, or DPST, while indicating lights (green for power ON, red for load ON) provide clear status feedback. Additional features include vacation mode for temporary OFF settings without altering tripper configurations and compliance with UL60370 standards.
  • 24-hour scheduling with 96 captive trippers (15-minute minimum ON time)
  • DPDT contacts configurable as SPST, SPDT, or DPST for flexible wiring
  • Multi-voltage support: 120/208-240/277V AC (auto-detection, 60Hz)
  • NEMA 3R outdoor-rated polycarbonate enclosure (-31°F to 116°F operating range)
  • Bypass switch, vacation mode, and LED/power indicators for enhanced control

Specifications

Action
DPDT
Application
NSI
Base
Screw
Contact Rating
120-208-240-277 VAC
Enclosure
NEMA 3R Plastic Indoor-Outdoor
Environmental Conditions
-31 to 116 F
Frequency Rating
60 Hz
Initiation
Contact
Mounting
Screw Mount
Number Of Pins
96
Number Of Poles
2
Operating Temperature
-31 to 116 F
Phase
Single Phase
Size
L=5.625 - H=8.312 - W=4.500 IN
Special Features
DPDT Multi Voltage 24 Hour Time Switch With 96 Captive Trippers
Standard
cULus
Timing Range
24 Hour
Type
24 Hour Time Switch
Package Dimensions (L x W x H)
3.062 IN x 5.062 IN x 8.312 IN
Package Dimensions (L x W x H)
7.7775 cm x 12.8575 cm x 21.1125 cm
Package Weight (Imperial)
1.762 L
Package Weight (Metric)
0.799 kg
The TORK DGUM100A 24-Hour/7-Day Astronomic Digital Timer is designed for 20 amp / 120-277 volt loads and has a plastic enclosure for outdoor use. Automate your home or office to save energy and money using the intuitive programming interface and light sensitive activation to activate lights or signage when the ambient light level drops below a customizable threshold. Features holiday input and one momentary output channel with automatic voltage detection and a photo/override switch. Designed for commercial applications including signage, window lights, security or parking lot lights and warehouses.

DGUM100A

The TORK DGUM100A 24-Hour/7-Day Astronomic Digital Timer is designed for 20 amp / 120-277 volt loads and has a plastic enclosure for outdoor use. Automate your home or office to save energy and money using the intuitive programming interface and light sensitive activation to activate lights or signage when the ambient light level drops below a customizable threshold. Features holiday input and one momentary output channel with automatic voltage detection and a photo/override switch. Designed for commercial applications including signage, window lights, security or parking lot lights and warehouses.
The TORK DG100A 365/7-Day Multipurpose Digital Timer is designed for 20 amp / 120-277 volt loads and has a plastic enclosure for indoor/outdoor use. Automate your home or office to save energy and money, using the intuitive programming interface to set different on/off times each day and 9 unique holiday blocks. Designed for applications in the home, office, factory, church or school, including indoor/outdoor lighting, heaters, air conditioners, water heaters, warning signs or traffic lights

DG100A

The TORK DG100A 365/7-Day Multipurpose Digital Timer is designed for 20 amp / 120-277 volt loads and has a plastic enclosure for indoor/outdoor use. Automate your home or office to save energy and money, using the intuitive programming interface to set different on/off times each day and 9 unique holiday blocks. Designed for applications in the home, office, factory, church or school, including indoor/outdoor lighting, heaters, air conditioners, water heaters, warning signs or traffic lights
The TORK DZS100BP 365/7-Day Astronomic Digital Timer is designed for 120-277 volt loads and has a Noryl plastic enclosure with a locking hasp for outdoor use. Automate your home or office to save energy and money using the intuitive programming interface and light sensitive activation to activate lights or signage when the ambient light level drops below a customizable threshold. Features one SPDT output channel with automatic voltage detection and automatic daylight saving adjustment. Designed for commercial applications including outdoor lighting, motors, security or parking lot lights, and heating or air conditioning equipment.

DZS100BP

The TORK DZS100BP 365/7-Day Astronomic Digital Timer is designed for 120-277 volt loads and has a Noryl plastic enclosure with a locking hasp for outdoor use. Automate your home or office to save energy and money using the intuitive programming interface and light sensitive activation to activate lights or signage when the ambient light level drops below a customizable threshold. Features one SPDT output channel with automatic voltage detection and automatic daylight saving adjustment. Designed for commercial applications including outdoor lighting, motors, security or parking lot lights, and heating or air conditioning equipment.

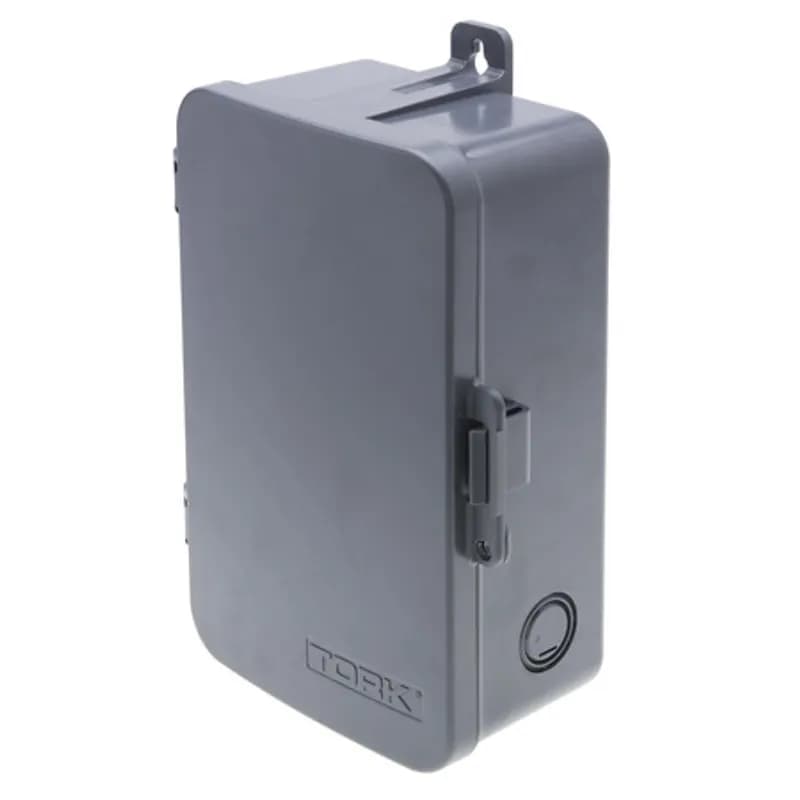

Digital Timer DPST

EW103B

Digital Timer DPST

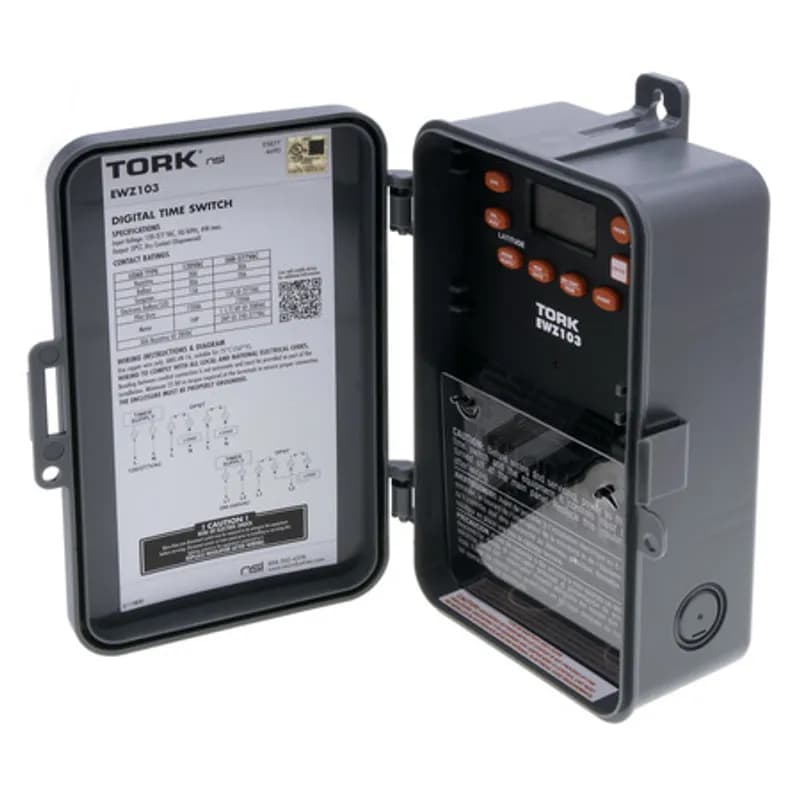

Astro Digital Timer DPST
