NSI Industries TS350-2 - 2 Port Aluminum Dual Rated Transformer Stud Connector 350 MCM -6 AWG with 5/8" Stud Aluminum dual rated transformer stud connectors are versatile and reusable set screw connectors made from 6061T-6 aluminum alloy for superior electrical and mechanical performance. Clear plated for low contact resistance- stud is tin plated copper which provides low contact resistance for connection to transformer. For use with copper and aluminum conductors. Meets or exceeds ANSI C119.4 Class A. Rated 600V. Temperature rating 90 degrees C.
NSI Industries

TS350-2

UPC: 662381023629

Documents & Media
Technical Bulletin

Contact for Pricing

Overview

The NSI Industries TS350-2 is a 2-port aluminum dual-rated transformer stud connector, SKU TS350-2, designed for reliable electrical connections. Constructed from durable 6061-T6 aluminum alloy, this connector offers superior electrical and mechanical performance. Its clear plating minimizes contact resistance, while the tin-plated copper stud ensures a low-resistance connection to transformers. This versatile connector is suitable for use with both copper and aluminum conductors, making it a flexible choice for various applications. It meets or exceeds ANSI C119.4 Class A standards, confirming its quality and safety. The TS350-2 is rated for 600V and operates at a temperature of 90 degrees Celsius. Its set screw design allows for easy installation and makes it a reusable component. Ideal for transformer connections, this connector provides a secure and efficient link between conductors and transformer studs. The dual-rated design simplifies inventory and ensures compatibility with a wide range of conductor types. Its robust construction from aluminum alloy ensures longevity in electrical systems. The tin-plated copper stud is specifically designed for optimal conductivity with transformer terminals.
  • 2-Port Aluminum Dual Rated Transformer Stud Connector
  • Constructed from 6061-T6 Aluminum Alloy for superior performance
  • Tin-plated copper stud for low contact resistance with transformers
  • Suitable for both Copper and Aluminum conductors (-6 AWG to 350 MCM)
  • Meets or exceeds ANSI C119.4 Class A, rated 600V, 90°C

Specifications

Connection Type
Set Screw
Material
6061T-6 Aluminum Alloy
Material
6061T-6 Aluminum alloy, Tin-plated copper
Poles
2
Series
TS350
Size
350 MCM -6 AWG
Size
350 MCM -6 AWG with 5/8" Stud
Voltage Rating
600 V
Warranty
1 Year
Package Dimensions (L x W x H)
2.95 IN x 0.88 IN x 1.25 IN
Package Dimensions (L x W x H)
7.493 cm x 22.352 mm x 3.175 cm
Package Weight (Imperial)
0.632 L
Package Weight (Metric)
0.287 kg
2 Port Aluminum Dual Rated Transformer Stud Connector 750 - 250 MCM Aluminum dual rated transformer stud connectors are versatile and reusable set screw connectors made from 6061T-6 aluminum alloy for superior electrical and mechanical performance. Clear plated for low contact resistance- stud is tin plated copper which provides low contact resistance for connection to transformer. For use with copper and aluminum conductors. Meets or exceeds ANSI C119.4 Class A. Rated 600V. Temperature rating 90 degrees C.

TS750-2

2 Port Aluminum Dual Rated Transformer Stud Connector 750 - 250 MCM Aluminum dual rated transformer stud connectors are versatile and reusable set screw connectors made from 6061T-6 aluminum alloy for superior electrical and mechanical performance. Clear plated for low contact resistance- stud is tin plated copper which provides low contact resistance for connection to transformer. For use with copper and aluminum conductors. Meets or exceeds ANSI C119.4 Class A. Rated 600V. Temperature rating 90 degrees C.
2 Port Aluminum Dual Rated Transformer Stud Connector 250 MCM -6 AWG Aluminum dual rated transformer stud connectors are versatile and reusable set screw connectors made from 6061T-6 aluminum alloy for superior electrical and mechanical performance. Clear plated for low contact resistance- stud is tin plated copper which provides low contact resistance for connection to transformer. For use with copper and aluminum conductors. Meets or exceeds ANSI C119.4 Class A. Rated 600V. Temperature rating 90 degrees C.

TS250-2

2 Port Aluminum Dual Rated Transformer Stud Connector 250 MCM -6 AWG Aluminum dual rated transformer stud connectors are versatile and reusable set screw connectors made from 6061T-6 aluminum alloy for superior electrical and mechanical performance. Clear plated for low contact resistance- stud is tin plated copper which provides low contact resistance for connection to transformer. For use with copper and aluminum conductors. Meets or exceeds ANSI C119.4 Class A. Rated 600V. Temperature rating 90 degrees C.

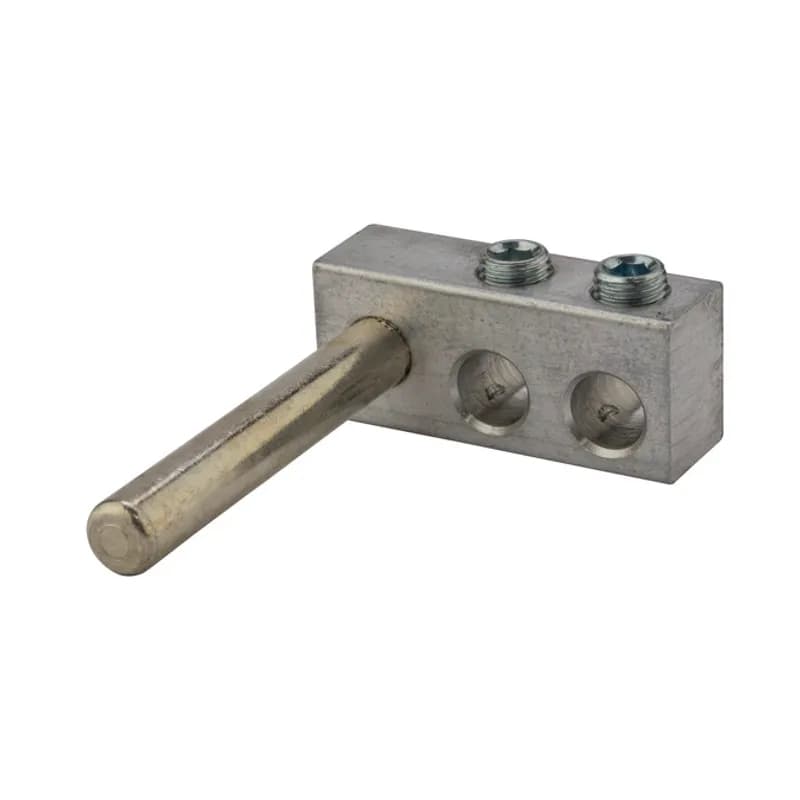

Use the dual-rated NSI TS1/0-2 Mechanical Lug Connector with either aluminum or copper conductors when connecting to threaded or slip-fit transformers. This versatile and reusable set-screw connector is made from high-strength 6061-T6 aluminum alloy for superior electrical and mechanical performance. The copper stud is 3" long, 3/8" in diameter and tin plated – providing low-contact resistance for connection to the transformer. Two conductor ports fit copper or aluminum wire in the range of 1/0 to 4 AWG. NSI mechanical lug connectors meet or exceed ANSI C119.4 Class A, have a temperature rating of 90 °C and a maximum voltage of 600V. Stock products you can rely on—stock NSI.

TS1/0-2

Use the dual-rated NSI TS1/0-2 Mechanical Lug Connector with either aluminum or copper conductors when connecting to threaded or slip-fit transformers. This versatile and reusable set-screw connector is made from high-strength 6061-T6 aluminum alloy for superior electrical and mechanical performance. The copper stud is 3" long, 3/8" in diameter and tin plated – providing low-contact resistance for connection to the transformer. Two conductor ports fit copper or aluminum wire in the range of 1/0 to 4 AWG. NSI mechanical lug connectors meet or exceed ANSI C119.4 Class A, have a temperature rating of 90 °C and a maximum voltage of 600V. Stock products you can rely on—stock NSI.
2 Port Aluminum Dual Rated Transformer Stud Connector 500 MCM - 4 AWG Aluminum dual rated transformer stud connectors are versatile and reusable set screw connectors made from 6061T-6 aluminum alloy for superior electrical and mechanical performance. Clear plated for low contact resistance- stud is tin plated copper which provides low contact resistance for connection to transformer. For use with copper and aluminum conductors. Meets or exceeds ANSI C119.4 Class A. Rated 600V. Temperature rating 90 degrees C.

TS500-2

2 Port Aluminum Dual Rated Transformer Stud Connector 500 MCM - 4 AWG Aluminum dual rated transformer stud connectors are versatile and reusable set screw connectors made from 6061T-6 aluminum alloy for superior electrical and mechanical performance. Clear plated for low contact resistance- stud is tin plated copper which provides low contact resistance for connection to transformer. For use with copper and aluminum conductors. Meets or exceeds ANSI C119.4 Class A. Rated 600V. Temperature rating 90 degrees C.
8 Port Aluminum Dual Rated Transformer Stud Connector 250 MCM -6 AWG Aluminum dual rated transformer stud connectors are versatile and reusable set screw connectors made from 6061T-6 aluminum alloy for superior electrical and mechanical performance. Clear plated for low contact resistance- stud is tin plated copper which provides low contact resistance for connection to transformer. For use with copper and aluminum conductors. Meets or exceeds ANSI C119.4 Class A. Rated 600V. Temperature rating 90 degrees C.

TS250-8

8 Port Aluminum Dual Rated Transformer Stud Connector 250 MCM -6 AWG Aluminum dual rated transformer stud connectors are versatile and reusable set screw connectors made from 6061T-6 aluminum alloy for superior electrical and mechanical performance. Clear plated for low contact resistance- stud is tin plated copper which provides low contact resistance for connection to transformer. For use with copper and aluminum conductors. Meets or exceeds ANSI C119.4 Class A. Rated 600V. Temperature rating 90 degrees C.
3 Port Aluminum Dual Rated Transformer Stud Connector 350 MCM -6 AWG Aluminum dual rated transformer stud connectors are versatile and reusable set screw connectors made from 6061T-6 aluminum alloy for superior electrical and mechanical performance. Clear plated for low contact resistance- stud is tin plated copper which provides low contact resistance for connection to transformer. For use with copper and aluminum conductors. Meets or exceeds ANSI C119.4 Class A. Rated 600V. Temperature rating 90 degrees C.

TS350-3

3 Port Aluminum Dual Rated Transformer Stud Connector 350 MCM -6 AWG Aluminum dual rated transformer stud connectors are versatile and reusable set screw connectors made from 6061T-6 aluminum alloy for superior electrical and mechanical performance. Clear plated for low contact resistance- stud is tin plated copper which provides low contact resistance for connection to transformer. For use with copper and aluminum conductors. Meets or exceeds ANSI C119.4 Class A. Rated 600V. Temperature rating 90 degrees C.
2 Port Stacked Lug 300 MCM - 6 AWG Stacked Lugs are large size set screw connectors with wire holes stacked on top of each other to minimize the width of the connector. Made of 6061T-6 aluminum alloy. Tin plated for low contact resistance. Suitable for use with both copper and aluminum conductors. Rated 600 volts (2000V max. per UL486B). UL486A/B Listed. Temperature rating 90 degrees C. Mounting hole spacing is NEMA standard of 1.75".

300T-2

2 Port Stacked Lug 300 MCM - 6 AWG Stacked Lugs are large size set screw connectors with wire holes stacked on top of each other to minimize the width of the connector. Made of 6061T-6 aluminum alloy. Tin plated for low contact resistance. Suitable for use with both copper and aluminum conductors. Rated 600 volts (2000V max. per UL486B). UL486A/B Listed. Temperature rating 90 degrees C. Mounting hole spacing is NEMA standard of 1.75".
2 Port Stacked Lug 350 MCM - 6 AWG Stacked Lugs are large size set screw connectors with wire holes stacked on top of each other to minimize the width of the connector. Made of 6061T-6 aluminum alloy. Tin plated for low contact resistance. Suitable for use with both copper and aluminum conductors. Rated 600 volts (2000V max. per UL486B). UL486A/B Listed. Temperature rating 90 degrees C. Mounting hole spacing is NEMA standard of 1.75".

350T-2

2 Port Stacked Lug 350 MCM - 6 AWG Stacked Lugs are large size set screw connectors with wire holes stacked on top of each other to minimize the width of the connector. Made of 6061T-6 aluminum alloy. Tin plated for low contact resistance. Suitable for use with both copper and aluminum conductors. Rated 600 volts (2000V max. per UL486B). UL486A/B Listed. Temperature rating 90 degrees C. Mounting hole spacing is NEMA standard of 1.75".

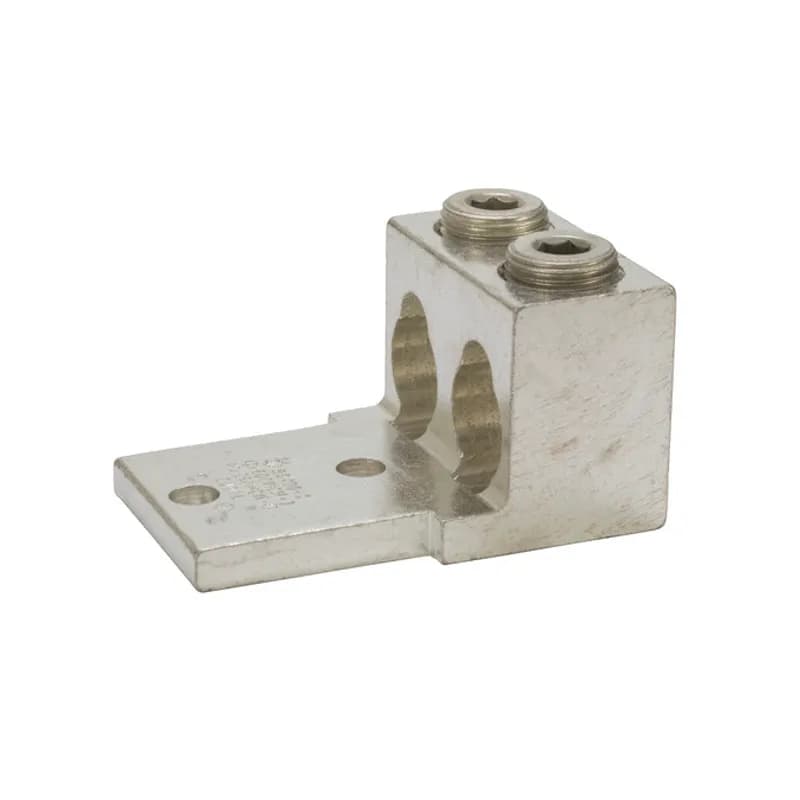

Dual Range Lug Two 250 MCM - 1/0 AWG, Four 250 MCM - 1/0 AWG - 1 Count Dual Range Lugs are set screw connectors that will accept either one or two wires. Made of 6061T-6 aluminum alloy. Electro-pin plated for low contact resistance. For use with copper or aluminum conductors. Rated 600 Volts (2000V max. per UL486B). UL 486A/B Listed. Temperature rating 90 degrees C.

BS400T2

Dual Range Lug Two 250 MCM - 1/0 AWG, Four 250 MCM - 1/0 AWG - 1 Count Dual Range Lugs are set screw connectors that will accept either one or two wires. Made of 6061T-6 aluminum alloy. Electro-pin plated for low contact resistance. For use with copper or aluminum conductors. Rated 600 Volts (2000V max. per UL486B). UL 486A/B Listed. Temperature rating 90 degrees C.

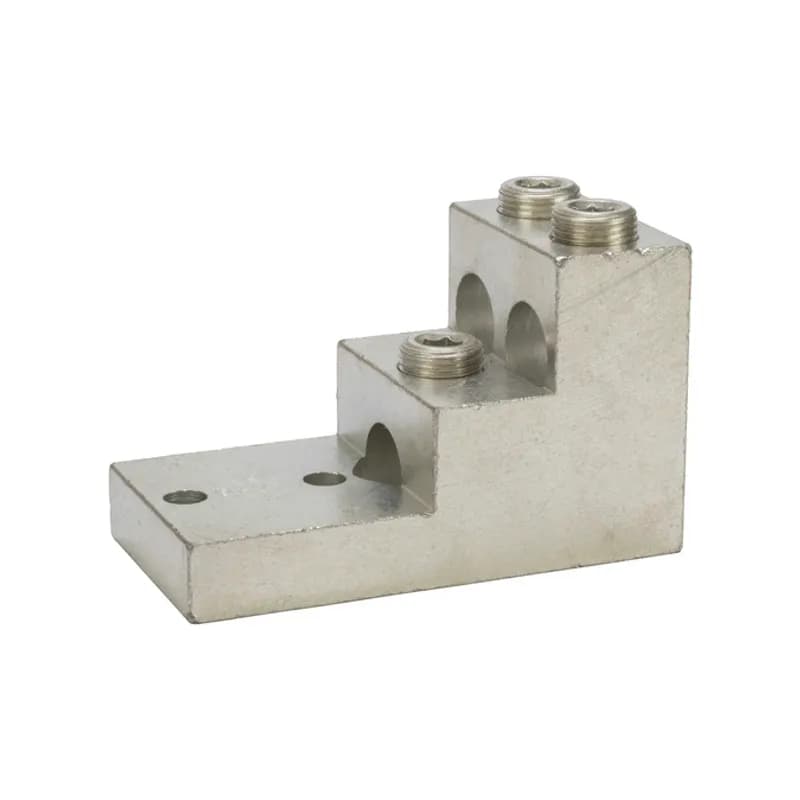

3 Port Stacked Lug 600 MCM - 2 AWG Stacked Lugs are large size set screw connectors with wire holes stacked on top of each other to minimize the width of the connector. Made of 6061T-6 aluminum alloy. Tin plated for low contact resistance. Suitable for use with both copper and aluminum conductors. Rated 600 volts (2000V max. per UL486B). UL486A/B Listed. Temperature rating 90 degrees C. Mounting hole spacing is NEMA standard of 1.75".
