NSI Industries SL40N - 2 Hole Long Barrel Copper Stacked Compression Lug 4/0 AWG - 1/2" Bolt Long Barrel Copper Stacked Compression Lugs is a type of copper compression connector that is produced from high conductivity copper tubing. They are designed for use with the L-N Series. They are tin-plated to provide corrosion resistance and are marked with die index and color coded for easy reference.
NSI Industries

SL40N

UPC: 662381035523

Documents & Media
Installation Instructions

Contact for Pricing

Overview

The NSI Industries SL40N is a high-conductivity copper stacked compression lug designed for heavy-duty electrical applications. This 2-hole lug is engineered from premium copper tubing, ensuring excellent conductivity and durability. It is specifically designed for use with the NSI L-N Series, providing a reliable connection point for your wiring systems. The SL40N lug features a tin-plated finish, offering superior corrosion resistance and low contact resistance, which is crucial for maintaining connection integrity over time. Each lug is clearly marked with its die index and color-coded (Purple for SL40N), facilitating quick and accurate identification during installation and maintenance. This lug is UL486A Listed and rated for 90°C, with a voltage rating of 600V. It is also listed for 35KV maximum when properly installed, making it suitable for high-voltage applications. The SL40N is designed for 4/0 AWG wire, with an expanded wire range of 4/0 - 1 AWG when used with the NSI N12ID dieless compression tool. Key specifications include a 1/2" bolt size, 1.75" mounting hole spacing, and a barrel length of 2.863". Each standard carton contains 25 units. Ensure proper installation according to NEC guidelines for maximum ampacity. Choose the NSI SL40N for robust, long-lasting electrical terminations.
  • Constructed from high-conductivity copper tubing for heavy-duty applications.
  • Tin-plated for superior corrosion resistance and low contact resistance.
  • Clearly marked with die index and color-coded (Purple) for easy identification.
  • UL486A Listed, rated for 90°C and 600V, suitable for 35KV applications.
  • Designed for 4/0 AWG wire with an expanded range of 4/0 - 1 AWG (with NSI N12ID tool).

Specifications

Application
Terminate, Splice, Tap Power Connectors
Cable Size
4/0 AWG (STR)
Color
Purple
Environmental Conditions
90 C
Finish
Tin Plated
Material
Copper
Mounting
1/2 Mounting Holes
Number Of Holes
2
Size
L=5.31 - W=1.00 - OD=.690 - ID=.550
Special Features
4/0 AWG (STR) - 1/2 Mounting Holes - 1 3/4 Hole Spacing
Standard
UL486A/B
Stud Size
1/2 IN
Type
Long Barrel Stacking Lugs
Voltage Rating
600 V
Warranty
1 Year
Package Dimensions (L x W x H)
5.188 IN x 1.5 IN x 1.625 IN
Package Dimensions (L x W x H)
13.1775 cm x 3.81 cm x 4.1275 cm
Package Weight (Imperial)
4.000 L
Package Weight (Metric)
1.814 kg
2Hole Long Barrel Copper Compression Lug4/0 AWG -3/8" Bolt - 1" Mounting Hole Spacing Long Barrel Copper Compression Lugs is a type of copper compression connector that is produced from high conductivity copper tubing. They are tin-plated to provide corrosion resistance and are marked with die index and color coded for easy reference. Listed for 35KV maximum when properly installed.

L40N-38

2Hole Long Barrel Copper Compression Lug4/0 AWG -3/8" Bolt - 1" Mounting Hole Spacing Long Barrel Copper Compression Lugs is a type of copper compression connector that is produced from high conductivity copper tubing. They are tin-plated to provide corrosion resistance and are marked with die index and color coded for easy reference. Listed for 35KV maximum when properly installed.

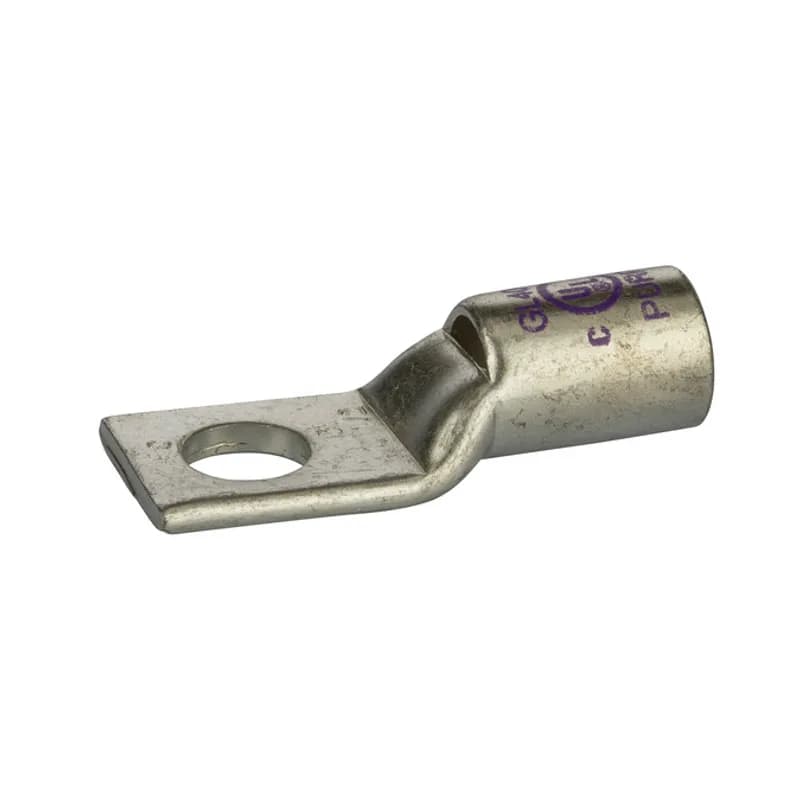

1 Hole Short Barrel Copper Compression Lug w/ Peep Hole 4/0 AWG - 1/2" Bolt Short Barrel Copper Compression Lugs with Peep Hole is a type of copper compression connector that is produced from high conductivity copper tubing. They are tin-plated to provide corrosion resistance and are marked with die index and color coded for easy reference. Listed for 35KV maximum when properly installed.

GL4048

1 Hole Short Barrel Copper Compression Lug w/ Peep Hole 4/0 AWG - 1/2" Bolt Short Barrel Copper Compression Lugs with Peep Hole is a type of copper compression connector that is produced from high conductivity copper tubing. They are tin-plated to provide corrosion resistance and are marked with die index and color coded for easy reference. Listed for 35KV maximum when properly installed.

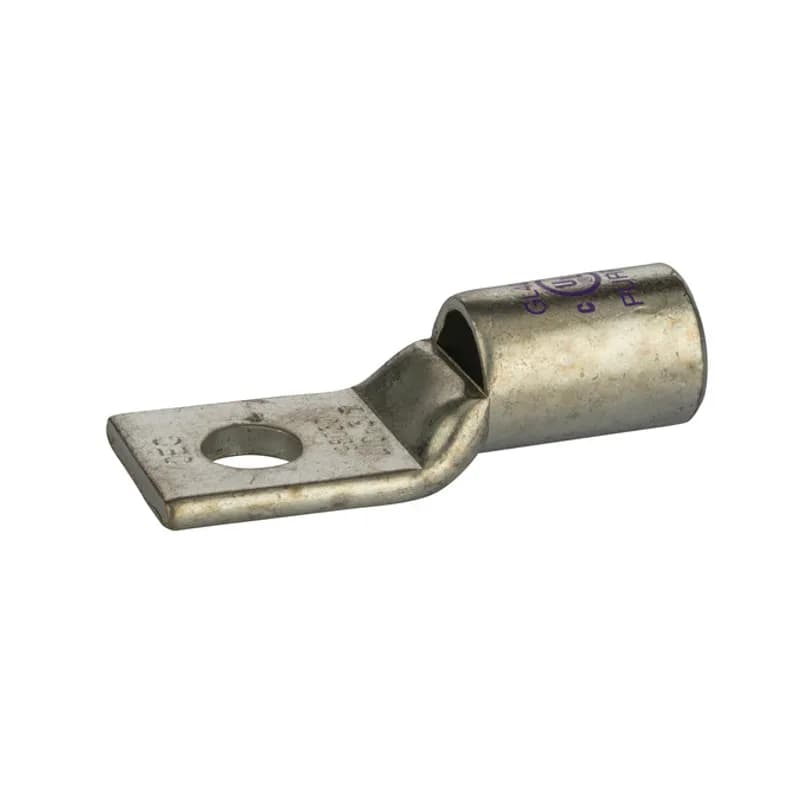

1 HoleShort Barrel Copper Compression Lug w/ PeepHole4/0 AWG-3/8" Bolt Short Barrel Copper Compression Lugs with PeepHoleis a type of copper compression connector that is produced from high conductivity copper tubing. They are tin-plated to provide corrosion resistance and are marked with die index and color coded for easy reference. Listed for 35KV maximum when properly installed.

GL4038

1 HoleShort Barrel Copper Compression Lug w/ PeepHole4/0 AWG-3/8" Bolt Short Barrel Copper Compression Lugs with PeepHoleis a type of copper compression connector that is produced from high conductivity copper tubing. They are tin-plated to provide corrosion resistance and are marked with die index and color coded for easy reference. Listed for 35KV maximum when properly installed.

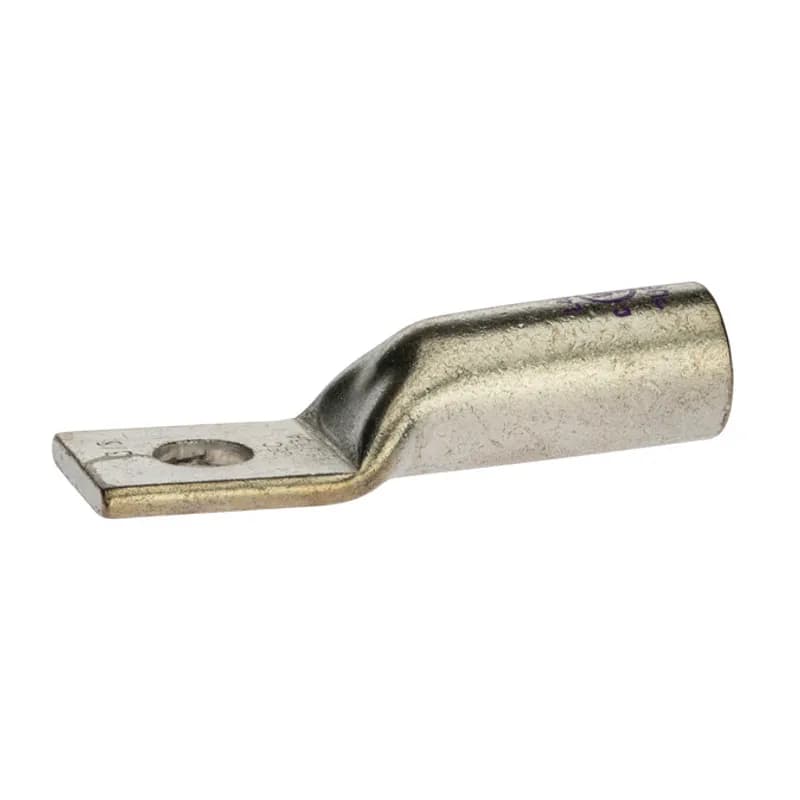

1 Hole Long Barrel Copper Compression Lug 4/0 AWG - 3/8" Bolt Long Barrel Copper Compression Lugs are produced from high conductivity copper tubing. They are tin-plated to provide corrosion low contact resistance. Marked with die index and color coded for easy reference. Listed for 35KV maximum when properly installed and to cable manufacturer instructions. Temperature rating 90 degrees C. .
