NSI Industries N-2 - Copper Split Bolt Connector 2 AWG Copper Split Bolt Connectors are high-strength solderless service connectors made of high-copper alloy for copper and copperweld wires. Type for two maximum wire sizes.
NSI Industries

N-2

UPC: 662381020055

Documents & Media
Technical Bulletin

Contact for Pricing

Overview

The NSi Industries N-2 Copper Split Bolt Connector is a high-strength, solderless service connector engineered for reliable electrical connections in copper and copperweld wire applications. Constructed from high-copper alloy, this connector delivers superior mechanical strength and corrosion resistance, ensuring long-term performance in demanding industrial environments. Designed for two maximum wire sizes, the N-2 accommodates a wire diameter range of 0.162–0.292 inches, making it ideal for 2 AWG copper conductors. The connector features a UL486A listing for wire connections and UL486D certification for direct burial applications, providing versatility for both overhead and underground installations. The split bolt design allows for easy installation without soldering, reducing labor time and simplifying maintenance. The included nut, spacer, and pressure pad ensure a secure connection with optimal wire pull-out strength. With a recommended torque of 275 inch-pounds, the N-2 guarantees proper electrical contact and mechanical integrity. This connector is distributed by Gross Automation and is suitable for use in utility, industrial, and commercial electrical systems where reliable, high-performance connections are critical. The compact design minimizes inventory requirements by accommodating a wide range of wire sizes, reducing the need for multiple connector types.
  • High-strength solderless service connector made of high-copper alloy
  • UL486A listed for wire connections and UL486D listed for direct burial
  • Accommodates 2 AWG copper and copperweld wires (0.162–0.292 in. diameter)
  • Includes nut, spacer, and pressure pad for secure, long-lasting connections
  • Recommended torque: 275 inch-pounds for optimal electrical contact

Specifications

Application
Wire Termination
Color
Copper
Environmental Conditions
90 C
Finish
Copper
Material
Copper
Number Of Conductors
2
Number Of Poles
1
Size
L=1.153 - W=.748 IN
Special Features
6 SOL-2 STR - 40 Pack
Standard
UL486B
Temperature Rating
90 C
Type
Copper Split Bolts
Voltage Rating
600 V
Warranty
1 Year
Wire Size
6 SOL - 2 STR
Wire Type
Class A & B
Package Dimensions (L x W x H)
0.614 IN x 0.748 IN x 1.24 IN
Package Dimensions (L x W x H)
15.5956 mm x 18.9992 mm x 3.1496 cm
Package Weight (Imperial)
0.130 L
Package Weight (Metric)
0.059 kg
Copper Split Bolt Connector 2/0 AWG Copper Split Bolt Connectors are high-strength solderless service connectors made of high-copper alloy for copper and copperweld wires. Type for two maximum wire sizes.

N-2/0

Copper Split Bolt Connector 2/0 AWG Copper Split Bolt Connectors are high-strength solderless service connectors made of high-copper alloy for copper and copperweld wires. Type for two maximum wire sizes.
Copper Split Bolt Connector 10 AWG Copper Split Bolt Connectors are high-strength solderless service connectors made of high-copper alloy for copper and copperweld wires. Type for two maximum wire sizes.

N-10

Copper Split Bolt Connector 10 AWG Copper Split Bolt Connectors are high-strength solderless service connectors made of high-copper alloy for copper and copperweld wires. Type for two maximum wire sizes.

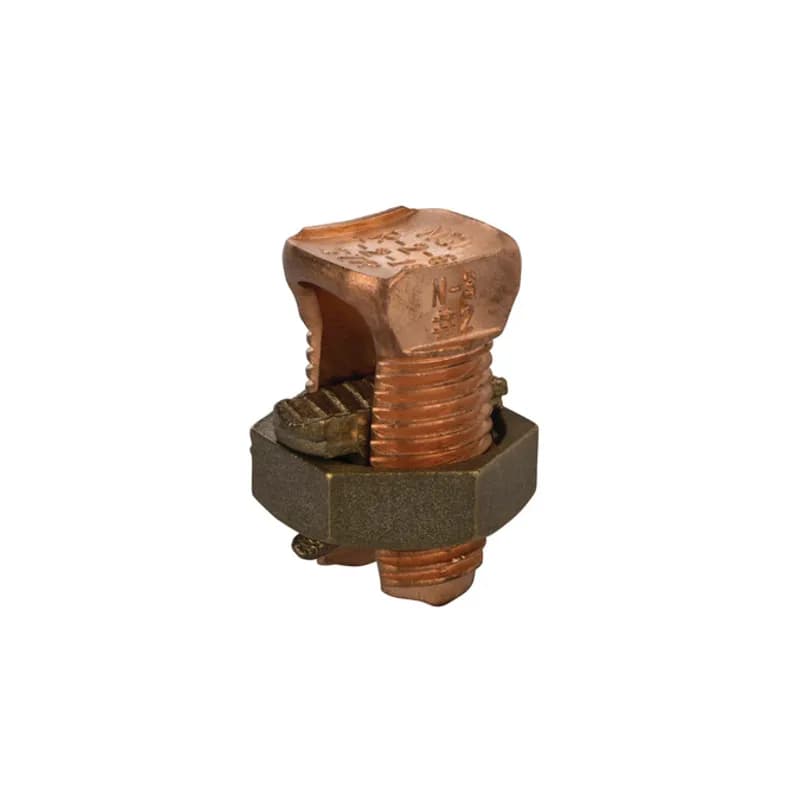

Copper Split Bolt Connector 3 AWG Copper Split Bolt Connectors are high-strength solderless service connectors made of high-copper alloy for copper and copperweld wires. Type for two maximum wire sizes.

N-3

Copper Split Bolt Connector 3 AWG Copper Split Bolt Connectors are high-strength solderless service connectors made of high-copper alloy for copper and copperweld wires. Type for two maximum wire sizes.

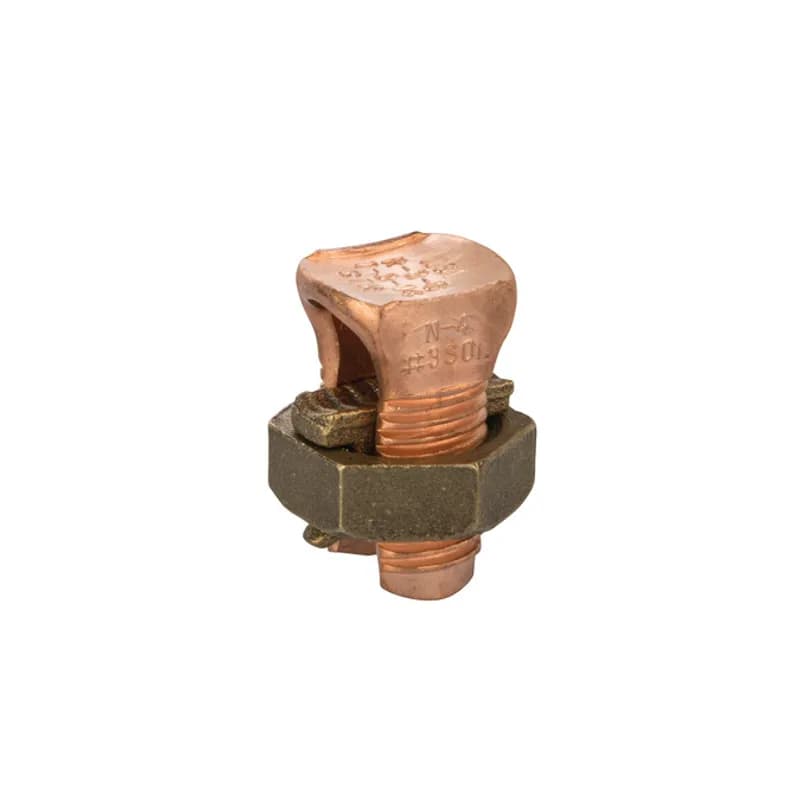

Copper Split Bolt Connector 4 AWG Copper Split Bolt Connectors are high-strength solderless service connectors made of high-copper alloy for copper and copperweld wires. Type for two maximum wire sizes.

N-4

Copper Split Bolt Connector 4 AWG Copper Split Bolt Connectors are high-strength solderless service connectors made of high-copper alloy for copper and copperweld wires. Type for two maximum wire sizes.

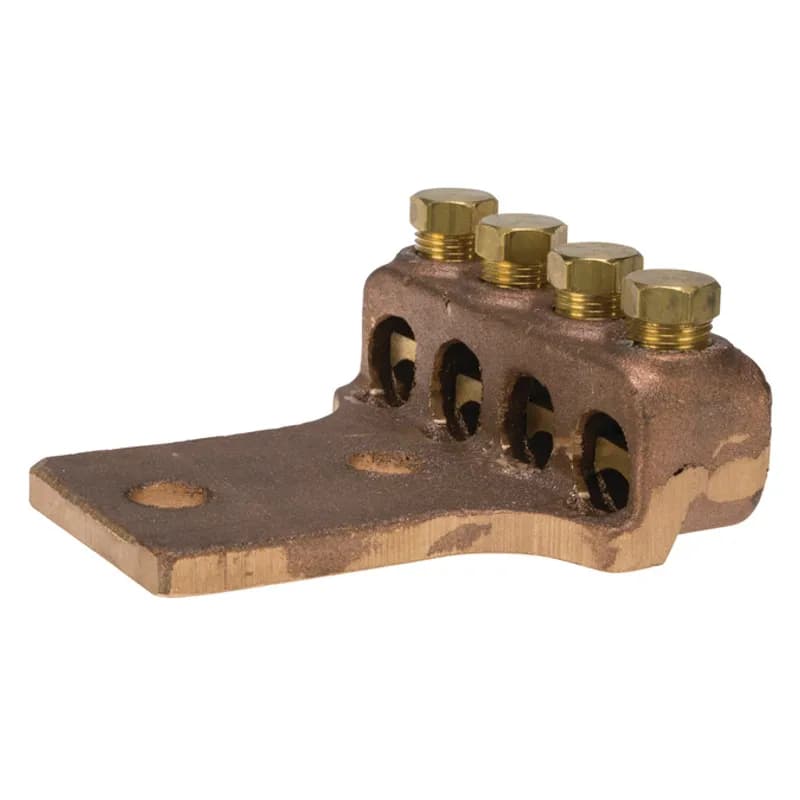

Cast Bronze Terminal Lug 300 MCM - 4/0 AWG 4 Port Copper Terminal Lugs are made of high copper alloy. They are used for joining a wide range of cables or terminal blocks.

TL250-4L2

Cast Bronze Terminal Lug 300 MCM - 4/0 AWG 4 Port Copper Terminal Lugs are made of high copper alloy. They are used for joining a wide range of cables or terminal blocks.

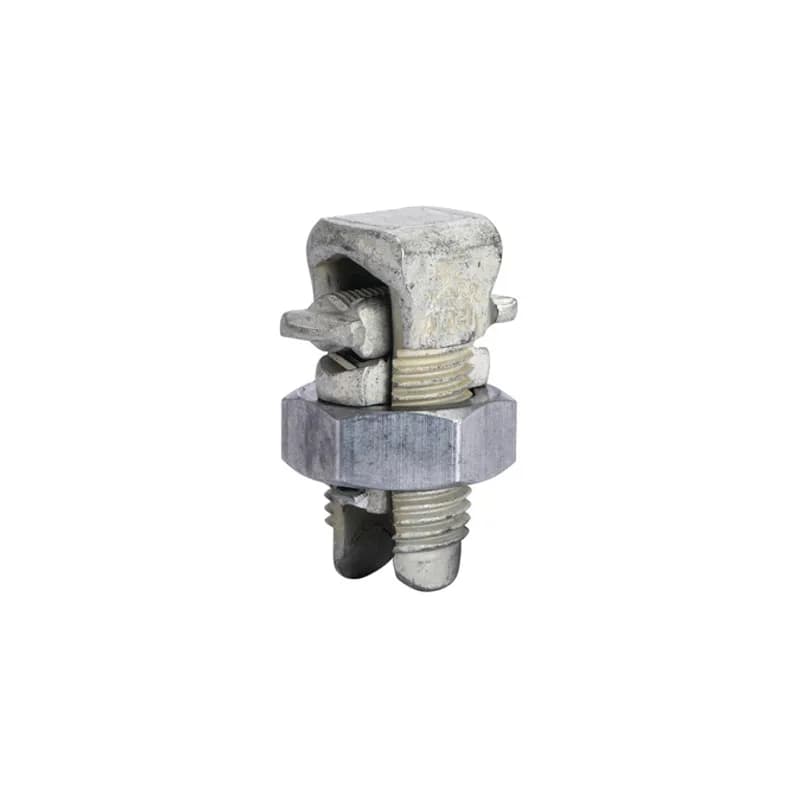

Aluminum Dual-Rated Split Bolts for 8 - 2 STR are made from tin-plated aluminum. UL-486B listed for aluminum and copper conductor combinations.

APS02

Aluminum Dual-Rated Split Bolts for 8 - 2 STR are made from tin-plated aluminum. UL-486B listed for aluminum and copper conductor combinations.
350 MCM Parallel "T" Tap Connector With Cover Excellent for tapping off main conductor without cutting due to lay-in feature. Perpendicular tap allows for parallel or "T" tap configuration. Flexible cover allows for either parallel or "T" tap wire entry. Secure snap cover eliminates need for taping. Electro-tin plated for low contact resistance. Rated 600V. Temperature rating 90 degrees C.

GP-350WC

350 MCM Parallel "T" Tap Connector With Cover Excellent for tapping off main conductor without cutting due to lay-in feature. Perpendicular tap allows for parallel or "T" tap configuration. Flexible cover allows for either parallel or "T" tap wire entry. Secure snap cover eliminates need for taping. Electro-tin plated for low contact resistance. Rated 600V. Temperature rating 90 degrees C.
Two-Bolt Bronze Plated Tap Connector 2/0 Str - 1 Sol Two-bolt bronze tap connectors are made of high strength bronze for heavy duty connections. For use with copper, aluminum and steel conductors.

TCP2/0

Two-Bolt Bronze Plated Tap Connector 2/0 Str - 1 Sol Two-bolt bronze tap connectors are made of high strength bronze for heavy duty connections. For use with copper, aluminum and steel conductors.
350 MCM Parallel "T" Tap Connector Excellent for tapping off main conductor without cutting due to lay-in feature. Perpendicular tap allows for parallel or "T" tap configuration. Electro-tin plated for low contact resistance. Rated 600V. Temperature rating 90 degrees C.

GP-350

350 MCM Parallel "T" Tap Connector Excellent for tapping off main conductor without cutting due to lay-in feature. Perpendicular tap allows for parallel or "T" tap configuration. Electro-tin plated for low contact resistance. Rated 600V. Temperature rating 90 degrees C.

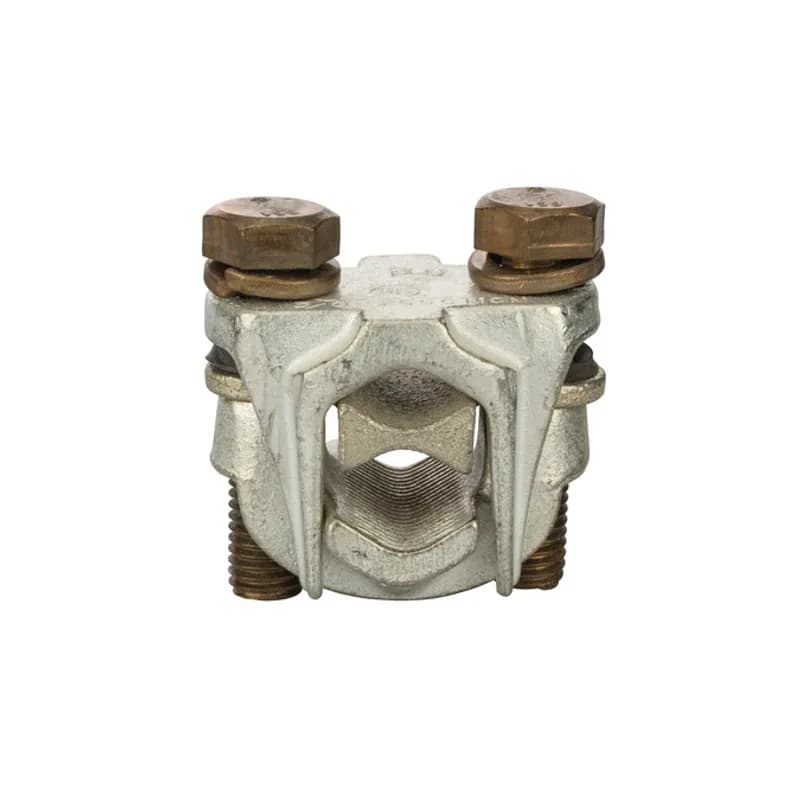

Two-Bolt Bronze Plated Tap Connector 1000 - 750 MCM Two-bolt bronze plated tap connectors are made of high strength bronze for heavy duty connections. For use with copper, aluminum and steel conductors.

TCP1000

Two-Bolt Bronze Plated Tap Connector 1000 - 750 MCM Two-bolt bronze plated tap connectors are made of high strength bronze for heavy duty connections. For use with copper, aluminum and steel conductors.

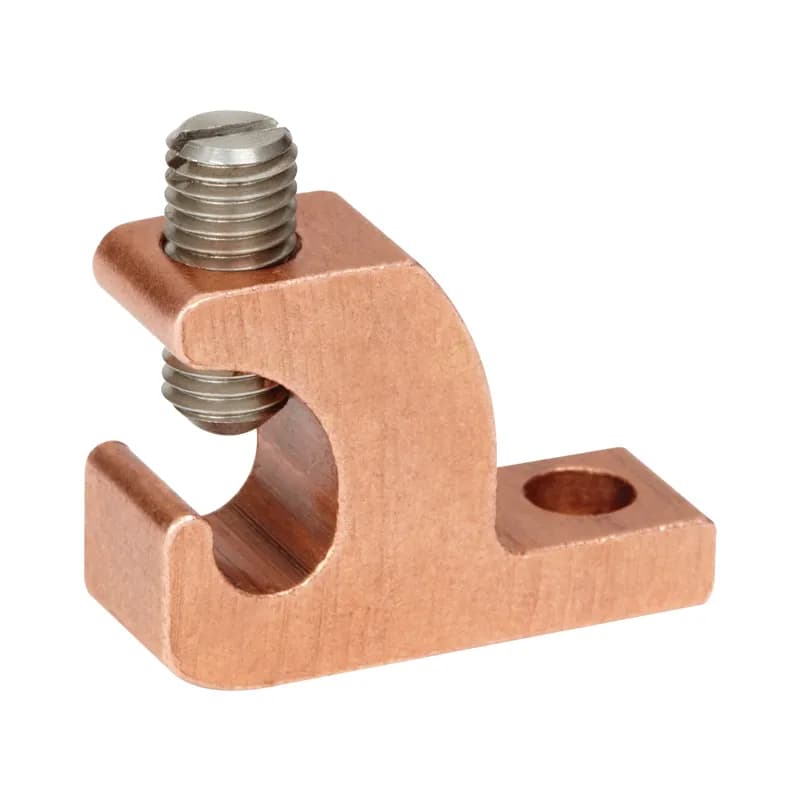

Copper Lay-in Lug
