Contact for Pricing
Minimum Qty: 6
Multiplier: 6
*Contact for lower quantities*

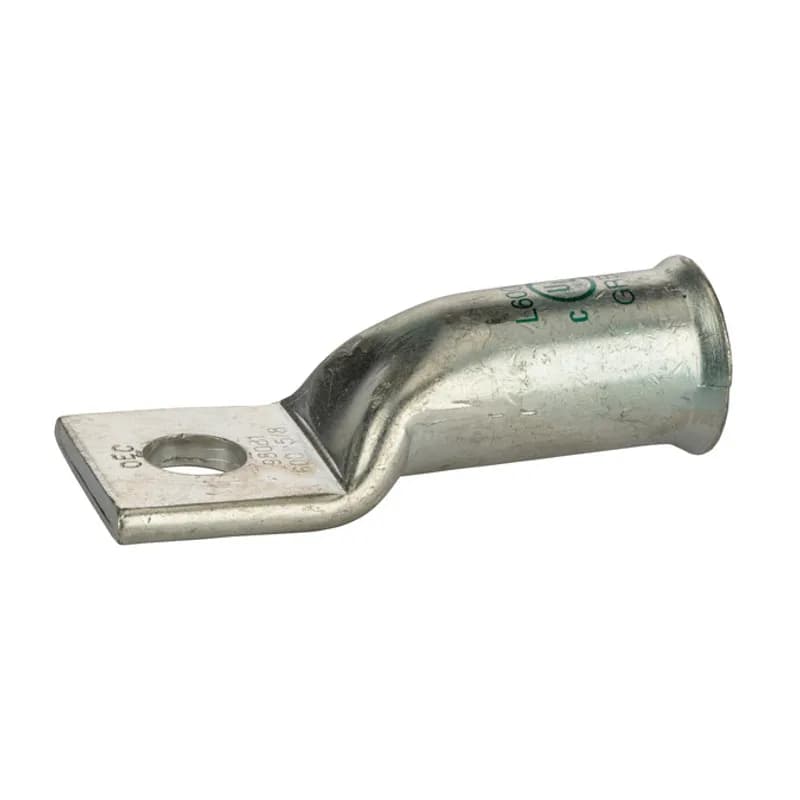

Overview
- Constructed from high-conductivity copper tubing for superior electrical performance.
- Tin-plated finish provides excellent corrosion resistance and low contact resistance.
- Long barrel design ensures a secure and reliable termination for large conductors.
- Marked with die index and color-coded for easy identification and installation.
- UL486A Listed as a wire connector, rated for 90°C and 35KV maximum when properly installed.
Specifications
Application | Terminate, Splice, Tap Power Connectors |
Cable Size | 600 MCM (STR) |
Color | Green |
Environmental Conditions | 90 C |
Finish | Tin Plated |
Material | Copper |
Mounting | 5/8 Mounting Hole |
Number Of Holes | 1 |
Size | L=4.25 - W=1.71 - OD=1.18 - ID=.925 |
Special Features | 600 MCM (STR) - 5/8 Mounting Hole |
Standard | UL486A/B |
Stud Size | 5/8 IN |
Type | Long Barrel - One Hole |
Voltage Rating | 600 V |
Warranty | 1 Year |
Package Dimensions (L x W x H) | 4.252 IN x 1.717 IN x 1.189 IN |
Package Dimensions (L x W x H) | 10.8001 cm x 4.3612 cm x 3.0201 cm |
Package Weight (Imperial) | 4.500 L |
Package Weight (Metric) | 2.041 kg |
OD581
Mechanical Crimp Tool with 5/8 Inch Nose Die APPLICATIONS: Designed for use with wide range and H-Tap connectors. It has fiberglass handles and comes with "O" and "D" Nose Dies. It has an output of 4.5 tons.
CD6A
U-Type Compression Die - Pink 1/0 AWG Copper - 2 AWG Aluminum U-Shaped Compression Dies are for use with the NSi-12 Compression Tool and Other Tools. See Cross-Reference Chart below.
CD7
U-Type Compression Die - Black 2/0 AWG Copper U-Shaped Compression Dies are for use with the NSi-12 Compression Tool and Other Tools. See Cross-Reference Chart below.
E6-PS-D
Non-Insulated Parallel Splice Connector For Wire Range 6 For Circular Mil Range 20,800-33,100 Length .5 Diameter .365,Metallic
AS-K1-H6
Power Distribution Block (1) 2/0-14 AWG Primary (6) 4-14 AWG Secondary Power Distribution Blocks are made of high strength, high-conductivity aluminum alloy and are mounted in a high-strength glass-filled polyester base. Each block can stand alone or combine with other blocks to form a multi-block set.
E989NNJ-5-HD
Molded Junction Box, Length 4 Inch x Width 4 Inch x Depth 2 Inch, Material Polycarbonate, Color Gray
1SNK705010R0000
Combine high performance with compact dimensions: - 1000 V AC / DC IEC 600 V UL, - Opt for the best marking visibility thanks to the up-front, flat marker zone, which lets you mark up to eight digits or increase the font size.
1SNK705030R0000
Combine high performance with compact dimensions: - 1000 V AC / DC IEC 600 V UL, - Opt for the best marking visibility thanks to the up-front, flat marker zone, which lets you mark up to eight digits or increase the font size.
How to Install Copper Compression Connectors
This guide provides step-by-step instructions for installing copper compression connectors, ensuring a secure and reliable electrical connection.
Estimated time: 30m
Tools needed:
Wire strippers, Crimping tool, Multimeter
Supplies needed:
Copper compression connectors, Wire brush
- Strip the conductor
Carefully strip the insulation from the conductor without nicking the strands. Ensure the stripped length allows the conductor to fill the barrel of the connector completely.
- Clean the conductor
Use a wire brush to clean the stripped portion of the conductor, removing any oxide films to ensure a good electrical connection.
- Insert the conductor
Insert the cleaned and stripped conductor completely into the connector barrel, ensuring it is fully seated.
- Crimp the connector
Use the appropriate crimping tool to crimp the connector securely onto the conductor, following the manufacturer's suggested crimp locations.
- Verify the connection
Use a multimeter to check the continuity of the connection, ensuring there are no breaks or high resistance.
