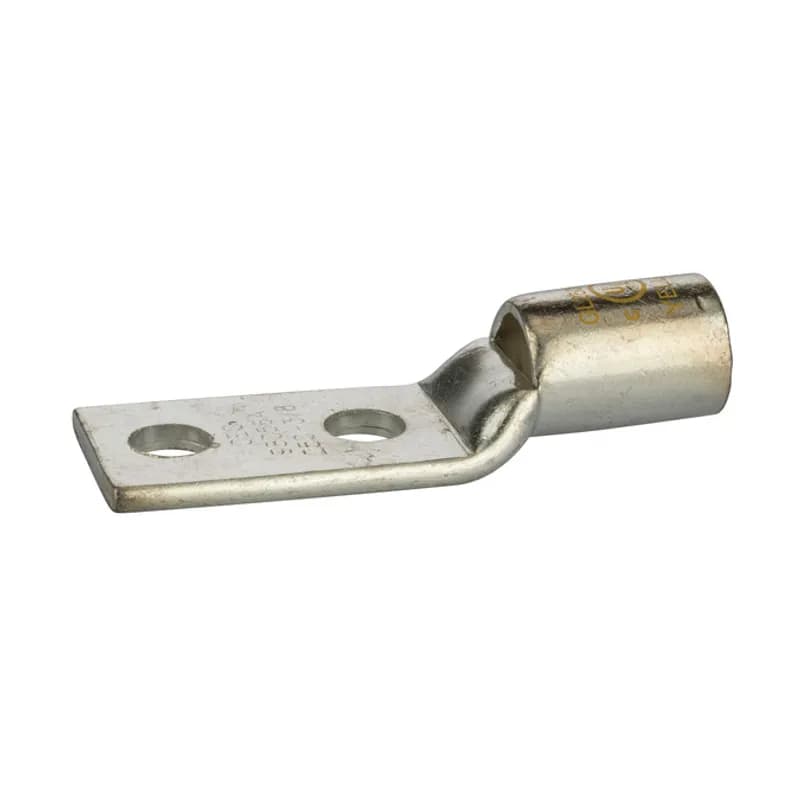

NSI Industries L400N - 2Hole Long Barrel Copper Compression Lug400 MCM-1/2" Bolt Long Barrel Copper Compression Lugs is a type of copper compression connector that is produced from high conductivity copper tubing. They are tin-plated to provide corrosion resistance and are marked with die index and color coded for easy reference. Listed for 35KV maximum when properly installed.
NSI Industries

L400N

UPC: 662381035165

Documents & Media
Technical BulletinInstallation Instructions

Contact for Pricing

Minimum Qty: 6

Multiplier: 6

*Contact for lower quantities*

Overview

The NSI Industries L400N is a high-conductivity copper compression lug designed for robust electrical connections. Manufactured from premium copper tubing, this long barrel lug ensures excellent conductivity and low contact resistance, critical for reliable power transmission. It features a tin plating for superior corrosion resistance, extending the lifespan of your electrical infrastructure. The L400N is engineered for 400 MCM conductors and accepts a 1/2" bolt size, providing a secure termination point. This lug is marked with a clear die index and color-coded for simplified identification and installation, reducing potential errors in the field. It is UL486A Listed as a wire connector and is rated for 600V, with a temperature rating of 90 °C. Crucially, the L400N is listed for 35KV maximum when properly installed according to cable manufacturer instructions, making it suitable for medium-voltage applications. For applications exceeding 2000V, consult the cable manufacturer's voltage stress relief instructions. The long barrel design offers increased conductor surface contact, enhancing the overall reliability and performance of the connection. This lug is manufactured in the USA, ensuring adherence to stringent quality standards. It is ideal for use in power distribution, industrial control systems, and other demanding electrical environments where a secure and durable connection is paramount. The L400N is a dependable choice for electricians and engineers seeking a high-quality copper compression lug for critical power applications.
  • Constructed from high-conductivity copper tubing for optimal electrical performance.
  • Tin-plated for enhanced corrosion resistance and low contact resistance.
  • Long barrel design ensures secure and reliable termination for 400 MCM conductors.
  • Accepts a 1/2" bolt size for versatile mounting options.
  • UL486A Listed wire connector, rated for 600V and 90°C, with 35KV maximum listing when properly installed.

Specifications

Application
Terminate, Splice, Tap Power Connectors
Cable Size
400 MCM (STR)
Color
Blue
Connection Type
Compression
Current Rating
400 A
Environmental Conditions
90 C
Finish
Tin Plated
Material
Copper
Mounting
1/2 Mounting Holes
Number Of Holes
2
Poles
2
Series
L400N
Size
L=5.47 - W=1.39 - OD=.950 - ID=.760
Size
400 MCM
Special Features
400 MCM (STR) - 1/2 Mounting Holes - 1 3/4 Hole Spacing
Standard
UL486A/B
Stud Size
1/2 IN
Type
Long Barrel - Two Hole
Voltage Rating
35 kV
Voltage Rating
600 V
Warranty
1 Year
Package Dimensions (L x W x H)
5.47 IN x 1.39 IN x 0.95 IN
Package Dimensions (L x W x H)
13.8938 cm x 3.5306 cm x 24.13 mm
Package Weight (Imperial)
2.700 L
Package Weight (Metric)
1.225 kg
Mechanical Crimp Tool with 5/8 Inch Nose Die APPLICATIONS: Designed for use with wide range and H-Tap connectors. It has fiberglass handles and comes with "O" and "D" Nose Dies. It has an output of 4.5 tons.

OD581

Mechanical Crimp Tool with 5/8 Inch Nose Die APPLICATIONS: Designed for use with wide range and H-Tap connectors. It has fiberglass handles and comes with "O" and "D" Nose Dies. It has an output of 4.5 tons.
O' Die for OD581 Mechanical Crimp Tool

OJB

O' Die for OD581 Mechanical Crimp Tool
U-Type Compression Die - Pink 1/0 AWG Copper - 2 AWG Aluminum U-Shaped Compression Dies are for use with the NSi-12 Compression Tool and Other Tools. See Cross-Reference Chart below.

CD6A

U-Type Compression Die - Pink 1/0 AWG Copper - 2 AWG Aluminum U-Shaped Compression Dies are for use with the NSi-12 Compression Tool and Other Tools. See Cross-Reference Chart below.
U-Type Compression Die - Black 2/0 AWG Copper U-Shaped Compression Dies are for use with the NSi-12 Compression Tool and Other Tools. See Cross-Reference Chart below.

CD7

U-Type Compression Die - Black 2/0 AWG Copper U-Shaped Compression Dies are for use with the NSi-12 Compression Tool and Other Tools. See Cross-Reference Chart below.
Non-Insulated Parallel Splice Connector For Wire Range 6 For Circular Mil Range 20,800-33,100 Length .5 Diameter .365,Metallic

E6-PS-D

Non-Insulated Parallel Splice Connector For Wire Range 6 For Circular Mil Range 20,800-33,100 Length .5 Diameter .365,Metallic
Power Distribution Block (1) 2/0-14 AWG Primary (6) 4-14 AWG Secondary Power Distribution Blocks are made of high strength, high-conductivity aluminum alloy and are mounted in a high-strength glass-filled polyester base. Each block can stand alone or combine with other blocks to form a multi-block set.

AS-K1-H6

Power Distribution Block (1) 2/0-14 AWG Primary (6) 4-14 AWG Secondary Power Distribution Blocks are made of high strength, high-conductivity aluminum alloy and are mounted in a high-strength glass-filled polyester base. Each block can stand alone or combine with other blocks to form a multi-block set.
PVC Coated Junction Box, 12 Inch X 12 Inch X 6 Inch, 14 Gauge, Gray

A1212SC-G

PVC Coated Junction Box, 12 Inch X 12 Inch X 6 Inch, 14 Gauge, Gray
Molded Junction Box, Length 4 Inch x Width 4 Inch x Depth 2 Inch, Material Polycarbonate, Color Gray

E989NNJ-5-HD

Molded Junction Box, Length 4 Inch x Width 4 Inch x Depth 2 Inch, Material Polycarbonate, Color Gray
Combine high performance with compact dimensions: - 1000 V AC / DC IEC 600 V UL, - Opt for the best marking visibility thanks to the up-front, flat marker zone, which lets you mark up to eight digits or increase the font size.

1SNK705010R0000

Combine high performance with compact dimensions: - 1000 V AC / DC IEC 600 V UL, - Opt for the best marking visibility thanks to the up-front, flat marker zone, which lets you mark up to eight digits or increase the font size.
Combine high performance with compact dimensions: - 1000 V AC / DC IEC 600 V UL, - Opt for the best marking visibility thanks to the up-front, flat marker zone, which lets you mark up to eight digits or increase the font size.

1SNK705030R0000

Combine high performance with compact dimensions: - 1000 V AC / DC IEC 600 V UL, - Opt for the best marking visibility thanks to the up-front, flat marker zone, which lets you mark up to eight digits or increase the font size.

How to Install the L400N Copper Compression Connectors

This guide provides step-by-step instructions for installing L400N copper compression connectors, ensuring secure and reliable electrical connections.

Estimated time: 30m

Tools needed:

Wire strippers, Crimping tool, Multimeter

Supplies needed:

Copper compression connectors, Wire brush, Insulation tape

  1. Select the appropriate connector

    Choose the correct size of copper compression connector based on the wire gauge you are using, ensuring it matches the specifications provided in the connector chart.

  2. Strip the wire insulation

    Carefully strip the insulation from the conductor to a length that allows the stripped conductor to fill the barrel of the connector completely, avoiding any damage to the wire strands.

  3. Clean the conductor

    Use a wire brush to clean the stripped portion of the conductor, removing any oxide films to ensure a good electrical connection.

  4. Insert the conductor into the connector

    Fully insert the cleaned stripped conductor into the barrel of the compression connector, ensuring it is completely seated.

  5. Crimp the connector

    Using the appropriate crimping tool, apply pressure to the connector at the designated crimp locations to secure the conductor within the connector.

  6. Verify the connection

    Use a multimeter to check the continuity of the connection, ensuring there are no breaks or high resistance in the circuit.
