NSI Industries
L238B
UPC: 662381336934
Contact for Pricing
Overview
- UL486A and cULus 155027 listed for copper cables only
- Gently flared entry for easy cable insertion and reduced strand damage
- Tin-plated copper for corrosion resistance and low contact resistance
- Accommodates 2 AWG copper cables with expanded range 2-6 AWG (with NSI N12ID tool)
- 600V rated, 90°C temperature rating, single mounting hole, 3/8" bolt size
Specifications
Application | Terminate, Splice, Tap Power Connectors |
Cable Size | # 2 AWG (STR) |
Color | Brown |
Environmental Conditions | 90 C |
Finish | Tin Plated |
Material | Copper |
Mounting | 3/8 Mounting Hole |
Number Of Holes | 1 |
Size | L=2.07 - W=.602 - OD=.421 - ID=.315 |
Special Features | # 2 AWG (STR) - 3/8 Mounting Hole |
Standard | UL486A/B, UL467 (8 AWG -3/0 AWG) |
Stud Size | 3/8 IN |
Type | Long Barrel - One Hole |
Voltage Rating | 600 V |
Warranty | 1 Year |
Package Dimensions (L x W x H) | 2.07 IN x 0.6 IN x 0.421 IN |
Package Dimensions (L x W x H) | 5.2578 cm x 15.24 mm x 10.6934 mm |
Package Weight (Imperial) | 1.750 L |
Package Weight (Metric) | 0.794 kg |
L256
1 Hole Long Barrel Copper Compression Lug 2 AWG - 5/16" Bolt Long Barrel Copper Compression Lugs are produced from high conductivity copper tubing. They are tin-plated to provide corrosion low contact resistance. Marked with die index and color coded for easy reference. Listed for 35KV maximum when properly installed and to cable manufacturer instructions. Temperature rating 90 degrees C. .
L238
1 Hole Long Barrel Copper Compression Lug 2 AWG - 3/8" Bolt Long Barrel Copper Compression Lugs are produced from high conductivity copper tubing. They are tin-plated to provide corrosion low contact resistance. Marked with die index and color coded for easy reference. Listed for 35KV maximum when properly installed and to cable manufacturer instructions. Temperature rating 90 degrees C. .
L2N-383P
2 Hole Long Barrel Peep Hole Copper Compression Lug with Peep Hole 2 AWG - 3/8" Bolt - 1 3/4" Mounting Spacing Long Barrel Copper Compression Lugs are produced from high conductivity copper tubing. Allows easy inspection of the termination to assure complete cable insertion. Tin-plated to provide corrosion and low contact resistance. Marked with die index and color coded. Listed for 35KV maximum when properly installed. Rated 600V. cULus 486A/B Listed. UL467 Listed on sizes 6 AWG - 3/0 AWG. Temperature rating 90 degrees C.
GL214
1 HoleShort Barrel Copper Compression Lug w/ PeepHole2 AWG-1/4" Bolt Short Barrel Copper Compression Lugs with PeepHoleis a type of copper compression connector that is produced from high conductivity copper tubing. They are tin-plated to provide corrosion resistance and are marked with die index and color coded for easy reference. Listed for 35KV maximum when properly installed.
L256B

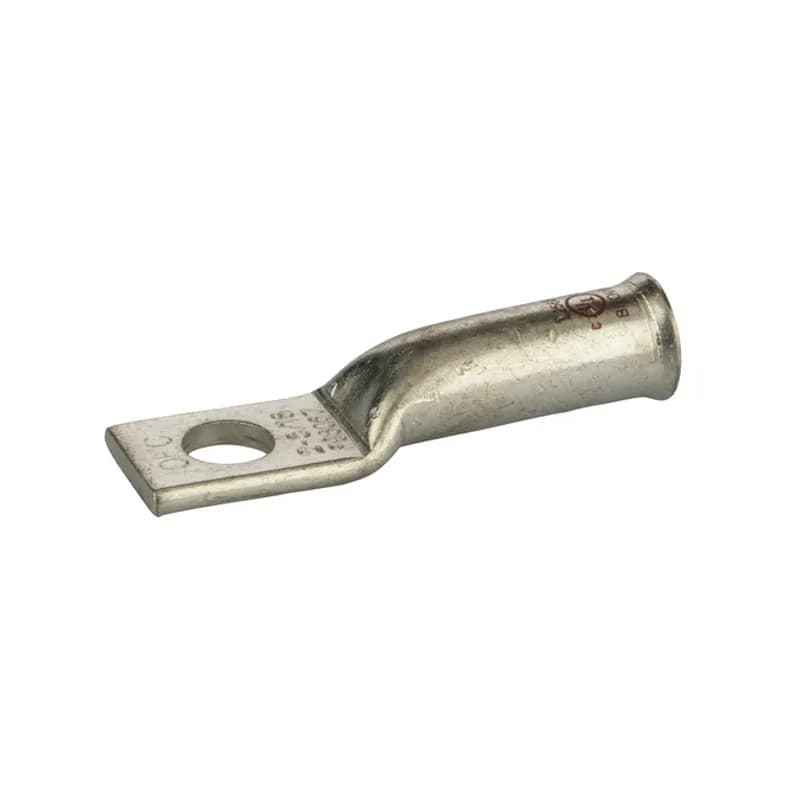

1 Hole Long Barrel Copper Compression Lug for Flexible Copper Cable 2 AWG- 5/16" Bolt Compression lugs for flexible copper cables are connects that have a gentle, continuous flared end to ensure ease of cable insertion of flexible and extra flexible cables such as locomotive, welding, mining cable and more. The flared end also reduces pressure on the cable strands after installation and protects them from chafing and breakage as a result of cable movement. Tin-plated for corrosion resistance. Rated 600 volts for copper cables only. Single mounting hole.L238P
