NSI Industries IT-4 - The Polaris IT-4 Multi-Tap Single-Side Entry Connector features 2 ports sized for 4 AWG to 14 AWG wires. The body is made from aluminum alloy wrapped in a layer of plastisol insulation. Each port is pre-loaded with an oxide inhibitor, with removable access plugs over the hex screws used to tighten the connections. Dual rated for use with copper or aluminum cables. Installs with a hex key and torque wrench, without any tape or additional supplies. Designed for use in a wide range of splicing applications, including installation in cable trays, panel boards, ducts, raceways or troughs.
NSI Industries

IT-4

UPC: 662381950017

Documents & Media
Technical Bulletin

Contact for Pricing

Minimum Qty: 12

Multiplier: 12

*Contact for lower quantities*

Overview

The Polaris IT-4 2-Port Single-Side Connector provides the simplest solution for forming a secure connection between two conductors in applications including cable trays, panel boards, ducts, raceways or troughs. Sized for 4 to 14 AWG wires and rated for 600V, this pre-insulated connector comes pre-loaded with an oxide inhibitor and installs faster than traditional uninsulated connector options using just a hex key and torque wrench. The aluminum alloy body is wrapped in high-dielectric strength plastisol insulation, which is ergonomically molded to offer a comfortable grip, in addition to being resistant to abrasion, chemicals and UV rays. All-in-one design saves time and supplies on each job by eliminating the need for cover and taping; simply brush the conductors clean, strip back their insulation, insert one conductor into each port and secure the covered pressure screws. The IT-4 connector is rated for a 90 degrees Celsius operating temperature and dual rated for use with copper and/or aluminum cables, up to max AMP ratings of 95 and 75 respectively. Polaris pre-insulated connectors are available in a range of port numbers and configurations to fit the needs of any job, including UL-listed parallel configurations. Polaris: the original pre-insulated connector and still the brand most asked for by name.
  • Single-Side Wire Entry: Form secure connections between 2 conductors quickly using the single-sided entry ports sized for wires between 4 and 14 AWG
  • Ergonomic Design: Rounded corners and a smooth exterior finish over the plastisol insulation make Polaris connectors comfortable to grip
  • Removable Plugs: Each port and adjustable set screw is covered by a secure plug to prevent debris, moisture or contaminants from entering the insulated connector
  • Pre-filled Oxide Inhibitor: Both single-side entry ports come pre-filled with an oxide inhibitor gel to prevent corrosion and provide low-contact resistance
  • Professional Performance: The durable layer of insulation on each Polaris connector is UV, abrasion and chemical-resistant for reliable performance

Specifications

Aluminum Conductor Max AMP
75 Amp
Aluminum Conductor Note
Dual Rated for use with copper and or aluminum cables. Not for use with fine-stranded, flexible cables
Application
Wire Termination
Color
Black
Copper Conductor Max
95 Amp
Environmental Conditions
90 C
Finish
Plastisol Insulated
Material
Aluminum
Number Of Conductors
2
Number Of Poles
1
Size
L=1.120 - W=1.180 - H=1.380 IN
Special Features
(2) 4-14 AWG - Dual Rated
Standard
UL 486A/B
Temperature Rating
90 C
Type
Multi Cable
Voltage Rating
600 V
Warranty
1 Year
Wire Size
4-14 AWG
Wire Type
Class B & C
Wire/Cable Class
Class B, Class C
Package Dimensions (L x W x H)
1.12 IN x 1.18 IN x 1.38 IN
Package Dimensions (L x W x H)
2.8448 cm x 2.9972 cm x 3.5052 cm
Package Weight (Imperial)
0.060 L
Package Weight (Metric)
0.027 kg

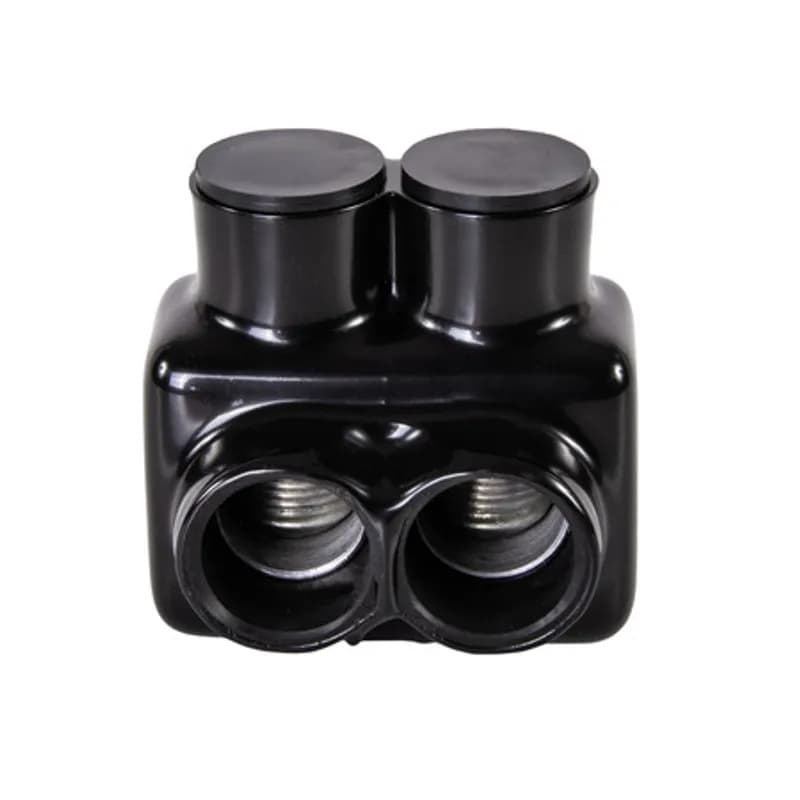

The Polaris IT-250 Multi-Tap Dual-Side Entry Connector features 2 ports sized for 250 MCM to 6 AWG wires. The body is made from aluminum alloy wrapped in a layer of plastisol insulation. Each port is pre-loaded with an oxide inhibitor, with removable access plugs over the hex screws used to tighten the connections. Dual rated for use with copper or aluminum cables. Installs with a hex key and torque wrench, without any tape or additional supplies. Designed for use in a wide range of splicing applications, including installation in cable trays, panel boards, ducts, raceways or troughs.

IT-250

The Polaris IT-250 Multi-Tap Dual-Side Entry Connector features 2 ports sized for 250 MCM to 6 AWG wires. The body is made from aluminum alloy wrapped in a layer of plastisol insulation. Each port is pre-loaded with an oxide inhibitor, with removable access plugs over the hex screws used to tighten the connections. Dual rated for use with copper or aluminum cables. Installs with a hex key and torque wrench, without any tape or additional supplies. Designed for use in a wide range of splicing applications, including installation in cable trays, panel boards, ducts, raceways or troughs.
The Polaris IT-4B Multi-Tap Single-Side Entry Connector features 2 ports sized for 4 AWG to 14 AWG wires. The body is made from aluminum alloy wrapped in a layer of plastisol insulation. Each port is pre-loaded with an oxide inhibitor, with removable access plugs over the hex screws used to tighten the connections. Dual rated for use with copper or aluminum cables. Installs with a hex key and torque wrench, without any tape or additional supplies. Designed for use in a wide range of splicing applications, including installation in cable trays, panel boards, ducts, raceways or troughs.

IT-4B

The Polaris IT-4B Multi-Tap Single-Side Entry Connector features 2 ports sized for 4 AWG to 14 AWG wires. The body is made from aluminum alloy wrapped in a layer of plastisol insulation. Each port is pre-loaded with an oxide inhibitor, with removable access plugs over the hex screws used to tighten the connections. Dual rated for use with copper or aluminum cables. Installs with a hex key and torque wrench, without any tape or additional supplies. Designed for use in a wide range of splicing applications, including installation in cable trays, panel boards, ducts, raceways or troughs.

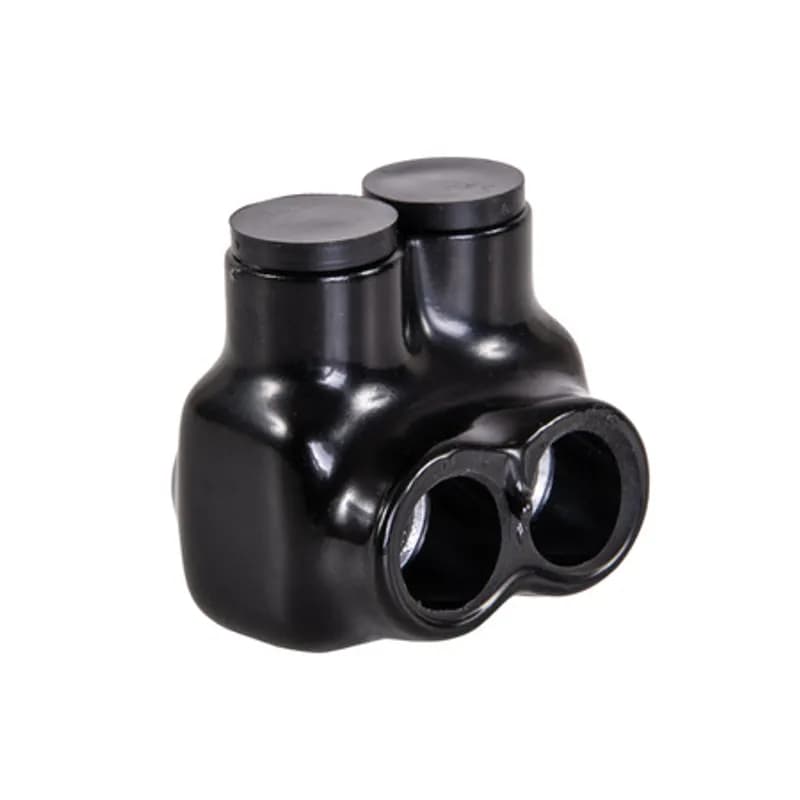

The Polaris IT-1/0 Multi-Tap Single-Side Entry Connector features 2 ports sized for 1/0 AWG to 6 AWG wires. The body is made from aluminum alloy wrapped in a layer of plastisol insulation. Each port is pre-loaded with an oxide inhibitor, with removable access plugs over the hex screws used to tighten the connections. Dual rated for use with copper or aluminum cables. Installs with a hex key and torque wrench, without any tape or additional supplies. Designed for use in a wide range of splicing applications, including installation in cable trays, panel boards, ducts, raceways or troughs.

IT-1/0

The Polaris IT-1/0 Multi-Tap Single-Side Entry Connector features 2 ports sized for 1/0 AWG to 6 AWG wires. The body is made from aluminum alloy wrapped in a layer of plastisol insulation. Each port is pre-loaded with an oxide inhibitor, with removable access plugs over the hex screws used to tighten the connections. Dual rated for use with copper or aluminum cables. Installs with a hex key and torque wrench, without any tape or additional supplies. Designed for use in a wide range of splicing applications, including installation in cable trays, panel boards, ducts, raceways or troughs.

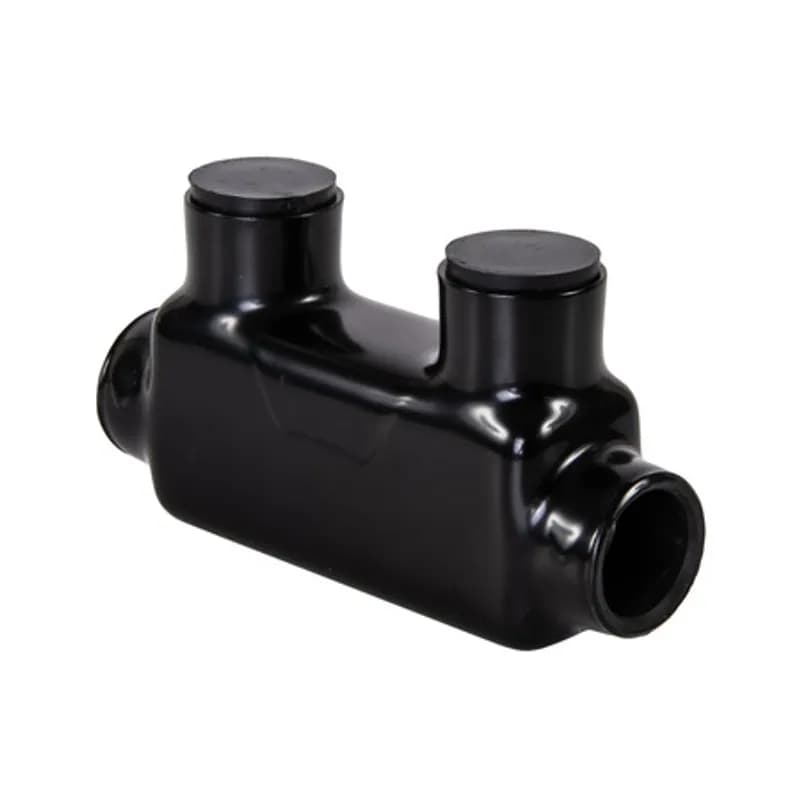

The Polaris ISR-250 Multi-Tap In-Line Entry Connector features 2 ports sized for 250 MCM - 6 AWG wires. The body is made from aluminum alloy wrapped in a layer of plastisol insulation. Each port is pre-loaded with an oxide inhibitor, with removable access plugs over the hex screws used to tighten the connections. Installs with a hex key and torque wrench, without any tape or additional supplies. Designed for use in a wide range of splicing applications, including installation in cable trays, panel boards, ducts, raceways or troughs.

ISR-250

The Polaris ISR-250 Multi-Tap In-Line Entry Connector features 2 ports sized for 250 MCM - 6 AWG wires. The body is made from aluminum alloy wrapped in a layer of plastisol insulation. Each port is pre-loaded with an oxide inhibitor, with removable access plugs over the hex screws used to tighten the connections. Installs with a hex key and torque wrench, without any tape or additional supplies. Designed for use in a wide range of splicing applications, including installation in cable trays, panel boards, ducts, raceways or troughs.
The Polaris ISR-1/0 Multi-Tap In-Line Entry Connector features 2 ports sized for 1/0 - 14 AWG wires. The body is made from aluminum alloy wrapped in a layer of plastisol insulation. Each port is pre-loaded with an oxide inhibitor, with removable access plugs over the hex screws used to tighten the connections. Installs with a hex key and torque wrench, without any tape or additional supplies. Designed for use in a wide range of splicing applications, including installation in cable trays, panel boards, ducts, raceways or troughs.

ISR-1/0

The Polaris ISR-1/0 Multi-Tap In-Line Entry Connector features 2 ports sized for 1/0 - 14 AWG wires. The body is made from aluminum alloy wrapped in a layer of plastisol insulation. Each port is pre-loaded with an oxide inhibitor, with removable access plugs over the hex screws used to tighten the connections. Installs with a hex key and torque wrench, without any tape or additional supplies. Designed for use in a wide range of splicing applications, including installation in cable trays, panel boards, ducts, raceways or troughs.

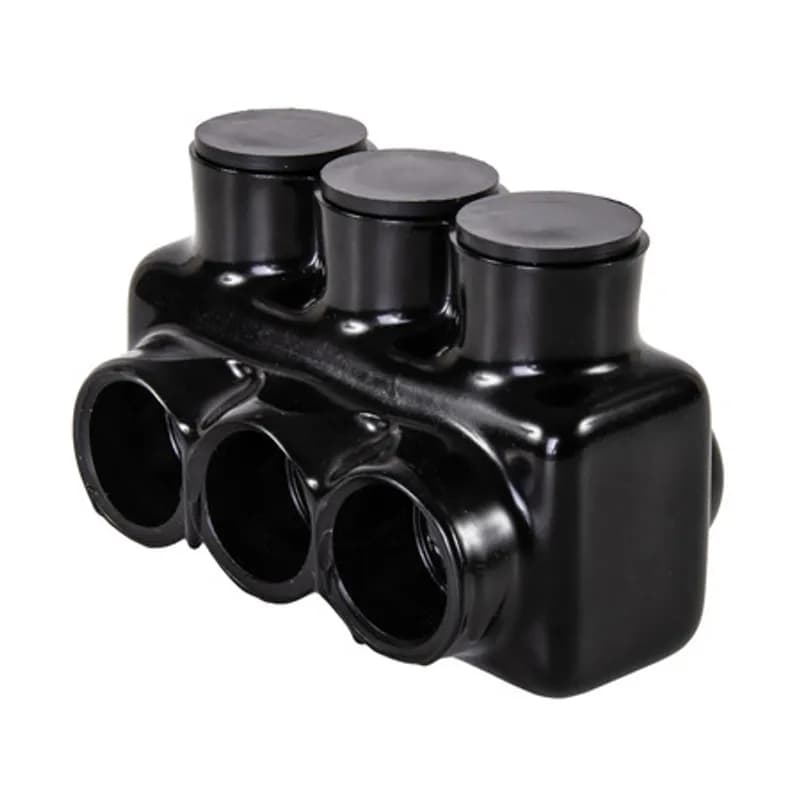

The Polaris IPL250-3B Multi-Tap Single Side Entry Connector features 3 ports sized for 250 MCM - 6 AWG wires. The body is made from aluminum alloy wrapped in a layer of plastisol insulation. Each port is pre-loaded with an oxide inhibitor, with removable access plugs over the hex screws used to tighten the connections. Installs with a hex key and torque wrench, without any tape or additional supplies. Designed for use in a wide range of splicing applications, including installation in cable trays, panel boards, ducts, raceways or troughs.

IPL250-3B

The Polaris IPL250-3B Multi-Tap Single Side Entry Connector features 3 ports sized for 250 MCM - 6 AWG wires. The body is made from aluminum alloy wrapped in a layer of plastisol insulation. Each port is pre-loaded with an oxide inhibitor, with removable access plugs over the hex screws used to tighten the connections. Installs with a hex key and torque wrench, without any tape or additional supplies. Designed for use in a wide range of splicing applications, including installation in cable trays, panel boards, ducts, raceways or troughs.

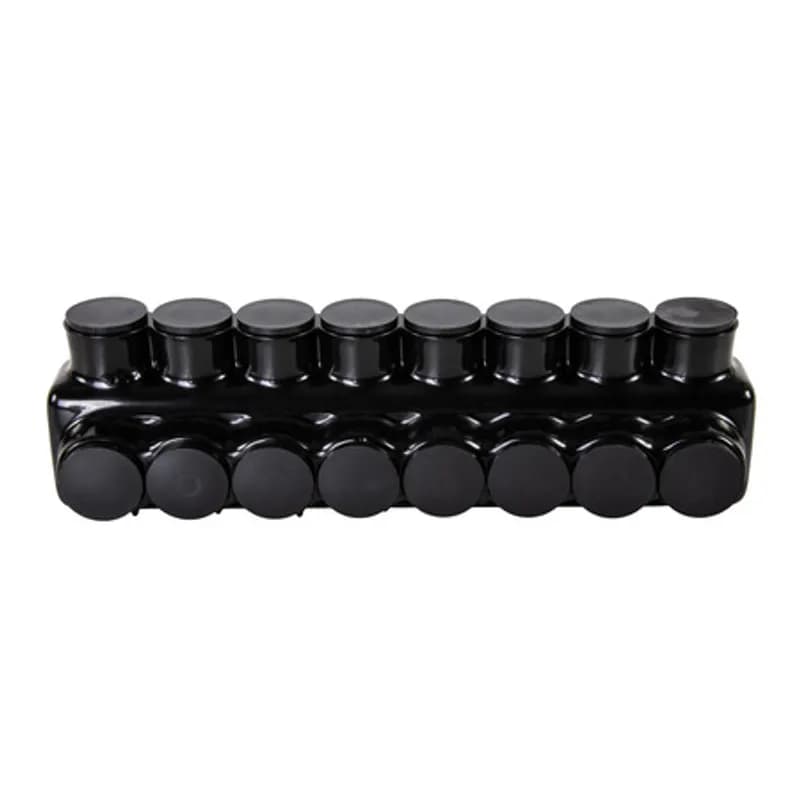

The Polaris IPLD3/0-8 Multi-Tap Dual-Sided Entry Connector features 8 ports sized for 3/0 - 6 AWG wires. The body is made from aluminum alloy wrapped in a layer of plastisol insulation. Each dual-sided port is pre-loaded with an oxide inhibitor, with removable access plugs over the hex screws used to tighten the connections. Installs with a hex key and torque wrench, without any tape or additional supplies. Designed for use in a wide range of splicing applications, including installation in cable trays, panel boards, ducts, raceways or troughs.

IPLD3/0-8

The Polaris IPLD3/0-8 Multi-Tap Dual-Sided Entry Connector features 8 ports sized for 3/0 - 6 AWG wires. The body is made from aluminum alloy wrapped in a layer of plastisol insulation. Each dual-sided port is pre-loaded with an oxide inhibitor, with removable access plugs over the hex screws used to tighten the connections. Installs with a hex key and torque wrench, without any tape or additional supplies. Designed for use in a wide range of splicing applications, including installation in cable trays, panel boards, ducts, raceways or troughs.

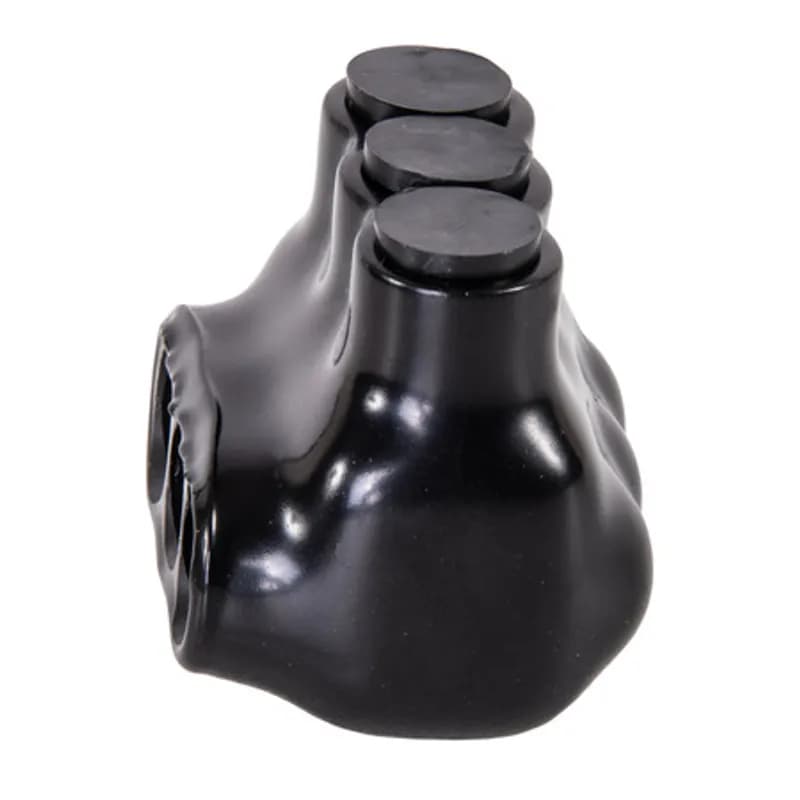

The Polaris IPL4-3B Multi-Tap Single Side Entry Connector features 3 ports sized for 4-14 AWG wires. The body is made from aluminum alloy wrapped in a layer of plastisol insulation. Each port is pre-loaded with an oxide inhibitor, with removable access plugs over the hex screws used to tighten the connections. Installs with a hex key and torque wrench, without any tape or additional supplies. Designed for use in a wide range of splicing applications, including installation in cable trays, panel boards, ducts, raceways or troughs.

IPL4-3B

The Polaris IPL4-3B Multi-Tap Single Side Entry Connector features 3 ports sized for 4-14 AWG wires. The body is made from aluminum alloy wrapped in a layer of plastisol insulation. Each port is pre-loaded with an oxide inhibitor, with removable access plugs over the hex screws used to tighten the connections. Installs with a hex key and torque wrench, without any tape or additional supplies. Designed for use in a wide range of splicing applications, including installation in cable trays, panel boards, ducts, raceways or troughs.

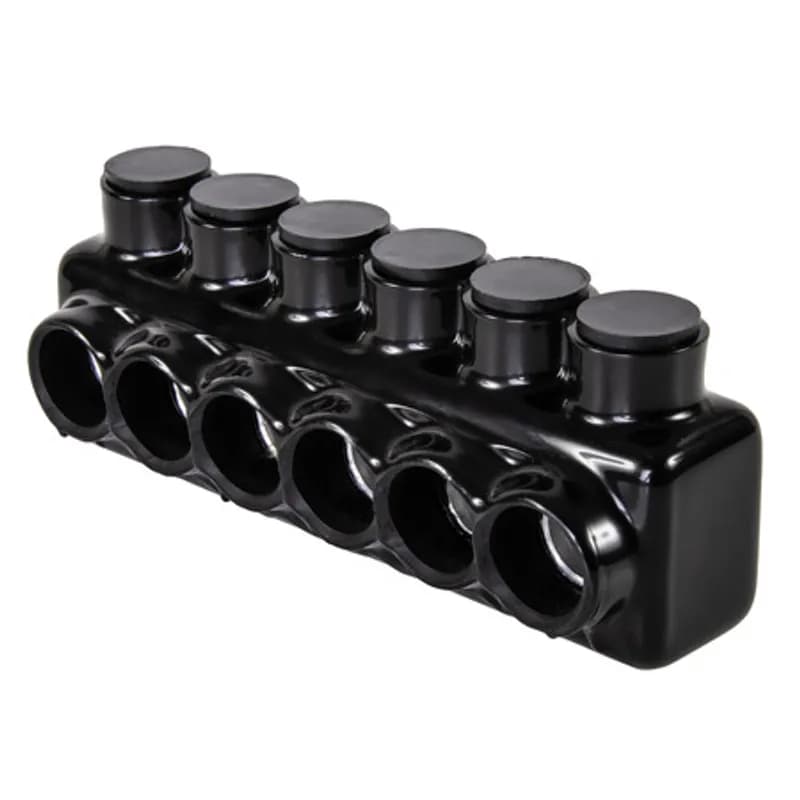

The Polaris IPL350-6 Multi-Tap Single Side Entry Connector features 6 ports sized for 350 MCM - 6 AWG wires. The body is made from aluminum alloy wrapped in a layer of plastisol insulation. Each port is pre-loaded with an oxide inhibitor, with removable access plugs over the hex screws used to tighten the connections. Installs with a hex key and torque wrench, without any tape or additional supplies. Designed for use in a wide range of splicing applications, including installation in cable trays, panel boards, ducts, raceways or troughs.

IPL350-6

The Polaris IPL350-6 Multi-Tap Single Side Entry Connector features 6 ports sized for 350 MCM - 6 AWG wires. The body is made from aluminum alloy wrapped in a layer of plastisol insulation. Each port is pre-loaded with an oxide inhibitor, with removable access plugs over the hex screws used to tighten the connections. Installs with a hex key and torque wrench, without any tape or additional supplies. Designed for use in a wide range of splicing applications, including installation in cable trays, panel boards, ducts, raceways or troughs.

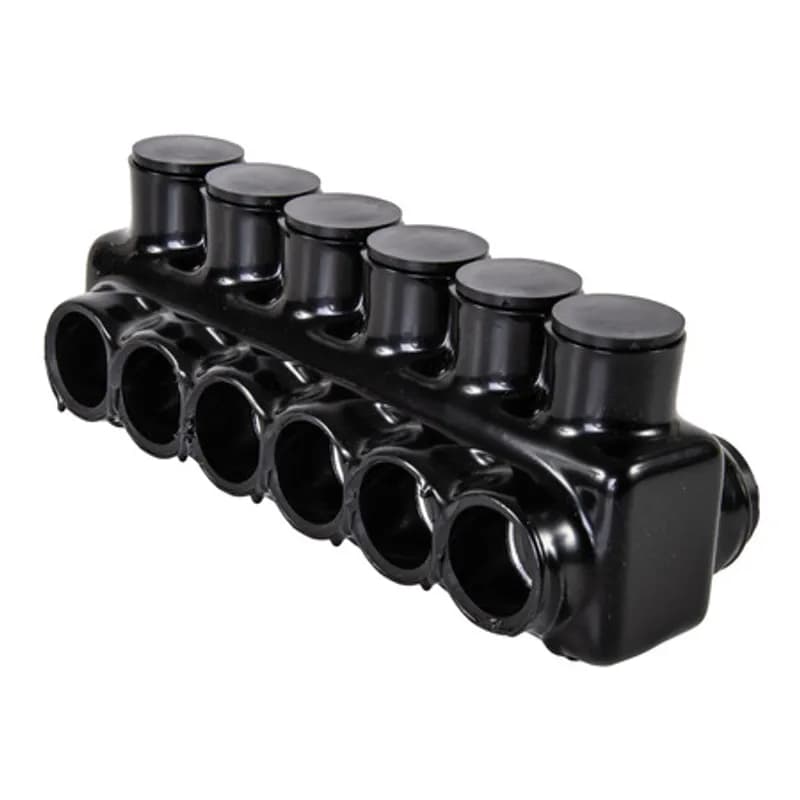

The Polaris IPLD250-6 Multi-Tap Dual-Sided Entry Black Connector features 6 ports sized for 250 MCM - 6 AWG wires. The body is made from aluminum alloy wrapped in a layer of plastisol insulation. Each dual-sided port is pre-loaded with an oxide inhibitor, with removable access plugs over the hex screws used to tighten the connections. Installs with a hex key and torque wrench, without any tape or additional supplies. Designed for use in a wide range of splicing applications, including installation in cable trays, panel boards, ducts, raceways or troughs.

IPLD250-6

The Polaris IPLD250-6 Multi-Tap Dual-Sided Entry Black Connector features 6 ports sized for 250 MCM - 6 AWG wires. The body is made from aluminum alloy wrapped in a layer of plastisol insulation. Each dual-sided port is pre-loaded with an oxide inhibitor, with removable access plugs over the hex screws used to tighten the connections. Installs with a hex key and torque wrench, without any tape or additional supplies. Designed for use in a wide range of splicing applications, including installation in cable trays, panel boards, ducts, raceways or troughs.

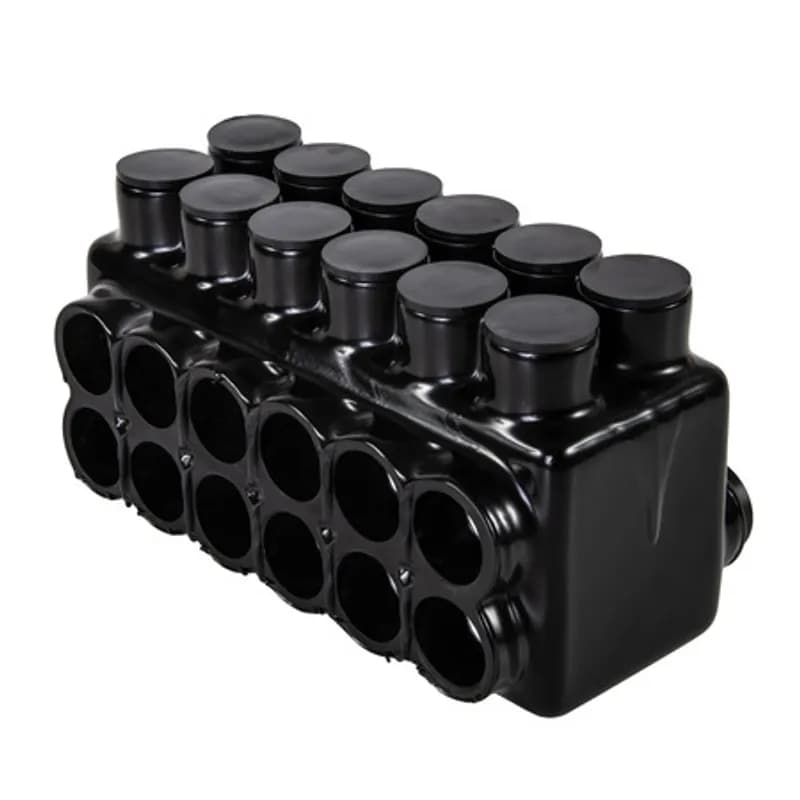

The Polaris IPLDS350-12 Multi-Tap Dual-Sided Entry Connector features 12 ports sized for 350 MCM - 6 AWG wires. The body is made from aluminum alloy wrapped in a layer of plastisol insulation. One side features stacked ports, with double-sided ports on the bottom for greater flexibility. Each port is pre-loaded with an oxide inhibitor, with removable access plugs over the hex screws used to tighten the connections. Installs with a hex key and torque wrench, without any tape or additional supplies. Designed for use in a wide range of tight-fitting splicing applications, including installation in small wire ways or panels.

IPLDS350-12

The Polaris IPLDS350-12 Multi-Tap Dual-Sided Entry Connector features 12 ports sized for 350 MCM - 6 AWG wires. The body is made from aluminum alloy wrapped in a layer of plastisol insulation. One side features stacked ports, with double-sided ports on the bottom for greater flexibility. Each port is pre-loaded with an oxide inhibitor, with removable access plugs over the hex screws used to tighten the connections. Installs with a hex key and torque wrench, without any tape or additional supplies. Designed for use in a wide range of tight-fitting splicing applications, including installation in small wire ways or panels.

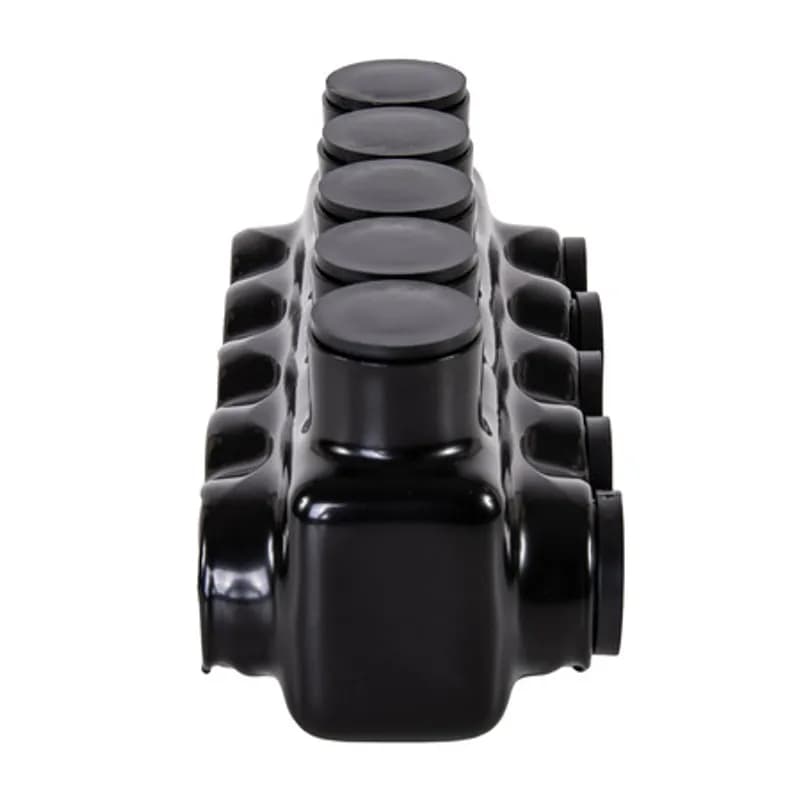

The Polaris IPLD3/0-5 Multi-Tap Dual-Sided Entry Connector features 5 ports sized for 3/0 - 6 AWG wires. The body is made from aluminum alloy wrapped in a layer of plastisol insulation. Each dual-sided port is pre-loaded with an oxide inhibitor, with removable access plugs over the hex screws used to tighten the connections. Installs with a hex key and torque wrench, without any tape or additional supplies. Designed for use in a wide range of splicing applications, including installation in cable trays, panel boards, ducts, raceways or troughs.
