NSI Industries IPLD600-3CB - The Polaris IPLD600-3CB Multi-Tap Dual-Sided Entry Vision Tap Connector features 3 ports sized for 600 MCM - 6 AWG wires. The clear body allows users to see their conductor placement and is wrapped in a layer of plastisol insulation. Each dual-sided port is pre-loaded with an oxide inhibitor, with removable access plugs over the hex screws used to tighten the connections. Installs with a hex key and torque wrench, without any tape or additional supplies, and comes packaged in a clear plastic bag with a mounting hole for hanging in retail displays. Designed for use in a wide range of splicing applications, including installation in cable trays, panel boards, ducts, raceways or troughs.
NSI Industries

IPLD600-3CB

UPC: 662381369000

Contact for Pricing

Overview

The Polaris IPLD600-3CB 3-Port Dual-Sided Connector provides the simplest solution for forming a secure connection between up to three conductors in applications including cable trays, panel boards, ducts, raceways or troughs. Sized for 600 MCM - 6 AWG wires and rated for 600V, this pre-insulated connector comes pre-loaded with an oxide inhibitor and installs faster than traditional uninsulated connector options using just a hex key and torque wrench. The clear body lets installers see their work for optimal conductor placement and is ergonomically molded to offer a comfortable grip, in addition to being resistant to abrasion and chemicals. All-in-one design saves time and supplies on each job by eliminating the need for cover and taping; simply strip back their insulation, brush the conductors clean, insert one conductor into each port and secure the covered pressure screws.The IPLD600-3CB connector is rated for a 90 degrees Celsius operating temperature and dual rated for use with copper and/or aluminum cables, up to max AMP ratings of 475 and 385 respectively. Polaris pre-insulated connectors are available in a range of port numbers and configurations to fit the needs of any job, including UL-listed parallel configurations. Polaris: the original pre-insulated connector and still the brand most asked for by name.
  • Clear Exterior: Vision Tap transparent design lets users see their work to ensure ideal conductor placement and the most secure connection
  • Dual-Sided Wire Entry: Form secure connections between 3 conductors quickly using the double-side entry ports sized for wires between 600 MCM and 6 AWG
  • Ergonomic Design: Rounded corners and a smooth exterior finish over the abrasion-resistant plastisol insulation make Polaris connectors comfortable to grip
  • Pre-filled Oxide Inhibitor: All 3 dual-sided (DSE) entry ports are covered by removable plugs and pre-filled with an oxide inhibitor gel to protect against corrosion, debris or moisture
  • Professional Performance: The durable layer of insulation on each Polaris connector is UV, abrasion and chemical-resistant for reliable performance

Specifications

AL Wire Size
600 MCM-6 AWG
Aluminum Conductor Max AMP
385 Amp
Aluminum Conductor Note
Dual Rated for use with copper and or aluminum cables. Not for use with fine-stranded, flexible cables
Copper Conductor Max
475 Amp
CU Wire Size
600 MCM-6 AWG
Warranty
1 Year
Wire/Cable Class
Class B, Class C
Package Dimensions (L x W x H)
8.75 IN x 5.75 IN x 3.25 IN
Package Weight (Imperial)
1.340 L
Package Weight (Metric)
0.608 kg
The Polaris IT-600C Multi-Tap Dual-Side Entry Connector features 2 ports sized for 600 MCM to 6 AWG wires. The clear body allows users to see their conductor placement and is wrapped in a layer of plastisol insulation. Each port is pre-loaded with an oxide inhibitor, with removable access plugs over the hex screws used to tighten the connections. Dual rated for use with copper or aluminum cables. Installs with a hex key and torque wrench, without any tape or additional supplies. Designed for use in a wide range of splicing applications, including installation in cable trays, panel boards, ducts, raceways or troughs.

IT-600C

The Polaris IT-600C Multi-Tap Dual-Side Entry Connector features 2 ports sized for 600 MCM to 6 AWG wires. The clear body allows users to see their conductor placement and is wrapped in a layer of plastisol insulation. Each port is pre-loaded with an oxide inhibitor, with removable access plugs over the hex screws used to tighten the connections. Dual rated for use with copper or aluminum cables. Installs with a hex key and torque wrench, without any tape or additional supplies. Designed for use in a wide range of splicing applications, including installation in cable trays, panel boards, ducts, raceways or troughs.
The Polaris ISR-600 Multi-Tap In-Line Entry Connector features 2 ports sized for 600 MCM - 6 AWG wires. The body is made from aluminum alloy wrapped in a layer of plastisol insulation. Each port is pre-loaded with an oxide inhibitor, with removable access plugs over the hex screws used to tighten the connections. Installs with a hex key and torque wrench, without any tape or additional supplies. Designed for use in a wide range of splicing applications, including installation in cable trays, panel boards, ducts, raceways or troughs.

ISR-600

The Polaris ISR-600 Multi-Tap In-Line Entry Connector features 2 ports sized for 600 MCM - 6 AWG wires. The body is made from aluminum alloy wrapped in a layer of plastisol insulation. Each port is pre-loaded with an oxide inhibitor, with removable access plugs over the hex screws used to tighten the connections. Installs with a hex key and torque wrench, without any tape or additional supplies. Designed for use in a wide range of splicing applications, including installation in cable trays, panel boards, ducts, raceways or troughs.
The Polaris IPLD600-6 Multi-Tap Dual-Sided Entry Connector features 6 ports sized for 600 MCM - 6 AWG wires. The body is made from aluminum alloy wrapped in a layer of plastisol insulation. Each dual-sided port is pre-loaded with an oxide inhibitor, with removable access plugs over the hex screws used to tighten the connections. Installs with a hex key and torque wrench, without any tape or additional supplies. Designed for use in a wide range of splicing applications, including installation in cable trays, panel boards, ducts, raceways or troughs.

IPLD600-6

The Polaris IPLD600-6 Multi-Tap Dual-Sided Entry Connector features 6 ports sized for 600 MCM - 6 AWG wires. The body is made from aluminum alloy wrapped in a layer of plastisol insulation. Each dual-sided port is pre-loaded with an oxide inhibitor, with removable access plugs over the hex screws used to tighten the connections. Installs with a hex key and torque wrench, without any tape or additional supplies. Designed for use in a wide range of splicing applications, including installation in cable trays, panel boards, ducts, raceways or troughs.
The Polaris IPLD600-3C Multi-Tap Dual-Sided Entry Vision Tap Connector features 3 ports sized for 600 MCM - 6 AWG wires. The clear body allows users to see their conductor placement and is wrapped in a layer of plastisol insulation. Each dual-sided port is pre-loaded with an oxide inhibitor, with removable access plugs over the hex screws used to tighten the connections. Installs with a hex key and torque wrench, without any tape or additional supplies. Designed for use in a wide range of splicing applications, including installation in cable trays, panel boards, ducts, raceways or troughs.

IPLD600-3C

The Polaris IPLD600-3C Multi-Tap Dual-Sided Entry Vision Tap Connector features 3 ports sized for 600 MCM - 6 AWG wires. The clear body allows users to see their conductor placement and is wrapped in a layer of plastisol insulation. Each dual-sided port is pre-loaded with an oxide inhibitor, with removable access plugs over the hex screws used to tighten the connections. Installs with a hex key and torque wrench, without any tape or additional supplies. Designed for use in a wide range of splicing applications, including installation in cable trays, panel boards, ducts, raceways or troughs.
The Polaris IPLMD600-4 Multi-Tap Mountable Dual-Sided Entry Connector features 4 ports sized for 600 MCM - 6 AWG wires. Mounting holes on either side of the connector allow for direct mounting to troughs, panels or wireways with 1/4†bolts. The body is made from aluminum alloy wrapped in a layer of plastisol insulation. Each dual-sided port is pre-loaded with an oxide inhibitor, with removable access plugs over the hex screws used to tighten the connections. Installs with a hex key and torque wrench, without any tape or additional supplies. Designed for use in a wide range of splicing applications, including installation in cable trays, panel boards, ducts, raceways or troughs.

IPLMD600-4

The Polaris IPLMD600-4 Multi-Tap Mountable Dual-Sided Entry Connector features 4 ports sized for 600 MCM - 6 AWG wires. Mounting holes on either side of the connector allow for direct mounting to troughs, panels or wireways with 1/4†bolts. The body is made from aluminum alloy wrapped in a layer of plastisol insulation. Each dual-sided port is pre-loaded with an oxide inhibitor, with removable access plugs over the hex screws used to tighten the connections. Installs with a hex key and torque wrench, without any tape or additional supplies. Designed for use in a wide range of splicing applications, including installation in cable trays, panel boards, ducts, raceways or troughs.

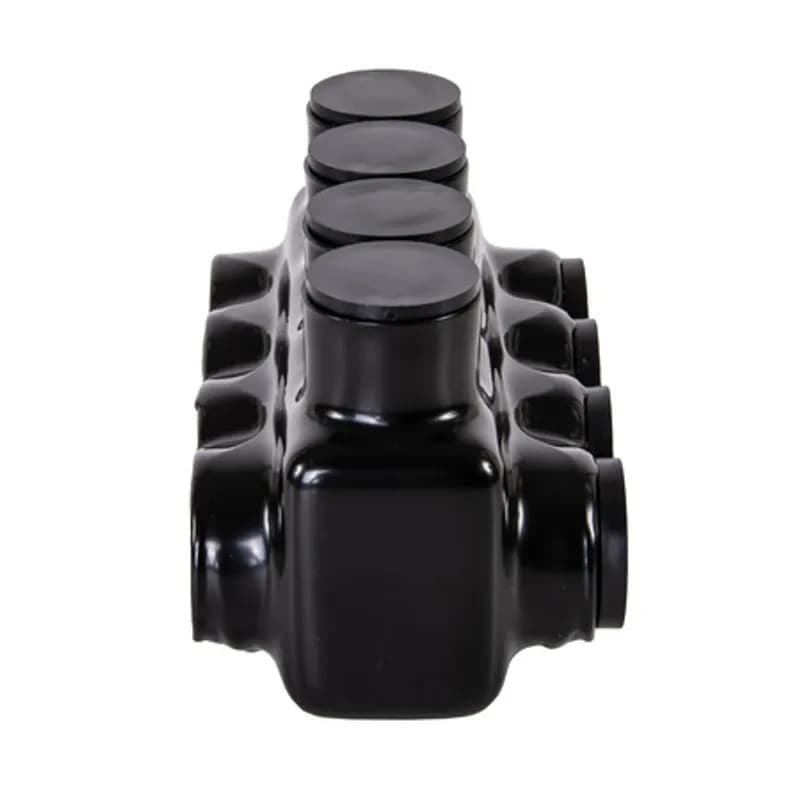

The Polaris IPLD600-4B Multi-Tap Dual-Sided Entry Connector features 4 ports sized for 600 MCM - 6 AWG wires. The body is made from aluminum alloy wrapped in a layer of plastisol insulation. Each dual-sided port is pre-loaded with an oxide inhibitor, with removable access plugs over the hex screws used to tighten the connections. Installs with a hex key and torque wrench, without any tape or additional supplies. Designed for use in a wide range of splicing applications, including installation in cable trays, panel boards, ducts, raceways or troughs.
