NSI Industries IPCS4002 - Insulation Piercing Connector 4/0 - 3 AWG Insulation piercing connectors are made for use with copper-copper, copper to aluminum and aluminum to aluminum applications. They are safe to use and are completely insulated, no need to strip wire. They can be installed on energized conductors with no contact at any point. No spacer required between connections. Exclusive "turbo spacer" keeps tap side open while main conductor is being tightened. Watertight and corrosion-free.
NSI Industries

IPCS4002

UPC: 662381082640

Contact for Pricing

Overview

The NSI Industries IPCS4002 Insulation Piercing Connector (SKU: IPCS4002) is a UL486B-listed, dual-rated connector engineered for safe, reliable copper-to-copper, copper-to-aluminum, and aluminum-to-aluminum connections in 4/0 to 3 AWG applications. This fully insulated connector eliminates wire stripping, taping, and spacer requirements, reducing installation time by up to 70% compared to traditional methods. The exclusive "turbo spacer" design maintains tap-side access during main conductor tightening, eliminating the need for a third hand while ensuring a watertight, corrosion-free seal via an integrated rubber grommet. Certified for 600V systems with a 90°C temperature rating, the IPCS4002 meets ANSI C119.4 standards and handles both solid and stranded conductors without special tools. Its double shear-head bolts guarantee consistent torque application, preventing hot spots and ensuring long-term reliability. Ideal for energized conductor installations where safety and compliance are critical, this connector is not approved for bare wire, extra-flexible cables, or submersible applications. NSI Industries, a leader in electrical connection solutions, provides this connector as part of its IPCS Series, designed for utility, industrial, and commercial electrical systems requiring code-compliant, high-ampacity taps.
  • UL486B Listed and ANSI C119.4 compliant for 600V systems
  • No wire stripping required; installs on energized conductors safely
  • Exclusive "turbo spacer" maintains tap-side access during tightening
  • Watertight, corrosion-free with rubber grommet seal
  • Handles 4/0 to 3 AWG solid or stranded copper/aluminum conductors

Specifications

Amperage Rating
190 (CU Amps) - 150 (AL Amps)
Application
NSI
Color
Black
Conductor Size
4/0-3 AWG (Main)
Environmental Conditions
90 C
Finish
Thermal Plastic
Material
Fiber Reinforced Thermal Plastic
Mounting
Clamp
Size
L=2.20 - W=1.80 - H=3.10
Special Features
No need to strip wire - No tape or cover needed - Exclusive turbo spacer keeps tap side open while main conductor is being tightened
Standard
UL486B Listed
Tap Size
2-10 AWG
Temperature Rating
90 C
Type
Insulation Piercing Connectors
Voltage Rating
600 V
Warranty
1 Year
Package Dimensions (L x W x H)
2.2 IN x 1.8 IN x 3.1 IN
Package Dimensions (L x W x H)
5.588 cm x 4.572 cm x 7.874 cm
Package Weight (Imperial)
0.260 L
Package Weight (Metric)
0.118 kg

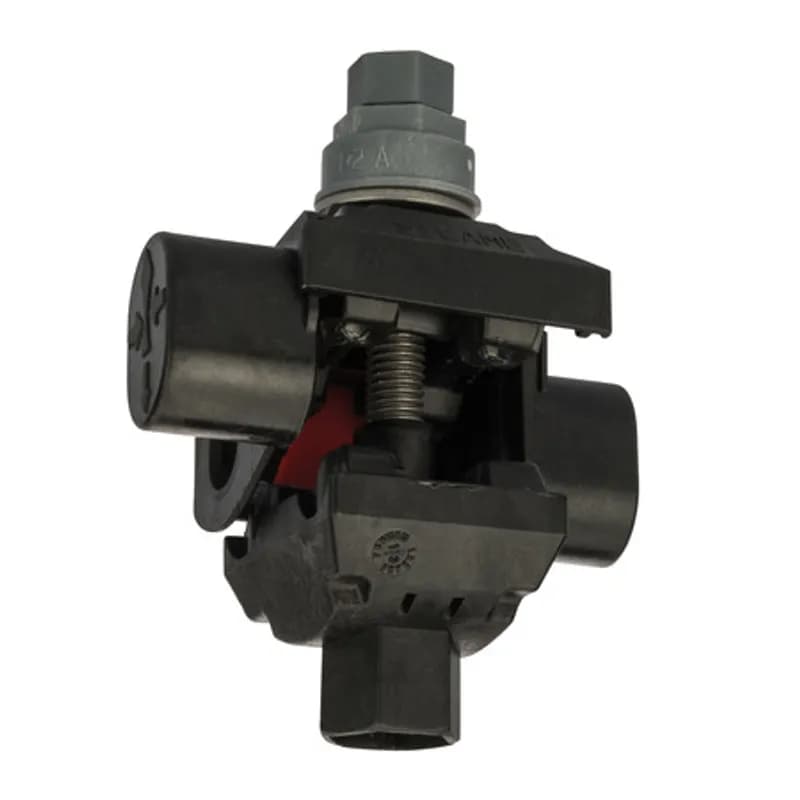

Insulation Piercing Connector 1/0 - 8 AWG Insulation piercing connectors are made for use with copper-copper, copper to aluminum and aluminum to aluminum applications. They are safe to use and are completely insulated, no need to strip wire. They can be installed on energized conductors with no contact at any point. No spacer required between connections. Exclusive "turbo spacer" keeps tap side open while main conductor is being tightened. Watertight and corrosion-free.

IPCS1002

Insulation Piercing Connector 1/0 - 8 AWG Insulation piercing connectors are made for use with copper-copper, copper to aluminum and aluminum to aluminum applications. They are safe to use and are completely insulated, no need to strip wire. They can be installed on energized conductors with no contact at any point. No spacer required between connections. Exclusive "turbo spacer" keeps tap side open while main conductor is being tightened. Watertight and corrosion-free.

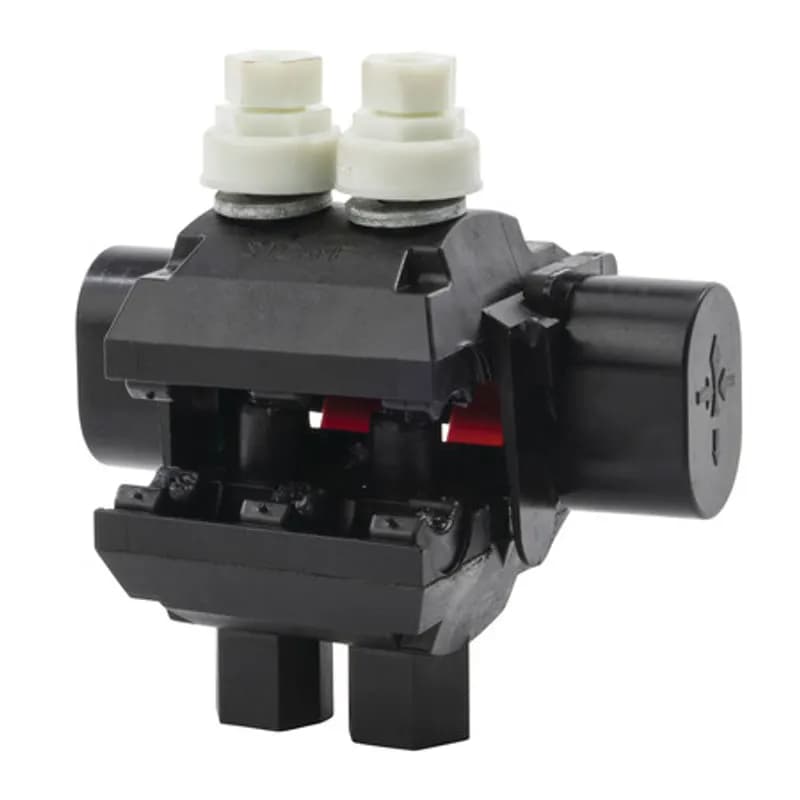

Insulation Piercing Connector 500 MCM - 4/0 AWG Insulation piercing connectors are made for use with copper-copper, copper to aluminum and aluminum to aluminum applications. They are safe to use and are completely insulated, no need to strip wire. They can be installed on energized conductors with no contact at any point. No spacer required between connections. Exclusive "turbo spacer" keeps tap side open while main conductor is being tightened. Watertight and corrosion-free.

IPCS5035

Insulation Piercing Connector 500 MCM - 4/0 AWG Insulation piercing connectors are made for use with copper-copper, copper to aluminum and aluminum to aluminum applications. They are safe to use and are completely insulated, no need to strip wire. They can be installed on energized conductors with no contact at any point. No spacer required between connections. Exclusive "turbo spacer" keeps tap side open while main conductor is being tightened. Watertight and corrosion-free.
Insulation Piercing Connector 750 MCM - 3/0 AWG Insulation piercing connectors are made for use with copper-copper, copper to aluminum and aluminum to aluminum applications. They are safe to use and are completely insulated, no need to strip wire. They can be installed on energized conductors with no contact at any point. No spacer required between connections. Exclusive "turbo spacer" keeps tap side open while main conductor is being tightened. Watertight and corrosion-free.

IPCS7501

Insulation Piercing Connector 750 MCM - 3/0 AWG Insulation piercing connectors are made for use with copper-copper, copper to aluminum and aluminum to aluminum applications. They are safe to use and are completely insulated, no need to strip wire. They can be installed on energized conductors with no contact at any point. No spacer required between connections. Exclusive "turbo spacer" keeps tap side open while main conductor is being tightened. Watertight and corrosion-free.

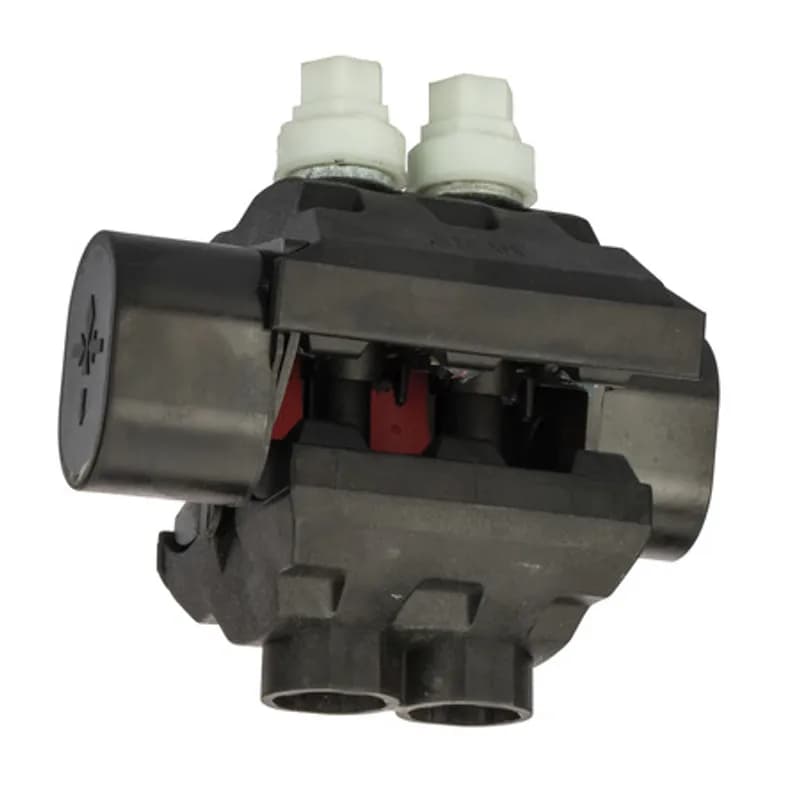

Insulation Piercing Connector 750 - 250 MCM Insulation piercing connectors are made for use with copper-copper, copper to aluminum and aluminum to aluminum applications. They are safe to use and are completely insulated, no need to strip wire. They can be installed on energized conductors with no contact at any point. No spacer required between connections. Exclusive "turbo spacer" keeps tap side open while main conductor is being tightened. Watertight and corrosion-free.
