Contact for Pricing
Minimum Qty: 6
Multiplier: 6
*Contact for lower quantities*

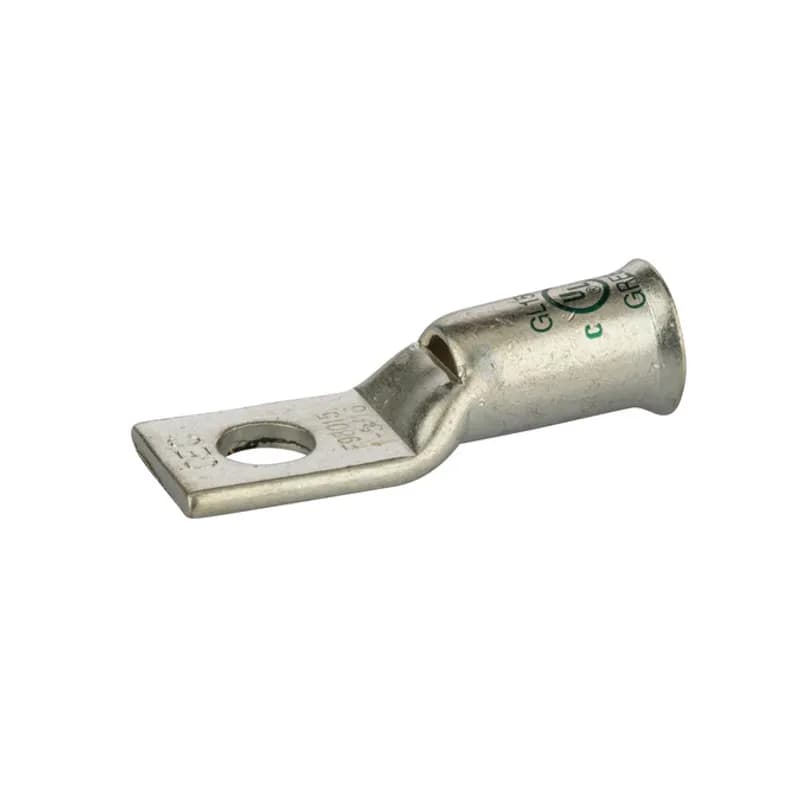

Overview
- High-conductivity copper construction for excellent electrical performance.
- Gentle, continuous flared end for easy cable insertion and strand protection.
- Tin-plated for superior corrosion resistance and low contact resistance.
- Peep hole allows for visual confirmation of complete cable insertion.
- Rated 600V, UL486A Listed, and 90°C temperature rating for demanding applications.
Specifications
Application | Terminate, Splice, Tap Power Connectors |
Cable Size | 600 MCM (STR) |
Color | Green |
Connection Type | Compression Lug |
Environmental Conditions | 90 C |
Finish | Tin Plated |
Material | Copper |
Mounting | 5/8 Mounting Hole |
Mounting Type | Single Hole |
Number Of Holes | 1 |
Size | L=3.50 - W=1.72 - OD=1.19 - ID=.930 |
Size | 600 MCM |
Special Features | 600 MCM (STR) - 5/8 Mounting Hole |
Standard | UL486A/B |
Stud Size | 5/8 IN |
Type | Short Barrel - One Hole - Belled End |
Voltage Rating | 600 V |
Warranty | 1 Year |
Package Dimensions (L x W x H) | 3.5 IN x 1.72 IN x 1.189 IN |
Package Dimensions (L x W x H) | 8.89 cm x 4.3688 cm x 3.0201 cm |
Package Weight (Imperial) | 3.600 L |
Package Weight (Metric) | 1.633 kg |
OD581
Mechanical Crimp Tool with 5/8 Inch Nose Die APPLICATIONS: Designed for use with wide range and H-Tap connectors. It has fiberglass handles and comes with "O" and "D" Nose Dies. It has an output of 4.5 tons.
CD6A
U-Type Compression Die - Pink 1/0 AWG Copper - 2 AWG Aluminum U-Shaped Compression Dies are for use with the NSi-12 Compression Tool and Other Tools. See Cross-Reference Chart below.
CD7
U-Type Compression Die - Black 2/0 AWG Copper U-Shaped Compression Dies are for use with the NSi-12 Compression Tool and Other Tools. See Cross-Reference Chart below.
AS-K1-H6
Power Distribution Block (1) 2/0-14 AWG Primary (6) 4-14 AWG Secondary Power Distribution Blocks are made of high strength, high-conductivity aluminum alloy and are mounted in a high-strength glass-filled polyester base. Each block can stand alone or combine with other blocks to form a multi-block set.
E6-PS-D
Non-Insulated Parallel Splice Connector For Wire Range 6 For Circular Mil Range 20,800-33,100 Length .5 Diameter .365,Metallic
1SNK705010R0000
Combine high performance with compact dimensions: - 1000 V AC / DC IEC 600 V UL, - Opt for the best marking visibility thanks to the up-front, flat marker zone, which lets you mark up to eight digits or increase the font size.
1SNK705030R0000
Combine high performance with compact dimensions: - 1000 V AC / DC IEC 600 V UL, - Opt for the best marking visibility thanks to the up-front, flat marker zone, which lets you mark up to eight digits or increase the font size.
E989NNJ-5-HD
Molded Junction Box, Length 4 Inch x Width 4 Inch x Depth 2 Inch, Material Polycarbonate, Color Gray
How to Install Copper Compression Connectors
This guide provides step-by-step instructions for installing copper compression connectors, ensuring secure and reliable electrical connections.
Estimated time: 30m
Tools needed:
Wire strippers, Crimping tool, Wire brush
Supplies needed:
Copper compression connectors, Cable
- Strip the conductor
Carefully strip the insulation from the conductor without nicking the strands, ensuring the stripped length allows for complete insertion into the connector barrel.
- Clean the conductor
Use a wire brush to clean the stripped portion of the conductor, removing any oxide films to ensure a good electrical connection.
- Insert the conductor
Insert the cleaned and stripped conductor completely into the connector barrel, ensuring it fills the barrel fully.
- Crimp the connector
Using the appropriate crimping tool, apply pressure to crimp the connector securely onto the conductor, following the manufacturer's suggested crimp locations.
- Verify the connection
Inspect the crimped connection to ensure it is secure and that there are no visible gaps or loose strands.
