Contact for Pricing
Overview
- Heavy-duty copper "C" tap grounding connector for 500-250 MCM conductors.
- Ensures positive, all-around compression with low resistance and high pull-out values.
- Satisfies NEC 250-81 and 250-91 for grounding electrode system connections.
- UL486A Listed Wire Connector and UL467 Listed Grounding & Bonding.
- Rated 600V and 90°C temperature rating for Class B or C building wire CU cable only.
- Rated for 600 Volts
Specifications
Application | Terminate, Splice, Tap Power Connectors |
Color | Yellow |
Conductor Size | 500 MCM |
Connection Type | Compression |
Environmental Conditions | 90 C |
Finish | Copper |
Material | Copper |
Mechanical Durability | Single Use |
Series | CTH |
Size | 500 MCM-6 AWG |
Size | 500 to 250 MCM |
Special Features | 500 MCM-6 AWG |
Standard | UL486 |
Tap Size | 6 AWG |
Temperature Rating | 90 C |
Type | C-Taps |
Voltage Rating | 600 V |
Warranty | 1 Year |
Package Dimensions (L x W x H) | 1.279 IN x 1.112 IN x 1.87 IN |
Package Dimensions (L x W x H) | 3.2487 cm x 2.8245 cm x 4.7498 cm |
Package Weight (Imperial) | 1.620 L |
Package Weight (Metric) | 0.735 kg |
L6NP
2 Hole Long Barrel Peep Hole Copper Compression Lug 6 AWG - 3/8" Bolt - 1 3/4" mOUNTING sPACING Long Barrel Copper Compression Lugs are produced from high conductivity copper tubing. Allows easy inspection of the termination to assure complete cable insertion. Tin-plated to provide corrosion and low contact resistance. Marked with die index and color coded. Listed for 35KV maximum when properly installed. Rated 600V. cULus 486A/B Listed. UL467 Listed on sizes 6 AWG - 3/0 AWG. Temperature rating 90 degrees C.
CTH-114
Heavy Duty Copper C Tap Grounding Connector for 350 MCM to 4/0 AWG APPLICATIONS: Copper "C" Taps ensure positive, all-around compression with low-resistance and high pull-out values. Made of high conductivity copper, they satisfy the requirements of NEC250-81 and 250-91 for connecting to the grounding electrode system. Rated 600 Volts.
L25048
1 Hole Long Barrel Copper Compression Lug 250 MCM - 1/2" Bolt Long Barrel Copper Compression Lugs are produced from high conductivity copper tubing. They are tin-plated to provide corrosion low contact resistance. Marked with die index and color coded for easy reference. Listed for 35KV maximum when properly installed and to cable manufacturer instructions. Temperature rating 90 degrees C. .
C-1000
Long Barrel TinnedCopperSplice 1000 MCM Long Barrel Tinned CopperSplices is a type of copper compression connector that is produced from high conductivity copper tubing. They are tin-plated to provide corrosion resistance and are marked with die index and color coded for easy reference. Listed for 35KV maximum when properly installed.
SC-300B
Short Barrel Copper Compression Splice for Flexible Copper Cable 300MCM Compression splices for flexible copper cables are connects that have flared openings at both ends to ensure ease of cable insertion of flexible and extra flexible cables such as locomotive, welding, mining cable and more. Positive center stop. Tin-plated for corrosion resistance. Rated 600 volts for copper cables only.
SC-500
StandardBarrel TinnedCopperSplice500MCM Standard Barrel Tinned CopperSplices is a type of copper compression connector that is produced from high conductivity copper tubing. They are tin-plated to provide corrosion resistance and are marked with die index and color coded for easy reference. Listed for 35KV maximum when properly installed.
CTH-2020
Heavy Duty Copper C Tap Grounding Connector for 1/0 to 2/0 AWG APPLICATIONS: Copper "C" Taps are range-taking compression connectors made from high conductivity copper alloy. Ideal for making tap or parallel copper connections from 8 SOL to 4/0 STR conductors. Provides consistent reliability with heavy wall construction that prevents relaxation of the joint after installation. Installation time is reduced because of its "C" shape. UL CU486A, 467 suitable for direct burial and CSA rated Electrical and Grounding.
CTH-46
Heavy Duty Copper C Tap Grounding Connector for 6 to 4 AWG Run - 4-4 AWG Tap APPLICATIONS: Copper "C" Taps are range-taking compression connectors made from high conductivity copper alloy. Ideal for making tap or parallel copper connections from 8 SOL to 4/0 STR conductors. Provides consistent reliability with heavy wall construction that prevents relaxation of the joint after installation. Installation time is reduced because of its "C" shape. UL CU486A, 467 suitable for direct burial.
C-3/0
Long Barrel TinnedCopperSplice 3/0 AWG Long Barrel Tinned CopperSplices is a type of copper compression connector that is produced from high conductivity copper tubing. They are tin-plated to provide corrosion resistance and are marked with die index and color coded for easy reference. Listed for 35KV maximum when properly installed.PT1/0
Stranded Bi-Metallic Pin Terminal 1/0 AWG Stranded Bi-Metallic Pin Terminals is designed to facilitate termination of aluminum conductors. Tin-plated stranded copper pin. Connector bores are coated with oxide inhibitor. Supplied with EPDM insulating cover. UL 486B listed. Rated 600 volts.

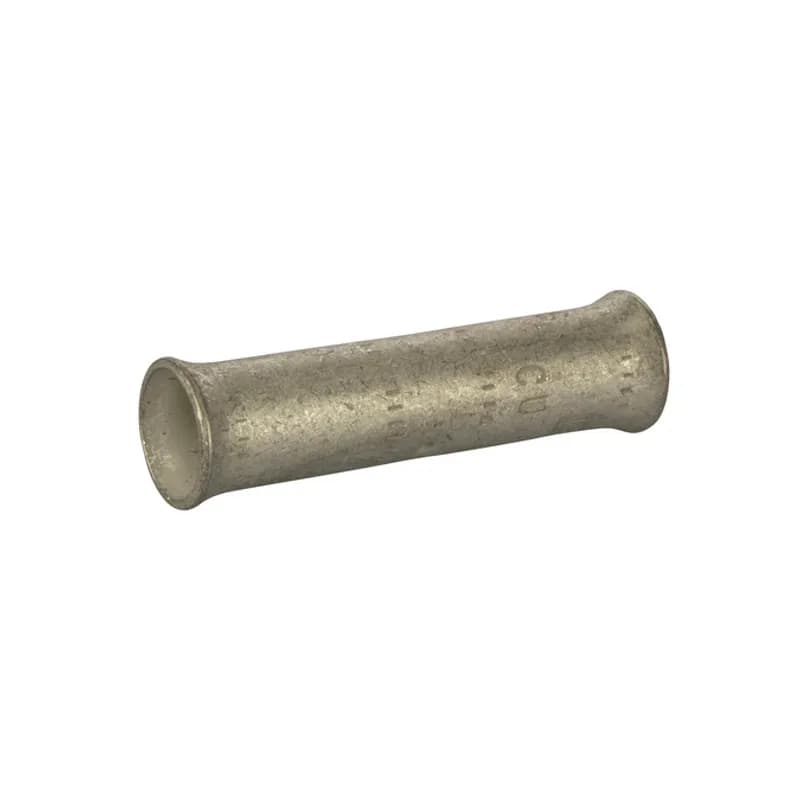

SC-1/0B
