NSI Industries AS-K2-K2 - Power Distribution Block (2) 2/0-14 AWG Primary (2) 2/0-14 AWG Secondary Power Distribution Blocks are made of high strength, high-conductivity aluminum alloy and are mounted in a high-strength glass-filled polyester base. Each block can stand alone or combine with other blocks to form a multi-block set.
NSI Industries

AS-K2-K2

UPC: 662381166166

Contact for Pricing

Overview

The NSI Industries AS-K2-K2 Power Distribution Block is a robust and versatile solution for efficient electrical power distribution. Engineered with a high-strength, high-conductivity aluminum alloy connector body mounted in a durable, high-impact glass-filled polyester base, this block is built for reliability in demanding applications. It features a 90°C temperature rating and a 600V voltage rating, making it suitable for a wide range of industrial and commercial power systems. The AS-K2-K2 configuration offers two sets of primary and secondary connections, each accommodating conductors from 2/0 AWG down to 14 AWG. This design allows for flexible power splitting and consolidation. Each block can function independently or be combined with other Connector Blok™ units to create custom multi-block assemblies, offering unparalleled adaptability for any project's specific needs. There are no small end pieces or connector components to manage, simplifying installation and reducing potential points of failure. The default SCCR (Short Circuit Current Rating) is 10,000 Amps, providing a significant level of protection. Connector Blok™ covers are available separately in three sizes to fit all styles and configurations, enhancing safety and providing finger-safe connections (IP20 rated). This product is CSA certified and UL Recognized, ensuring compliance with industry safety standards. Its compact dimensions (Length: 2.90 in., Height: 2.71 in., Width: 1.04 in.) facilitate installation in space-constrained environments. The AS-K2-K2 is ideal for panel building, machine control, and power distribution applications where reliable and organized wiring is essential. Its construction from aluminum alloy and glass-filled polyester ensures excellent conductivity and mechanical strength, while the modular design allows for easy expansion as power requirements grow. This distribution block is a key component for creating organized and safe electrical distribution systems.
  • High-strength, high-conductivity aluminum alloy construction
  • Durable glass-filled polyester base for high impact resistance
  • Accommodates (2) 2/0-14 AWG primary and (2) 2/0-14 AWG secondary conductors
  • Modular design: stand-alone or combine with other blocks
  • 600V, 90°C rating with a 10,000 Amp SCCR

Specifications

Amperage Rating
350 Amps Per Pole
Application
NSI
Color
Black
Material
Aluminum body -Glass Filled Polyester Base
Mounting
2 Mounting Holes
Number Of Terminals
4
Size
L=2.90 - H=2.34 - W=1.04 IN
Special Features
(2) 2/0-14 AWG (Line Side) - (2) 2/0-14 AWG (Load Side) - 350 Amps Per Pole
Standard
Recognized to UL1059
Type
Splicer/Reducer
Voltage Rating
600 V
Warranty
1 Year
Wire Size
(2) 2/0-14 AWG(LINE) - (2) 2/0-14 AWG(LOAD)
Package Dimensions (L x W x H)
2.9 IN x 1.04 IN x 2.34 IN
Package Dimensions (L x W x H)
7.366 cm x 2.6416 cm x 5.9436 cm
Package Weight (Imperial)
0.744 L
Package Weight (Metric)
0.337 kg
Power Distribution Block-Small (2) 2/0-14 AWG Primary (6) 4-14 AWG Secondary Power Distribution Blocks are made of high strength, high-conductivity aluminum alloy and are mounted in a high-strength glass-filled polyester base. Each block can stand alone or combine with other blocks to form a multi-block set.

AS-K2-H6

Power Distribution Block-Small (2) 2/0-14 AWG Primary (6) 4-14 AWG Secondary Power Distribution Blocks are made of high strength, high-conductivity aluminum alloy and are mounted in a high-strength glass-filled polyester base. Each block can stand alone or combine with other blocks to form a multi-block set.
Power Distribution Block (1) 2/0-14 AWG Primary (6) 4-14 AWG Secondary Power Distribution Blocks are made of high strength, high-conductivity aluminum alloy and are mounted in a high-strength glass-filled polyester base. Each block can stand alone or combine with other blocks to form a multi-block set.

AS-K1-H6

Power Distribution Block (1) 2/0-14 AWG Primary (6) 4-14 AWG Secondary Power Distribution Blocks are made of high strength, high-conductivity aluminum alloy and are mounted in a high-strength glass-filled polyester base. Each block can stand alone or combine with other blocks to form a multi-block set.

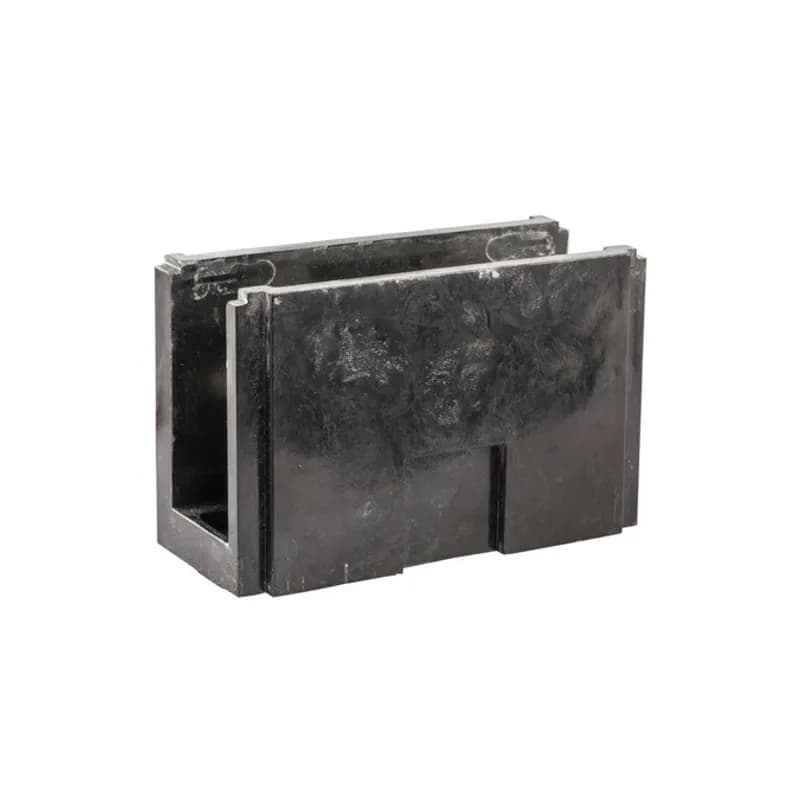

Power Distribution Block (1) 2/0-14 AWG Primary (4) 4-14 AWG Secondary Power Distribution Blocks are made of high strength, high-conductivity aluminum alloy and are mounted in a high-strength glass-filled polyester base. Each block can stand alone or combine with other blocks to form a multi-block set.

AS-K1-H4

Power Distribution Block (1) 2/0-14 AWG Primary (4) 4-14 AWG Secondary Power Distribution Blocks are made of high strength, high-conductivity aluminum alloy and are mounted in a high-strength glass-filled polyester base. Each block can stand alone or combine with other blocks to form a multi-block set.

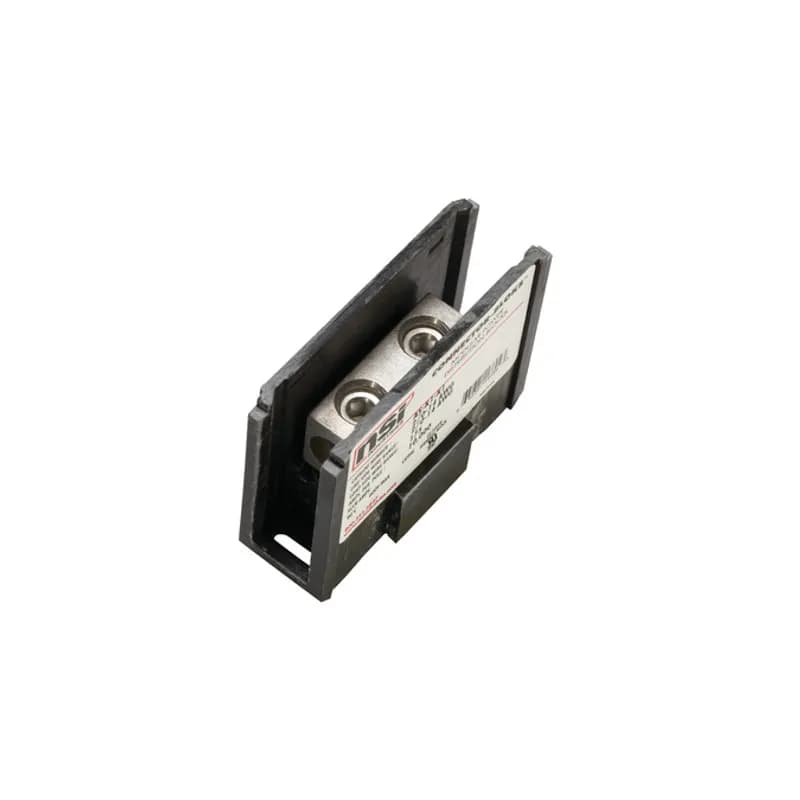

Power Distribution Block (1) 2/0-14 AWG Primary (1) 2/0-14 AWG Secondary Power Distribution Blocks are made of high strength, high-conductivity aluminum alloy and are mounted in a high-strength glass-filled polyester base. Each block can stand alone or combine with other blocks to form a multi-block set.

AS-K1-K1

Power Distribution Block (1) 2/0-14 AWG Primary (1) 2/0-14 AWG Secondary Power Distribution Blocks are made of high strength, high-conductivity aluminum alloy and are mounted in a high-strength glass-filled polyester base. Each block can stand alone or combine with other blocks to form a multi-block set.
Dual Rated Aluminum Splice 600 MCM Dual Rated Aluminum Splices are a type of aluminum compression connector that is produced from high conductivity aluminum tubing. Center stop assures proper cable installation. Electro-tin plated for corrosion resistance. Color coded and marked with die index information. Pre-filled with oxide inhibitor and capped with color coded cap.

ASC600T

Dual Rated Aluminum Splice 600 MCM Dual Rated Aluminum Splices are a type of aluminum compression connector that is produced from high conductivity aluminum tubing. Center stop assures proper cable installation. Electro-tin plated for corrosion resistance. Color coded and marked with die index information. Pre-filled with oxide inhibitor and capped with color coded cap.

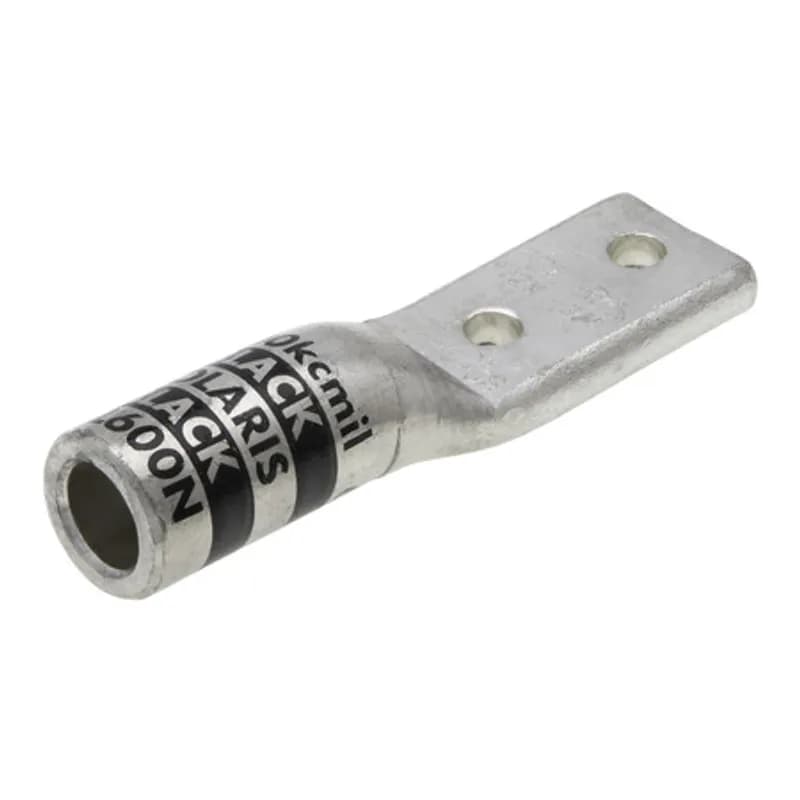

2HoleStandard BarrelAluminum Compression Lug 600 MCM -1/2 Bolt Standard BarrelAluminum Compression Lugs is a type ofaluminum compression connector that is produced from high conductivityaluminum tubing.Center stop assures proper cable installation.They are tin-plated to provide corrosion resistance and are marked with die index and color coded for easy reference. Listed for 35KV maximum when properly installed.
