NSI Industries
7302
UPC: 786261120021
Contact for Pricing
Overview
- 24-hour programmable timing with skip-a-day function
- 40A current rating, 208–277V voltage range
- 3PST (3-pole single throw) configuration for three-phase loads
- NEMA Type 4X metal enclosure rated for indoor/outdoor use
- Screw terminal connections for secure wiring
Specifications
Action | 3PST |
Application | NSI |
Base | Screw |
Contact Rating | 208-277 VAC |
Enclosure | NEMA 3 Metal Indoor-Outdoor |
Environmental Conditions | -40 to 165 F |
Frequency Rating | 60 Hz |
Initiation | Contact |
Mounting | Screw Mount |
Number Of Pins | 12 Pair |
Number Of Poles | 3 |
Operating Temperature | -40 to 165 F |
Phase | Single Phase |
Size | L=5.250 - H=8.250 - W=4.625 IN |
Special Features | 3PST 24 Hour Time Switch With Skip-A-Day Feature |
Standard | UL-CSA |
Timing Range | 24 Hour |
Type | 24 Hour Time Switch |
Package Dimensions (L x W x H) | 4.312 IN x 5.25 IN x 8.25 IN |
Package Dimensions (L x W x H) | 10.9525 cm x 13.335 cm x 20.955 cm |
Package Weight (Imperial) | 5.000 L |
Package Weight (Metric) | 2.268 kg |
LC200
Tork 2 Zone SPDT Lighting Control Use to control two different outdoor lighting circuits utilizing one photocell. Sign lighting can turn ON at one ambient light level while parking lot lighting turns ON at a different light level. APPLICATIONS: 24 Hour Convenience Stores Open Wall Parking Structures Large Canopies Building Perimeters Atriums FEATURES: INPUT VOLTAGE: 120/240/277VAC, 50/60Hz OUTPUT CONTACTS: SPDT NO. OF ZONES: 2 Zones TERMINAL RANGE: Relay #12AWG- input power terminals #14-#22AWG- TOD/sensor terminals accept #18-#22AWG. POWER CONSUMPTION: 5VA Maximum OPERATING TEMPERATURE: - 40 degrees to +140 degrees F (-40 degrees C to +60 degrees C) PHOTOSENSOR INPUT: EPC1 Included. DUAL OUTPUTS: With independent turn-ON adjustment for Stage 1 and Stage 2. LIGHT LEVEL ACTIVATION: Turn ON is user settable from 2 to 100 footcandle- Independent light level adjustment for each zone. Turn OFF is a maximum of 2 times turn ON level. Built-in delay ON of 30 seconds to avoid reaction to lightning or headlights. SWITCHED INPUT: Can be used with a time switch for photocell ON of two different lighting circuits at different ambient light levels, then time-of-day OFF. ENCLOSURE: Metal Indoor NEMA 1 with lockable hasp. MANUFACTURER: Tork, UPC: 786261821119 CONTACT RATINGS: GENERAL PURPOSE: 120/240 VAC NO: 20A NC: 10A 277 VAC NO: 12A BALLAST: 120 VAC NO: 20A NC: 10A 240/277 VAC NO: 6A NC: 3A TUNGSTEN: 120/240/277 VAC NO: 5A NC: 3A PILOT DUTY: 120/240 VAC NO: 470VA NC: 275VA 277 VAC NO: 690VA

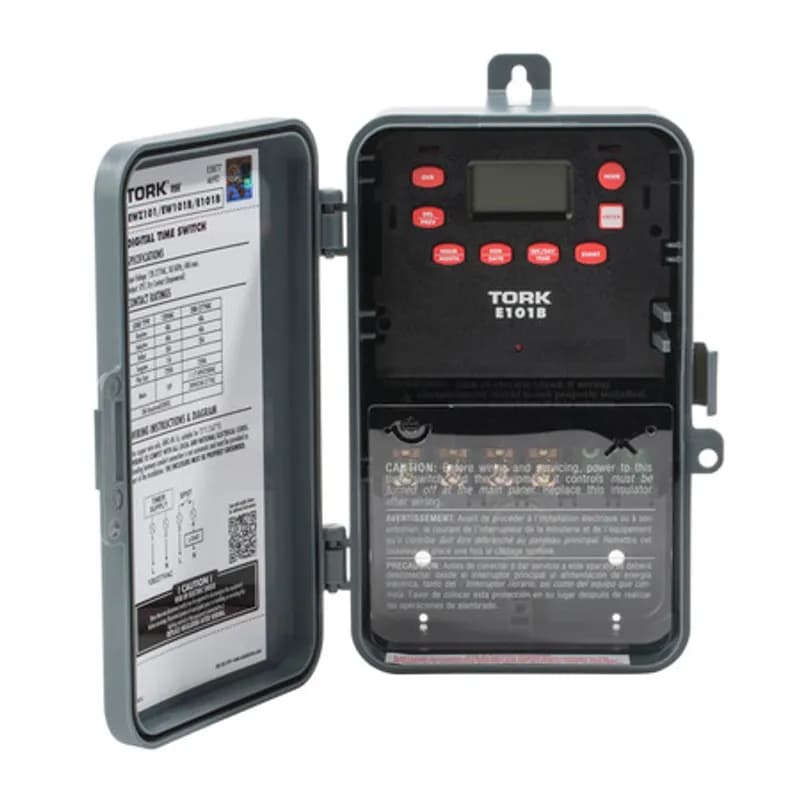

E101B
The TORK E101B 24-Hour Digital Timer is designed for a wide range of applications and has a plastic enclosure for indoor or outdoor use. Automate your home or office to save energy and money using the intuitive programming interface. Features up to 20 different on/off times, a 4-day battery backup and a Noryl plastic cover with a locking hasp. Designed for indoor or outdoor loads such as lights, heaters, air conditioners, water heaters, outdoor signage, sump pumps or ventilation fans.
DTS200B
The TORK DTS200B 365/7-Day Multipurpose Advanced Digital Timer has two channels designed for 30 amp, 120/208-240/277 VAC loads and has a Noryl plastic enclosure with a locking hasp for indoor or outdoor use. Automate your home or office to save energy and money, using the intuitive programming interface to set up to 99 different on/off times each day of the week, with 24 unique holiday blocks. Designed for applications in the home, office, factory, church or school, including lights, heaters or air conditioners, water heaters, school warning signals or traffic lights.
DG180A
The TORK DG180A 24-Hour/7-Day Multipurpose Digital Timer is designed for 20 amp / 120-277 volt loads and has a plastic enclosure for indoor/outdoor use. Automate your home or office to save energy and money, using the intuitive programming interface to set different on/off times each day or to cycle loads on various days. Designed for commercial applications in the home, office, factory, church or school, including indoor/outdoor lighting, heaters, air conditioners, water heaters, warning signs or traffic lights
DGS100A
The TORK DGS100A 7-Day Holiday and Signal Cycle Digital Timer is designed for 20 amp / 120-277 volt loads and has a plastic enclosure for indoor/outdoor use. Automate your home or office to save energy and money, using the intuitive programming interface to set up to 56 different on/off times each day of the week. Designed for applications in the home, office, factory, church or school, including indoor/outdoor lighting, heaters, air conditioners, water heaters, warning signs or traffic lights

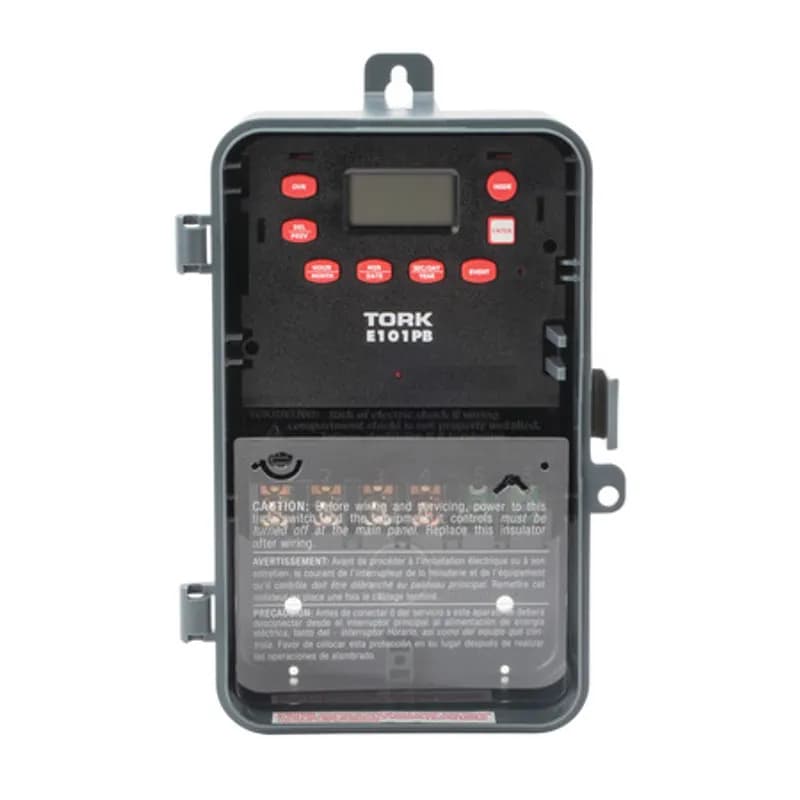

E101PB
The TORK E101PB 24-Hour Digital Timer is designed for a wide range of applications and has a plastic enclosure for indoor or outdoor use. Automate your home or office to save energy and money using the intuitive programming interface. Features up to 20 different on/off times, a 4-day battery backup, 120 Volt rating and a Noryl plastic cover with a locking hasp. Designed for indoor or outdoor loads such as lights, heaters, air conditioners, water heaters, outdoor signage, sump pumps or ventilation fans.Frequently Asked Questions about NSI Industries
