NSI Industries 2-600L4 - 2 Port Aluminum Dual Rated Transformer Lug 600 MCM - 2 AWG Aluminum Dual Rated Transformer Lugs are versatile and reuseable set screw connectors made of 6061T-6 aluminum alloy for superior electrical and mechanical performance. Two set screws per wire hole ensure an exceptional connection. Electro-tin plated for low resistance. For use with copper or aluminum conductors. Mounting hole spacing is NEMA 1-3/4". Meets or exceeds ANSI C119.4 Class A. Rated 600 Volts. Temperature Rating 90 degrees C.
NSI Industries

2-600L4

UPC: 662381027009

Documents & Media
Technical Bulletin

Contact for Pricing

Overview

The NSI Industries 2-600L4 is a robust 2-port aluminum dual-rated transformer lug designed for superior electrical and mechanical performance in demanding applications. Constructed from high-strength 6061-T6 aluminum alloy, this lug ensures exceptional conductivity and durability. Each wire hole is equipped with two set screws, guaranteeing a secure and reliable connection for conductors ranging from 600 MCM down to 2 AWG. The electro-tin plating provides low contact resistance, minimizing energy loss and heat generation. This dual-rated connector is suitable for use with both copper and aluminum conductors, offering significant versatility for various electrical system configurations. Engineered to meet stringent industry standards, the 2-600L4 exceeds ANSI C119.4 Class A requirements. It is rated for 600 Volts and operates reliably at temperatures up to 90 degrees Celsius. The mounting hole spacing is a standard NEMA 1-3/4 inches, facilitating easy integration into existing panelboards and electrical enclosures. The lug's robust construction and dual set screws per port make it a reusable and dependable component for transformer connections, power distribution, and other heavy-duty electrical installations. The NSI 2-600L4 (SKU: 2-600L4) is an essential choice for electricians and engineers seeking a high-quality, durable, and versatile connector solution. Its specifications include a voltage rating of 600V max, a temperature rating of 90°C, and compatibility with AL9CU conductors. The mounting bolt size is 1/2 inch, with a hex wrench size of 3/8 inch. The overall dimensions are a length of 5.00 inches, a width of 2.410 inches, and a height of 1.630 inches, with a standard package quantity of 1.
  • Constructed from high-strength 6061-T6 aluminum alloy for superior performance.
  • Two set screws per wire hole ensure an exceptional and secure connection.
  • Electro-tin plated for low contact resistance and enhanced conductivity.
  • Dual-rated for use with both copper and aluminum conductors.
  • NEMA 1-3/4" mounting hole spacing for easy integration.

Specifications

Application
Wire Termination
Color
Aluminum
Connection Type
Set Screw
Finish
Aluminum
Material
Aluminum Alloy
Material
6061T-6 Aluminum Alloy
Nema Rating
NEMA 1-3/4"
Poles
2
Size
600 MCM - 2 AWG
Special Features
(2) 600 MCM-2 AWG
Type
Transformer Lug
Voltage Rating
600 V
Warranty
1 Year
Package Dimensions (L x W x H)
4.5 IN x 2.41 IN x 1.63 IN
Package Dimensions (L x W x H)
11.43 cm x 6.1214 cm x 4.1402 cm
Package Weight (Imperial)
0.842 L
Package Weight (Metric)
0.382 kg
2 Port Aluminum Lug 800 - 300 MCM Aluminum Double Lugs are versatile and reuseable set screw connectors made of 6061T-6 aluminum alloy. Electro tin plated for low contact resistance. Suitable for use with both copper and aluminum conductors. Rated 600 volts, 90 degrees C. UL 486A/B Listed.

2-800T

2 Port Aluminum Lug 800 - 300 MCM Aluminum Double Lugs are versatile and reuseable set screw connectors made of 6061T-6 aluminum alloy. Electro tin plated for low contact resistance. Suitable for use with both copper and aluminum conductors. Rated 600 volts, 90 degrees C. UL 486A/B Listed.
2 Port Heavy Duty Dual Rated Transformer Lug 600 MCM - 2 AWG Heavy Duty Dual Rated Transformer Lugs are versatile and reusable set screw connectors made from high strength 6061-T6 aluminum alloy for superior electrical and mechanical performance. Two set screws per wire hole ensure an exceptional connection. Electro-tin plated for low contact resistance. For use with copper or aluminum conductors. Mounting hole spacing is NEMA 1-3/4". Meets or exceeds ANSI C119.4 Class A. Rated 600V. Temperature rating 90 degrees C.

2-600LL4

2 Port Heavy Duty Dual Rated Transformer Lug 600 MCM - 2 AWG Heavy Duty Dual Rated Transformer Lugs are versatile and reusable set screw connectors made from high strength 6061-T6 aluminum alloy for superior electrical and mechanical performance. Two set screws per wire hole ensure an exceptional connection. Electro-tin plated for low contact resistance. For use with copper or aluminum conductors. Mounting hole spacing is NEMA 1-3/4". Meets or exceeds ANSI C119.4 Class A. Rated 600V. Temperature rating 90 degrees C.

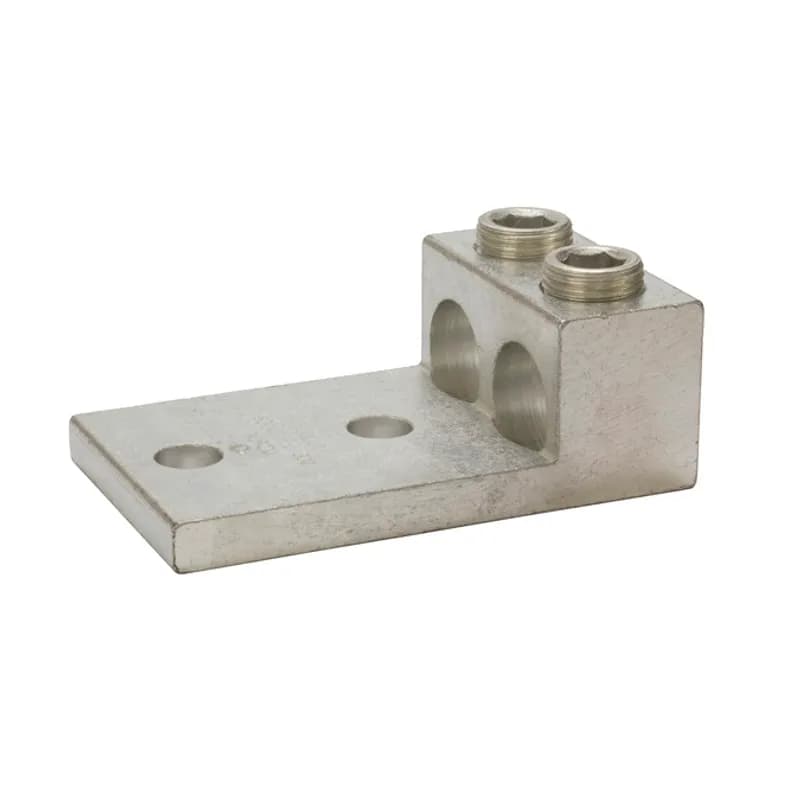

2 Port Panelboard Lug 800 MCM - 350 MCM Panelboard style for multi-conductor with NEMA mounting hole spacing for turn prevent and secureness. Made of 6061T-6 aluminum alloy. Electro-tin plated for low contact resistance. For use with copper or aluminum conductors. Rated 600 volts (2000V max per UL486B). UL 486A/B Listed. Temperature rating 90 degrees C. All hole spacing is NEMA standard of 1.750".

2-800L2

2 Port Panelboard Lug 800 MCM - 350 MCM Panelboard style for multi-conductor with NEMA mounting hole spacing for turn prevent and secureness. Made of 6061T-6 aluminum alloy. Electro-tin plated for low contact resistance. For use with copper or aluminum conductors. Rated 600 volts (2000V max per UL486B). UL 486A/B Listed. Temperature rating 90 degrees C. All hole spacing is NEMA standard of 1.750".
2 Port Heavy Duty Dual Rated Transformer Lug 800 MCM - 300 MCM Heavy Duty Dual Rated Transformer Lugs are versatile and reusable set screw connectors made from high strength 6061-T6 aluminum alloy for superior electrical and mechanical performance. Two set screws per wire hole ensure an exceptional connection. Electro-tin plated for low contact resistance. For use with copper or aluminum conductors. Mounting hole spacing is NEMA 1-3/4". Meets or exceeds ANSI C119.4 Class A. Rated 600V. Temperature rating 90 degrees C.

2-800LL4

2 Port Heavy Duty Dual Rated Transformer Lug 800 MCM - 300 MCM Heavy Duty Dual Rated Transformer Lugs are versatile and reusable set screw connectors made from high strength 6061-T6 aluminum alloy for superior electrical and mechanical performance. Two set screws per wire hole ensure an exceptional connection. Electro-tin plated for low contact resistance. For use with copper or aluminum conductors. Mounting hole spacing is NEMA 1-3/4". Meets or exceeds ANSI C119.4 Class A. Rated 600V. Temperature rating 90 degrees C.
Double Lug Al Two 800-300 (75 EA)

2-800T-BULK

Double Lug Al Two 800-300 (75 EA)

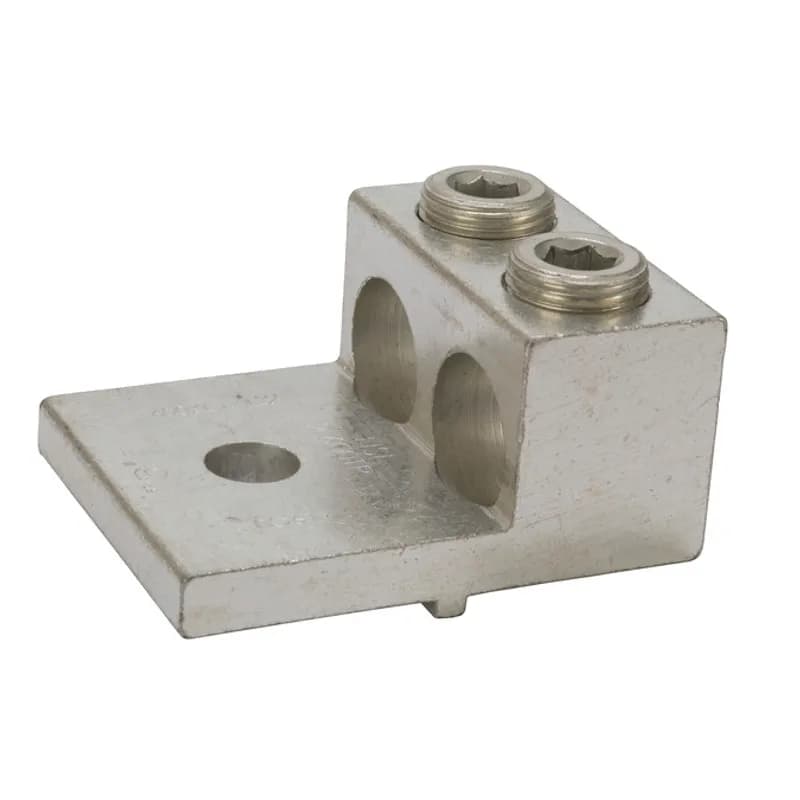

Turn Prevent Two 600-2 (60 EA)
