Contact for Pricing
Overview

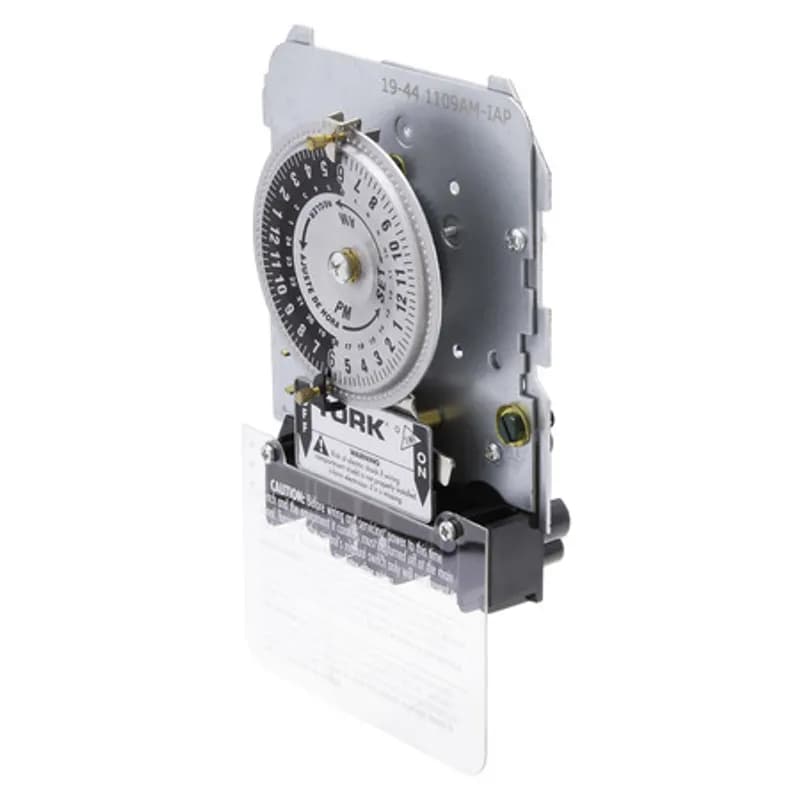

- 24-hour programmable timing for continuous operation
- Voltage range: 120-277V AC, compatible with most commercial systems
- 40A current rating with DPST (double-pole, single-throw) switching
- Durable plastic enclosure with clear cover for visual inspection
- No external power required; operates directly from circuit power
Specifications
Package Dimensions (L x W x H) | 4.312 IN x 5.25 IN x 8.25 IN |
Package Dimensions (L x W x H) | 10.9525 cm x 13.335 cm x 20.955 cm |
Package Weight (Imperial) | 2.300 L |
Package Weight (Metric) | 1.043 kg |
ELC74
The TORK ELC74 365/7-Day Astronomic Time Switch Panel is designed for 120-277 VAC loads and indoor or outdoor use. Automate your home or office to save energy and money using the intuitive programming interface and light sensitive activation to activate lights or signage when the ambient light level drops below a customizable threshold. Features four SPDT output channels with automatic voltage detection and automatic daylight saving adjustment. Designed for commercial applications including outdoor lighting, HVAC equipment, signage, store windows and security or parking lot lights.
LC200
Tork 2 Zone SPDT Lighting Control Use to control two different outdoor lighting circuits utilizing one photocell. Sign lighting can turn ON at one ambient light level while parking lot lighting turns ON at a different light level. APPLICATIONS: 24 Hour Convenience Stores Open Wall Parking Structures Large Canopies Building Perimeters Atriums FEATURES: INPUT VOLTAGE: 120/240/277VAC, 50/60Hz OUTPUT CONTACTS: SPDT NO. OF ZONES: 2 Zones TERMINAL RANGE: Relay #12AWG- input power terminals #14-#22AWG- TOD/sensor terminals accept #18-#22AWG. POWER CONSUMPTION: 5VA Maximum OPERATING TEMPERATURE: - 40 degrees to +140 degrees F (-40 degrees C to +60 degrees C) PHOTOSENSOR INPUT: EPC1 Included. DUAL OUTPUTS: With independent turn-ON adjustment for Stage 1 and Stage 2. LIGHT LEVEL ACTIVATION: Turn ON is user settable from 2 to 100 footcandle- Independent light level adjustment for each zone. Turn OFF is a maximum of 2 times turn ON level. Built-in delay ON of 30 seconds to avoid reaction to lightning or headlights. SWITCHED INPUT: Can be used with a time switch for photocell ON of two different lighting circuits at different ambient light levels, then time-of-day OFF. ENCLOSURE: Metal Indoor NEMA 1 with lockable hasp. MANUFACTURER: Tork, UPC: 786261821119 CONTACT RATINGS: GENERAL PURPOSE: 120/240 VAC NO: 20A NC: 10A 277 VAC NO: 12A BALLAST: 120 VAC NO: 20A NC: 10A 240/277 VAC NO: 6A NC: 3A TUNGSTEN: 120/240/277 VAC NO: 5A NC: 3A PILOT DUTY: 120/240 VAC NO: 470VA NC: 275VA 277 VAC NO: 690VA
DG180A
The TORK DG180A 24-Hour/7-Day Multipurpose Digital Timer is designed for 20 amp / 120-277 volt loads and has a plastic enclosure for indoor/outdoor use. Automate your home or office to save energy and money, using the intuitive programming interface to set different on/off times each day or to cycle loads on various days. Designed for commercial applications in the home, office, factory, church or school, including indoor/outdoor lighting, heaters, air conditioners, water heaters, warning signs or traffic lights
DGS100A
The TORK DGS100A 7-Day Holiday and Signal Cycle Digital Timer is designed for 20 amp / 120-277 volt loads and has a plastic enclosure for indoor/outdoor use. Automate your home or office to save energy and money, using the intuitive programming interface to set up to 56 different on/off times each day of the week. Designed for applications in the home, office, factory, church or school, including indoor/outdoor lighting, heaters, air conditioners, water heaters, warning signs or traffic lights
E101B
The TORK E101B 24-Hour Digital Timer is designed for a wide range of applications and has a plastic enclosure for indoor or outdoor use. Automate your home or office to save energy and money using the intuitive programming interface. Features up to 20 different on/off times, a 4-day battery backup and a Noryl plastic cover with a locking hasp. Designed for indoor or outdoor loads such as lights, heaters, air conditioners, water heaters, outdoor signage, sump pumps or ventilation fans.
Frequently Asked Questions
What is the input voltage range for the 1109A-PC?
The input voltage range is 120/208-277VAC at 50/60Hz.
What is the operating temperature range?
The operating temperature range is -40 °F to 149 °F (-40 °C to 65 °C).
What are the contact ratings for general purpose?
The general purpose contact rating is 120/208-277VAC at 40A.
What is the minimum ON time setting?
The minimum ON time setting is 20 minutes.
What is the minimum OFF time setting?
The minimum OFF time setting is 75 minutes.
What types of applications can the 1109A-PC be used for?
It can be used for lighting, pumps, signs, air conditioning, water heaters, and fans.
What is the power consumption of the device?
The maximum power consumption is 3 Watts.
What is the enclosure type of the 1109A-PC?
The enclosure type is metal indoor NEMA 1 or metal indoor/outdoor NEMA 3R.
What is the terminal range for wiring?
The terminal range accommodates #8 to #14 AWG wiring.
Is there a manual override feature?
Yes, there is a manual override feature until the next scheduled operation.
