Minerallac Company FS2 - This is a conduit clip with a batwings clip type for electrical conduit/cable applications. It is made of spring steel with a black phosphate finish and black color. The clip measures 4.130 in long and 1.000 in wide, with a thickness of 0.035 in. It is rated for vertical wire, vertical flange, and horizontal flange load capacities.
Minerallac Company

FS2

Alternate Item Number: 8614816

UPC: 784610800525


Documents & Media
Specification SheetManufacturer Product Website

Contact for Pricing

Minimum Qty: 100

Multiplier: 100

*Contact for lower quantities*

Overview

The Minerallac FS2 Fast Support Clip (SKU: FS2) is a spring steel fastening solution designed for supporting 3/4" EMT conduit, as well as wire, rod, or flange applications. This clip is engineered for horizontal runs of Rigid, EMT, AC, MC, BX, or PVC conduit. It features a 1/4" mounting hole on the bracket for attachment to metal studs. Made in the USA by Minerallac Company, a trusted name in industrial hardware since 1927, the FS2 clip has a static load limit of 25 lbs for horizontal flange support. Ideal for electrical contractors and maintenance professionals, this clip simplifies installation while maintaining structural integrity in demanding environments.
  • Supports 3/4" EMT, Rigid, AC, MC, BX, or PVC conduit
  • 1/4" mounting hole for attachment to metal studs
  • Static load limit: 25 lbs for horizontal flange support
  • Made in USA by Minerallac Company (since 1927)
  • Installs with hammer only for quick, secure fastening

Specifications

Application
Electrical Conduit/Cable
Clip Type
Batwings
Color
Black
Finish
Black Phosphate
Flange Range
1/8" – 1/2"
Length
4.13 in
Length
104.902 mm
Load Capacity
Vertical Wire: 50 LBS Vertical Flange: 25 LBS Horizontal Flange: 100
Material
Spring Steel
Material
Other
Mounting Type
Push-clip
Mounting Type
Fastened with 1/4 inch mounting hole
Rod Range
1/2" – 3/4" IN
Series
FS2
Size
3/4 Inch
Size
4.130" x 1.000" x 0.750"
Size
3/4" EMT, 1/2" EMT
Size
3/4" EMT
Standard
UL #9N38
Thickness
0.035 in
Thickness
0.889 mm
Type
Conduit Clip
Width
1 in
Width
25.4 mm
Wire Range
#8 – 1/2"
Package Weight (Imperial)
4 lbs

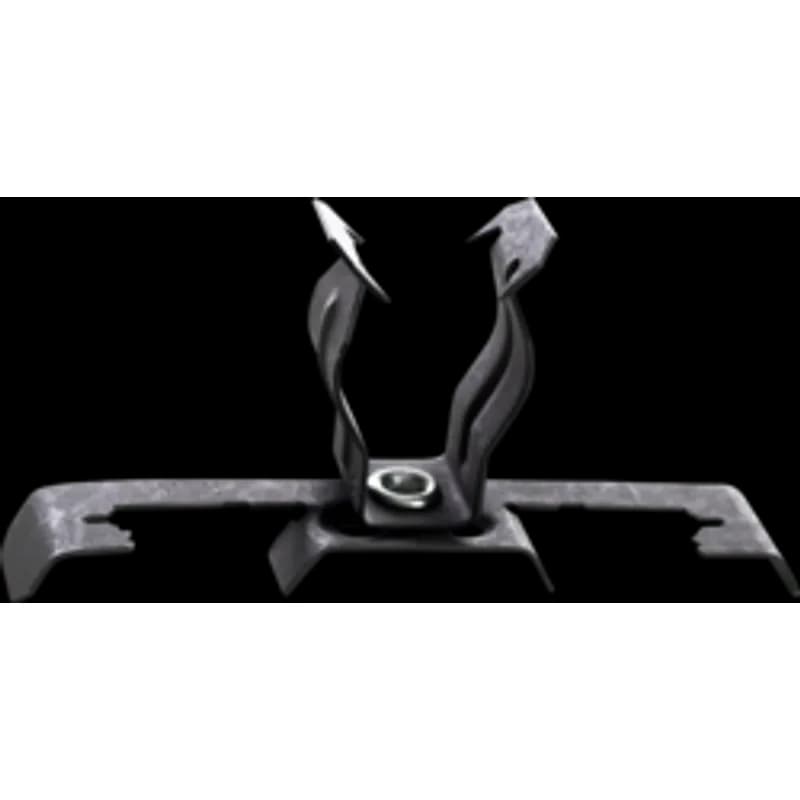

Multi-function clip assembly for attaching conduit and boxes to flanges, wire, or rod. It is made of spring steel with a zinc phosphate finish. The clip fits 1/2" EMT and has black color with two mounting holes.
