Minerallac Company ES137S - This is a 1-3/8" Uraseal® electrical splice kit for butt or branch splices. It is intended for direct burial and watertight applications. The kit uses a permanent encapsulant and is black in color. It is rated for 600 volts or less and an operating temperature up to 90° C.
Minerallac Company

ES137S

Alternate Item Number: 12112343

UPC: 085937079480

Documents & Media
Specification SheetManufacturer Product Website

Contact for Pricing

Overview

The Minerallac ES137S is a 1 3/8" Uraseal Electrical Splice Kit designed for butt splicing applications. This kit provides a secure and reliable method for joining electrical conductors within industrial electrical installations. Its Uraseal technology ensures a protected connection. The ES137S is part of Minerallac's range of electrical hardware solutions, engineered for electrical connections requiring a 1 3/8" splice diameter. Manufactured by Minerallac Company, this splice kit is a component within their electrical hardware solutions.
  • 1 3/8" splice diameter for electrical conductors
  • Uraseal technology for protected connections
  • Designed for butt splicing applications
  • Part of Minerallac's electrical hardware solutions
  • Manufactured in the USA

Specifications

Application
Butt or Branch Splice, Direct Burial, Water Tight
Cable Size
18-1 AWG
Cable Type
Single or Multi-Conductor Wire
Color
Black
Connection Type
Butt Splice
Insulation
Permanent Encapsulant
Material
Uraseal
Number Of Cables
18-16AWG-20, 14-12AWG-12, 10AWG-8, 8AWG-6, 6AWG-4, 4AWG-2, 3AWG-2, 2AWG-1, 1AWG-1
Operating Temperature
Max 90° C
Size
1-3/8"
Size
1 3/8"
Special Features
1-3/8" Permanent Splice Protection
Standard
UL #31YB
Type
Shake N' Seal® Electrical Splice Kit
Voltage Rating
600 Volts or Less

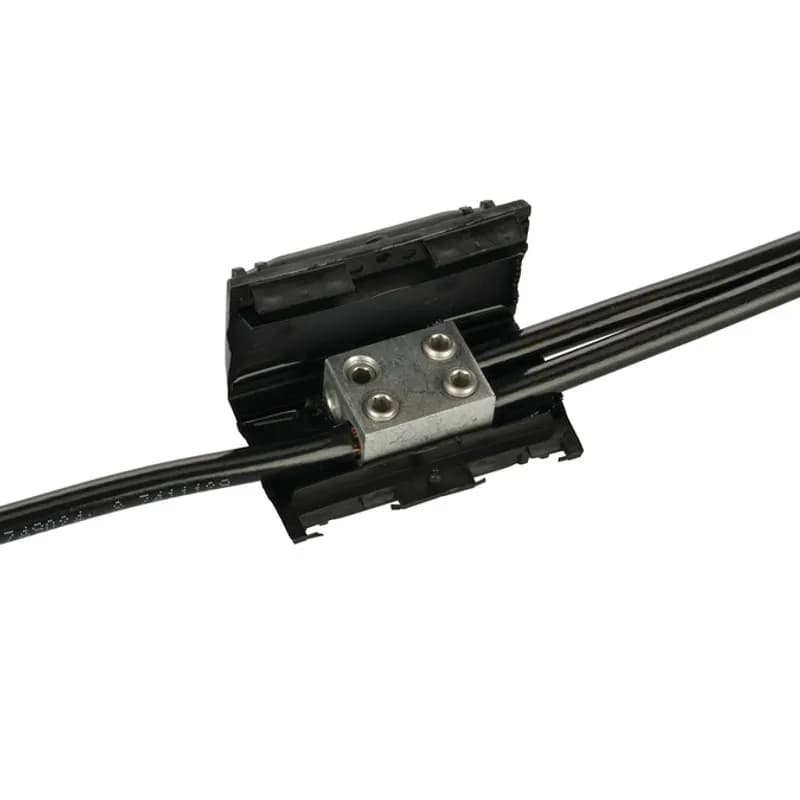

Easy-Splice Gel Tap Splice Kit with Connector for #14 - #2 AWG The Easy-Splice gel tap splice kit provides a fast and simple method for connecting, insulating, and environmentally sealing low-voltage splices. The splice kit is designed for underground and overhead environments and is useful for street lighting applications. The splice kit's dual-rated mechanical connector splices a wide range of cables, including copper and aluminum. The connector's four port design allows maximum inventory flexibility. The sealant gel protects the connection from moisture ingress, corrosion and pollution. The hinged splice closure can be installed over the connector in seconds by simply snapping the cover shut. Qualified to ANSI C119.1-1986 for underground splicing. Rated -40 degrees C to 90 degrees C.

ESGTS-2

Easy-Splice Gel Tap Splice Kit with Connector for #14 - #2 AWG The Easy-Splice gel tap splice kit provides a fast and simple method for connecting, insulating, and environmentally sealing low-voltage splices. The splice kit is designed for underground and overhead environments and is useful for street lighting applications. The splice kit's dual-rated mechanical connector splices a wide range of cables, including copper and aluminum. The connector's four port design allows maximum inventory flexibility. The sealant gel protects the connection from moisture ingress, corrosion and pollution. The hinged splice closure can be installed over the connector in seconds by simply snapping the cover shut. Qualified to ANSI C119.1-1986 for underground splicing. Rated -40 degrees C to 90 degrees C.

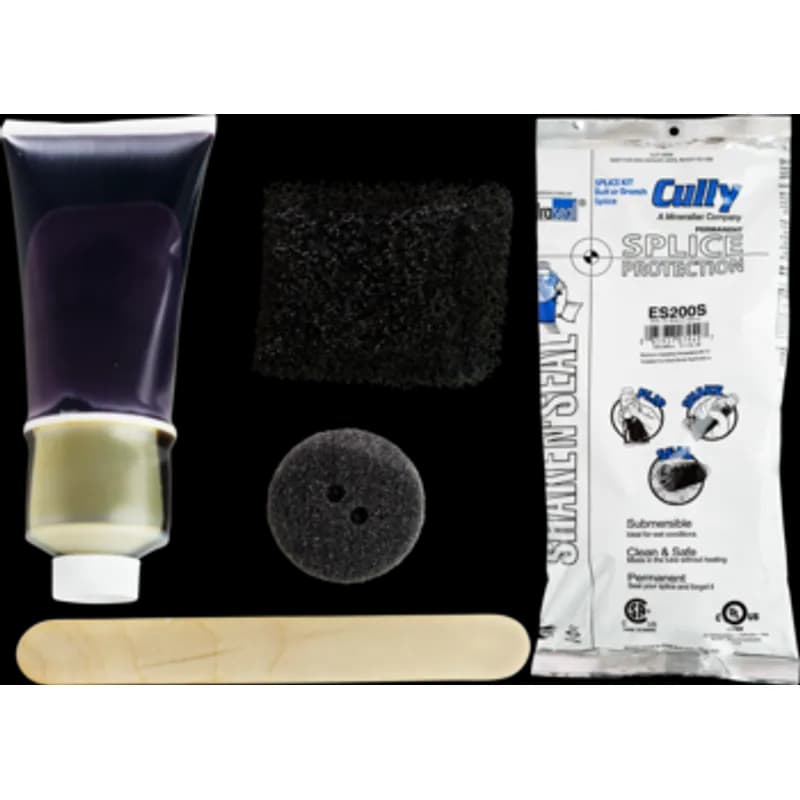

This is a 2" Uraseal electrical splice kit for butt or branch splices. It is designed for direct burial and water-tight applications. The kit uses a permanent encapsulant and is black in color. It is rated for 600 volts or less and an operating temperature of max 90° C.

ES200S

This is a 2" Uraseal electrical splice kit for butt or branch splices. It is designed for direct burial and water-tight applications. The kit uses a permanent encapsulant and is black in color. It is rated for 600 volts or less and an operating temperature of max 90° C.
