Authorized Minerallac Company Distributor
Minerallac Company 79234J - A 12-24 x 2 inch self-drilling (TEK) sheet metal screw with a hex washer head and #5 drill point. It is zinc plated. The product is supplied in a jar.
Minerallac Company

79234J

Alternate Item Number: 14178444

UPC: 085937045720

Documents & Media
Specification SheetManufacturer Product Website

Contact for Pricing

Minimum Qty: 100

Multiplier: 100

*Contact for lower quantities*

Overview

The Minerallac 79234J is a #12-24 x 2-inch self-drilling (TEK) sheet metal screw featuring a hex washer head (HWH) and #5 drill point. This screw is designed for metal-to-metal or metal-to-wood applications, eliminating the need for pre-drilling or separate washers, which simplifies installation and reduces labor time. The zinc-plated (ZP) finish provides corrosion resistance, extending the service life of the screw in industrial environments where exposure to moisture or chemicals is common. The Type-BSD thread type and 24 threads per inch ensure a secure grip and strong hold, making it suitable for high-stress applications. The hex washer head distributes the load evenly, reducing the risk of pull-through in thin materials, which is particularly important in HVAC, electrical, and general construction projects. The screw is compatible with standard hex drivers, ensuring ease of use with common tools. Supplied in a jar, the 79234J is convenient for dispensing and inventory management, making it ideal for professionals who require durable, high-strength fasteners. Its design and features make it a cost-effective solution for attaching ductwork, panels, structural components, and other applications where efficiency and reliability are critical. The #5 drill point allows for quick penetration into metal surfaces, further enhancing installation speed and accuracy.
  • Self-drilling (TEK) #5 point eliminates pre-drilling
  • Hex washer head (HWH) distributes load and prevents pull-through
  • Zinc-plated finish resists corrosion in harsh environments
  • 12-24 thread size with 24 TPI for secure fastening
  • Supplied in jar for easy dispensing and inventory control

Specifications

Material
Zinc Plated Steel
Size
12-24 x 2 in.
Package Weight (Imperial)
1.67 lbs

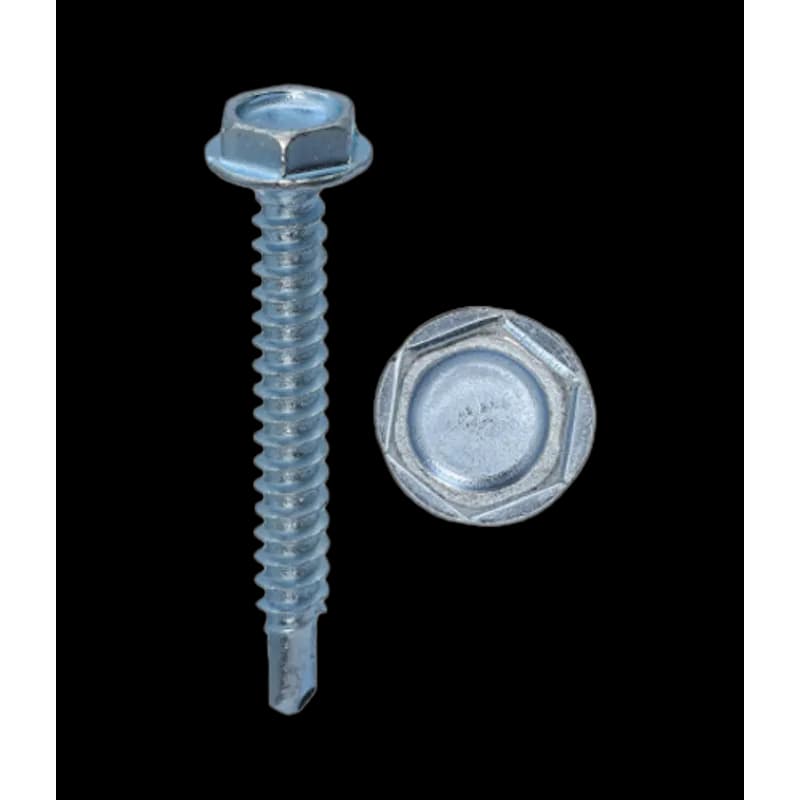

A self-drilling (TEK) sheet metal screw with a hex washer head and #3 drill point. It is made of steel with a zinc plated finish. The screw is size #12-14 and has a length of 2 inches.

79232J

A self-drilling (TEK) sheet metal screw with a hex washer head and #3 drill point. It is made of steel with a zinc plated finish. The screw is size #12-14 and has a length of 2 inches.
This is a 1/4-14 x 1-1/2 inch Tek screw with a hex washer head and neoprene washer. It is made of steel with a zinc plated finish. The screw size is 1/4"-14 and the thread type is Type-BSD.

79425J

This is a 1/4-14 x 1-1/2 inch Tek screw with a hex washer head and neoprene washer. It is made of steel with a zinc plated finish. The screw size is 1/4"-14 and the thread type is Type-BSD.
Self-drilling (TEK) sheet metal screw with a hex washer head and #3 drill point. It is zinc plated and supplied in a jar. The screw size is 1/4-14 x 2-1/2 inches.

79440J

Self-drilling (TEK) sheet metal screw with a hex washer head and #3 drill point. It is zinc plated and supplied in a jar. The screw size is 1/4-14 x 2-1/2 inches.
A 10-16 x 1/2 in self-drilling (TEK) sheet metal screw. It has a pan head with Phillips drive and a #2 drill point. The screw is zinc plated.

83008-1000

A 10-16 x 1/2 in self-drilling (TEK) sheet metal screw. It has a pan head with Phillips drive and a #2 drill point. The screw is zinc plated.
A 10-16 x 1/2 in self-drilling (TEK) sheet metal screw. It has a pan head with Phillips drive and a #2 drill point. The screw is zinc plated.

83008-2500

A 10-16 x 1/2 in self-drilling (TEK) sheet metal screw. It has a pan head with Phillips drive and a #2 drill point. The screw is zinc plated.
A 12 x 1/2 inch self-drilling (TEK) sheet metal screw. It has a pan head, square drive, and #3 drill point. The finish is zinc plated. It is supplied in a jar.

27208J

A 12 x 1/2 inch self-drilling (TEK) sheet metal screw. It has a pan head, square drive, and #3 drill point. The finish is zinc plated. It is supplied in a jar.
A self-drilling (TEK) sheet metal screw with a hex washer head and #1 drill point. It is made of steel with a zinc plated finish. The screw size is #6-20 and the length is 3/8 inch.

78606J

A self-drilling (TEK) sheet metal screw with a hex washer head and #1 drill point. It is made of steel with a zinc plated finish. The screw size is #6-20 and the length is 3/8 inch.
This is a self-drilling metal piercing screw with a pan head framing design and Phillips drive. It is size 7 x 7/16 in. and has a sharp point. The finish/color is black.

10707-1000

This is a self-drilling metal piercing screw with a pan head framing design and Phillips drive. It is size 7 x 7/16 in. and has a sharp point. The finish/color is black.

Frequently Asked Questions

What materials can this screw drill into?

The #5 TEK point allows self-drilling into sheet metal and wood without pre-drilling.

What is the thread type of this screw?

The screw features a Type-BSD thread type with 24 threads per inch.

What is the head type and size?

The screw has a hex washer head with a width of 0.309 inches and height of 0.303 inches.

What is the drill point size?

The screw features a #5 drill point for self-drilling applications.

Is this screw RoHS compliant?

Yes, the product is RoHS compliant as per the manufacturer's catalog.
