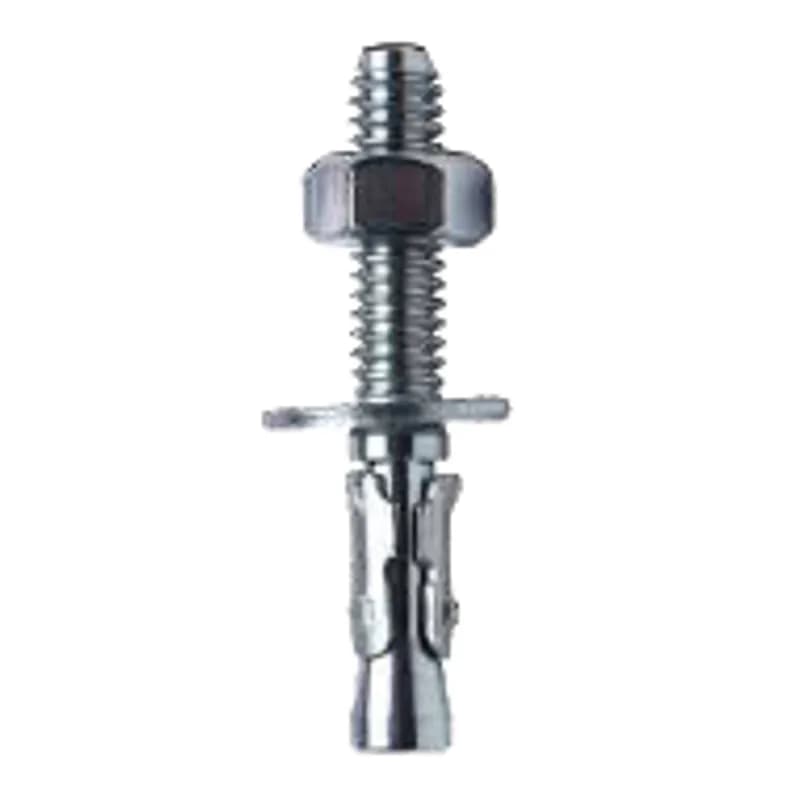

Minerallac Company 76988SS316J - 1/2-13 x 5-1/2" Heavy Duty Wedge Anchors, Drill Bit Dia. 1/2", Thread Length 3", Type 316 Stainless Steel, Jar
Minerallac Company

76988SS316J

UPC: 085937057181

Documents & Media
Manufacturer Product Website

Contact for Pricing

Minimum Qty: 25

Multiplier: 25

*Contact for lower quantities*

Overview

The Minerallac Company SKU 76988SS316J is a heavy-duty wedge anchor designed for robust fastening applications. This specific anchor features a 1/2-13 thread size and a length of 5-1/2 inches, with a thread length of 3 inches. It requires a 1/2-inch drill bit diameter for installation, ensuring a secure fit. Constructed from Type 316 stainless steel, this anchor offers superior corrosion resistance, making it ideal for use in harsh environments, including marine and chemical processing applications where standard stainless steel may not suffice. The 316 grade contains molybdenum, which enhances its resistance to pitting and crevice corrosion from chlorides. These wedge anchors are designed for permanent fastening into solid concrete, brick, or block. The anchor works by expanding a sleeve against the walls of the pre-drilled hole as the nut is tightened. This expansion mechanism provides a strong and reliable hold. Each jar contains 25 units, providing an economical option for projects requiring multiple anchors. Minerallac Company is known for producing reliable construction and electrical hardware, and this anchor upholds that standard. The 1/2-13 thread size is common for medium to heavy-duty structural attachments, suitable for securing machinery, structural components, and safety equipment. The 5-1/2 inch overall length allows for adequate embedment depth in various concrete thicknesses. For optimal performance, ensure the substrate is sound and free from cracks. The 316 stainless steel construction ensures long-term durability and resistance to environmental degradation, reducing the need for frequent replacement and maintenance. This anchor is a critical component for ensuring the integrity and safety of installations in demanding industrial settings.
  • Heavy Duty Wedge Anchor with 1/2-13 thread size and 5-1/2" overall length.
  • Constructed from Type 316 Stainless Steel for superior corrosion and chloride resistance.
  • Requires a 1/2" drill bit diameter for installation.
  • Features a 3" thread length for secure embedment.
  • Supplied in a jar containing 25 units.

Specifications

Package Dimensions (L x W x H)
4 IN x 4 IN x 6 IN
Package Dimensions (L x W x H)
10.16 cm x 10.16 cm x 15.24 cm
Package Weight (Imperial)
8.5300 L
Package Weight (Metric)
3.8690 kg

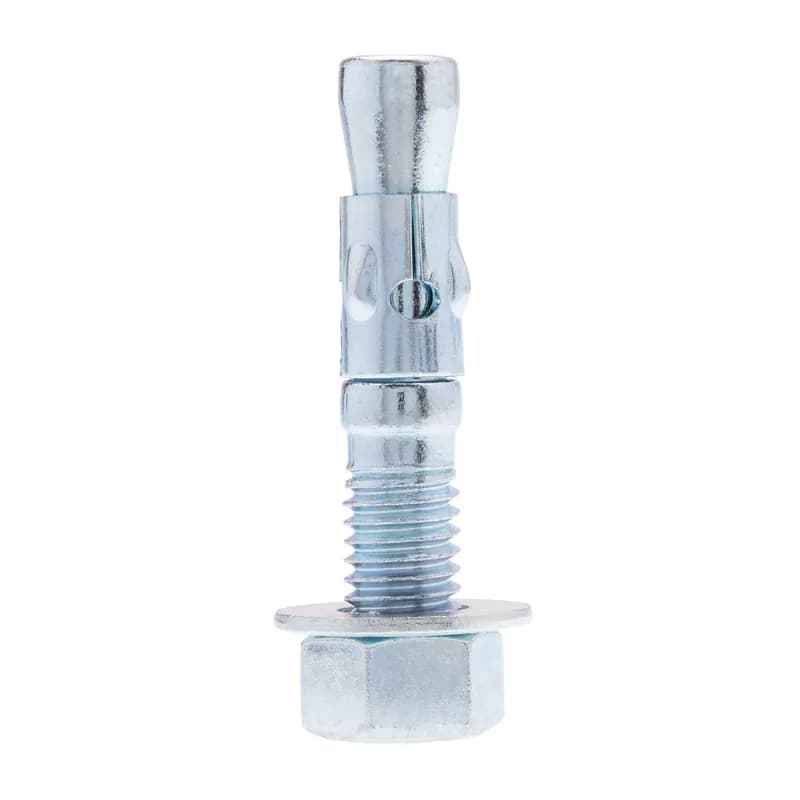

3/8 x 2-1/4 Wedge Anchor Galvanized
