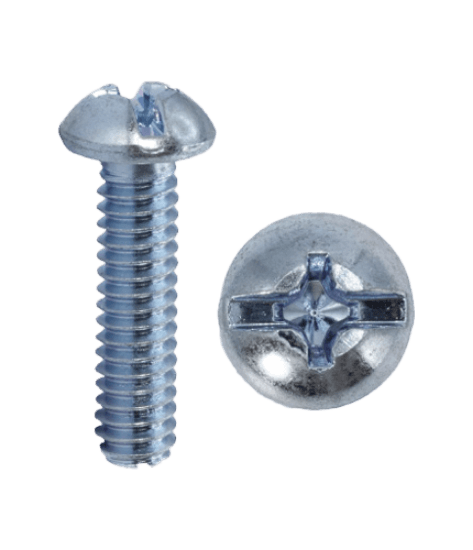

Minerallac Company 52612J Machine screw with a round head and combo slotted/Phillips drive. It is made of steel…
Alternate Item Number: 12112445
UPC: 085937080967
Documents & Media
Contact for Pricing
Minimum Qty: 100
Multiplier: 100
*Contact for lower quantities*
Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.
Overview
- 10-24 thread size
- 3/4 inch length
- Zinc-plated for corrosion resistance
- Round head style
- Combo slotted/Phillips drive
- Jar packaging for bulk use
- Manufactured by Minerallac Company
- Made in the USA
Specifications
Application | Machine screws form a fastening that is superior in strength to spaced thread screws. For use with a pre-tapped hole or with a nut. |
Drive Type | Slotted / Phillips Combo |
Drive Type | Phillips;Slotted;Slotted / Phillips Combo |
Finish | Zinc Plated |
Head Color | Silver |
Head Diameter | 0.346 in |
Head Diameter | 8.7884 mm |
Head Height | 0.13 in |
Head Height | 3.302 mm |
Head Type | Round Head |
Length | 0.75 in |
Length | 19.05 mm |
Material | Zinc |
Material | Steel |
Phillips Driver Size | #2 |
Size | 10-24 x 3/4" |
Thread per inch | 24 |
Thread Type | 2A External |
Type | Machine Screw |
Package Weight (Imperial) | 0.67 lbs |
52608J
Machine screw with a round head and combo slotted/Phillips drive. Made of steel with a zinc plated finish. Size is 10-24 x 1/2 in., with 24 threads per inch, a 0.346 in. head diameter, and a 0.130 in. head height. For use with a pre-tapped hole or with a nut.
52616J
Machine screws with a 10-24 x 1 inch size, round head, and slotted/Phillips combo drive. They are made of steel with a zinc plated finish and a silver head color. Intended for use with a pre-tapped hole or with a nut.
52809J
Machine screw made of steel with a zinc plated finish. It is sized 10-32 x 1/2 in and has a round head with a slotted/Phillips combo drive. Intended for use with a pre-tapped hole or with a nut.
50120J
Machine screw for use with a pre-tapped hole or with a nut. It is made of steel with a zinc plated finish. The screw is 6-32 size and 1-1/4 in. long, with a flat head and slotted drive.
52817J
A machine screw for use with a pre-tapped hole or with a nut. It is made of steel with a zinc plated finish. The screw is 10-32 x 1 inch, with a round head and a slotted/Phillips combo drive.
52624J
Machine screws with a round head and combo Phillips/Slotted drive. They are made of steel with a zinc plated finish. Size is 10-24 x 1-1/2 in., with a 2A external thread and 24 threads per inch.Frequently Asked Questions
What type of screw is this Minerallac product?
This is a 10-24 x 3/4" machine screw with a round head.
What material is the 52612J machine screw made of?
The machine screw is made of steel.
What is the finish of this Minerallac machine screw?
The machine screw has a zinc-plated finish.
What type of drive does the 52612J machine screw have?
It features a combo drive, compatible with both slotted and Phillips head screwdrivers.
What is the Phillips driver size for this screw?
The Phillips driver size required for this screw is #2.
What is the thread type and threads per inch for this screw?
It has a 2A external thread type with 24 threads per inch.
Is this product compliant with the Buy American Act?
No, this product is not Buy American Act compliant.
Is the 52612J machine screw RoHS compliant?
Yes, this product is RoHS compliant.
Is this product UL compliant?
The document states UL Compliant: Yes.
Does this product contain chemicals listed under Proposition 65?
This product is in compliance with Prop65 and is not known to contain associated chemicals.
