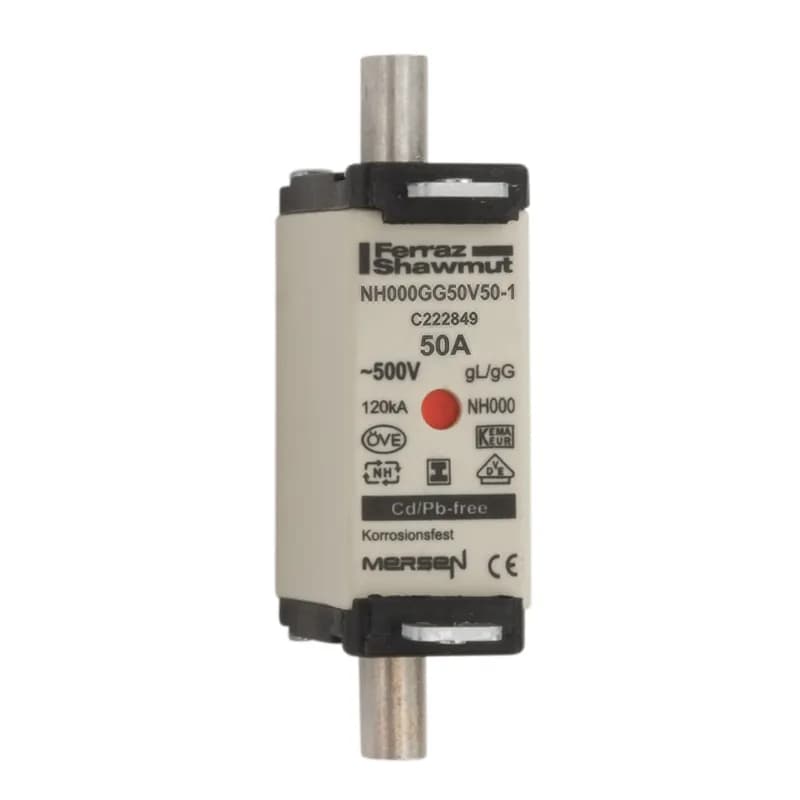

Mersen Z218246 DIN NH Standard fuse-link gG Size NH0 500VAC 250VDC 50A live tags Double indicator Body…
Alternate Item Number: NH0GG50V50
Documents & Media
Contact for Pricing
Minimum Qty: 3
Multiplier: 3
*Contact for lower quantities*
Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.
Overview
- Type gG full-range breaking capacity fuse for low-voltage industrial protection
- Rated 500V AC / 250V DC, 50A current rating
- Double indicator for visual fuse status confirmation without removal
- Live gripping-lugs enable safe handling under load
- Body width 30mm, fits standard NH0 fuse bases
- Power dissipation 4.1W at rated current
- Compatible with Mersen NH fuse system components
Specifications
AC Voltage Rating | 500 V |
Amperage Rating | 50 A |
Application | gG: General purpose cable and line protection |
Body Material | Ceramic |
Brand Name | Mersen |
Connection | Plain Blades |
Connection Material | Silver-Plated Copper |
DC Voltage Rating | 250 V |
Interrupt Rating | 120 kA |
Mounting | Clip |
Size | 4.92 x 1.18 x 2.4 in |
Size | 125 x 30 x 61 mm |
Special Features | Dimensions according to DIN 43 620 parts 1 to 4 Non-isolated gripping lugs Double indicator 0 cadmium |
Standard | VDE 0636 Part 201 IEC 60269-1 and -2 |
Type | IEC NH Fuse-Links |
Type Of Indicators | Double indicator |
Voltage Rating | 500 VAC |
Package Dimensions (L x W x H) | 4.92 in x 1.18 in x 2.4 in |
Package Dimensions (L x W x H) | 125 mm x 30 mm x 61 mm |
Package Weight (Imperial) | 0.595 lb |
Package Weight (Metric) | 0.270 kg |
GPM-SRR90
Fuse Block 600VAC 600VDC Class CC 30A 1/4in Quick Connect / Solder 90 angle screw Knob Panel Mount
C331156
Fuse Holder UltraSafe™ 800VAC 1000VDC UL Fuse size 14x51 1-Pole Visual Indicator Microswitch Pressure Plate IP20
LCC5
POWR-JAW clamps improve the contact between fuse and clip. The unnecessary heat from poor contact due to the loss of spring force in the clips can cause nuisance fuse opening and premature aging of surrounding components. High temperature phenolic resin knob designed for the most severe environments 7 sizes to provide effective coverage. Simple design makes installation easy.
Frequently Asked Questions
What is the rated voltage for these NH fuse-links?
The rated voltage AC is 500 VAC and the rated voltage DC is 250 VDC.
What sizes are available for these NH fuse-links?
The available sizes are 000, 00, 0, 1, 2, and 3.
What is the ampere range for the NH fuse-links?
The ampere range for these fuse-links is from 2 A to 800 A.
What are the main applications for gG type NH fuse-links?
gG type NH fuse-links are used for general purpose cable and line protection.
What standards do these NH fuse-links comply with?
These fuse-links comply with VDE 0636 Part 201 and IEC 60269-1 and -2 standards.
What is the breaking capacity for these fuse-links?
The rated breaking capacity AC for all sizes is 120 kA.
What materials are the body and contacts made of?
The body material is ceramic, and the contact materials are copper, silver-plated.
What does the double indicator feature signify?
The double indicator shows the status of the fuse-link; visibility of the red indicator signals conduction, and it is no longer visible after operation.
Are these fuse-links isolated gripping lugs?
No, these fuse-links feature non-isolated gripping lugs.
What is the width of a Size 1 fuse-link?
The width of a Size 1 fuse-link is 29.5 mm.
