Mersen V226729 - NH plastic base Size NH3 1000VAC 1000VDC 630A 3-Pole DIN Rail Connection Screw Indirect touch protection IP20
Mersen

V226729

Alternate Item Number: BB33PPRFS

Contact for Pricing

Overview

The Mersen V226729 is a robust NH3-size, 3-pole fuse-base designed for industrial applications requiring high voltage and current protection. Rated for 1000VAC and 1000VDC, this unit can handle up to 630A, making it suitable for demanding electrical systems. Constructed with a durable plastic base and featuring stable, silver-plated electrolytic copper contact springs, it ensures reliable performance even under high thermal stress. The fuse-base is designed for DIN rail mounting, facilitating easy and secure installation within control panels and electrical enclosures. Its IP20 rating provides protection against solid objects greater than 12.5mm, ensuring safety during operation. This model includes indirect touch protection, enhancing user safety by preventing accidental contact with live parts. The three-pole design comes with two phase-partition walls for proper isolation. Mersen's NH fuse-bases are known for their closely mountable parallel rows and the availability of clip-on plug-on covers for enhanced safety. The stable contact springs are made from one piece of electrolytic copper, with separate springing provided by highly resilient captive steel springs, making the contacts invulnerable to high thermal stress. This fuse-base is compatible with NH fuse-links and is manufactured in the USA.
  • NH3 Size, 3-Pole Configuration
  • 1000VAC / 1000VDC Voltage Rating
  • 630A Current Rating
  • DIN Rail and Screw Mounting Options
  • IP20 Rated with Indirect Touch Protection

Specifications

AC Voltage Rating
1000 V
Amperage Rating
630 A
Application
For fuse-links with rated voltages up to 1000VAC and 1000VDC
Brand Name
Mersen
Connection
Screw
DC Voltage Rating
1000 V
Mounting
DIN Rail
Number Of Poles
3
Size
5.61 x 8.78 x 10.63 in
Size
142.5 x 223 x 270 mm
Special Features
Polyamide insulating bases Silver-plated contacts High-pressure spring contacts Screw or rail mounting Connecting cable: 50mm Multipolar bases possible by direct linkage in 00 size and with separator accessory in sizes 0, 1, 2 and 3 Variety of options for protecting active parts through use of accessories: separating plates, separator, cover shields and fuse cover Dual cable-connection system on 00 size: by screw or clamp
Standard
IEC 60269 Compliance Dimensions in accordance with DIN 43620 DIN VDE 0636-2, 0636-21
Type
IEC NH Fuse Bases
Package Dimensions (L x W x H)
5.61 in x 8.78 in x 10.63 in
Package Dimensions (L x W x H)
142.5 mm x 223 mm x 270 mm
Package Weight (Imperial)
4.894 lb
Package Weight (Metric)
2.220 kg

Similar Products

V216724

V223739

Amperage Rating: 500 A

Application: gG: general purpose cable and line protection

Connection: Plain Blades

V226315

Amperage Rating: 160 A

Connection: Central Bolted Tag

Interrupt Rating: 80 kA

V226338

V229719

Amperage Rating: 35 A

Application: gG: general purpose cable and line protection

Connection: Plain Blades

V223716

Amperage Rating: 35 A

Application: gG: general purpose cable and line protection

Connection: Plain Blades

You May Also Be Interested In

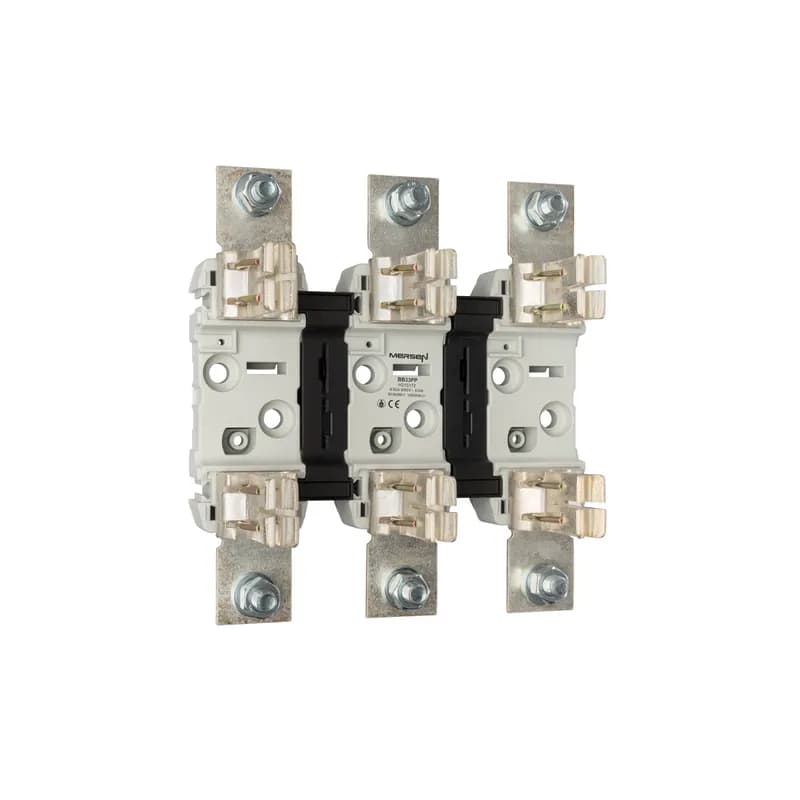

NH plastic base Size NH3 1000VAC 1000VDC 630A 3-Pole Screw Connection Screw Indirect touch protection IP20
