Contact for Pricing
Minimum Qty: 50
Multiplier: 50
*Contact for lower quantities*
Overview
- 6-pole, 1-phase busbar
- Rated for 600VAC and 1000VDC
- Compatible with Mersen USCC and USM fuse holders
- Compact design reduces panel space
- Touch-safe connections for enhanced safety
Specifications
Amperage Rating | 200 A |
Application | Applications where Mersen USM/USCC fuseholders are in use UL 508 panels Solar string combiner boxes Control panels Power distribution panels |
Brand Name | Ferraz Shawmut |
Class | Accessory |
Connection | Comb Bus Bar |
Phase | 1 |
Poles | 6P 1PH |
Poles | 6 |
Poles | 6P |
Series | UltraSafe |
Series | USBB UltraSafe |
Series | USBB |
Special Features | • Decrease installation time compared to wire solutions • Save panel space with compact design and footprint • Reduce shock hazards with touchsafe cover (included) • Environmentally conscious, RoHS compliant and lead free • Cuttable design offers flexibility |
Standard | UL Listed to standard UL508, File E348854 IEC Compliant to standard 60947-2 |
Type | UltraSafe Accessories |
Voltage Rating | 600 VAC |
Package Dimensions (L x W x H) | 4.17 in x 0.59 in x 0.61 in |
Package Dimensions (L x W x H) | 105.918 mm x 14.986 mm x 15.494 mm |
Package Weight (Imperial) | 0.079 lb |
Package Weight (Metric) | 0.036 kg |
R227600
Fuse Holder UltraSafe™ 800VAC 800VDC UL Fuse size 27x60 1-Pole Visual Indicator Microswitch Faston Lugs IP20
1MSC101

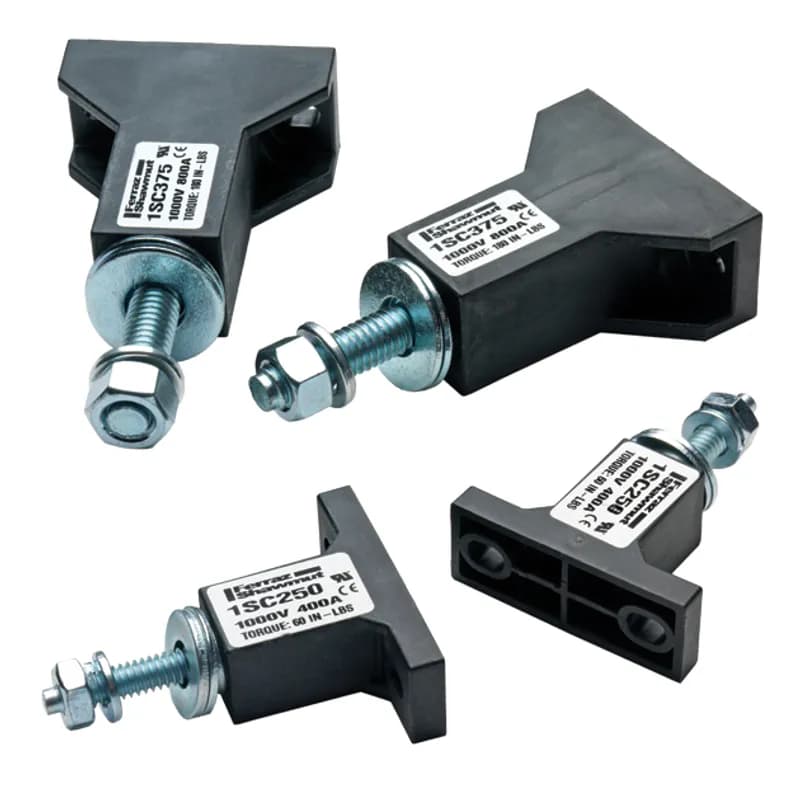

Mersen 1SC and 1MSC semiconductor fuse blocks feature modular mounting that offers greater flexibility in adjusting to various fuse lengths. Both stud type and integral box connector versions are offered to allow for user preference of wire terminations. The integral box connector versions also provide for greater heat dissipation. All modular blocks are supplied in pairs but need to be ordered as two items to suit one fuse. Mounting hardware is supplied with the blocks 600 Volts 100 Amps with .25 inch bolt.
1MSC108
Mersen 1SC and 1MSC semiconductor fuse blocks feature modular mounting that offers greater flexibility in adjusting to various fuse lengths. Both stud type and integral box connector versions are offered to allow for user preference of wire terminations. The integral box connector versions also provide for greater heat dissipation. All modular blocks are supplied in pairs but need to be ordered as two items to suit one fuse. Mounting hardware is supplied with the blocks 2500 Volts 400 Amps .25 inch series.1MSC102
Mersen 1SC and 1MSC semiconductor fuse blocks feature modular mounting that offers greater flexibility in adjusting to various fuse lengths. Both stud type and integral box connector versions are offered to allow for user preference of wire terminations. The integral box connector versions also provide for greater heat dissipation. All modular blocks are supplied in pairs but need to be ordered as two items to suit one fuse. Mounting hardware is supplied with the blocks 600 Volts 400 Amps .25 inch series.1MSC103
Mersen 1SC and 1MSC semiconductor fuse blocks feature modular mounting that offers greater flexibility in adjusting to various fuse lengths. Both stud type and integral box connector versions are offered to allow for user preference of wire terminations. The integral box connector versions also provide for greater heat dissipation. All modular blocks are supplied in pairs but need to be ordered as two items to suit one fuse. Mounting hardware is supplied with the blocks 600 Volts 400 Amps .375 inch series.
1MSC104
Mersen 1SC and 1MSC semiconductor fuse blocks feature modular mounting that offers greater flexibility in adjusting to various fuse lengths. Both stud type and integral box connector versions are offered to allow for user preference of wire terminations. The integral box connector versions also provide for greater heat dissipation. All modular blocks are supplied in pairs but need to be ordered as two items to suit one fuse. Mounting hardware is supplied with the blocks 600 Volts 600 Amps .375 inch series.
Z1006203
Fuse Holder UltraSafe™ 800VAC 1000VDC UL Fuse size 22x58 1-Pole Visual Indicator Microswitch Pressure Plate IP20
Frequently Asked Questions
What is the voltage rating for the Mersen USBB1PH25K6 busbar?
The Mersen USBB1PH25K6 busbar is rated for 600VAC and 1000VDC.
What Mersen fuse holders are compatible with this busbar?
The USBB1PH25K6 busbar is designed for use with Mersen UltraSafe Class CC (USCC) and Midget (USM) fuse holders.
Where is the Mersen USBB1PH25K6 busbar manufactured?
The Mersen USBB1PH25K6 busbar is manufactured in the US.
What is the primary benefit of using this busbar system?
This busbar system facilitates efficient power distribution, offering a compact alternative to traditional wiring that reduces panel space and simplifies installation.
