Contact for Pricing

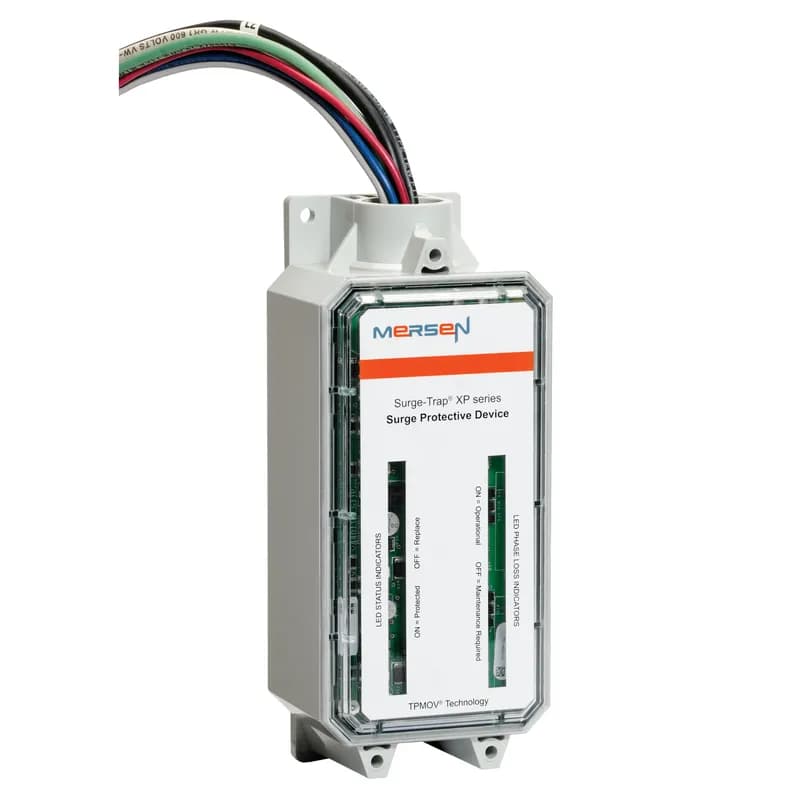

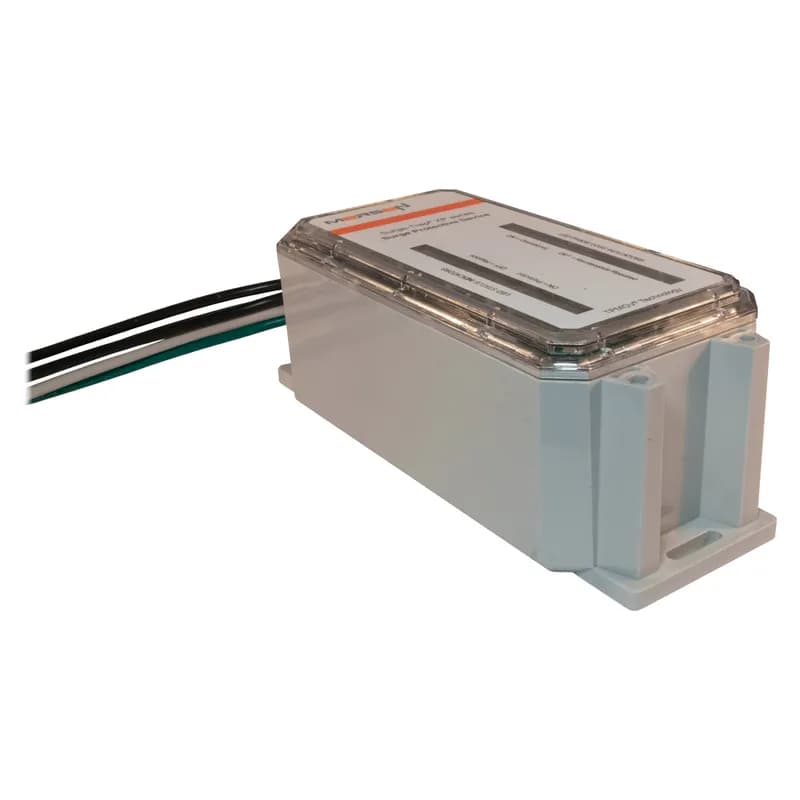

Overview
- Type 1 Surge Protective Device (SPD)
- 240/120V, High Leg Delta compatible
- 100 kA per phase surge capacity
- Integrated EMI/RFI Filtering
- TPMOV® technology for enhanced safety
Specifications
Application | Service entrance at low to medium risk exposure level Commercial and Industrial Distribution Panels or Control Branch Panels Any critical application that requires a high to medium level of protection |
Brand Name | Mersen |
Connection | Pre-wired |
Connection Type | Line or Load Side |
Current Rating | 100 kA |
Frequency | 50-60 Hz |
Frequency Rating | 50/60 HZ |
Frequency Rating, Maximum | 60 Hz |
Frequency Rating, Minimum | 50 Hz |
Insulation | Polycarbonate |
Material | Polycarbonate |
Mounting | Panel or Wall Mount |
Mounting Type | Panel Mount |
Operating Temperature, Maximum | 185 F |
Operating Temperature, Maximum | 85 C |
Operating Temperature, Minimum | -40 F |
Operating Temperature, Minimum | -40 C |
Phase | High Leg Delta |
Poles | 3P+G |
Series | STXT |
Short Circuit Rating | 200 kA |
Short-Circuit Rating | 200 kA |
Size | 7.4 x 7.08 x 3.68;187.96 x 179.832 x 93.472 in;mm |
Special Features | Designed with industry leading Mersen TPMOV technology Standard features include LED phase loss indication and EMI/ RFI filter Up to -50dB from 10kHz to 100MHz Optional Form C Dry Contacts and audible alarm with silence button Mounting hub and mounting feet for installation flexibility Up to 10 Modes of Protection 10-year manufacturer’s warranty |
Special Features | Designed with the industry leading Mersen TPMOV® Technology (internally fused) Premium 200kA surge capacity for longer life and higher single impulse withstand Includes EMI/RFI filter for cleaner attenuation LED status indicator (ON = Good, OFF = Replace) LED phase loss indicators (ON = Operational, OFF = Maintenance Required) NEMA 4X enclosure for outdoor or indoor use Mounting hub and mounting feet for installation flexibility Optional audible alarm and remote dry contacts For use in ANSI/UL Type 1 or 2 SPD installations Up to 10 Modes of Protection (L-N, L-L, L-G, N-G) 10-year warranty |
Standard | ANSI/UL 1449 5th Edition, Type 1 SPD, File E210793 CSA C22.2, Type 1 SPD ANSI/IEEE C62.41.1, C62.41.2, C62.45 UL96A Lightning Protection RoHS Compliant |
Type | NEMA UL CSA TYPE 1 |
Type Of Indicators | LED and Remote Audible Alarm |
UL SPD Type | Type 1 |
Voltage Rating | 240/120 V |
Package Weight (Imperial) | 3.800 L |
Package Weight (Metric) | 1.724 kg |
